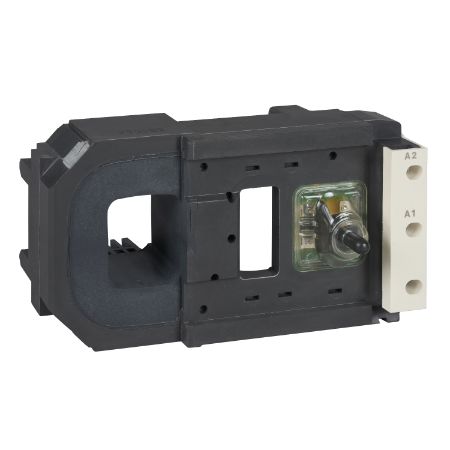

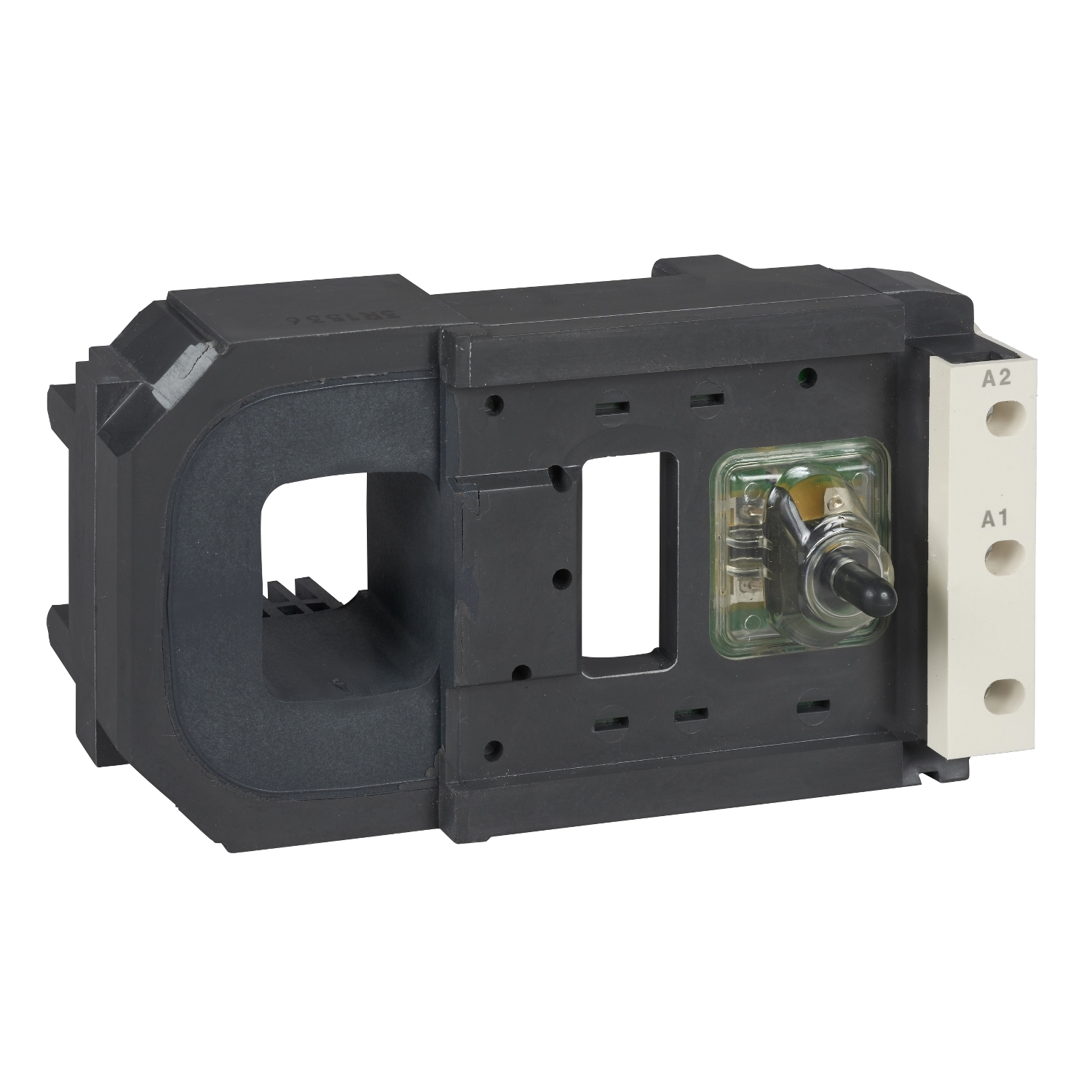

Picture of TeSys F - contactor coil - LX4FK - 110 V DC
SKU:

LX4FK110

TeSys F - contactor coil - LX4FK - 110 V DC

Old price: $2,013.00 INC GST
$1,268.19 INC GST
Available for Shipping : 12-Mar-2026
TeSys F - contactor coil - LX4FK - 110 V DC
  • Coil designed for low sealed consumption
  • High temperature tolerance up to 55°C
  • Reliable with high operating rates up to 2400 cycles/hour
  • Green Premium product
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Mar-2026
Environmental Disclosure
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F DC coil 110V (voltage code FD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F500. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Mechanical durability 10 Mcycles
Device short name LX4FK
Product compatibility LC1F500
Operating time 50...60 ms closing, 45...60 ms opening
Maximum operating rate 2400 cyc/h 55 °C
Inductance of closed circuit 280 H
Range TeSys
Product or component type contactor coil
Range compatibility TeSys TeSys F LC1F contactor
Control circuit type DC low consumption
Range of product TeSys F
[Uc] control circuit voltage 110 V DC
Average resistance 2450 Ohm holding at 20 °C, 11.5 Ohm inrush at 20 °C
Complementary
Inrush power in W 1100-1100 W (at 20 °C)
Coil technology without built-in suppressor module
Hold-in power consumption in W 6-6 W at 20 °C
Control circuit voltage limits operational: 0.85...1.1 Uc (at 55 °C), drop-out: 0.2...0.35 Uc (at 55 °C)
Environment
Net weight 1.08 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 10.0 cm
Package 1 Length 19.0 cm
Package 1 Weight 1.217 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.772 kg
