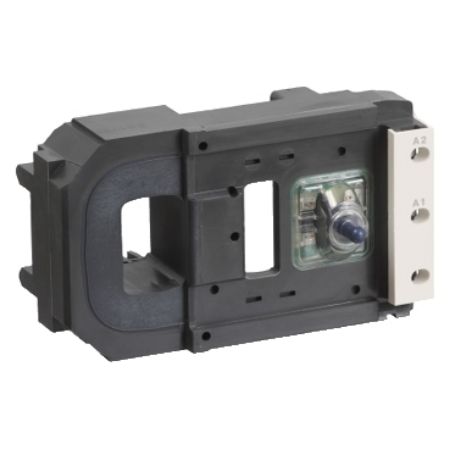

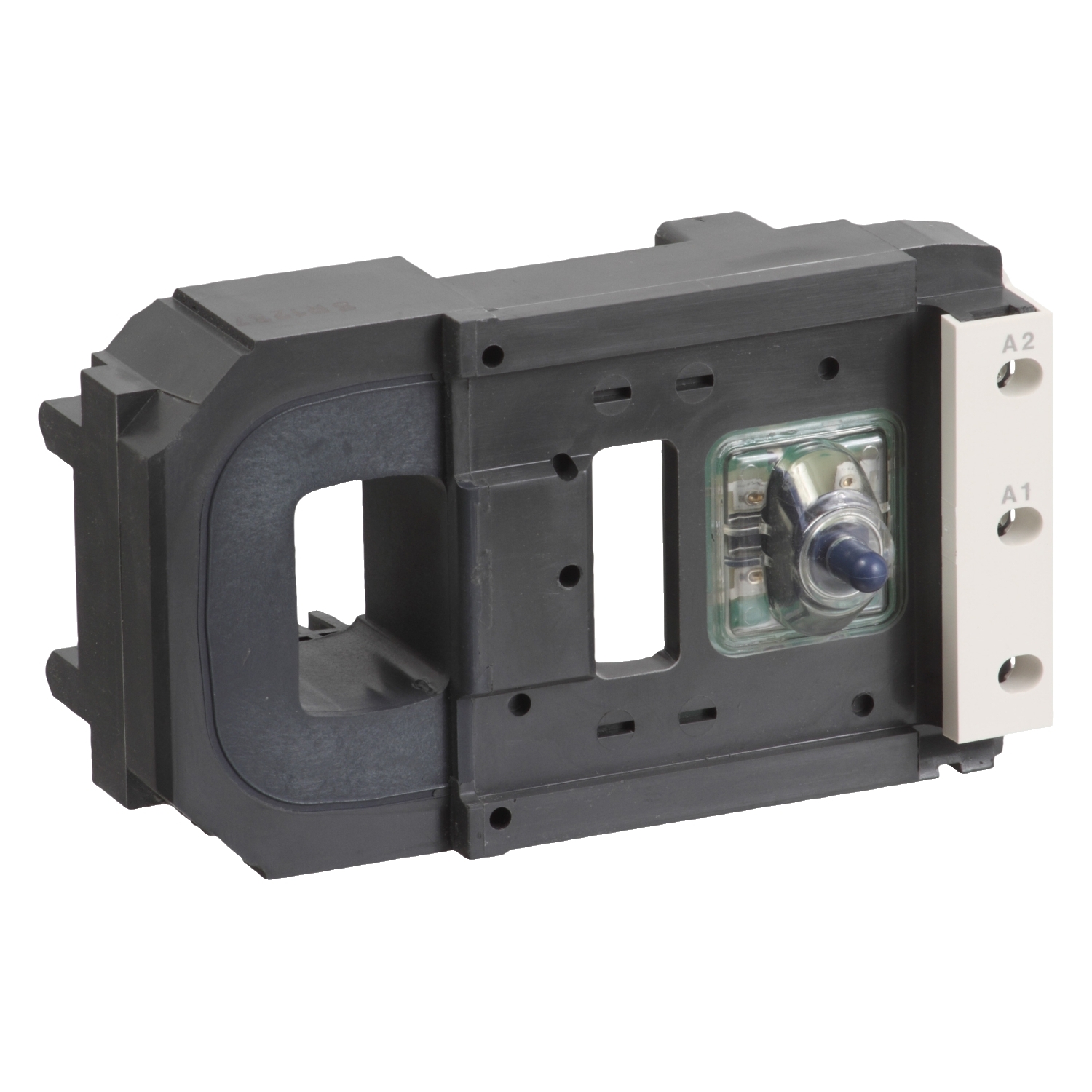

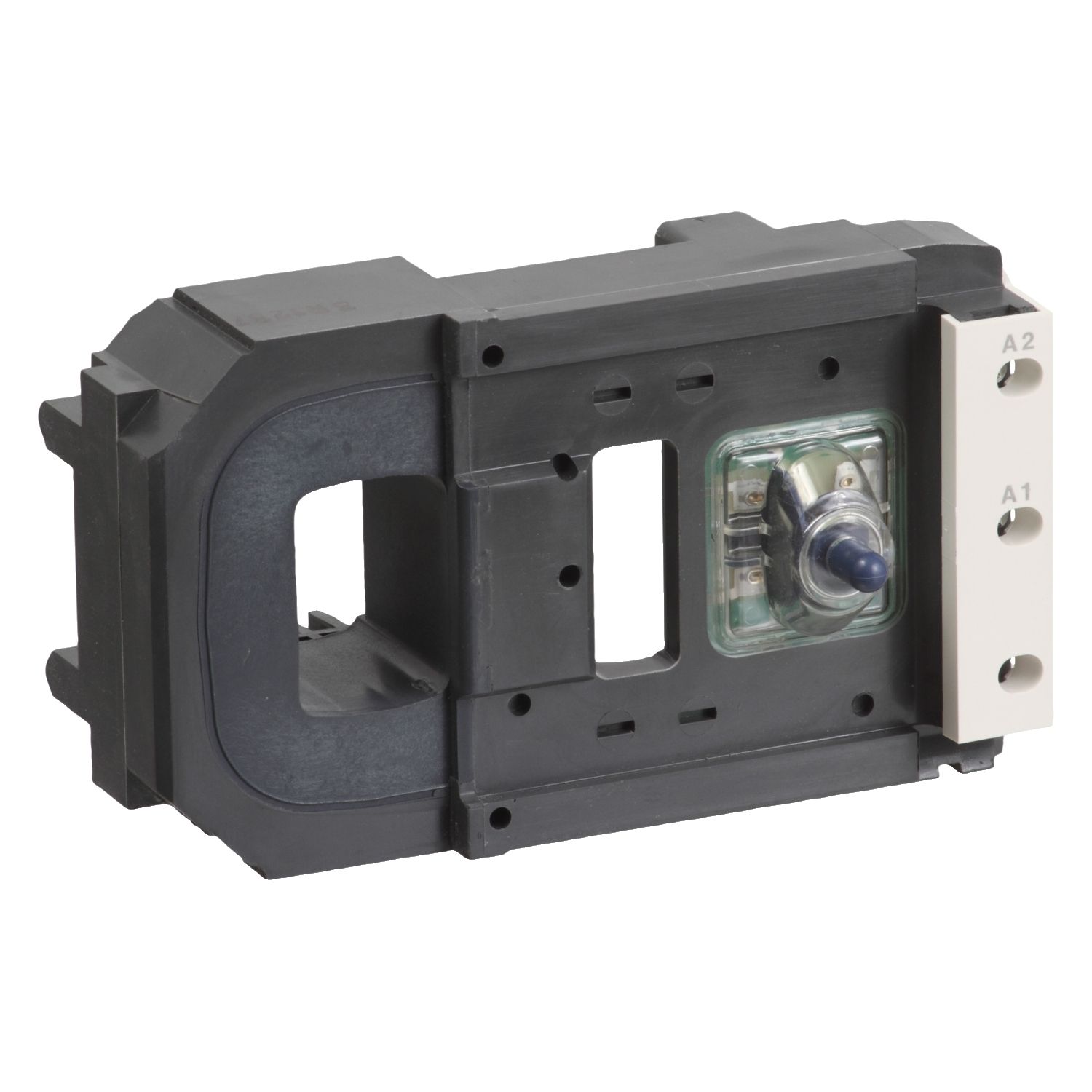

Picture of TeSys F - contactor coil - LX4FJ - 24 V DC
SKU:

LX4FJ024

TeSys F - contactor coil - LX4FJ - 24 V DC

Old price: $877.80 INC GST
$553.01 INC GST
Available for Shipping : 02-Feb-2026
TeSys F - contactor coil - LX4FJ - 24 V DC
  • Energy saving: low inrush consumption
  • Excellent durability with high operating rates up to 2400 cycles/hour
  • Reliable performance under high temperature up to 55°C
  • Green Premium compliant
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Catalog
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F DC coil 24V (voltage code BD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F400. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Mechanical durability 10 Mcycles
Device short name LX4FJ
Product compatibility LC1F400
Operating time 50...60 ms closing, 45...60 ms opening
Maximum operating rate 2400 cyc/h 55 °C
Inductance of closed circuit 56 H
Range TeSys
Product or component type contactor coil
Range compatibility TeSys TeSys F LC1F contactor
Control circuit type DC low consumption
Range of product TeSys F
[Uc] control circuit voltage 24 V DC
Average resistance 558 Ohm holding at 20 °C, 2.5 Ohm inrush at 20 °C
Complementary
Inrush power in W 1000-1000 W (at 20 °C)
Coil technology without built-in suppressor module
Hold-in power consumption in W 6-6 W at 20 °C
Control circuit voltage limits operational: 0.85...1.1 Uc (at 55 °C), drop-out: 0.2...0.35 Uc (at 55 °C)
Environment
Net weight 0.97 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.500 cm
Package 1 Width 10.000 cm
Package 1 Length 9.500 cm
Package 1 Weight 1.160 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 2.520 kg
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 90.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 173.280 kg
