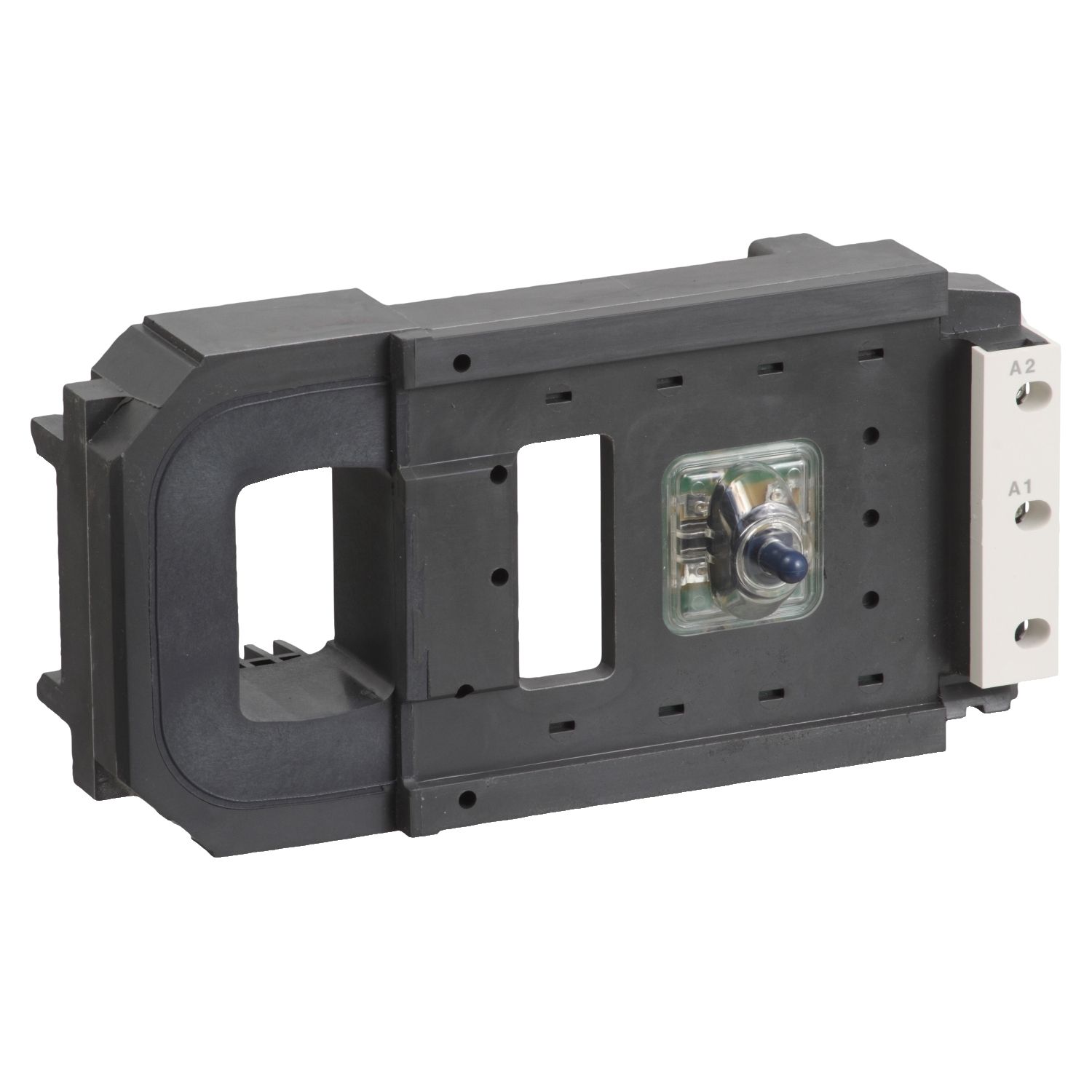

Picture of TeSys F - contactor coil - LX4FL - 110 V DC
SKU:

LX4FL110

TeSys F - contactor coil - LX4FL - 110 V DC

Old price: $1,988.80 INC GST
$1,252.94 INC GST
Available for Shipping : 08-Mar-2026
TeSys F - contactor coil - LX4FL - 110 V DC
  • Energy saving: low inrush consumption
  • Excellent durability with high operating rates up to 1200 cycles/hour
  • Reliable performance under high temperature up to 55°C
  • Green Premium compliant
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Mar-2026
Environmental Disclosure
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F DC coil 110V (voltage code FD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F630, LC1F1250. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 1200 cycles/hour. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Mechanical durability 5 Mcycles
Device short name LX4FL
Product compatibility LC1F630, LC1F1250
Operating time 60...70 ms closing, 40...50 ms opening
Maximum operating rate 1200 cyc/h 55 °C
Inductance of closed circuit 180 H
Range TeSys
Product or component type contactor coil
Range compatibility TeSys TeSys F LC1F contactor
Control circuit type DC low consumption
Range of product TeSys F
[Uc] control circuit voltage 110 V DC
Average resistance 1680 Ohm holding at 20 °C, 8.1 Ohm inrush at 20 °C
Complementary
Inrush power in W 1600-1600 W (at 20 °C)
Coil technology without built-in suppressor module
Hold-in power consumption in W 9-9 W at 20 °C
Control circuit voltage limits operational: 0.85...1.1 Uc (at 55 °C), drop-out: 0.2...0.35 Uc (at 55 °C)
Environment
Net weight 1.45 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.500 cm
Package 1 Width 13.000 cm
Package 1 Length 23.300 cm
Package 1 Weight 1.472 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.229 kg
