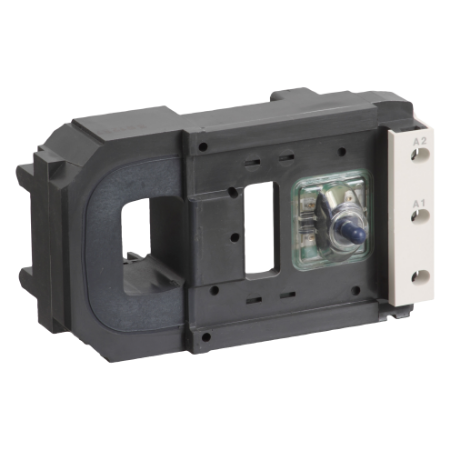

Picture of TeSys F - contactor coil - LX1FJ - 415...440V AC 40...400 Hz
SKU:

LX1FJ415

TeSys F - contactor coil - LX1FJ - 415...440V AC 40...400 Hz

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
TeSys F - contactor coil - LX1FJ - 415...440V AC 40...400 Hz
  • Stable performance: can operate on networks with harmonic numbers within 7
  • Energy saving: low inrush consumption
  • Excellent durability with high operating rates up to 2400 cycles/hour
  • Reliable performance under high temperature up to 55°C
  • Green Premium compliant
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Catalogue
Product Page Link
Product Data Sheet
TeSys F AC coil 415/440V 40-400Hz (voltage code N7/R7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F400. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Mechanical durability 10 Mcycles
Device short name LX1FJ
Product compatibility LC1F400
Operating time 40...75 ms closing, 100...170 ms opening
Maximum operating rate 2400 cyc/h 55 °C
Inductance of closed circuit 19.4 H
Range TeSys
Product or component type contactor coil
Range compatibility TeSys TeSys F LC1F contactor
Control circuit type AC at 40...400 Hz
Range of product TeSys F
[Uc] control circuit voltage 415...440 V AC 40...400 Hz
Average resistance 4070 Ohm holding at 20 °C, 145 Ohm inrush at 20 °C
Complementary
Heat dissipation 14-14 W at 40...400 Hz
Hold-in power consumption in VA 15-15 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 1075-1075 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Control circuit voltage limits drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C), operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Environment
Net weight 1 kg
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.542 cm
Package 1 Width 9.144 cm
Package 1 Length 10.16 cm
Package 1 Weight 1.089 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.316 kg

Related products

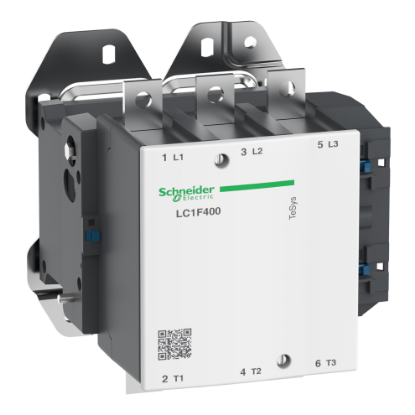

Picture of TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 400 A - coil 415 V AC
