Picture of TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 400 A - coil 415 V AC
SKU:

LC1F400N7

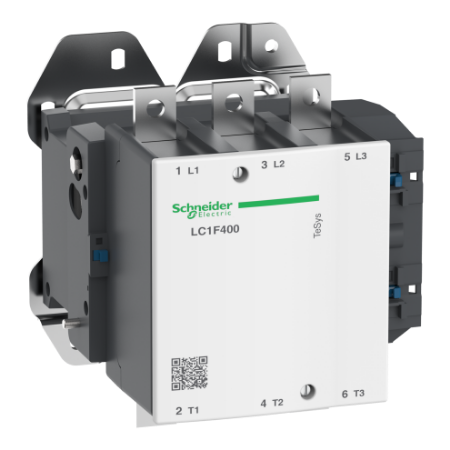

TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 400 A - coil 415 V AC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 400 A - coil 415 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Brochure
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 3P
[Ie] rated operational current 400 A (at <55 °C) at <= 440 V AC AC-3, 500 A (at <40 °C) at <= 440 V AC AC-1
Utilisation category AC-1, AC-4, AC-3
Range TeSys
Product or component type contactor
Contactor application motor control, resistive load
[Ue] rated operational voltage <= 460 V DC, <= 1000 V AC 50/60 Hz
Range of product TeSys F
[Uc] control circuit voltage 415 V AC 40...400 Hz
Complementary
Heat dissipation 14-14 W
[Icw] rated short-time withstand current 1000 A 40 °C - 10 min, 1200 A 40 °C - 3 min, 1700 A 40 °C - 1 min, 2400 A 40 °C - 30 s, 3600 A 40 °C - 10 s
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Motor power kW 110 kW at 220...230 V AC 50/60 Hz (AC-3), 185 kW at 1000 V AC 50/60 Hz (AC-3), 280 kW at 660...690 V AC 50/60 Hz (AC-3), 257 kW at 500 V AC 50/60 Hz (AC-3), 250 kW at 440 V AC 50/60 Hz (AC-3), 220 kW at 415 V AC 50/60 Hz (AC-3), 200 kW at 380...400 V AC 50/60 Hz (AC-3), 75 kW at 400 V AC 50/60 Hz (AC-4)
Overvoltage category III
Hold-in power consumption in VA 15-15 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Compatibility code LC1F
Tightening torque power circuit: 35 N.m, control circuit: 1.2 N.m
Mechanical durability 10 Mcycles
Maximum operating rate 2400 cyc/h 55 °C
Operating time 100...170 ms opening, 40...65 ms closing
Pole contact composition 3 NO
Connections - terminals power circuit: bolted connection, power circuit: lugs-ring terminals 2 cable(s) 150-150 mm², power circuit: bar 2 cable(s) - busbar cross section: 30 x 5 mm, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Inrush power in VA 1075-1075 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
[Uimp] rated impulse withstand voltage 8 kV
Associated fuse rating 500 A gG at <= 440 V, 400 A aM at <= 440 V
Rated breaking capacity 3200 A conforming to IEC 60947-4-1
Control circuit type AC at 40...400 Hz
Mounting support plate
Standards EN 60947-1, JIS C8201-4-1, IEC 60947-1, EN 60947-4-1, IEC 60947-4-1
Control circuit voltage limits drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C), operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
[Ith] conventional free air thermal current 500 A (at 40 °C)
Average impedance 0.26 mOhm - Ith 500 A 50 Hz
Power dissipation per pole 42 W AC-3, 65 W AC-1
Product certifications UKCA, CB, LROS (Lloyds register of shipping), ABS, CCC, DNV, RMRoS, BV, RINA, UL
Environment
Permissible ambient air temperature around the device -40-70 °C
Depth 219 mm
Width 213 mm
Operating altitude 3000 m without derating
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Net weight 9.1 kg
Ambient air temperature for operation -5-55 °C
Height 206 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.0 cm
Package 1 Width 24.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 9.31 kg
