Smarter Switchboards for a New Financial Year

Smart switchboards are no longer a nice extra. They are what clients expect on serious commercial and industrial jobs. A new financial year is a handy reset point, especially here in Australia, to look at how we design boards and ask: are we getting the data we actually need out of them?

July is usually a bit calmer before the big project rush later in the year. It is a good window for electricians, OEMs and switchboard builders to review standards, talk with consultants, and lock in smarter, data-driven designs. Digital metering and communication-ready protection devices are turning into standard gear in commercial, industrial and infrastructure projects, not just on the big showpiece jobs.

That is where SmartLink Modbus steps in. It gives a practical way to turn a conventional Schneider Electric switchboard into a connected, monitorable system, without tearing up your normal design practices or throwing out familiar gear.

What SmartLink Modbus Actually Does

SmartLink Modbus is a gateway that sits between your Schneider Electric modular devices and your control system. It collects data from compatible devices and passes that information upstream over Modbus to a BMS, PLC or SCADA.

With SmartLink Modbus in the board, you can typically see and act on things like:

• Energy consumption by circuit or group
• Load status and on or off state
• Alarms and fault indications
• Remote switching for selected circuits
• Basic diagnostics to speed up fault-finding

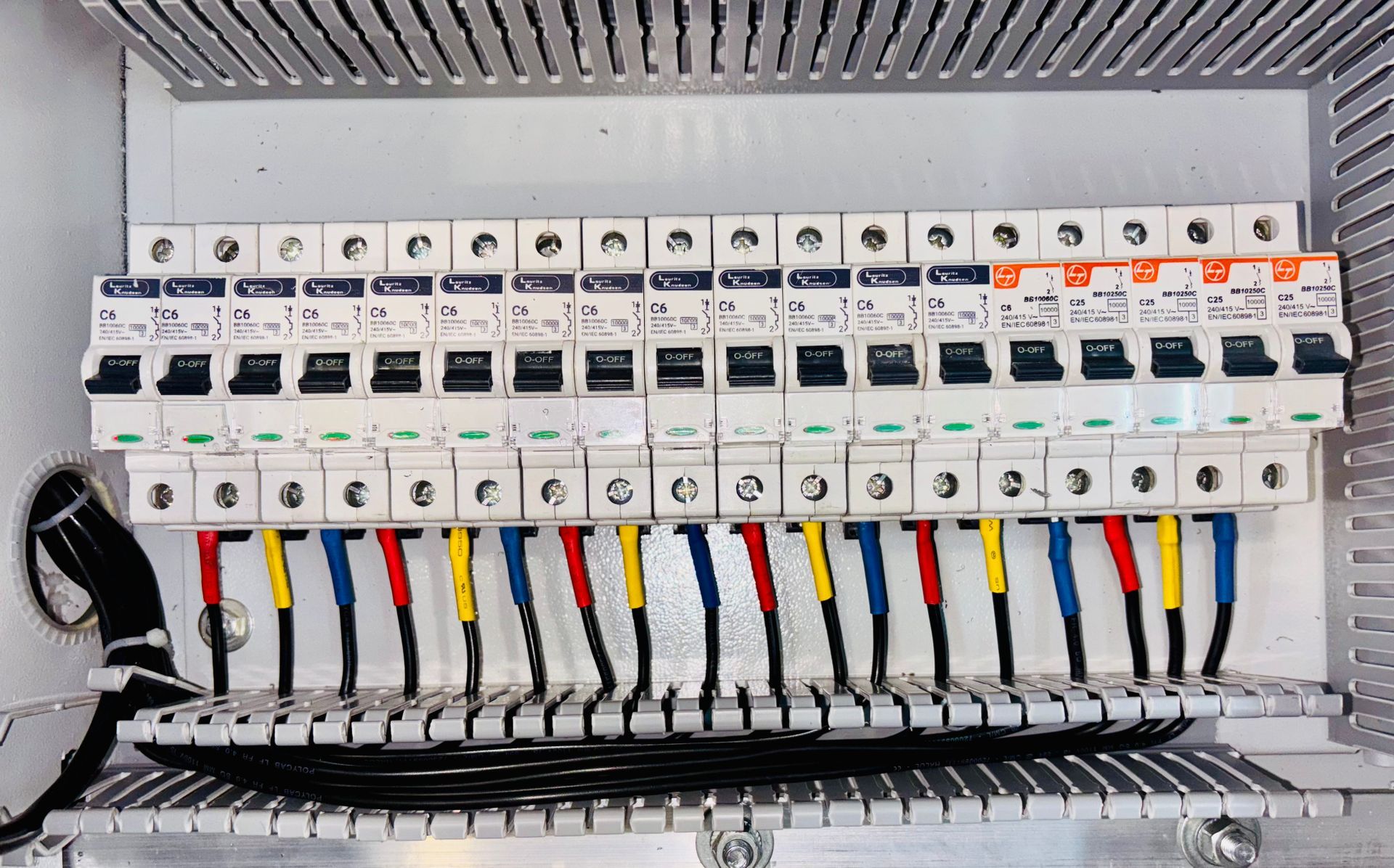

In a typical switchboard, field devices like MCBs, RCBOs, contactors and meters sit on the DIN rail. SmartLink Modbus ties those into a single communication point. From there, the Modbus line runs back to the BMS or PLC. It fits neatly alongside Schneider Electric Acti9 protection and motor control gear, adding a data layer on top of hardware many electricians are already comfortable with.

Instead of walking from board to board with a meter or torch, you get centralised information and control where it is actually needed, in the control room or facilities office.

Key Benefits for Australian Projects

For local commercial buildings, industrial plants and public facilities, the big gain is operational efficiency. Real-time visibility of circuits and loads helps you:

• Commission faster, because you can see what is live and what is not
• Spot miswired or overloaded circuits before handover
• Plan maintenance around real use instead of gut feel

Maintenance teams can log in, check which circuits have tripped or are running close to limits, and decide what needs attention first. That reduces guesswork and keeps downtime lower for tenants or production lines.

SmartLink Modbus data can also help with compliance and documentation. Logged energy and status data supports things like:

• Sustainability reporting for building ratings
• Evidence for AS/NZS related requirements
• Clear documentation for government and Tier 1 project handovers

Instead of handing over only as-built drawings, you can include a structured list of monitored circuits, alarms and measured loads. That looks professional and keeps consultants and facility managers happy.

There is also a strong case around cost and risk. Early fault detection, targeted call-outs and remote diagnostics cut down on repeat site visits. When you can see which circuit is affected before you roll the van, you save time on site and reduce disruption for building users. For switchboard builders and OEMs, that makes it easier to offer service and maintenance packages that are sharper and more predictable.

Designing Switchboards Around SmartLink Modbus

Designing with SmartLink Modbus in mind starts at layout stage. A few simple habits pay off:

• Select Schneider Electric modular devices that are communication-ready where monitoring is important
• Leave DIN rail space for the SmartLink Modbus units and allow room for wiring bends
• Plan neat wiring routes for communication wiring, separate from power cables

On the integration side, it helps to lock in some basics early:

• Modbus addressing plan agreed between the board designer and BMS or PLC programmer
• Cable type and length for the Modbus trunk, with clear segregation from higher voltage runs
• Simple naming rules for circuits so points in the BMS match the labels in the board

Think about a small commercial board, like a retail tenancy or office level board. You might group lighting, general power and mechanical loads, then connect a SmartLink Modbus module to the key MCBs, RCBOs and meters serving those groups. Only the circuits where data really matters get connected, keeping things tidy and clear.

On a larger industrial board, you might have multiple SmartLink Modbus modules, perhaps one per section: process loads, HVAC, pumps, critical services. You can prioritise monitoring for:

• High-load three-phase circuits
• Critical production or IT supply
• Circuits with a history of tripping or complaints

This way, SmartLink Modbus fits into your usual Schneider Electric structure. It just gives you a smarter backbone.

Installation, Commissioning and Seasonal Readiness

For electricians, a bit of prep makes installation smoother. Before you head to site:

• Confirm the right SmartLink Modbus variant and the number of devices it will serve
• Check compatibility of the devices you plan to connect
• Pre-label circuits and prepare a draft Modbus address list

On the board, follow good practice for mounting and wiring. Keep terminations tight, daisy-chain Modbus cleanly and avoid sharp bends. Set addresses in a simple, logical sequence that matches your drawings. Before energising, do quick checks on power supply, polarity and terminations.

Testing and handover should include:

• Verifying communication between SmartLink Modbus and the BMS or PLC
• Proving a small sample of alarms and remote switching actions
• Recording the final address map and passing that to the facility team

That last step is easy to skip, but it makes all the difference for long-term use of the data.

All of this ties directly to seasonal readiness. As we move out of winter and towards hotter months, AC and process loads rise and boards get stressed. With SmartLink Modbus data, clients can:

• Spot peak load times on each phase
• Identify imbalances and overloaded circuits
• Decide where to shift loads or schedule upgrades

Summer storms and outages are another reality in many parts of Australia. Remote monitoring, event logs and alarm history help teams work out if a nuisance trip came from a surge, a short, or a coordination issue. That makes post-storm call-outs quicker and more focused.

Planning upgrades in the winter-to-spring window lets you retrofit SmartLink Modbus into existing Schneider Electric boards, or specify it for new builds, then have everything tested and stable before high-demand summer conditions. For us based here in Australia, we see that timing work well across a lot of project types.

Turning Your Next Board Into a Connected Asset

When you put it all together, SmartLink Modbus turns a standard Schneider Electric switchboard into a connected asset that keeps delivering value through data. The hardware still gives protection and control, but now it also provides insight that helps everyone from the site sparky to the facility manager.

As you look at your project pipeline for the new financial year, it is worth asking where SmartLink Modbus can be added with minimal redesign. Small refurbishments, floor-by-floor fitouts and larger industrial installs can all benefit from a few well-planned modules and a clear communication plan. At Switchboard in a Box, we focus on Schneider Electric switchboard components, motor control, protection and industrial automation products, so we see daily how a little planning around SmartLink Modbus can make the whole switchboard feel smarter and easier to live with.
