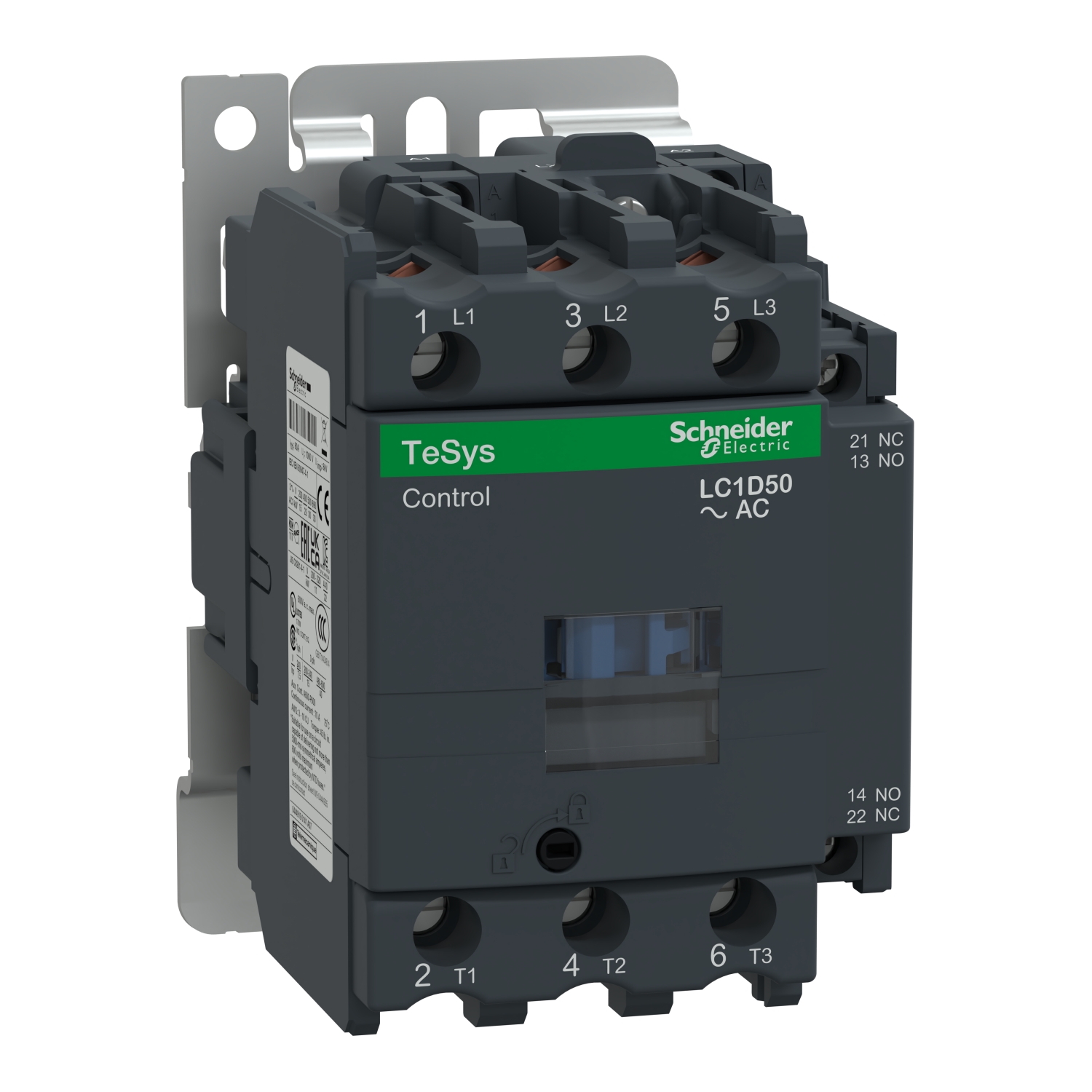

Picture of Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,24V AC 50/60Hz coil, screw clamp terminals
SKU:

LC1D50B7

Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,24V AC 50/60Hz coil, screw clamp terminals

Old price: $856.90 INC GST
$539.85 INC GST
Availability: Please contact our sales team on 1300 724 622.
Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,24V AC 50/60Hz coil, screw clamp terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Compatible for all the voltages on the market
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Utilisation category AC-3e, AC-2, AC-1
[Uc] control circuit voltage 120 V AC 50/60 Hz
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 3P
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Associated fuse rating 125 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for control circuit conforming to IEC 60947-5-1, 100 A gG at <= 690 V coordination type 2 for power circuit
Control circuit type AC at 50/60 Hz
Protective cover with
[Ui] rated insulation voltage control circuit: 600 V UL certified, control circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-1, control circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified
Overvoltage category III
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology without built-in bidirectional peak limiting diode suppressor
Inrush power in VA 160-160 VA cos phi 0.75 (at 20 °C), 140-140 VA cos phi 0.75 (at 20 °C)
Auxiliary contact composition 1 NO + 1 NC
Power dissipation per pole 6.3 W AC-3, 9.6 W AC-1, 3.7 W AC-3e
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on energisation between NC and NO contacts, 1.5 ms on de-energisation between NC and NO contacts
Heat dissipation 4-5 W at 50/60 Hz for control circuit
Mechanical durability 6000000 cycles
Tightening torque control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver pozidriv No 2, power circuit: 5 N.m - on screw terminal - with screwdriver flat Ø 6 to Ø 8 mm
Minimum switching voltage 17 V for control circuit
Operating time 12...26 ms closing, 4...19 ms opening
Irms rated making capacity 140 A AC for control circuit conforming to IEC 60947-5-1, 1000 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz
[Ith] conventional free air thermal current 80 A (at 60 °C) for power circuit, 10 A (at 60 °C) for control circuit
Motor power hp 10 hp at 230/240 V AC 60 Hz for 1 phase motors, 5 hp at 115 V AC 60 Hz for 1 phase motors, 40 hp at 575/600 V AC 60 Hz for 3 phases motors, 40 hp at 460/480 V AC 60 Hz for 3 phases motors, 15 hp at 230/240 V AC 60 Hz for 3 phases motors, 15 hp at 200/208 V AC 60 Hz for 3 phases motors
Motor power kW 30 kW at 380...400 V AC 50 Hz (AC-3), 30 kW at 1000 V AC 50 Hz (AC-3e), 15 kW at 220...230 V AC 50 Hz (AC-3e), 33 kW at 660...690 V AC 50 Hz (AC-3e), 30 kW at 500 V AC 50 Hz (AC-3e), 30 kW at 440 V AC 50 Hz (AC-3e), 25 kW at 415 V AC 50 Hz (AC-3e), 22 kW at 380...400 V AC 50 Hz (AC-3e), 30 kW at 1000 V AC 50 Hz (AC-3), 11 kW at 400 V AC 50 Hz (AC-4), 15 kW at 220...230 V AC 50 Hz (AC-3), 33 kW at 660...690 V AC 50 Hz (AC-3), 30 kW at 500 V AC 50 Hz (AC-3), 30 kW at 440 V AC 50 Hz (AC-3)
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid, power circuit: screw terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end, power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end, power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: rigid, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Mounting support rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Quantity per set set of 10
Mechanical robustness shocks contactor opened (10 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz)
Climatic withstand conforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
Standards IEC 60947-5-1, IEC 60947-4-1, UL 508, EN 60947-5-1
Height 122 mm
Operating altitude 0...3000 m
Net weight 1.4 kg
Product certifications UL, UKCA, BV, RINA, CCC, LROS (Lloyds register of shipping), DNV, GL, GOST
IP degree of protection IP2X conforming to VDE 0106, IP2X conforming to IEC 60529
Depth 120 mm
Width 55 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 13.2 cm
Package 1 Length 14.0 cm
Package 1 Weight 1.436 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.502 kg

Related products
