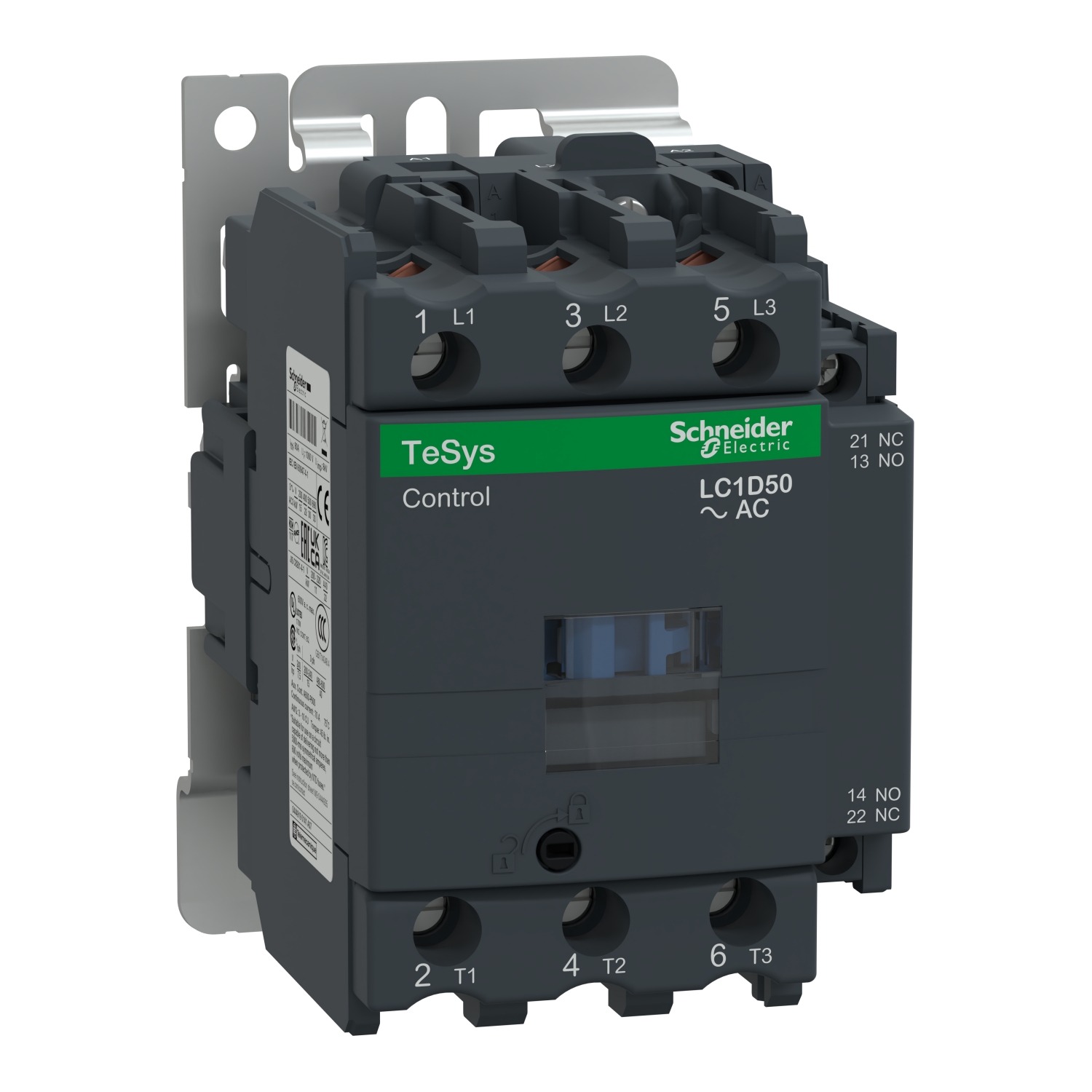

Picture of Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,48V AC 50/60Hz coil, screw clamp terminals
SKU:

LC1D50E7

Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,48V AC 50/60Hz coil, screw clamp terminals

Old price: $856.90 INC GST
$539.85 INC GST
Availability: Please contact our sales team on 1300 724 622.
Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,48V AC 50/60Hz coil, screw clamp terminals
  • Designed to meet needs of demanding applications
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Compatible for all the voltages on the market
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys Deca contactor, 3 poles (3NO),for motor control applications 50A/690V,AC-3 33kW@690V. and for non-inductive load control applications up to 80A@60℃ in category AC-1. It provides a 48V 50/60Hz AC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-3e, AC-3, AC-4, AC-2
[Uc] control circuit voltage 48 V DC
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 3P
Product or component type contactor
Contactor application motor control
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Associated fuse rating 10 A gG for control circuit conforming to IEC 60947-5-1, 100 A gG at <= 690 V coordination type 2 for power circuit conforming to IEC 60947-5-1, 100 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type DC standard
Protective cover with
Rated operational power in W 38 W at 48 V DC-13 - electrical durability: 3000000 cycles - for control circuit, 12 W at 48 V DC-13 - electrical durability: 10000000 cycles - for control circuit
[Ui] rated insulation voltage control circuit: 600 V CSA certified, power circuit: 690 V CSA certified conforming to IEC 60947-1, control circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified conforming to IEC 60947-1, power circuit: 600 V CSA certified, control circuit: 600 V UL certified
Overvoltage category III
Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1,  type mirror contact 1 NC conforming to IEC 60947-4-1
Coil technology built-in bidirectional peak limiting diode suppressor
Inrush power in VA 160-160 VA cos phi 0.75 (at 20 °C)
Auxiliary contact composition 1 NO + 1 NC
Power dissipation per pole 3.7 W AC-3, 3.7 W AC-3e, 9.6 W AC-1
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts
Mechanical durability 10000000 cycles
Tightening torque control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver pozidriv No 2, power circuit: 5 N.m - on screw terminal - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2
Minimum switching voltage 17 V for control circuit
Operating time 20 ms opening, 50 ms closing, 12...26 ms closing
Time constant 34 ms
Irms rated making capacity 250 A DC for control circuit conforming to IEC 60947-5-1, 900 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity 900 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit voltage limits 0.1...0.3 Uc (-40-70 °C):drop-out DC, 0.75...1.25 Uc (-40-60 °C):operational DC, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz
[Ith] conventional free air thermal current 10 A (at 60 °C) for control circuit, 80 A (at 60 °C) for power circuit
Motor power hp 3 hp at 115 V AC 60 Hz for 1 phase motors, 40 hp at 575/600 V AC 60 Hz for 3 phases motors, 40 hp at 460/480 V AC 60 Hz for 3 phases motors, 15 hp at 230/240 V AC 60 Hz for 3 phases motors, 15 hp at 200/208 V AC 60 Hz for 3 phases motors, 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors
Motor power kW 22 kW at 380...400 V AC 50 Hz (AC-3), 30 kW at 1000 V AC 50 Hz (AC-3e), 15 kW at 220...230 V AC 50 Hz (AC-3e), 33 kW at 660...690 V AC 50 Hz (AC-3e), 30 kW at 500 V AC 50 Hz (AC-3e), 30 kW at 440 V AC 50 Hz (AC-3e), 25 kW at 415 V AC 50 Hz (AC-3e), 22 kW at 380...400 V AC 50 Hz (AC-3e), 30 kW at 1000 V AC 50 Hz (AC-3), 11 kW at 400 V AC 50 Hz (AC-4), 15 kW at 220...230 V AC 50 Hz (AC-3), 33 kW at 660...690 V AC 50 Hz (AC-3), 30 kW at 500 V AC 50 Hz (AC-3), 30 kW at 440 V AC 50 Hz (AC-3), 25 kW at 415 V AC 50 Hz (AC-3)
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Inrush power in W 19-19 W (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid, power circuit: screw terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end, power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end, power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: rigid without cable end, power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Hold-in power consumption in W 7.4-7.4 W at 20 °C
Mounting support plate, rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor opened (10 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms)
Climatic withstand conforming to IACS E10 exposure to damp heat
Standards IEC 60947-4-1, CSA C22.2 No 14, EN 60947-5-1, EN 60947-4-1, IEC 60947-5-1, UL 508
Height 127 mm
Operating altitude 0...3000 m
Net weight 2.185 kg
Product certifications UKCA, LROS (Lloyds register of shipping), GL, DNV, UL, GOST, CSA, BV, CCC
IP degree of protection IP2X conforming to IEC 60529, IP2X conforming to VDE 0106
Depth 176 mm
Width 85 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 13.5 cm
Package 1 Length 9.5 cm
Package 1 Weight 1.447 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.695 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 77.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 131.46 kg
