SKU:

LADR4

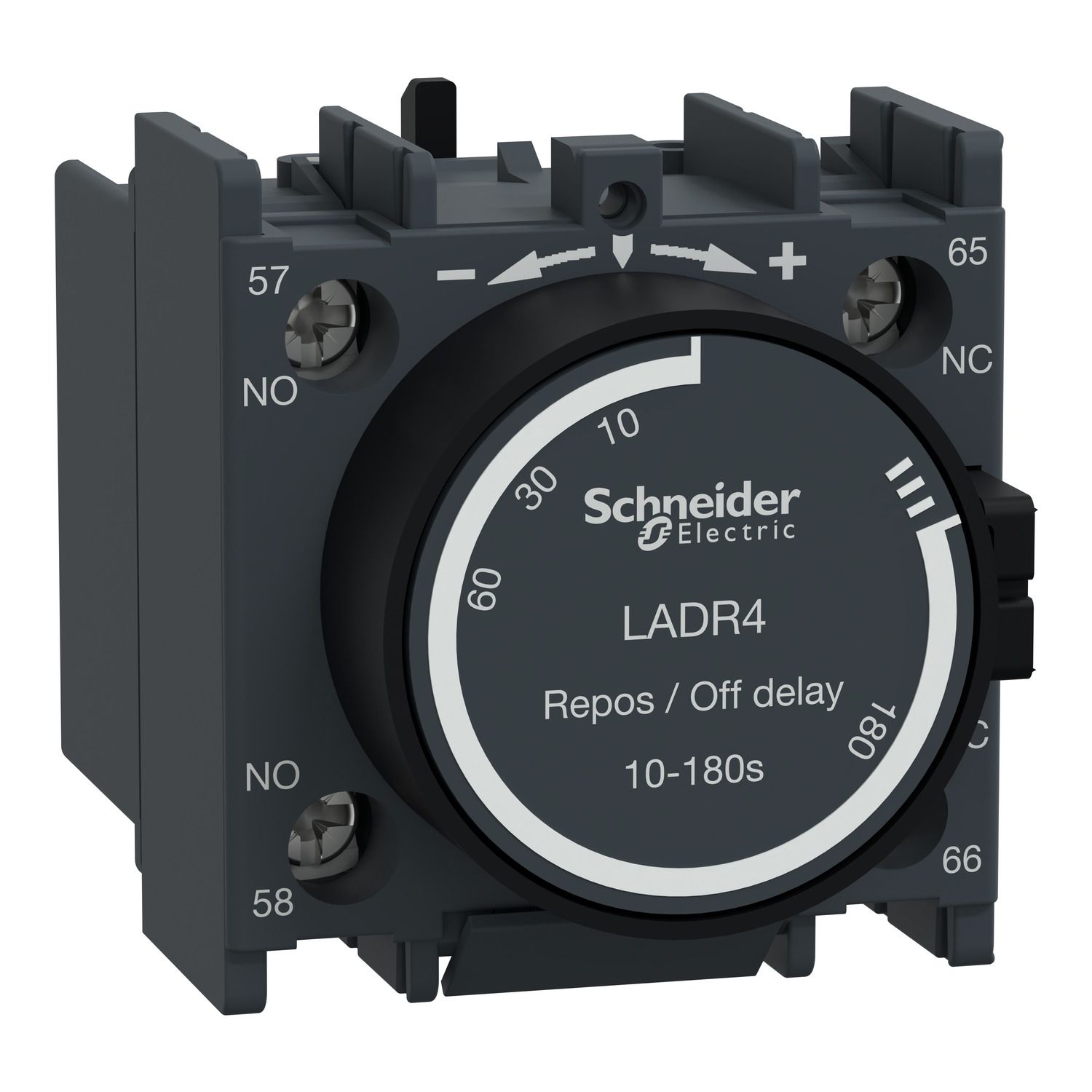

TeSys; TeSys Deca, Time delay auxiliary contact block, 1NO + 1NC, off delay 10-180s, front, screw clamp terminals

Old price: $663.30 INC GST

Price: $417.88 INC GST

Qty:

Available for Shipping : 15-Dec-2025

TeSys; TeSys Deca, Time delay auxiliary contact block, 1NO + 1NC, off delay 10-180s, front, screw clamp terminals

New modern look & feel of all machines

Designed to meet the requirements of industrial and HVAC applications

Easier to install and operate with multi-standard screws

With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries

Digital customer experience for technical documents

Maintenance guide via EcoStruxureTM Facility Expect

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 15-Dec-2025

Instruction sheet

Catalog

CAD

Environmental Disclosure

Product Page Link

Product Data Sheet

TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 10-180s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name	Attribute value
Main
Auxiliary contacts operation	time delay
Time delay range	10...180 s
[Ie] rated operational current	0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15
[Ui] rated insulation voltage	600 V conforming to CSA C22.2 No 60947-5-1, 600 V conforming to UL 60947-5-1, 690 V conforming to IEC 60947-5-1
Pole contact composition	1 NO + 1 NC
Mounting location	front
Range	TeSys Deca, TeSys
Product name	TeSys Deca
Product or component type	time delay auxiliary contact block
Range compatibility	TeSys F CR1F, TeSys F LC1F, TeSys Deca LC1D, TeSys Deca CAD
[Ue] rated operational voltage	690 V AC 25...400 Hz
Timer type	off delay
Standards	GB/T 14048.5
[Ith] conventional free air thermal current	10 A (at 60 °C)
Range of product	TeSys Deca control relay, TeSys F, TeSys Deca
Product certifications	UKCA, EAC, CCC, CSA, UL, IECEE CB Scheme
Complementary
Depth	61 mm
Width	44 mm
Colour	dark grey
Mechanical durability	5 Mcycles
Tightening torque	1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage	17 V
Connections - terminals	screw clamp terminals, screw clamp terminals 2 cable(s) 1-2.5 mm²rigid, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²rigid, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end
Irms rated making capacity	250 A at <= 690 V DC conforming to IEC 60947-5-1, 140 A at <= 690 V AC conforming to IEC 60947-5-1
Insulation resistance	> 10 MOhm
Protection type	gG fuse 10 A
Height	48 mm
Minimum switching current	5 mA
Permissible short-time rating	140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s
Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Shielding continuity terminal	without
Environment
Operating altitude	3000 m
Protective treatment	TH conforming to IEC 60068
Environmental characteristic	normal environment
Ambient air temperature for storage	-60-80 °C
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-40-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.200 cm
Package 1 Width	6.500 cm
Package 1 Length	5.000 cm
Package 1 Weight	75.600 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	5.200 cm
Package 2 Width	12.800 cm
Package 2 Length	24.000 cm
Package 2 Weight	756.000 g
Unit Type of Package 3	3
Number of Units in Package 3	140
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	11.129 kg
