Picture of integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 3.5A
SKU:

ILS1F573PB1A0

integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 3.5A

$2,336.40 INC GST
Available for Shipping : 28-Jan-2026
Product Selector
integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 3.5A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
User guide
Environmental Disclosure
Declaration of conformity
Catalog
Circularity Profile
Product Page Link
Product Data Sheet

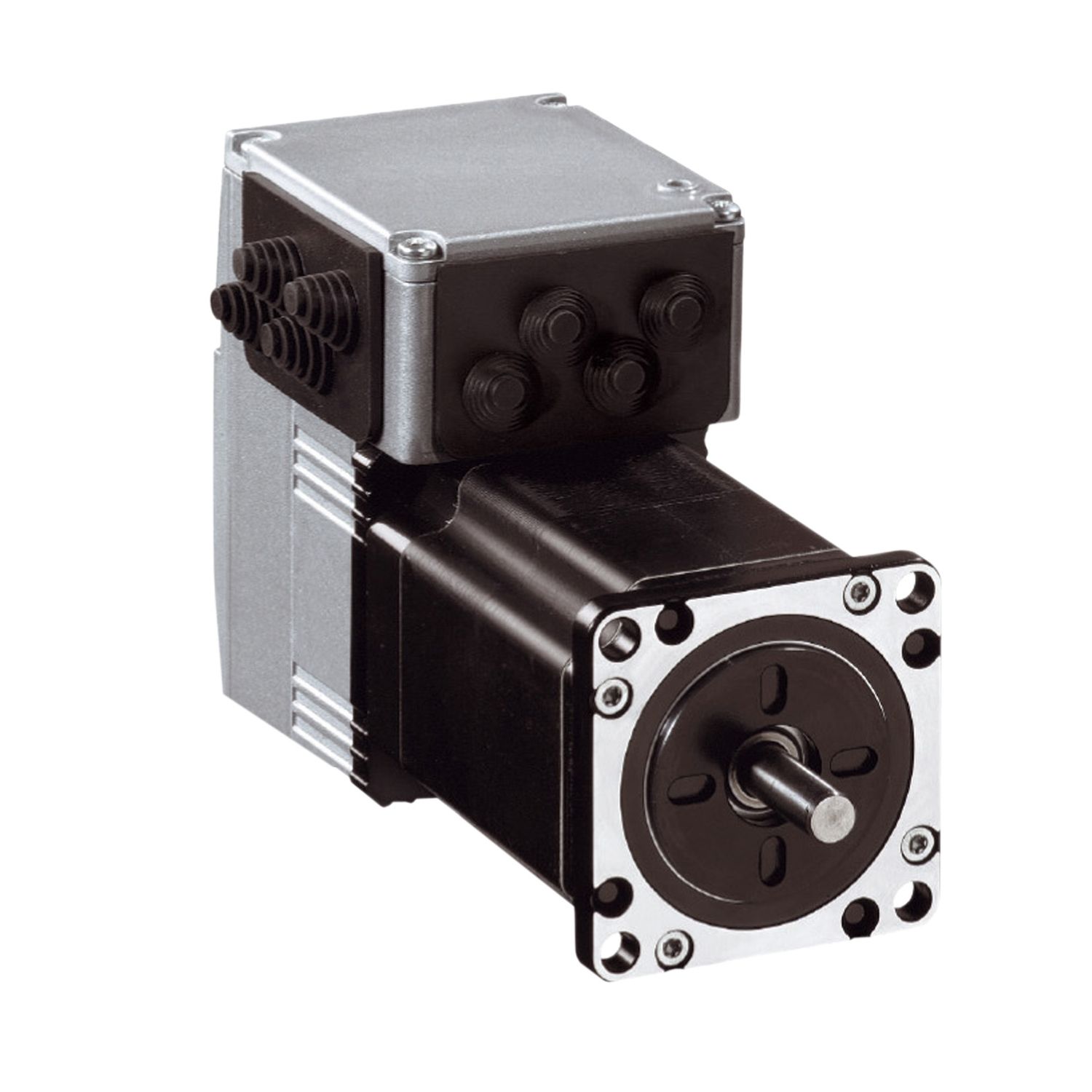

This product is part of the Lexium ILA, ILE, ILS range, an offer of integrated drives for motion control. This is an integrated drive with a stepper motor, without gearbox, without holding brake. The feedback is given by an index pulse. Its nominal speed is 200rpm at 24VDC, 500rpm at 36VDC. Its nominal torque is 1.5Nm. It embeds 4 signals which can be used as input or output. This integrated drive consists of control electronics with a communication interface for CANopen DS301 bus, and a 3-phase stepper motor. Its transmission rates are 50, 100, 125, 250, 500, 800 and 1000kbauds. The electrical connection is made on a printed circuit board connector. Its motor flange size is 57mm. It installs with 4x 5.2mm mounting holes. The circle diameter of the mounting holes is 66.6mm. It weighs 2.0kg. It integrates a CANopen DS301 interface. This product is certified by cUL, TÜV and UL. It is compatible with pre-assembled cables for CANopen interface and power supply. Those mounting positions are allowed per IEC 60034-7 as IM B5 shaft horizontal, IM V1 shaft vertical, shaft end down, IM V3 shaft vertical, shaft end up. Lexium-integrated drives are used to create decentralized motion control solutions in very compact units. integrated Drives for motion control with stepper, servo or brushless DC motor.

Products specifications

Attribute name Attribute value
Main
Device short name ILS
Nominal speed 500 rpm at 36 V, 200 rpm at 24 V
Gear box type without
Communication interface CANopen DS301, integrated
[Us] rated supply voltage 36 V, 24 V
Winding type medium speed of rotation and medium torque
Range of product Lexium integrated drive
Nominal torque 1.5 N.m
Electrical connection printed circuit board connector
Motor type 3-phase stepper motor
Length 138.9 mm
Network number of phases single phase
Product or component type motion integrated drive
Holding brake without
Number of motor poles 6
Network type DC
Holding torque 1.7 N.m
Complementary
Voltage state 1 guaranteed 15...30 V
Maximum axial force Fa 8.4 N (force pressure), 100 N (tensile force)
Input/output type 4 signals (each be used as input or output)
Coefficient 1_0 33.107 N.m
Coefficient 1_2 8.537 N.m/rpm²
Coefficient 1_1 -28.858 N.m/rpm
Coefficient 1_3 -0.855 N.m/rpm3
Coefficient 2_1 -48.402 N.m/rpm
Protection type overload of output voltage, safe torque off, short circuit of the output voltage
Coefficient 2_0 57.712 N.m
Coefficient 2_3 -1.367 N.m/rpm3
Coefficient 2_2 13.914 N.m/rpm²
Compatibility code ILS
Service life in hours 20000 h bearing
Accuracy error [angular] 0.1 °
Type of cooling natural convection
Speed feedback resolution 20000 points/turn
Supply voltage description single phase 36 V DC, single phase 24 V DC
Supply voltage limits 18-40 V
Number of mounting holes 4
Peak stall torque 1.5 N.m
Motor flange size 57 mm
Marking CE
Centring collar depth 1.6 mm
Continuous stall torque 1.5 N.m
Maximum radial force Fr 50 N
Maximum switching current 200 mA total, 100 mA per output
Maximum mechanical speed 3000 rpm
Circle diameter of the mounting holes 66.6 mm
Associated fuse rating 10 A
Network number of phases 1
Accuracy error +/- 6 arc min
Voltage 2 speed 2 520.968 rpm
Voltage 1 speed 1 197.176 rpm
Transmission rate 50, 100, 125, 250, 500, 800 and 1000 kbauds
Feedback type index pulse
Shaft end untapped
Voltage 1 24 V
Voltage 2 36 V
Mounting holes diameter 5.2 mm
Discrete output voltage 23...25 V
Shaft diameter 8 mm
Curve type semilog
Centring collar diameter 38.1 mm
Sizing reference ILS1_573P
Voltage state 0 guaranteed -3...4.5 V
Net weight 2 kg
Shaft length 21 mm
Voltage 2 speed 2 max 520.968 rpm
Second shaft without second shaft end
Discrete input current 2-2 mA at 24 V for 24 V signal interface, 3-3 mA at 24 V on/STO_B for safety input, 10-10 mA at 24 V on/STO_A for safety input
Rotor inertia 0.38 kg.cm²
Number of motor stacks 3
Mounting support flange
Voltage 1 speed 1 max 197.176 rpm
Current consumption 3500 mA maximum
Environment
IP degree of protection IP54 total except shaft bushing: conforming to IEC 60034-5, IP41 shaft bushing: conforming to IEC 60034-5
Relative humidity 15-85 % without condensation
Ambient air temperature for storage -25-70 °C
Shock resistance 150 m/s² 1000 shocks conforming to IEC 60068-2-29
Ambient air temperature for operation 0-50 °C (without derating), 50-65 °C (with power derating of 2 % per °C)
Operating altitude <= 1000 m without derating
Permissible ambient air temperature around the device 110 °C motor, 105 °C power amplifier
Vibration resistance 20 m/s² (f= 10-500 Hz) 10 cycles conforming to IEC 60068-2-6
Standards IEC 61800-3, EN 61800-3:2001, second environment, IEC 50178, IEC 61800-3, Ed 2, IEC 50347, EN 61800-3 : 2001-02, IEC 60072-1
Product certifications UL, cUL, TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.6 cm
Package 1 Width 24.6 cm
Package 1 Length 16.8 cm
Package 1 Weight 2.122 kg
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 40.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 46.588 kg
