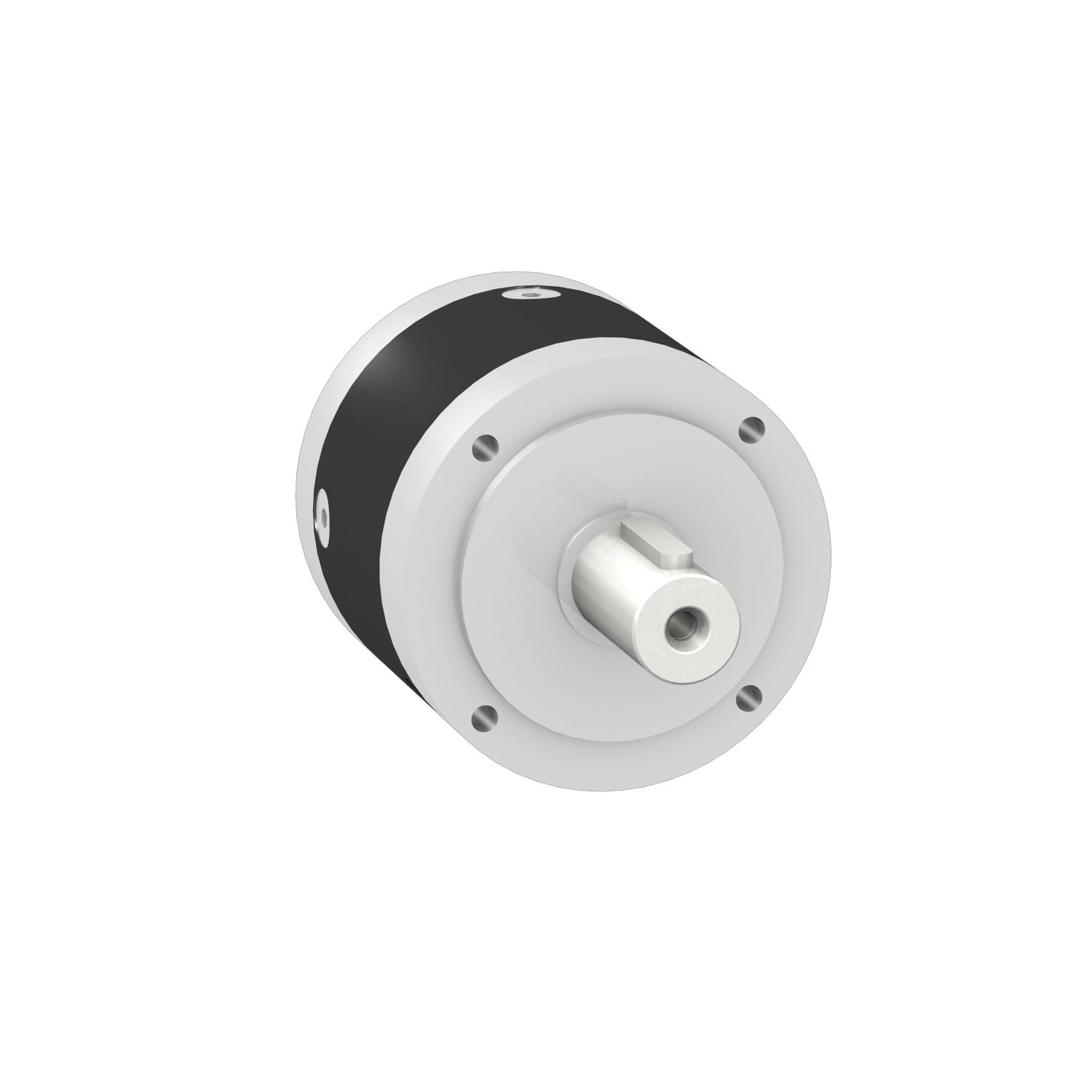

Picture of gearbox straight teeth GBX, Lexium, 60mm, reduction 12:1 , 12arc.min, 44N.m
SKU:

GBX060012K

gearbox straight teeth GBX, Lexium, 60mm, reduction 12:1 , 12arc.min, 44N.m

$1,123.32 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
gearbox straight teeth GBX, Lexium, 60mm, reduction 12:1 , 12arc.min, 44N.m
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is part of the Lexium range, an offer of motion servo drives and servo motors. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 60mm. It is a gearbox with a reduction ratio of 12/1, maximum axial force (Fa) of 450N at 100RPM and continuous output torque of 44N.m at 100RPM at 30°C. It offers service life of about 30000h at 100RPM at 30°C. It is an IP54 rated product. The enclosure is made of black anodized aluminium. It weighs 1.1kg. This product is compatible with servo motors and Lexium servo drives. It can be mounted in any position. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.

Products specifications

Attribute name Attribute value
Main
Device short name GBX
Range compatibility Lexium SD3, Lexium 52, Lexium 28, Lexium 62 ILM, Lexium 32, Lexium 62, Lexium ILS, Lexium ILA, Lexium ILE
Gearbox external diameter 60 mm
Gear box type straight teeth
Product compatibility ILM, MH3, SH3, BCH2 (60 mm, 2 motor stacks), BCH2 (60 mm, 1 motor stacks), ILS (57 mm, 3 motor stacks), ILS (57 mm, 2 motor stacks), ILS (57 mm, 1 motor stacks), ILA (57 mm, 2 motor stacks), ILA (57 mm, 1 motor stacks), ILE (66 mm, 2 motor stacks), ILE (66 mm, 1 motor stacks), BRS3, BSH (70 mm, 2 motor stacks), BSH (70 mm, 1 motor stacks), BSH (55 mm, 3 motor stacks), BSH (55 mm, 2 motor stacks), BSH (55 mm, 1 motor stacks), BMH (70 mm, 2 motor stacks), BMH (70 mm, 1 motor stacks)
Product or component type planetary gearbox
Reduction ratio 12:1
Complementary
Maximum axial force Fa 450 N at 100 rpm, during 30000 hour at 30°C
Reduction ratio 12
Continuous output torque 44 N.m at 100 rpm at 30 °C
Mounting position any position
Housing material black anodized aluminium
Additional information lubricated for life
Compatibility code GBX
Service life in hours 30000 h at 100 rpm at 30 °C
Internal diameter 14.0 mm
Maximum torsional backlash 12 arc.min
Maximum output torque 70 N.m at 100 rpm at 30 °C
Shaft material C 45
Net weight 1.1 kg
Length 67.5 mm
Shaft moment of inertia 0.127 kg.cm²
Efficiency 94 %
No load running torque 0.05 N.m
Maximum radial force Fr 340 N at 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
Torsional rigidity 2.5 N.m/arcmin
Housing colour black
Environment
IP degree of protection shaft output: IP54
Noise level 58 dB at 1 m, no-load
Ambient air temperature for operation -25-90 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 7.0 cm
Package 1 Length 14.5 cm
Package 1 Weight 1.015 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 10.648 kg
