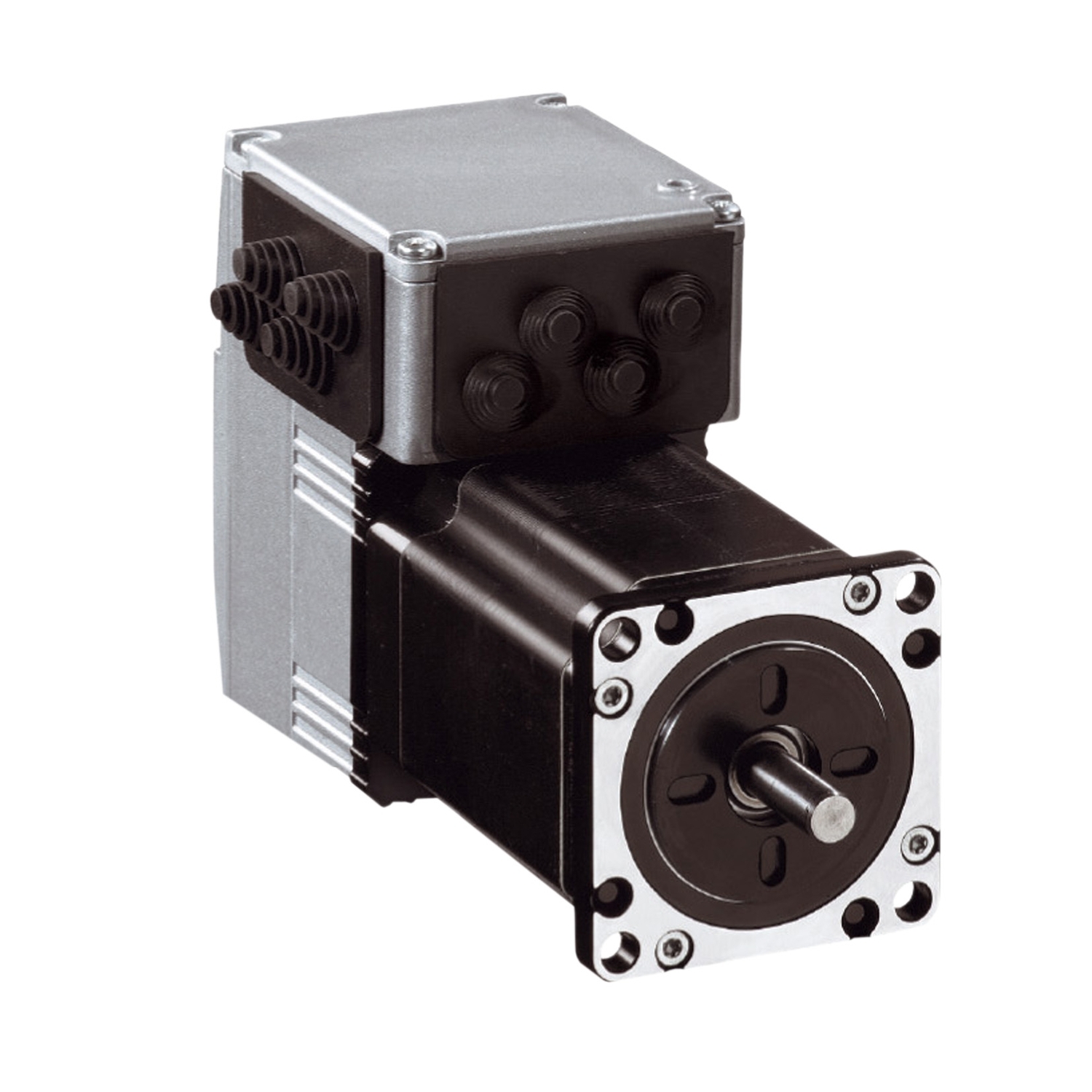

Picture of integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 3.5A
SKU:

ILS1F572PB1A0

integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 3.5A

$1,536.48 INC GST
Available for Shipping : 28-Jan-2026
Product Selector
integrated drive ILS with stepper motor - 24..36 V - CANopen DS301 - 3.5A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
User guide
Environmental Disclosure
Declaration of conformity
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated CANopen DS301 communication interface. The 3-phase stepper motor with a rated supply voltage of 24V, 36V DC, a maximum current consumption of 3500mA and a nominal speed of 600RPM at 36V and 300RPM at 24V. It offers medium speed of rotation and medium torque with untapped shaft end. It is furnished with printed circuit board connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. The length of this product is 115.9mm and the centering collar dimensions are 1.6mm (depth) x 38.1mm (diameter). It weighs 1.6kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CUL, TUV and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, IEC 61800-3, Ed 2, IEC 60072-1 and EN/IEC 50178 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.

Products specifications

Attribute name Attribute value
Main
Device short name ILS
Nominal speed 600 rpm at 36 V, 300 rpm at 24 V
Gear box type without
Communication interface CANopen DS301, integrated
[Us] rated supply voltage 36 V, 24 V
Winding type medium speed of rotation and medium torque
Range of product Lexium integrated drive
Nominal torque 0.9 N.m
Electrical connection printed circuit board connector
Motor type 3-phase stepper motor
Length 115.9 mm
Network number of phases single phase
Product or component type motion integrated drive
Holding brake without
Number of motor poles 6
Network type DC
Holding torque 1.02 N.m
Complementary
Voltage state 1 guaranteed 15...30 V
Maximum axial force Fa 8.4 N (force pressure), 100 N (tensile force)
Input/output type 4 signals (each be used as input or output)
Coefficient 1_0 28.202 N.m
Coefficient 1_2 7.183 N.m/rpm²
Coefficient 1_1 -24.392 N.m/rpm
Coefficient 1_3 -0.719 N.m/rpm3
Coefficient 2_1 82.762 N.m/rpm
Protection type short circuit of the output voltage, overload of output voltage, safe torque off
Coefficient 2_0 -83.153 N.m
Coefficient 2_3 2.852 N.m/rpm3
Coefficient 2_2 -26.823 N.m/rpm²
Compatibility code ILS
Service life in hours 20000 h bearing
Accuracy error [angular] 0.1 °
Type of cooling natural convection
Speed feedback resolution 20000 points/turn
Supply voltage description single phase 24 V DC, single phase 36 V DC
Supply voltage limits 18-40 V
Number of mounting holes 4
Peak stall torque 0.9 N.m
Motor flange size 57 mm
Marking CE
Centring collar depth 1.6 mm
Continuous stall torque 0.9 N.m
Maximum radial force Fr 24 N
Maximum switching current 200 mA total, 100 mA per output
Maximum mechanical speed 3000 rpm
Circle diameter of the mounting holes 66.6 mm
Associated fuse rating 10 A
Network number of phases 1
Accuracy error +/- 6 arc min
Voltage 2 speed 2 519.145 rpm
Voltage 1 speed 1 309.933 rpm
Transmission rate 50, 100, 125, 250, 500, 800 and 1000 kbauds
Feedback type index pulse
Shaft end untapped
Voltage 1 24 V
Voltage 2 36 V
Mounting holes diameter 5.2 mm
Discrete output voltage 23...25 V
Shaft diameter 6.35 mm
Curve type semilog
Centring collar diameter 38.1 mm
Sizing reference ILS1_572P
Voltage state 0 guaranteed -3...4.5 V
Net weight 1.6 kg
Shaft length 21 mm
Voltage 2 speed 2 max 519.145 rpm
Second shaft without second shaft end
Discrete input current 2-2 mA at 24 V for 24 V signal interface, 3-3 mA at 24 V on/STO_B for safety input, 10-10 mA at 24 V on/STO_A for safety input
Rotor inertia 0.22 kg.cm²
Number of motor stacks 2
Mounting support flange
Voltage 1 speed 1 max 309.933 rpm
Current consumption 3500 mA maximum
Environment
IP degree of protection IP54 total except shaft bushing: conforming to IEC 60034-5, IP41 shaft bushing: conforming to IEC 60034-5
Relative humidity 15-85 % without condensation
Ambient air temperature for storage -25-70 °C
Shock resistance 150 m/s² 1000 shocks conforming to IEC 60068-2-29
Ambient air temperature for operation 0-50 °C (without derating), 50-65 °C (with power derating of 2 % per °C)
Operating altitude <= 1000 m without derating
Permissible ambient air temperature around the device 110 °C motor, 105 °C power amplifier
Vibration resistance 20 m/s² (f= 10-500 Hz) 10 cycles conforming to IEC 60068-2-6
Standards IEC 50178, IEC 60072-1, IEC 61800-3, Ed 2, EN 61800-3 : 2001-02, IEC 50347, EN 61800-3:2001, second environment, IEC 61800-3
Product certifications TÜV, UL, cUL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.5 cm
Package 1 Width 17.0 cm
Package 1 Length 24.5 cm
Package 1 Weight 1.732 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 9.534 kg
