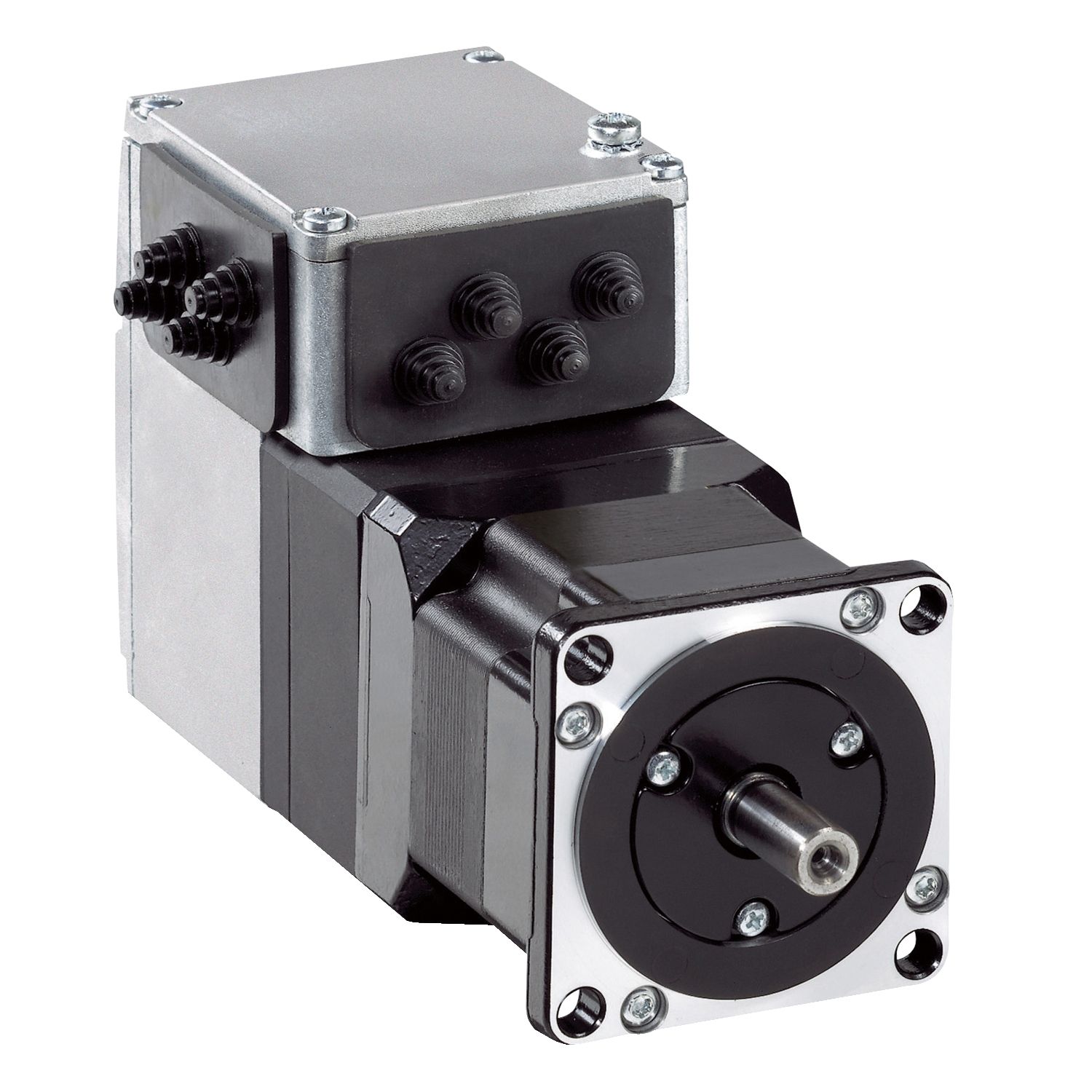

Picture of integrated drive ILA with servo motor - 24..48 V - DeviceNet - PCB connector
SKU:

ILA2D572TB1A0

integrated drive ILA with servo motor - 24..48 V - DeviceNet - PCB connector

$2,706.00 INC GST
Available for Shipping : 01-Feb-2026
Product Selector
integrated drive ILA with servo motor - 24..48 V - DeviceNet - PCB connector
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Feb-2026
Declaration of conformity
Catalog
Circularity Profile
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ILA
Nominal speed 5100 rpm at 48 V, 3000 rpm at 24 V
Gear box type without
Communication interface DeviceNet, integrated
[Us] rated supply voltage 24 V, 48 V
Winding type high speed of rotation and medium torque
Range of product Lexium integrated drive
Nominal torque 0.57 N.m
Electrical connection printed circuit board connector
Motor type AC synchronous servo motor
Length 163.8 mm
Network number of phases single phase
Product or component type motion integrated drive
Holding brake without
Number of motor poles 6
Network type DC
Complementary
Voltage state 1 guaranteed 15...30 V
Coefficient M0 max 7.1428E-06 N.m/rpm
Maximum axial force Fa 104 N (tensile force), 104 N (force pressure)
Input/output type 4 signals (each be used as input or output)
Coefficient 1_0 1.565625 N.m
Coefficient 1_1 -0.0003479167 N.m/rpm
Coefficient 2_1 -0.00031538 N.m/rpm
Protection type short circuit of the output voltage, safe torque off, overload of output voltage
Coefficient 2_0 2.144615 N.m
Compatibility code ILA
Service life in hours 20000 h bearing
Accuracy error [angular] 0.05 °
Type of cooling natural convection
Speed feedback resolution 16384 points/turn
Supply voltage description single phase 48 V DC, single phase 24 V DC
Supply voltage limits 18-55.2 V
Number of mounting holes 4
Peak stall torque 0.85 N.m
Motor flange size 57 mm
Marking CE
Centring collar depth 1.6 mm
Continuous stall torque 0.57 N.m
Maximum radial force Fr 107 N
Maximum switching current 200 mA total, 100 mA per output
Circle diameter of the mounting holes 66.6 mm
Coefficient M0 4E-06 N.m/rpm
Associated fuse rating 16 A
Network number of phases 1
Accuracy error +/- 0.05 °
Voltage 2 speed 2 5056.818 rpm
Transmission rate 125, 250, 500 kbauds
Voltage 1 speed 1 2894.96 rpm
Feedback type single turn encoder
Shaft end untapped
Voltage 1 24 V
Voltage 2 48 V
Mounting holes diameter 5.2 mm
Discrete output voltage 23...25 V
Shaft diameter 9 mm
Curve type lin
Centring collar diameter 50 mm
Sizing reference ILA2_572T
Voltage state 0 guaranteed -3...4.5 V
Net weight 1.7 kg
Shaft length 20 mm
Voltage 2 speed 2 max 4200 rpm
Second shaft without second shaft end
Discrete input current 2-2 mA at 24 V for 24 V signal interface, 10-10 mA at 24 V for safety input
Rotor inertia 0.173 kg.cm²
Number of motor stacks 2
Mounting support flange
Commissioning interface RS485 Modbus TCP (9.6, 19.2 and 38.4 kbauds)
Voltage 1 speed 1 max 2100 rpm
Current consumption 9000 mA peak, 7500 mA maximum continuous
Environment
IP degree of protection IP54 total except shaft bushing: conforming to EN/IEC 60034-5, IP41 shaft bushing: conforming to EN/IEC 60034-5
Relative humidity 15-85 % without condensation
Ambient air temperature for storage -25-70 °C
Shock resistance 150 m/s² 1000 shocks conforming to EN/IEC 60068-2-29
Ambient air temperature for operation 0-40 °C (without derating), 40-55 °C (with power derating of 2 % per °C)
Operating altitude <= 1000 m without derating
Permissible ambient air temperature around the device 110 °C motor, 105 °C power amplifier
Vibration resistance 20 m/s² (f= 10-500 Hz) 10 cycles conforming to EN/IEC 60068-2-6
Standards IEC 60072-1, EN 61800-3 : 2001-02, EN 50347, EN/IEC 61800-3, EN 61800-3:2001, second environment, EN/IEC 50178, IEC 61800-3, Ed 2
Product certifications UL, TÜV, cUL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.5 cm
Package 1 Width 19.0 cm
Package 1 Length 39.5 cm
Package 1 Weight 2.1 kg

Related products

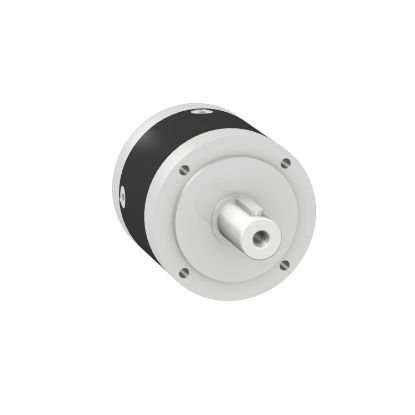

Picture of gearbox straight teeth GBX, Lexium, 60mm, reduction 12:1 , 12arc.min, 44N.m
