Picture of integrated drive ILA with servo motor - 24..36 V - CANopen - indus connector
SKU:

ILA1F572PC1F0

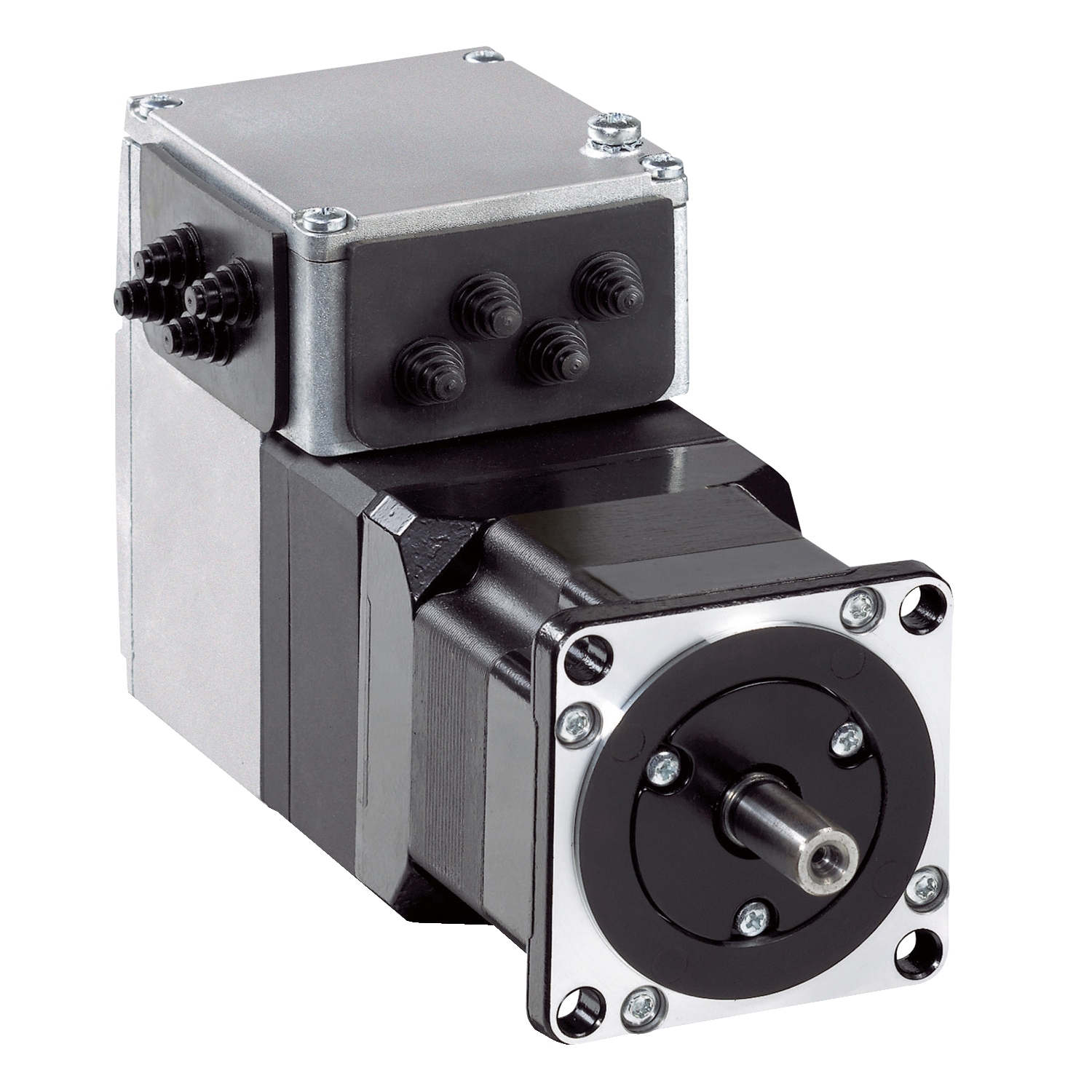

integrated drive ILA with servo motor - 24..36 V - CANopen - indus connector

$4,656.96 INC GST
Available for Shipping : 28-Jan-2026
Product Selector
integrated drive ILA with servo motor - 24..36 V - CANopen - indus connector
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Declaration of conformity
Catalog
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ILA
Nominal speed 4300 rpm at 36 V, 2600 rpm at 24 V
Gear box type without
Communication interface CANopen DS301, integrated
[Us] rated supply voltage 24 V, 36 V
Winding type medium speed of rotation and medium torque
Range of product Lexium integrated drive
Nominal torque 0.45 N.m
Electrical connection industrial connector
Motor type AC synchronous servo motor
Length 209.3 mm
Network number of phases single phase
Product or component type motion integrated drive
Holding brake with
Number of motor poles 6
Network type DC
Holding torque 1.2 N.m holding brake
Complementary
Voltage state 1 guaranteed 15...30 V
Coefficient M0 max 6.25E-06 N.m/rpm
Maximum axial force Fa 104 N (tensile force), 104 N (force pressure)
Input/output type 4 signals (each be used as input or output)
Coefficient 1_0 2.7616526 N.m
Coefficient 1_2 3.21136E-07 N.m/rpm²
Coefficient 1_1 -0.001570167 N.m/rpm
Coefficient 1_3 -2.4503311E-11 N.m/rpm3
Brake application time 13 ms
Coefficient 2_1 -0.000559 N.m/rpm
Protection type short circuit of the output voltage, overload of output voltage, safe torque off
Coefficient 2_0 2.02364193 N.m
Coefficient 2_3 -2.69719471E-12 N.m/rpm3
Coefficient 2_2 5.425111E-08 N.m/rpm²
Compatibility code ILA
Service life in hours 20000 h bearing
Accuracy error [angular] 0.05 °
Type of cooling natural convection
Speed feedback resolution 16384 points/turn x 4096 turns
Supply voltage description single phase 36 V DC, single phase 24 V DC
Supply voltage limits 18-40 V
Number of mounting holes 4
Peak stall torque 0.72 N.m
Brake release time 14 ms
Motor flange size 57 mm
Brake pull-in power 10 W
Marking CE
Centring collar depth 1.6 mm
Continuous stall torque 0.45 N.m
Maximum radial force Fr 107 N
Maximum switching current 200 mA total, 100 mA per output
Circle diameter of the mounting holes 66.6 mm
Coefficient M0 9.3023265E-06 N.m/rpm
Associated fuse rating 10 A
Network number of phases 1
Accuracy error +/- 0.05 °
Voltage 2 speed 2 4293.17 rpm
Transmission rate 50, 100, 125, 250, 500, 800 and 1000 kbauds
Voltage 1 speed 1 2583.62 rpm
Feedback type single turn encoder
Shaft end untapped
Voltage 1 24 V
Voltage 2 36 V
Mounting holes diameter 5.2 mm
Discrete output voltage 23...25 V
Shaft diameter 9 mm
Curve type lin
Centring collar diameter 50 mm
Sizing reference ILA1_572P
Voltage state 0 guaranteed -3...4.5 V
Net weight 1.7 kg
Shaft length 20 mm
Voltage 2 speed 2 max 3206.42 rpm
Second shaft without second shaft end
Discrete input current 2-2 mA at 24 V for 24 V signal interface, 3-3 mA at 24 V on/STO_B for safety input, 10-10 mA at 24 V on/STO_A for safety input
Rotor inertia 0.25 kg.cm²
Number of motor stacks 2
Mounting support flange
Voltage 1 speed 1 max 2004.079 rpm
Current consumption 8500 mA peak, 7000 mA maximum continuous
Environment
IP degree of protection IP54 total except shaft bushing: conforming to EN/IEC 60034-5, IP41 shaft bushing: conforming to EN/IEC 60034-5
Relative humidity 15-85 % without condensation
Ambient air temperature for storage -25-70 °C
Shock resistance 150 m/s² 1000 shocks conforming to EN/IEC 60068-2-29
Ambient air temperature for operation 0-50 °C (without derating), 50-65 °C (with power derating of 2 % per °C)
Operating altitude <= 1000 m without derating
Permissible ambient air temperature around the device 110 °C motor, 105 °C power amplifier
Vibration resistance 20 m/s² (f= 10-500 Hz) 10 cycles conforming to EN/IEC 60068-2-6
Standards EN/IEC 50178, EN 50347, EN/IEC 61800-3, EN 61800-3:2001, second environment, IEC 60072-1, EN 61800-3 : 2001-02, IEC 61800-3, Ed 2
Product certifications UL, TÜV, cUL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 19.0 cm
Package 1 Length 39.0 cm
Package 1 Weight 2.5 kg
