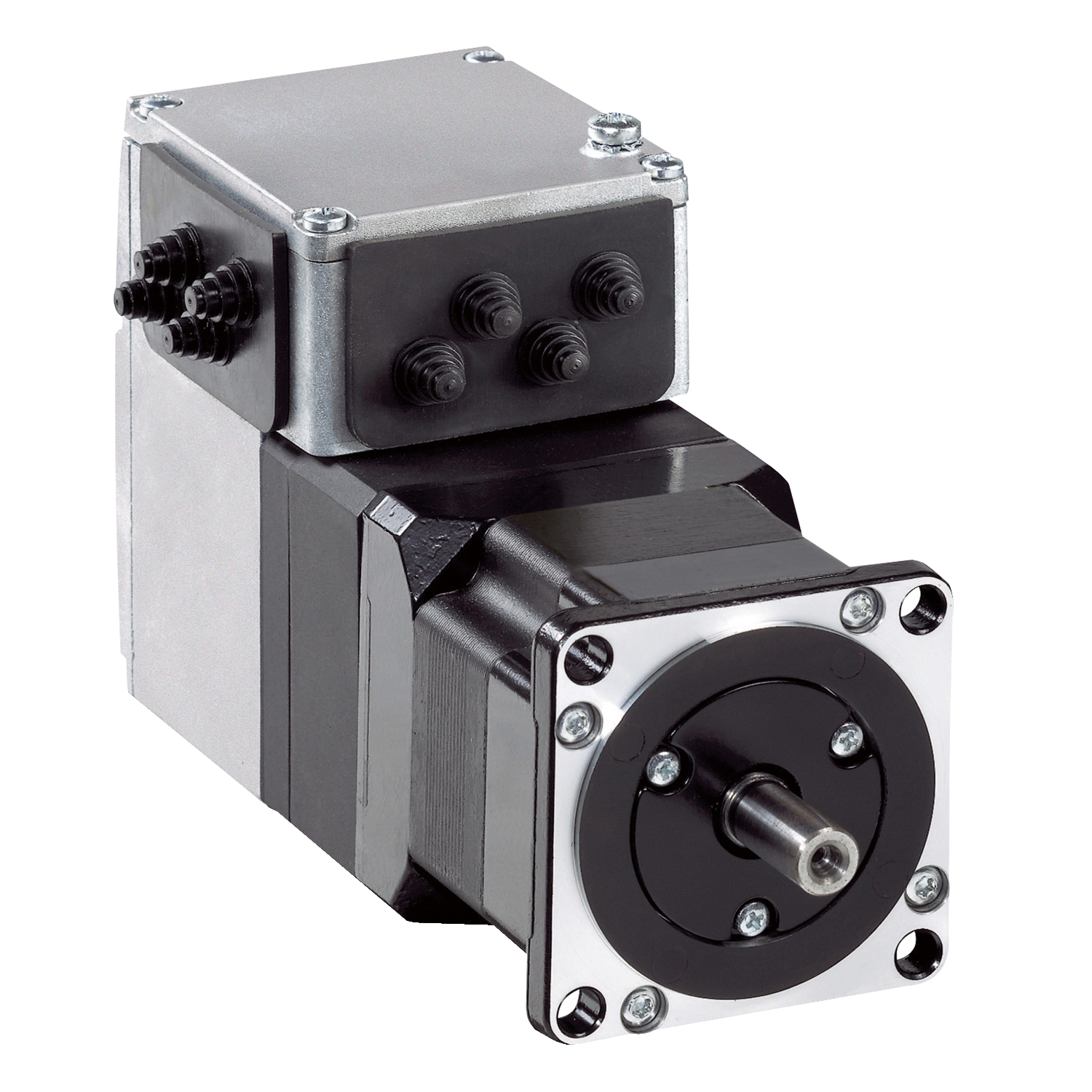

Picture of integrated drive ILA with servo motor - 24..36 V - CANopen - PCB connector
SKU:

ILA1F572PB1F0

integrated drive ILA with servo motor - 24..36 V - CANopen - PCB connector

$4,324.32 INC GST
Available for Shipping : 28-Jan-2026
Product Selector
integrated drive ILA with servo motor - 24..36 V - CANopen - PCB connector
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Declaration of conformity
Catalog
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Lexium ILA range, an offer of motion integrated drives for motion control. The motion integrated drive with a 6-pole AC synchronous servo motor features an integrated CANopen DS301 communication interface and untapped shaft with holding brake. It is an equipped with a single-turn encoder (16,384 points/turn x 4096 turns). The AC synchronous servo motor with a rated supply voltage of 24V, 36V DC, a peak current consumption of 8500mA and a nominal speed of 4300RPM at 36V. The shaft dimensions are 9mm (diameter) x 20mm (length). It is furnished with printed circuit board connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. Its dimensions are 209.3mm (length) x 57mm (width) and the centering collar dimensions are 1.6mm (depth) x 50mm (diameter) with 66.6mm mounting hole. It weighs 1.7kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CE, TUV, CUL and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, EN/IEC 50178, EN 61800-3 2001-02, IEC 61800-3, Ed 2 and EN 50347 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.

Products specifications

Attribute name Attribute value
Main
Device short name ILA
Nominal speed 4300 rpm at 36 V, 2600 rpm at 24 V
Gear box type without
Communication interface CANopen DS301, integrated
[Us] rated supply voltage 36 V, 24 V
Winding type medium speed of rotation and medium torque
Range of product Lexium integrated drive
Nominal torque 0.45 N.m
Electrical connection printed circuit board connector
Motor type AC synchronous servo motor
Length 209.3 mm
Network number of phases single phase
Product or component type motion integrated drive
Holding brake with
Number of motor poles 6
Network type DC
Holding torque 1.2 N.m holding brake
Complementary
Voltage state 1 guaranteed 15...30 V
Coefficient M0 max 6.25E-06 N.m/rpm
Maximum axial force Fa 104 N (tensile force), 104 N (force pressure)
Input/output type 4 signals (each be used as input or output)
Coefficient 1_0 2.7616526 N.m
Coefficient 1_2 3.21136E-07 N.m/rpm²
Coefficient 1_1 -0.001570167 N.m/rpm
Coefficient 1_3 -2.4503311E-11 N.m/rpm3
Brake application time 13 ms
Coefficient 2_1 -0.000559 N.m/rpm
Protection type overload of output voltage, short circuit of the output voltage, safe torque off
Coefficient 2_0 2.02364193 N.m
Coefficient 2_3 -2.69719471E-12 N.m/rpm3
Coefficient 2_2 5.425111E-08 N.m/rpm²
Compatibility code ILA
Service life in hours 20000 h bearing
Accuracy error [angular] 0.05 °
Type of cooling natural convection
Speed feedback resolution 16384 points/turn x 4096 turns
Supply voltage description single phase 24 V DC, single phase 36 V DC
Supply voltage limits 18-40 V
Number of mounting holes 4
Peak stall torque 0.72 N.m
Brake release time 14 ms
Motor flange size 57 mm
Brake pull-in power 10 W
Marking CE
Centring collar depth 1.6 mm
Continuous stall torque 0.45 N.m
Maximum radial force Fr 107 N
Maximum switching current 200 mA total, 100 mA per output
Circle diameter of the mounting holes 66.6 mm
Coefficient M0 9.3023265E-06 N.m/rpm
Associated fuse rating 10 A
Network number of phases 1
Accuracy error +/- 0.05 °
Voltage 2 speed 2 4293.17 rpm
Voltage 1 speed 1 2583.62 rpm
Transmission rate 50, 100, 125, 250, 500, 800 and 1000 kbauds
Feedback type single turn encoder
Shaft end untapped
Voltage 1 24 V
Voltage 2 36 V
Mounting holes diameter 5.2 mm
Discrete output voltage 23...25 V
Shaft diameter 9 mm
Curve type lin
Centring collar diameter 50 mm
Sizing reference ILA1_572P
Voltage state 0 guaranteed -3...4.5 V
Net weight 1.7 kg
Shaft length 20 mm
Voltage 2 speed 2 max 3206.42 rpm
Second shaft without second shaft end
Discrete input current 2-2 mA at 24 V for 24 V signal interface, 3-3 mA at 24 V on/STO_B for safety input, 10-10 mA at 24 V on/STO_A for safety input
Rotor inertia 0.25 kg.cm²
Number of motor stacks 2
Mounting support flange
Voltage 1 speed 1 max 2004.079 rpm
Current consumption 8500 mA peak, 7000 mA maximum continuous
Environment
IP degree of protection IP54 total except shaft bushing: conforming to IEC 60034-5, IP41 shaft bushing: conforming to IEC 60034-5
Relative humidity 15-85 % without condensation
Ambient air temperature for storage -25-70 °C
Shock resistance 150 m/s² 1000 shocks conforming to IEC 60068-2-29
Ambient air temperature for operation 0-50 °C (without derating), 50-65 °C (with power derating of 2 % per °C)
Operating altitude <= 1000 m without derating
Permissible ambient air temperature around the device 110 °C motor, 105 °C power amplifier
Vibration resistance 20 m/s² (f= 10-500 Hz) 10 cycles conforming to IEC 60068-2-6
Standards IEC 50178, IEC 50347, EN 61800-3 : 2001-02, IEC 61800-3, EN 61800-3:2001, second environment, IEC 61800-3, Ed 2, IEC 60072-1
Product certifications cUL, TÜV, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.800 cm
Package 1 Width 19.200 cm
Package 1 Length 39.800 cm
Package 1 Weight 2.546 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 11.252 kg
Unit Type of Package 3 3
Number of Units in Package 3 12
Package 3 Height 77.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 39.496 kg
