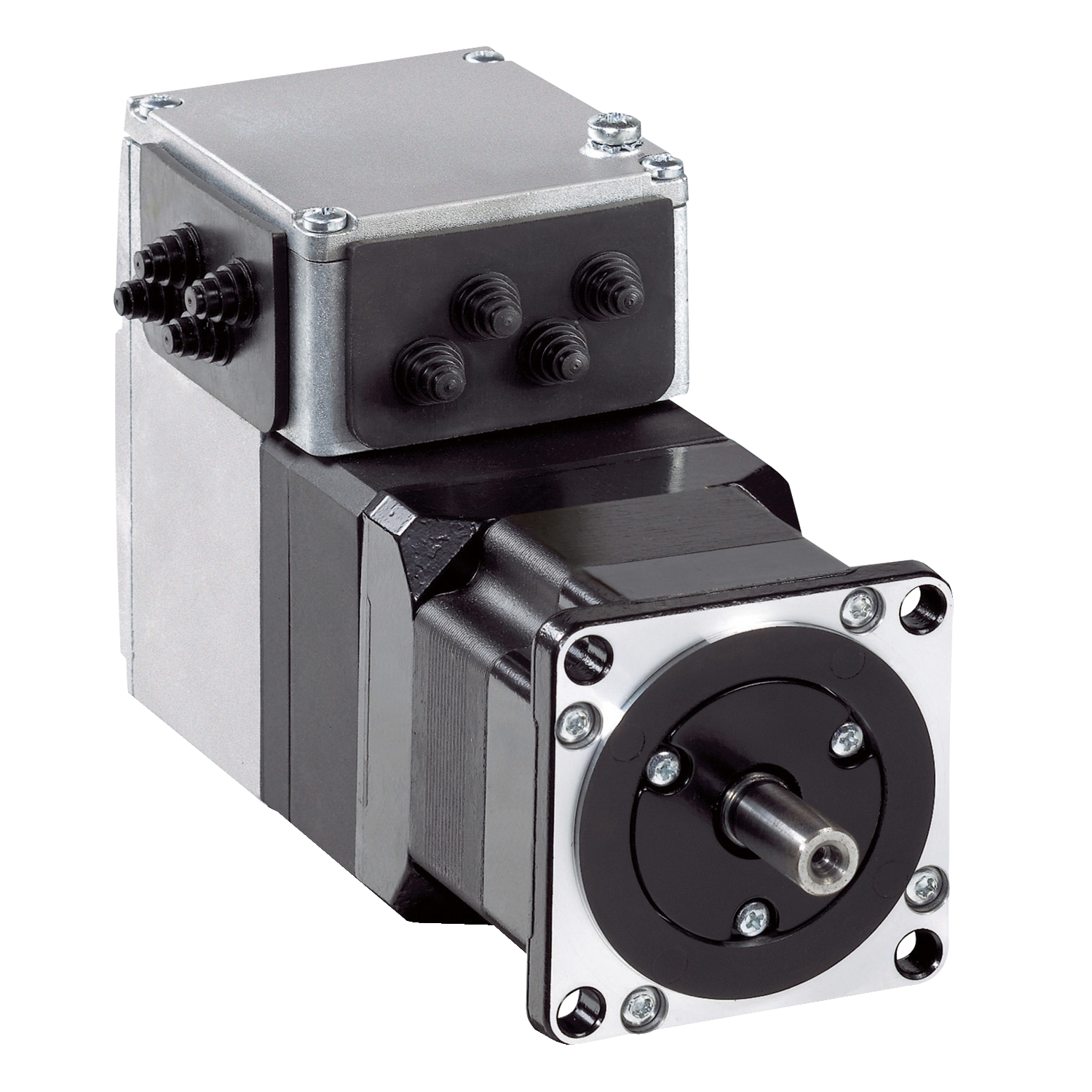

Picture of integrated drive ILA with servo motor - 24..36 V - Profibus DP - PCB connector
SKU:

ILA1B571PB1A0

integrated drive ILA with servo motor - 24..36 V - Profibus DP - PCB connector

$2,148.96 INC GST
Available for Shipping : 28-Jan-2026
Product Selector
integrated drive ILA with servo motor - 24..36 V - Profibus DP - PCB connector
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Declaration of conformity
Catalog
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ILA
Nominal torque 0.26 N.m
Electrical connection printed circuit board connector
Nominal speed 5500 rpm at 36 V, 3200 rpm at 24 V
Motor type AC synchronous servo motor
Gear box type without
Communication interface Profibus DP, integrated
[Us] rated supply voltage 36 V, 24 V
Length 145.3 mm
Network number of phases single phase
Product or component type motion integrated drive
Holding brake without
Number of motor poles 6
Winding type medium speed of rotation and medium torque
Network type DC
Range of product Lexium integrated drive
Complementary
Voltage state 1 guaranteed 15...30 V
Coefficient M0 max 6.452E-06 N.m/rpm
Associated fuse rating 10 A
Maximum axial force Fa 104 N (tensile force), 104 N (force pressure)
Input/output type 4 signals (each be used as input or output)
Coefficient 1_0 1.05309 N.m
Coefficient 1_2 4.112554E-08 N.m/rpm²
Coefficient 1_1 -0.00036577 N.m/rpm
Coefficient 1_3 -2.0202E-12 N.m/rpm3
Network number of phases 1
Accuracy error +/- 0.05 °
Voltage 2 speed 2 5561.45 rpm
Transmission rate 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000 and 12000 kbauds
Voltage 1 speed 1 3231.59 rpm
Coefficient 2_1 -0.0002751 N.m/rpm
Protection type overload of output voltage, short circuit of the output voltage, safe torque off
Coefficient 2_0 1.27116 N.m
Coefficient 2_3 -5.208983E-13 N.m/rpm3
Coefficient 2_2 1.83659E-08 N.m/rpm²
Feedback type single turn encoder
Compatibility code ILA
Shaft end untapped
Voltage 1 24 V
Voltage 2 36 V
Service life in hours 20000 h bearing
Accuracy error [angular] 0.05 °
Type of cooling natural convection
Speed feedback resolution 16384 points/turn
Supply voltage description single phase 36 V DC, single phase 24 V DC
Mounting holes diameter 5.2 mm
Supply voltage limits 18-40 V
Discrete output voltage 23...25 V
Shaft diameter 9 mm
Number of mounting holes 4
Peak stall torque 0.6 N.m
Curve type lin
Motor flange size 57 mm
Centring collar diameter 50 mm
Sizing reference ILA1_571P
Voltage state 0 guaranteed -3...4.5 V
Net weight 1.4 kg
Shaft length 20 mm
Marking CE
Voltage 2 speed 2 max 3095.96 rpm
Second shaft without second shaft end
Discrete input current 2-2 mA at 24 V for 24 V signal interface, 3-3 mA at 24 V on/STO_B for safety input, 10-10 mA at 24 V on/STO_A for safety input
Centring collar depth 1.6 mm
Continuous stall torque 0.26 N.m
Rotor inertia 0.1 kg.cm²
Number of motor stacks 1
Mounting support flange
Maximum radial force Fr 89 N
Maximum switching current 200 mA total, 100 mA per output
Voltage 1 speed 1 max 1499.31 rpm
Current consumption 7000 mA peak, 5000 mA maximum continuous
Circle diameter of the mounting holes 66.6 mm
Coefficient M0 5.454E-06 N.m/rpm
Environment
Operating altitude <= 1000 m without derating
IP degree of protection IP54 total except shaft bushing: conforming to EN/IEC 60034-5, IP41 shaft bushing: conforming to EN/IEC 60034-5
Relative humidity 15-85 % without condensation
Ambient air temperature for storage -25-70 °C
Permissible ambient air temperature around the device 110 °C motor, 105 °C power amplifier
Vibration resistance 20 m/s² (f= 10-500 Hz) 10 cycles conforming to EN/IEC 60068-2-6
Shock resistance 150 m/s² 1000 shocks conforming to EN/IEC 60068-2-29
Ambient air temperature for operation 0-50 °C (without derating), 50-65 °C (with power derating of 2 % per °C)
Standards EN 61800-3 : 2001-02, IEC 61800-3, Ed 2, EN/IEC 61800-3, EN 61800-3:2001, second environment, EN/IEC 50178, EN 50347, IEC 60072-1
Product certifications cUL, TÜV, UL
