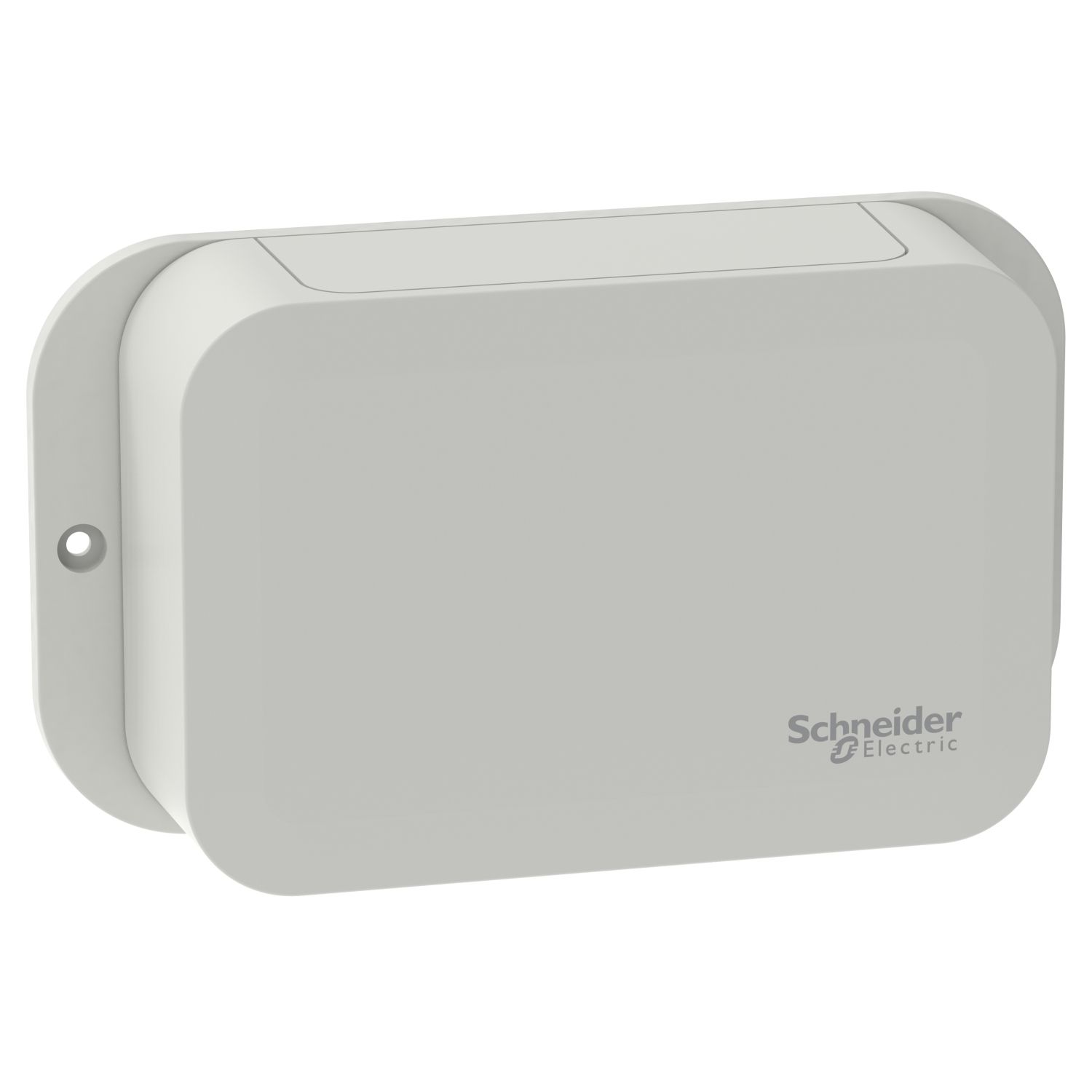

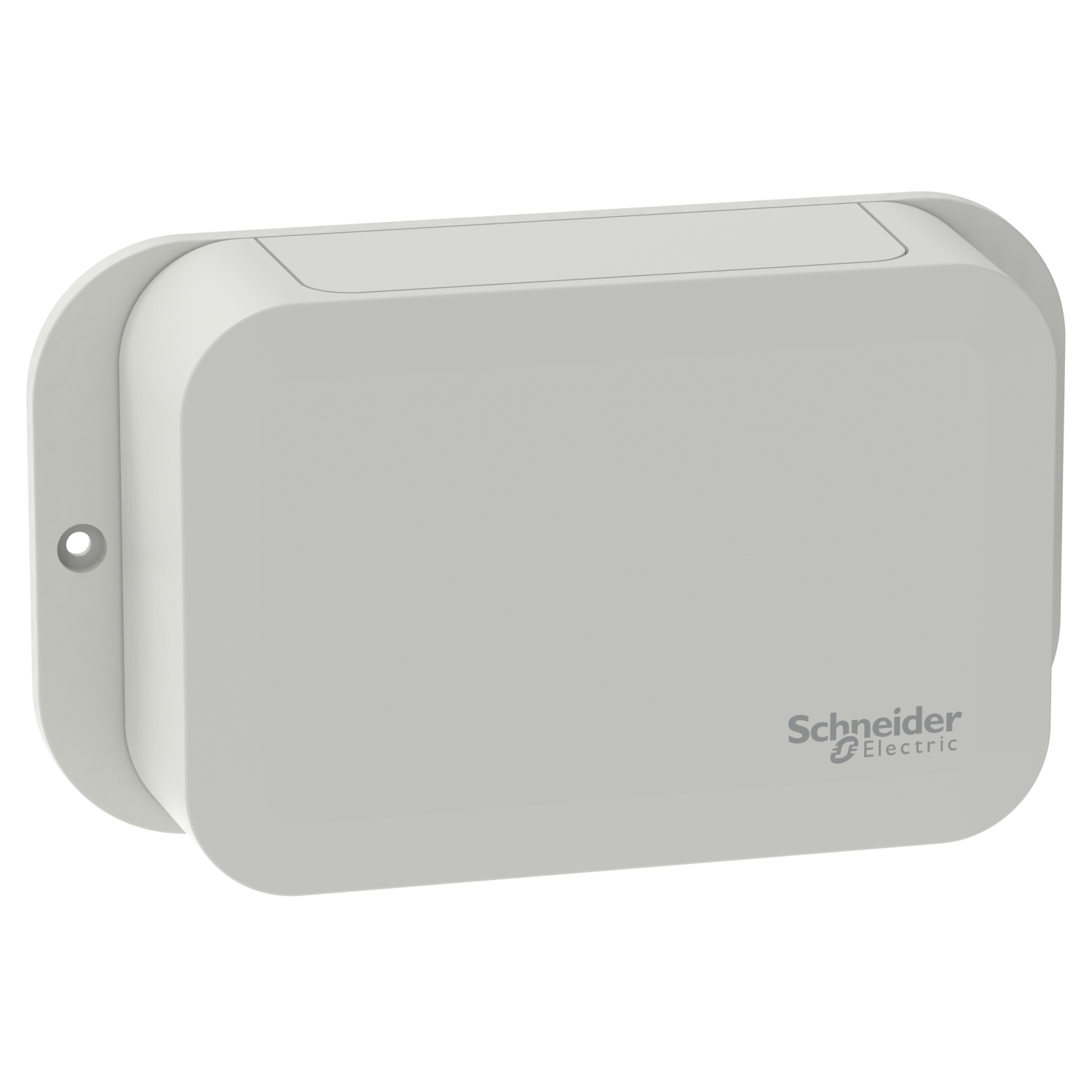

Picture of Gateway, EcoStruxure Building-IoT Sensor Solution, wireless, LTE, PoE
SKU:

EBIOTPGW

Gateway, EcoStruxure Building-IoT Sensor Solution, wireless, LTE, PoE

$3,878.49 INC GST
Available for Shipping : 17-Dec-2025
Gateway, EcoStruxure Building-IoT Sensor Solution, wireless, LTE, PoE
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
EcoStruxure BIoT Gateway is a multi-protocol gateway that can simultaneously receive data from multiple wireless protocols. It is designed for commercial facilities and building installations, supporting up to 200 sensors. BIoT Gateway has built-in radios to allow for direct communication with sensors in the BIoT product family. Multiple gateways can be installed to support thousands of sensors. This gateway is compatible with the mesh technnology, LTE Cat 4 Worldwide and GPS (3G/2G). The dimensions of the device are 150 mm in length, 85 mm in width and 40 mm in height.

Products specifications

Attribute name Attribute value
Main
Number of port 1 , connector type: RS485, 1 , connector type: USB 2.0 type A
IP degree of protection < IP20
Device application building, commercial
Depth 150 mm
Width 85 mm
Enclosure material plastic
Communication network type mesh, LTE
Relative humidity 0-95 % RH, non-condensing
Ambient air temperature for storage 0-50 °C
Colour white
Memory type 1 GB RAM
Range EcoStruxure Building-IoT Sensor Solution
Antenna gain 2.8 dBi
Supply AC/DC adapter 9...36 V, Power over Ethernet (PoE) 9...36 V
Product or component type gateway
Standards EN 62321 : 2008, EN 301-489-1, EN/IEC 62368-1, EN 300-328, REACH, RoHS, ICES-003 Issue 7, FCC part 15 class B
Ambient air temperature for operation 0-50 °C
Height 40 mm
Communication port support 1 port Ethernet 10/100BASE
Network frequency 2.4 GHz
Product certifications RoHS, EN, CE, FCC
Complementary
Communication gateway Wireless mesh to cloud server
Number of devices 200
Range compatibility EcoStruxure Building-IoT Sensor Solution
Mounting support surface mount, wall
Environment
Electrical insulation class class B
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.6 cm
Package 1 Width 17.6 cm
Package 1 Length 6.6 cm
Package 1 Weight 500 g

Related products

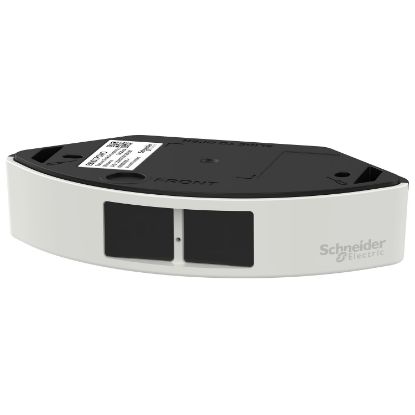

Picture of Desk occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless

Desk occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless

EBIOTPCWD
$263.12 INC GST
View Detail

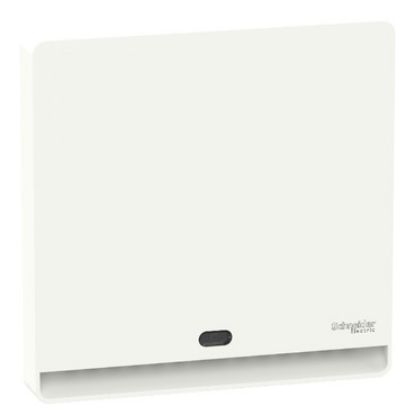

Picture of Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, light, noise, wireless

Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, light, noise, wireless

EBIOTPCWE1
$1,001.88 INC GST
View Detail
Picture of Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, particulate matter, light, noise, wireless

Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, particulate matter, light, noise, wireless

EBIOTPCWE2
$1,214.27 INC GST
View Detail

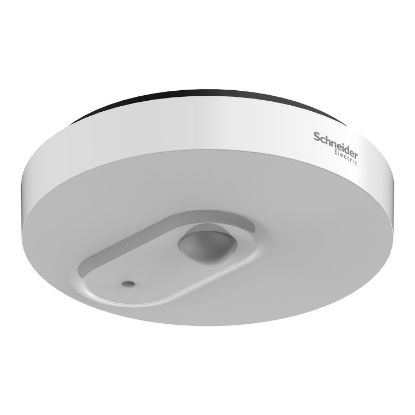

Picture of Room occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless
