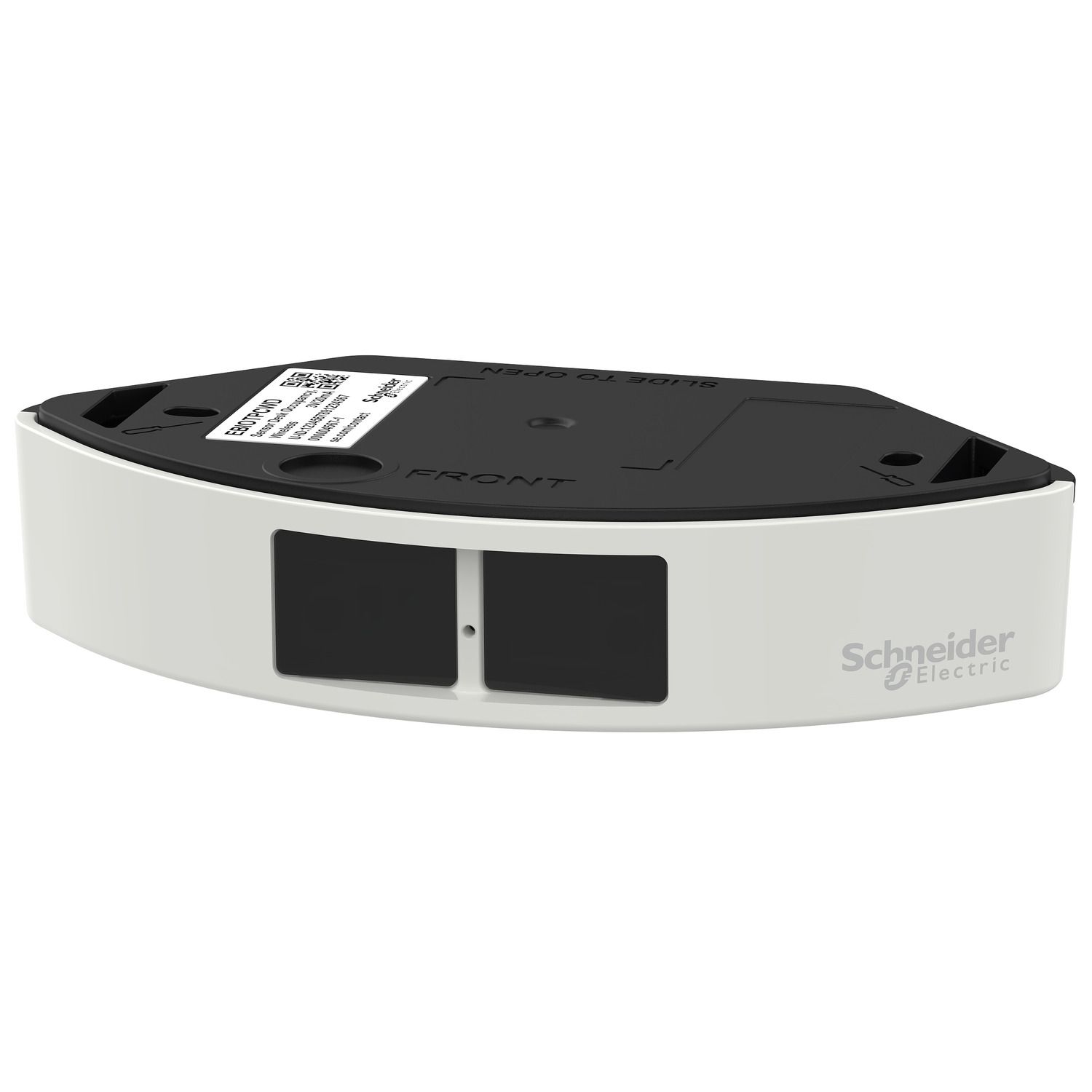

Picture of Desk occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless
SKU:

EBIOTPCWD

Desk occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless

$263.12 INC GST
Availability: Please contact our sales team on 1300 724 622.
Desk occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Environmental Disclosure
Circularity Profile
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
EcoStruxure IoT Desk Occupancy Sensor is a compact, battery-based, easy-to-install wireless sensor that can measure accurate desk presence. Its design makes it easy to deploy in a variety of furniture and spaces, such as workstations, office cubicles, touchdown desks, and phone booths. The sensor can also measure occupancy in collaboration spaces, such as lounges and meeting rooms. This sensor is equipped with tamper detection. The dimensions of the device are 92 mm in length, 51 mm in width and 19 mm in height.

Products specifications

Attribute name Attribute value
Main
Depth 92 mm
Colour white
Width 51 mm
Local signalling LED indicator
Relative humidity 20-80 % RH, non-condensing
Sensor type thermopile
Ambient air temperature for storage -20-60 °C
Battery life 5 year(s)
Communication port protocol wireless
Range EcoStruxure Building-IoT Sensor Solution
Location office
Battery voltage 1.5 V
Product or component type sensor
Battery size 2 AA
Type of measurement motion
Standards EN 62321 : 2008, EN 301-489-1, EN/IEC 62368-1, EN 300-328, REACH, RoHS, ICES-003 Issue 7, FCC part 15 class B
Detection angle 90 ° (vertical), 120° (horizontal)
Range of product EcoStruxure Building-IoT Sensor Solution
Ambient air temperature for operation 0-50 °C
Height 19 mm
Product brand Schneider Electric
Storage Relative Humidity 0-95 % RH, non-condensing
Complementary
Mounting mode surface mounting, desktop installation
Material ABS (acrylonitrile butadiene-styrene)
Supply Li battery
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4 cm
Package 1 Width 8.4 cm
Package 1 Length 11.7 cm
Package 1 Weight 101 g

Related products

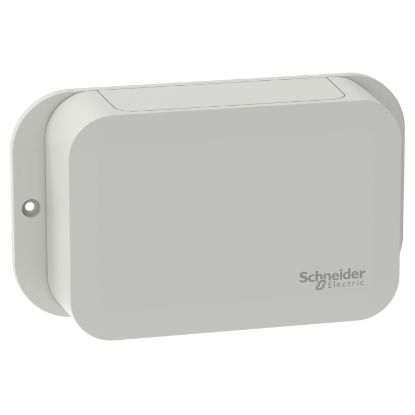

Picture of Gateway, EcoStruxure Building-IoT Sensor Solution, wireless, LTE, PoE
