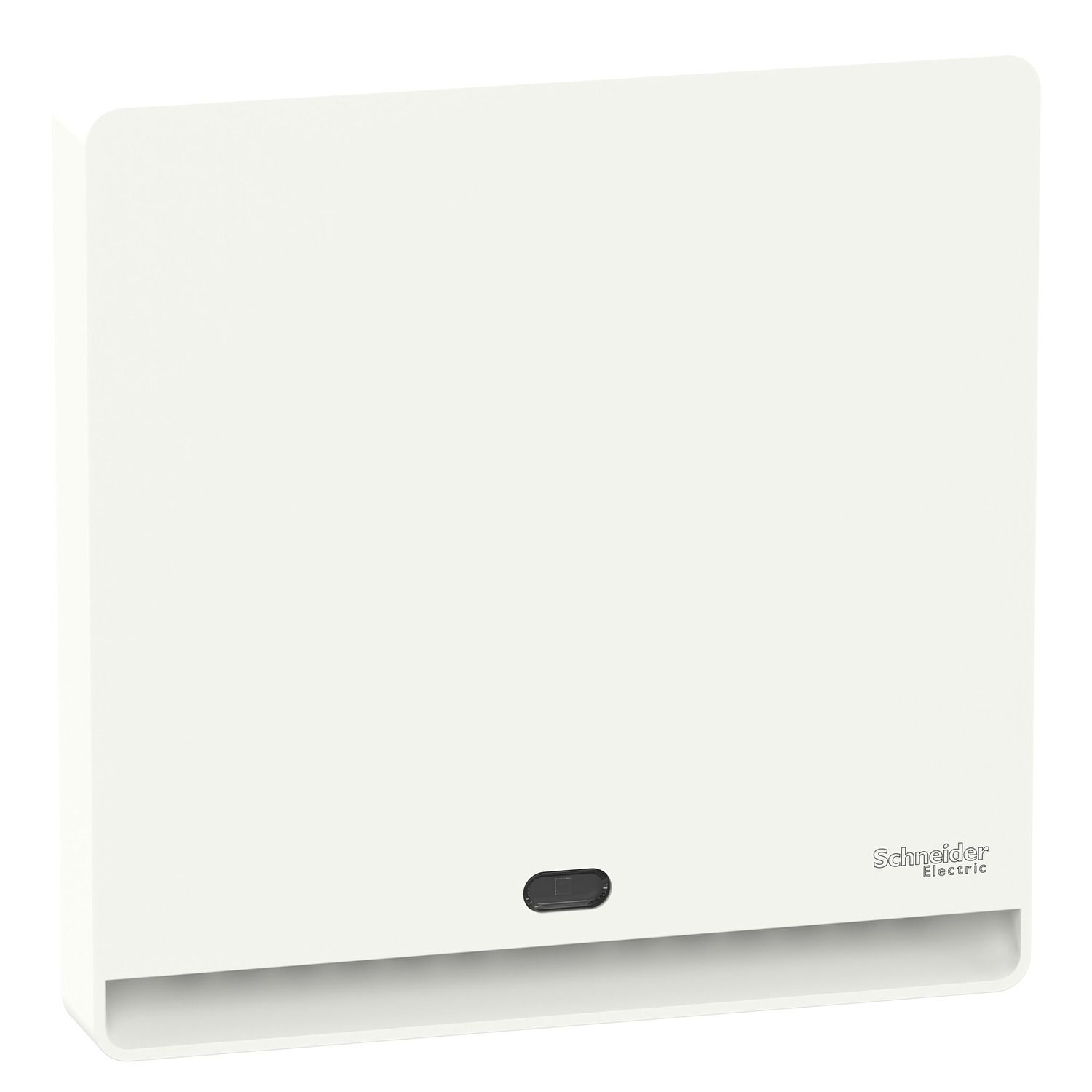

Picture of Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, particulate matter, light, noise, wireless
SKU:

EBIOTPCWE2

Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, particulate matter, light, noise, wireless

$1,214.27 INC GST
Available for Shipping : 27-Jan-2026
Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, particulate matter, light, noise, wireless
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
User guide
Environmental Disclosure
Instruction sheet
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
Ecostruxure IoT IAQ Sensor is a wireless, USB-C or battery-based, easy-to-install multisensor that is used in a variety of spaces inside buildings. Its flexible use and wide range of sensing capabilities allow it to be used in a variety of spaces inside buildings. This 8-in-1 air quality sensor include temperature, humidity, CO², VOC, light, noise, air pressure and particulate matter elements This sensor is equipped with tamper detection. The dimensions of the device are 121.48 mm in length, 121.48 mm in width and 22 mm in height.

Products specifications

Attribute name Attribute value
Main
Light intensity measurement range 0...10000 lux
Depth 121.48 mm
Temperature resolution 0.01 °C
Colour white
Width 121.48 mm
CO2 measurement accuracy +/- 30 ppm + 3 % of reading
Humidity measurement accuracy +/- 3 % 20...80 % RH
VOC measurement accuracy +/- 15 %
Local signalling LED indicator
Measurement temperature 0-50 °C
Relative humidity 10-90 % RH, non-condensing
Sensor type laser scattering particulate matter (PM), metal oxide volatile organic compounds (VOC), photoacoustic spectroscopy carbon dioxide (CO2), solid state pressure, solid state relative humidity, solid state temperature
Service life 5 year(s)
Temperature measurement accuracy +/- 0.5 °C at 25 °C
Ambient air temperature for storage -20-60 °C
Battery life 2 year(s)
VOC measurement range 0...100 % AQI
Range EcoStruxure Building-IoT Sensor Solution
CO2 measurement range 0...2000 ppm
Location indoor
Battery voltage 1.5 V
Product or component type sensor
Type of measurement particulate matter (PM), volatile organic compounds (VOC), carbon dioxide (CO2), light, noise, pressure, relative humidity, temperature
Standards EN 62321 : 2008, EN 301-489-1, EN/IEC 62368-1, EN 300-328, REACH, RoHS, ICES-003 Issue 7, FCC part 15 class B
Humidity measurement range 10...90 % RH
Mounting support wall
Range of product EcoStruxure Building-IoT Sensor Solution
Ambient air temperature for operation 0-50 °C
Height 22 mm
Noise measurement accuracy +/- 3 dB Spl
Product brand Schneider Electric
Environment
IP degree of protection IP20
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17 cm
Package 1 Width 15.6 cm
Package 1 Length 5.6 cm
Package 1 Weight 380 g
