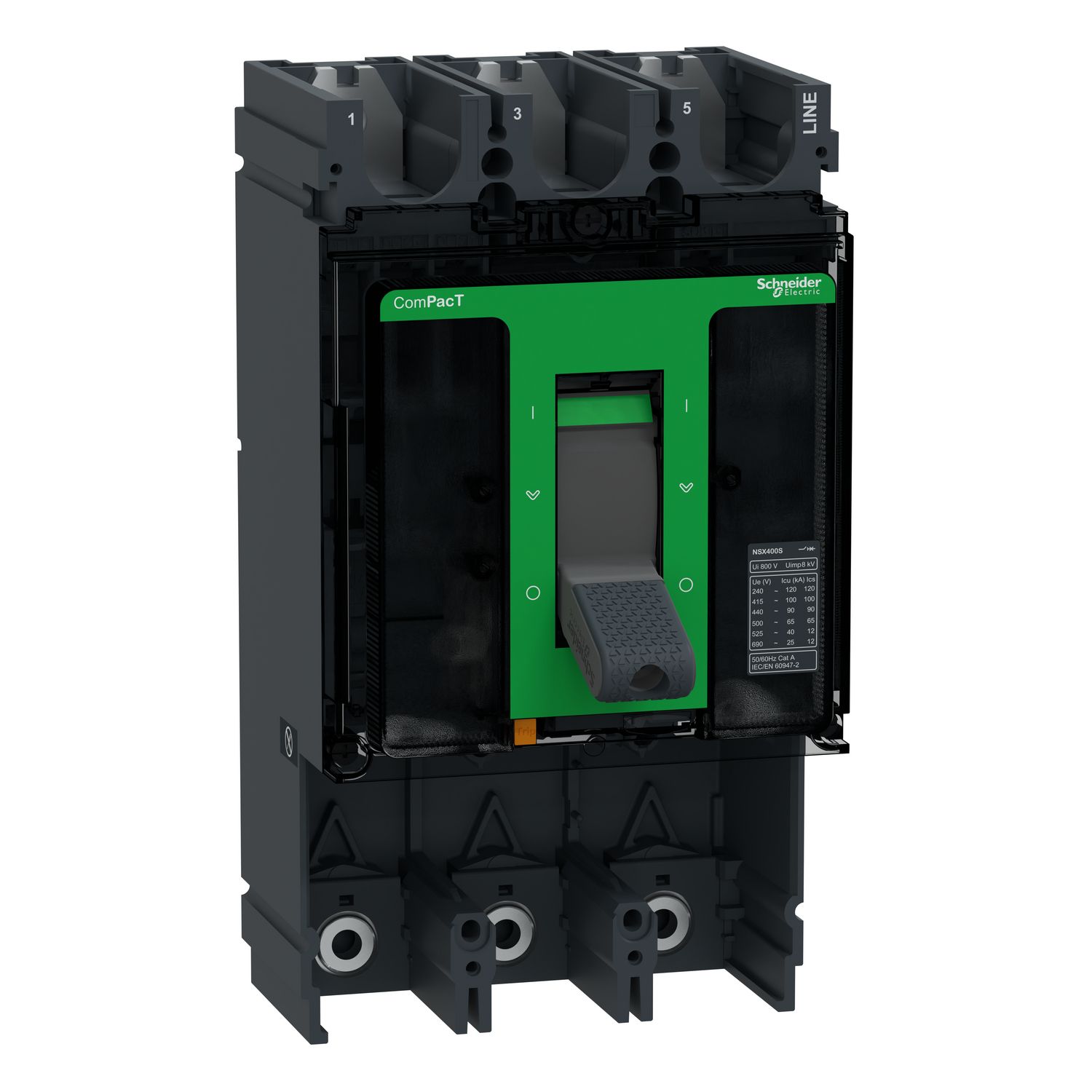

Picture of Circuit breaker basic frame, ComPacT NSX400S, 100kA/415VAC, 3 poles, 400A frame rating, without trip unit
SKU:

C40S3

Circuit breaker basic frame, ComPacT NSX400S, 100kA/415VAC, 3 poles, 400A frame rating, without trip unit

Old price: $2,186.80 INC GST
$1,788.80 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Circuit breaker basic frame, ComPacT NSX400S, 100kA/415VAC, 3 poles, 400A frame rating, without trip unit
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Circularity Profile
Instruction sheet
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
This is a 3 poles basic frame for ComPacT NSX400S. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 100kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 140mm x 255mm x 110mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400S is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Suitability for isolation yes conforming to EN/IEC 60947-2
Utilisation category category A
Network type AC
Device short name NSX400S
Breaking capacity code S 100 kA 415 V AC
Breaking capacity 25 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 90 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 120 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode fixed
Control type toggle
Range ComPacT new generation
Range of product ComPacT NSX400...630 new generation
Poles description 3P
Product name ComPacT NSX new generation
Product or component type basic frame
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current 400 A at 40 °C
Network frequency 50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Compatibility code NSX400
Electrical durability 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 6000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 3000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2, 12000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
Downside connection front
Height 255 mm
[Ics] rated service breaking capacity 125 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 12 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 12 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 90 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles conforming to IEC 60947-2
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
Protection type without protection
Upside connection front
Connection pitch 45 mm
Depth 110 mm
Width 140 mm
Mounting support backplate
Environment
Ambient air temperature for storage -50-85 °C
Product certifications CSA, UL
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Standards UL 508, EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.0 cm
Package 1 Width 15.5 cm
Package 1 Length 29.0 cm
Package 1 Weight 4.55 kg
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 45.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 179.0 kg

Related products

Picture of Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

29450
$130.43 INC GST $159.06 INC GST
View Detail
Picture of ComPacT, Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

ComPacT, Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

LV432591
$83.23 INC GST $101.75 INC GST
View Detail
Picture of ComPacT, Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

ComPacT, Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 3 poles

LV432593
$91.96 INC GST $112.42 INC GST
View Detail
Picture of Interphase barriers, ComPacT NSX 400/630, set of 6 parts

Interphase barriers, ComPacT NSX 400/630, set of 6 parts

LV432570
$68.29 INC GST $83.49 INC GST
View Detail

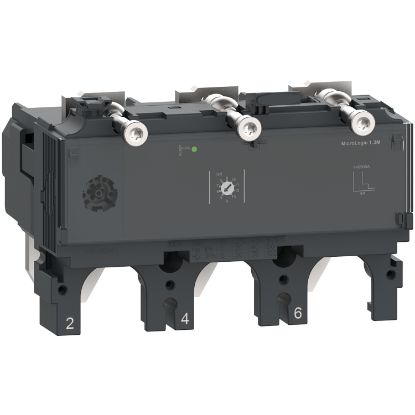

Picture of Trip unit MicroLogic 1.3M, ComPacT NSX400/630, 3 poles, electronic magnetic protection, motor protection, 320A

Trip unit MicroLogic 1.3M, ComPacT NSX400/630, 3 poles, electronic magnetic protection, motor protection, 320A

C4031M320
$1,083.36 INC GST $1,324.40 INC GST
View Detail

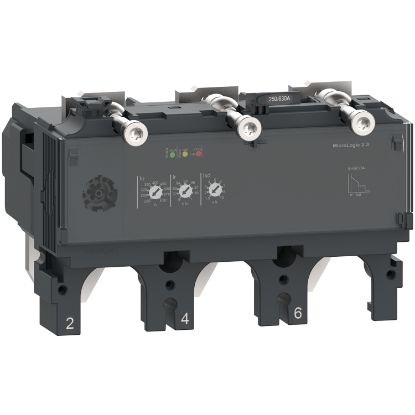

Picture of Trip unit MicroLogic 2.3, ComPacT NSX400/630, 3 poles, electronic basic protections, 400A rating
