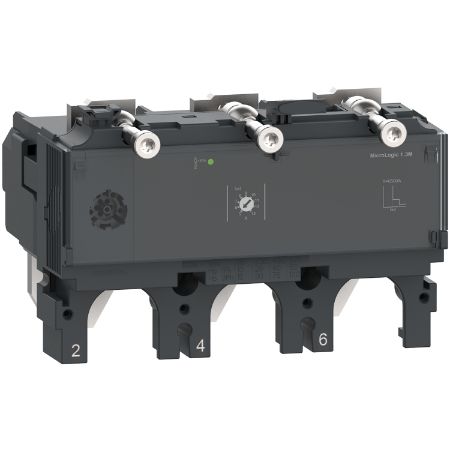

Picture of Trip unit MicroLogic 1.3M, ComPacT NSX400/630, 3 poles, electronic magnetic protection, motor protection, 320A
SKU:

C4031M320

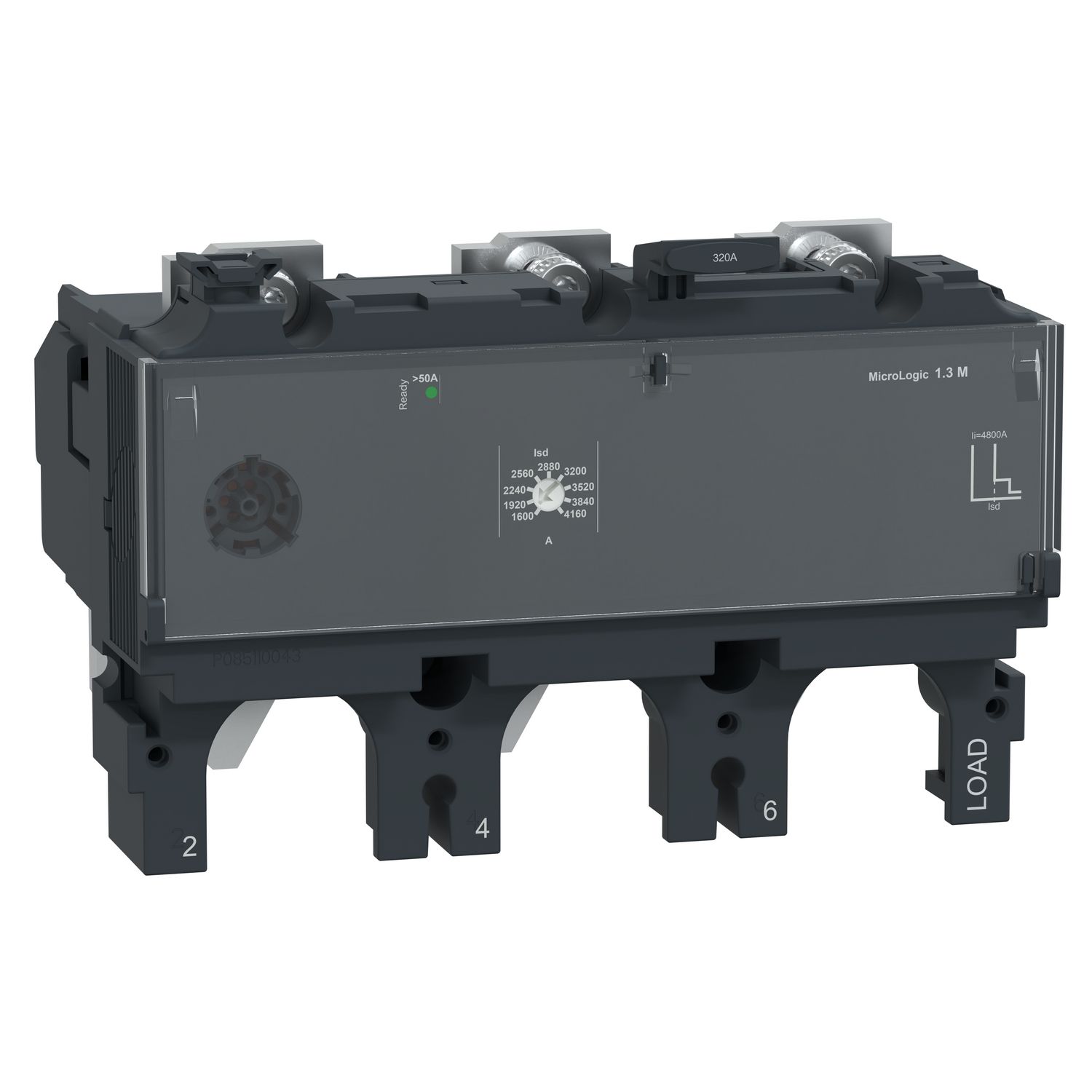

Trip unit MicroLogic 1.3M, ComPacT NSX400/630, 3 poles, electronic magnetic protection, motor protection, 320A

Old price: $1,324.40 INC GST
$1,083.36 INC GST
Available for Shipping : 15-Dec-2025
Trip unit MicroLogic 1.3M, ComPacT NSX400/630, 3 poles, electronic magnetic protection, motor protection, 320A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Circularity Profile
Catalog
Declaration of conformity
Instruction sheet
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
This MicroLogic 1.3 M is a 3 poles 3d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 320A rating electronic trip unit is an optimum choice for motor protection applications. It provides an adjustable short-time protection and a fixed instantaneous protection against short-circuits. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application motor
Range compatibility ComPacT new generation NSX630, ComPacT new generation NSX400
Trip unit technology electronic
Network type AC
Mounting mode fixed
Range ComPacT new generation
Protection type I : for instantaneous short-circuit protection, S : for short time short-circuit protection with fixed delay
Protected poles description 3D
Range of product ComPacT NSX400...630 new generation
Trip unit name MicroLogic 1.3 M
Poles description 3P
Product or component type trip unit
Trip unit protection functions SI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 320 A at 65 °C
Network frequency 50/60 Hz
Complementary
Short-time pick-up adjustment type Isd adjustable 9 settings
Zone selective interlocking ZSI without
Earth-leakage protection without
Instantaneous pick-up adjustment range 4800 A
Short-time delay adjustment type fixed
[Isd] short-time pick-up adjustment range 4160 A, 3840 A, 3520 A, 3200 A, 2880 A, 2560 A, 2240 A, 1920 A, 1600 A
Local signalling flashing LED (green) for ready to operate
Instantaneous pick-up adjustment type Ii fixed
Environment
Ambient air temperature for storage -50-85 °C
Electrical shock protection class class II
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 17.500 cm
Package 1 Length 21.500 cm
Package 1 Weight 1.358 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.830 kg
