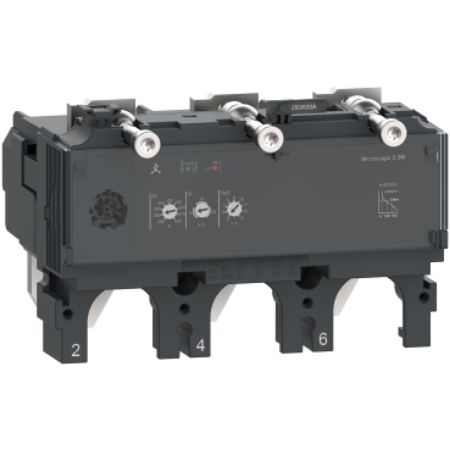

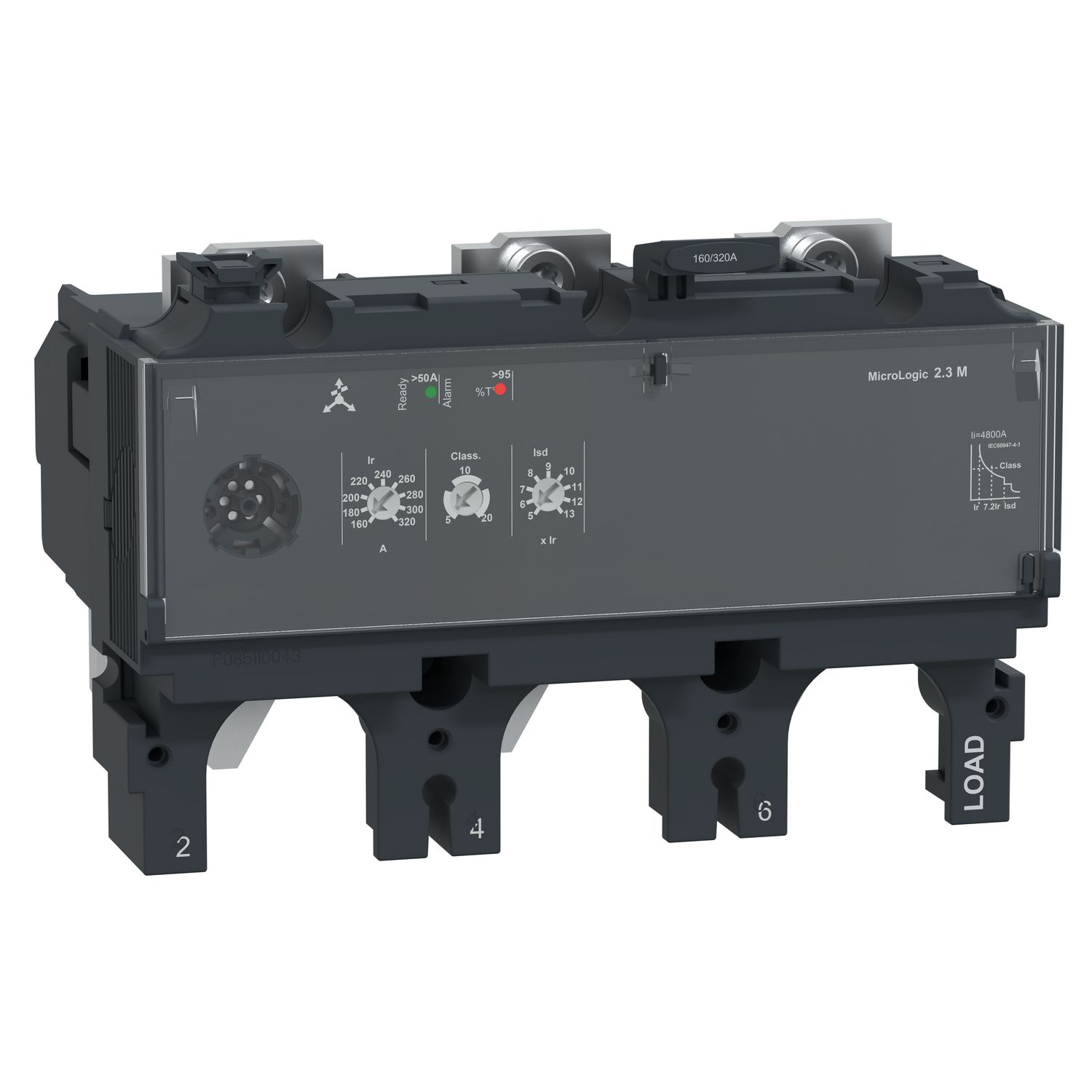

Picture of Trip unit MicroLogic 2.3M, ComPacT NSX400/630, 3 poles, electronic basic protections, motor protection, 320A rating
SKU:

C4032M320

Trip unit MicroLogic 2.3M, ComPacT NSX400/630, 3 poles, electronic basic protections, motor protection, 320A rating

Old price: $1,856.80 INC GST
$1,518.86 INC GST
Available for Shipping : 15-Dec-2025
Trip unit MicroLogic 2.3M, ComPacT NSX400/630, 3 poles, electronic basic protections, motor protection, 320A rating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Circularity Profile
Catalog
Instruction sheet
Declaration of conformity
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
This MicroLogic 2.3 M is a 3 poles 3d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 320A rating magnetic trip unit is an optimum choice for motor protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.3 M indicates when the thermal image of the rotor and stator is greater than 95% of the permissible temperature rise with a red Alarm LED. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application motor
Range compatibility ComPacT new generation NSX630, ComPacT new generation NSX400
Trip unit technology electronic
Network type AC
Mounting mode fixed
Range ComPacT new generation
Protection type I : for instantaneous short-circuit protection, So : for short time short-circuit protection with fixed delay, L : for overload protection (long time)
Protected poles description 3D
Range of product ComPacT NSX400...630 new generation
Trip unit name MicroLogic 2.3 M
Poles description 3P
Product or component type trip unit
Trip unit protection functions LSoI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 320 A at 65 °C
Network frequency 50/60 Hz
Complementary
Short-time pick-up adjustment type Isd adjustable 9 settings
Long time pick-up adjustment type Ir adjustable 9 settings
Zone selective interlocking ZSI without
Earth-leakage protection without
Thermal memory 20 minutes before and after tripping
Motor tripping class 5, 20, 10
[tr] long-time delay adjustment range 20-20 s at 7.2 x Ir for trip class 20, 26-26 s at 6 x Ir for trip class 20, 480-480 s at 1.5 x Ir for trip class 20, 10-10 s at 7.2 x Ir for trip class 10, 13.5-13.5 s at 6 x Ir for trip class 10, 240-240 s at 1.5 x Ir for trip class 10, 5-5 s at 7.2 x Ir for trip class 5, 6.5-6.5 s at 6 x Ir for trip class 5, 120-120 s at 1.5 x Ir for trip class 5
Long time delay adjustment type fixed
Complementary motor protection phase unbalance
Long time pick-up adjustment range 160...320 A
Instantaneous pick-up adjustment range 4800 A
Short-time delay adjustment type fixed
[Isd] short-time pick-up adjustment range 5...13 x Ir
Local signalling LED 95 % Ith (red) for temperature over set point, flashing LED (green) for ready to operate
Instantaneous pick-up adjustment type Ii fixed
Environment
Ambient air temperature for storage -50-85 °C
Electrical shock protection class class II
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.5 cm
Package 1 Width 17.5 cm
Package 1 Length 21.5 cm
Package 1 Weight 1.408 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.078 kg
