Picture of Trip unit TM160G DC, ComPacT NSX160 DC, 4 poles, thermal magnetic protections, generator protection, 160A rating
SKU:

C164MG160D

Trip unit TM160G DC, ComPacT NSX160 DC, 4 poles, thermal magnetic protections, generator protection, 160A rating

Old price: $204.38 INC GST
$167.18 INC GST
Available for Shipping : 15-Jan-2026
Trip unit TM160G DC, ComPacT NSX160 DC, 4 poles, thermal magnetic protections, generator protection, 160A rating
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Jan-2026
Environmental Disclosure
Instruction sheet
User guide
Product Page Link
Product Data Sheet
TM160G is a 4 poles 4d thermal-magnetic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 160A rating thermal-magnetic trip unit is an optimum choice for generator protection applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. The rated current is 160A and the operational voltage is 750VDC. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute name Attribute value
Main
Trip unit technology thermal-magnetic
Device application generator
Range compatibility ComPacT new generation NSX250 DC, ComPacT new generation NSX160 DC, ComPacT new generation NSX100 DC
Poles description 4P
Mounting mode fixed
Range ComPacT new generation
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Product or component type trip unit
Protected poles description 4D
Network type DC
Trip unit protection functions LI
[Ue] rated operational voltage 750 V DC
Range of product ComPacT NSX100...250 DC new generation
Trip unit name TM-G
[In] rated current 160 A at 40 °C
Complementary
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Instantaneous pick-up adjustment range 530 A
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Earth-leakage protection without
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
Electrical shock protection class class II
IP degree of protection IP40 conforming to IEC 60529
Standards EN/IEC 60947-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 6.000 cm
Package 1 Length 14.000 cm
Package 1 Weight 480.000 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 16.010 kg
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 76.040 kg

Related products

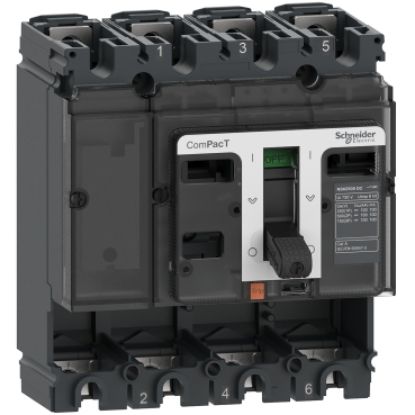

Picture of Circuit breaker basic frame, ComPacT NSX160F DC, 36kA/750VDC, 4 poles, 160A frame rating, without trip unit
