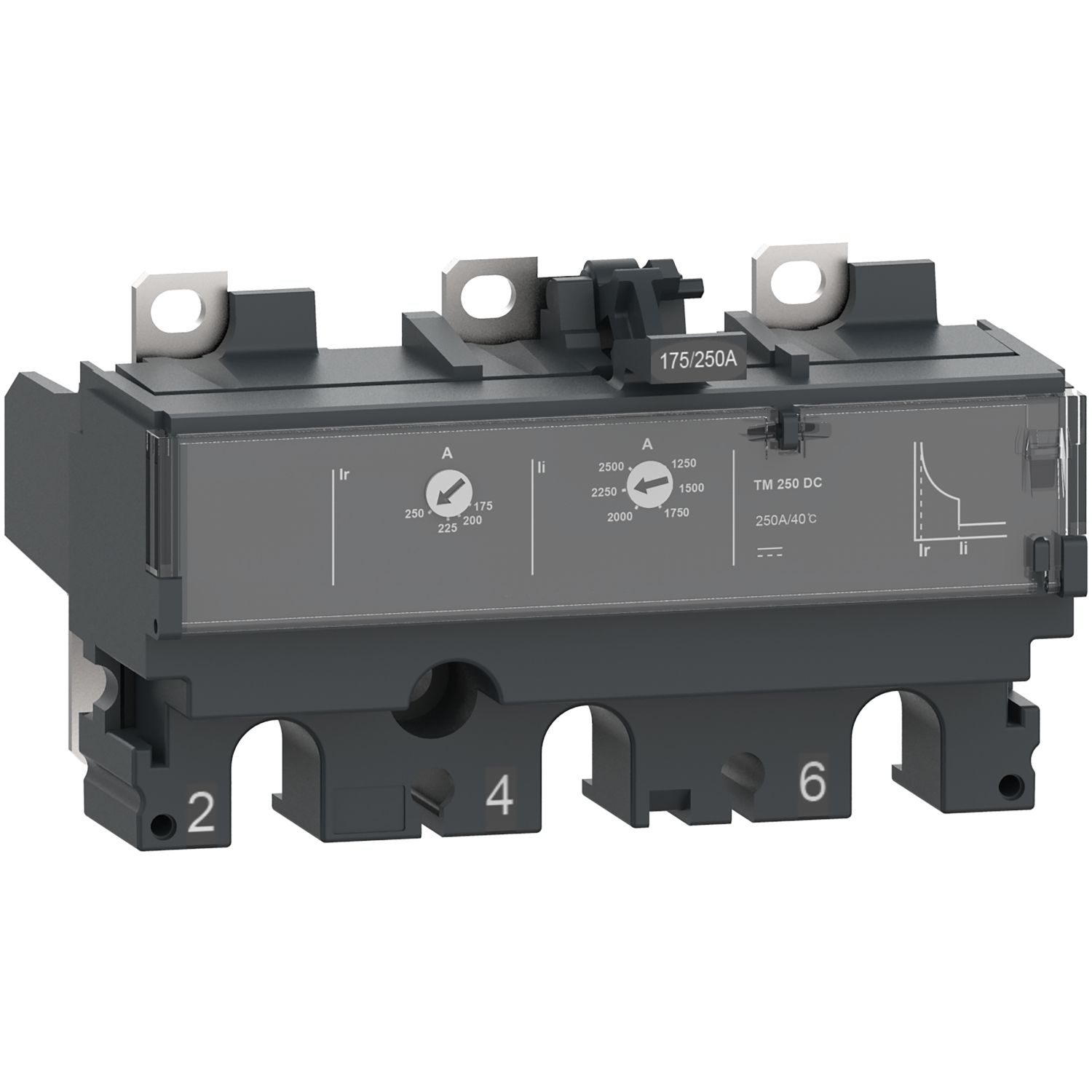

Trip unit TM200DC, ComPacT NSX250 DC, 3 poles, thermal magnetic protections, 200A rating

Old price: $776.60 INC GST
$635.26 INC GST
Available for Shipping : 15-Dec-2025
Trip unit TM200DC, ComPacT NSX250 DC, 3 poles, thermal magnetic protections, 200A rating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Environmental Disclosure
User guide
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
TM200DC is a 3 poles thermal-magnetic trip unit used on ComPacT NSX 250DC circuit breakers. This 200A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. The rated current is 200A and the operational voltage is 750VDC. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute name Attribute value
Main
Trip unit technology thermal-magnetic
Device application distribution
Range compatibility ComPacT new generation NSX250 DC
Poles description 3P
Mounting mode fixed
Range ComPacT new generation
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Product or component type trip unit
Protected poles description 3D
Network type DC
Trip unit protection functions LI
[Ue] rated operational voltage 750 V DC
Range of product ComPacT NSX100...250 DC new generation
Trip unit name TM-D
[In] rated current 200 A at 40 °C
Complementary
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Instantaneous pick-up adjustment range 5...10 x In
Instantaneous pick-up adjustment type Ii adjustable
Long time delay adjustment type fixed
Earth-leakage protection without
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
Electrical shock protection class class II
IP degree of protection IP40 conforming to IEC 60529
Standards EN/IEC 60947-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 10.0 cm
Package 1 Length 11.5 cm
Package 1 Weight 424.0 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 12.16 kg

Related products

Picture of Circuit breaker basic frame, ComPacT NSX250F DC, 36kA/750VDC, 3 poles, 250A frame rating, without trip unit

Circuit breaker basic frame, ComPacT NSX250F DC, 36kA/750VDC, 3 poles, 250A frame rating, without trip unit

C25F3D
$772.93 INC GST $944.90 INC GST
View Detail

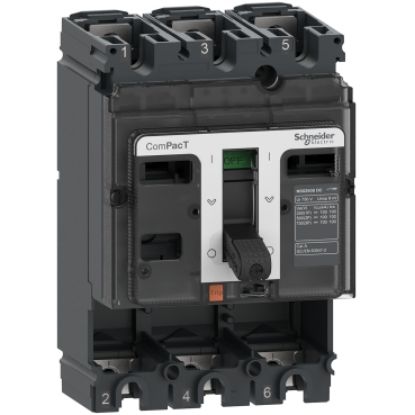

Picture of Circuit breaker basic frame, ComPacT NSX250S DC, 100kA/750VDC, 3 poles, 250A frame rating, without trip unit
