Picture of Circuit breaker basic frame, ComPacT NSX160F DC, 36kA/750VDC, 4 poles, 160A frame rating, without trip unit
SKU:

C16F4D

Circuit breaker basic frame, ComPacT NSX160F DC, 36kA/750VDC, 4 poles, 160A frame rating, without trip unit

Old price: $768.90 INC GST
$628.96 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Circuit breaker basic frame, ComPacT NSX160F DC, 36kA/750VDC, 4 poles, 160A frame rating, without trip unit
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Environmental Disclosure
Instruction sheet
User guide
Product Page Link
Product Data Sheet
It is a 4 poles basic frame for ComPacT NSX 160F DC circuit breaker, designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The rated current is 160A and the operational voltage is 750VDC. This basic frame comes without trip unit (to be ordered separately) and can be equipped with a variety of optional functions and accessories. The dimensions are 161x140x86 mm (H x W x D). It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute name Attribute value
Main
Device short name NSX160F DC
Device application distribution
Breaking capacity code F 36 kA 750 V DC
Suitability for isolation yes conforming to EN/IEC 60947-2
Breaking capacity 36 kA Icu at 750 V DC 3P conforming to IEC 60947-2, 36 kA Icu at 500 V DC 2P conforming to IEC 60947-2, 36 kA Icu at 24...125 V DC 1P conforming to IEC 60947-2, 36 kA Icu at 250 V DC 1P conforming to IEC 60947-2
Mounting mode fixed
Control type toggle
Range ComPacT new generation
Range of product ComPacT NSX100...250 DC new generation
Neutral position left
Poles description 4P
Utilisation category category A
Product name ComPacT NSX DC new generation
Product or component type basic frame
Network type DC
[Ue] rated operational voltage 750 V DC conforming to IEC 60947-2
[In] rated current 160 A at 40 °C
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Protection type without protection
Compatibility code NSX160
Electrical durability 5000 cycles 750 V DC In conforming to IEC 60947-2, 5000 cycles 500 V DC In conforming to IEC 60947-2, 5000 cycles 250 V DC In conforming to IEC 60947-2, 10000 cycles 750 V DC In/2 conforming to IEC 60947-2, 10000 cycles 500 V DC In/2 conforming to IEC 60947-2, 10000 cycles 250 V DC In/2 conforming to IEC 60947-2
Upside connection front
Downside connection front
Connection pitch 35 mm
Height 161 mm
[Ics] rated service breaking capacity 36 kA at 750 V DC conforming to IEC 60947-2 (3P), 36 kA at 500 V DC conforming to IEC 60947-2 (2P), 36 kA at 24...125 V DC conforming to IEC 60947-2 (1P), 36 kA at 250 V DC conforming to IEC 60947-2 (1P)
Depth 86 mm
Width 140 mm
Mechanical durability 10000 cycles conforming to IEC 60947-2
[Ui] rated insulation voltage 750 V DC conforming to IEC 60947-2
Maximum breaking time 10 ms
Mounting support backplate
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Standards IEC 60947-2
Product certifications ASEFA, ASTA, LCIE, KEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.2 cm
Package 1 Width 14.8 cm
Package 1 Length 19.5 cm
Package 1 Weight 2.074 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.438 kg

Related products

Picture of Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

29450
$130.43 INC GST $159.06 INC GST
View Detail
Picture of Long terminal shield, ComPacT NSX100/160/250, pitch 35mm, IP40, 4 poles

Long terminal shield, ComPacT NSX100/160/250, pitch 35mm, IP40, 4 poles

LV429518
$58.58 INC GST $71.61 INC GST
View Detail
Picture of Interphase barriers, ComPacT NSX 100/160/250, set of 6 parts

Interphase barriers, ComPacT NSX 100/160/250, set of 6 parts

LV429329
$46.52 INC GST $56.87 INC GST
View Detail
Picture of Removable toggle padlocking device, ComPacT NSX, PowerPacT B, EasyPact CVS, OFF position only

Removable toggle padlocking device, ComPacT NSX, PowerPacT B, EasyPact CVS, OFF position only

29370
$53.00 INC GST $64.79 INC GST
View Detail
Picture of Trip unit TM125DC, ComPacT NSX160 DC, 4 poles, thermal magnetic protections, 125A rating

Trip unit TM125DC, ComPacT NSX160 DC, 4 poles, thermal magnetic protections, 125A rating

C164TM125D
$296.03 INC GST $361.90 INC GST
View Detail

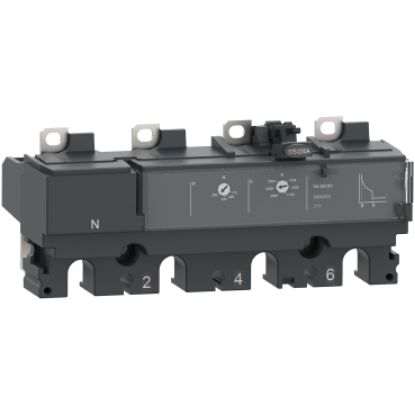

Picture of Trip unit TM160DC, ComPacT NSX160 DC, 4 poles, thermal magnetic protections, 160A rating
