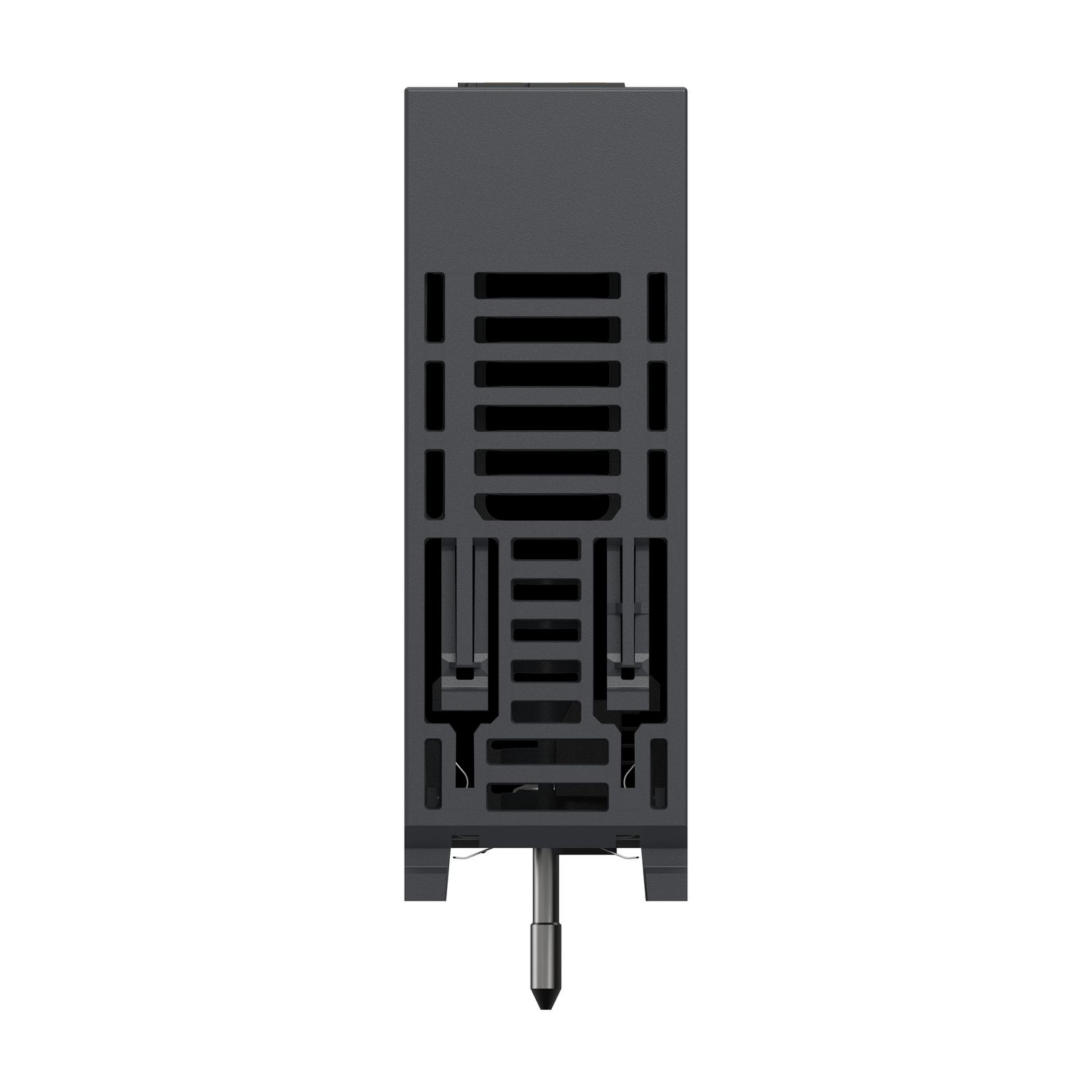

Picture of multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

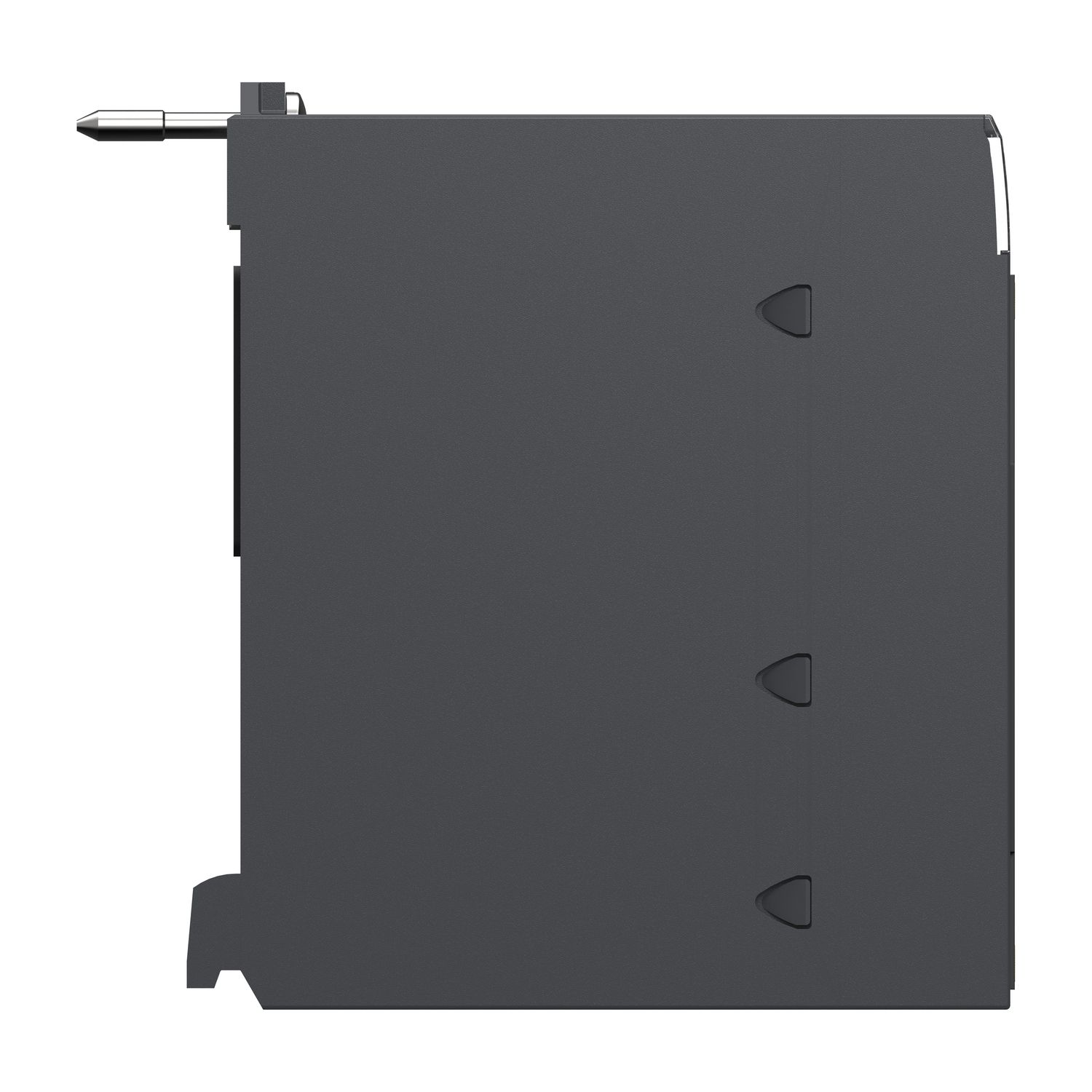

Picture of multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

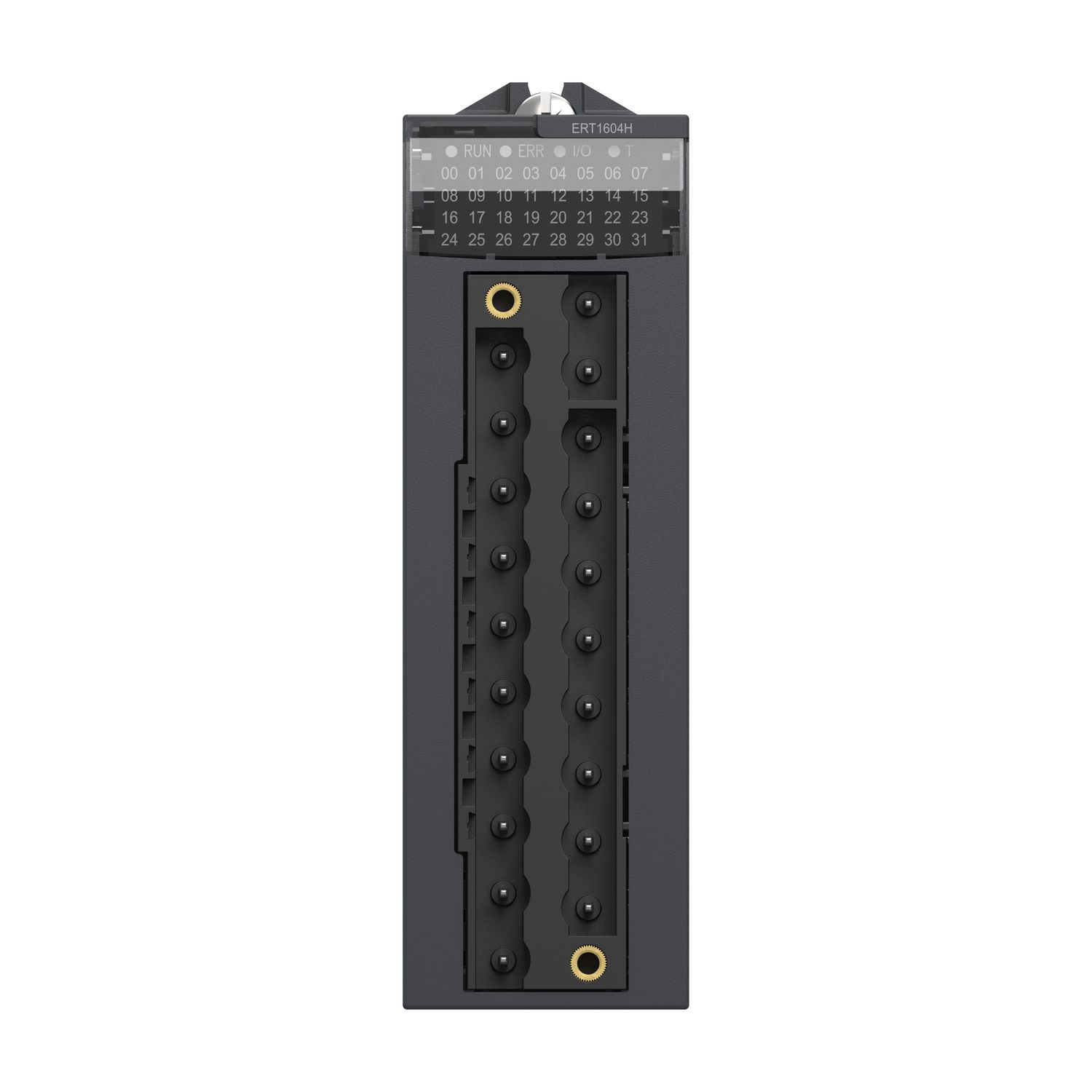

Picture of multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

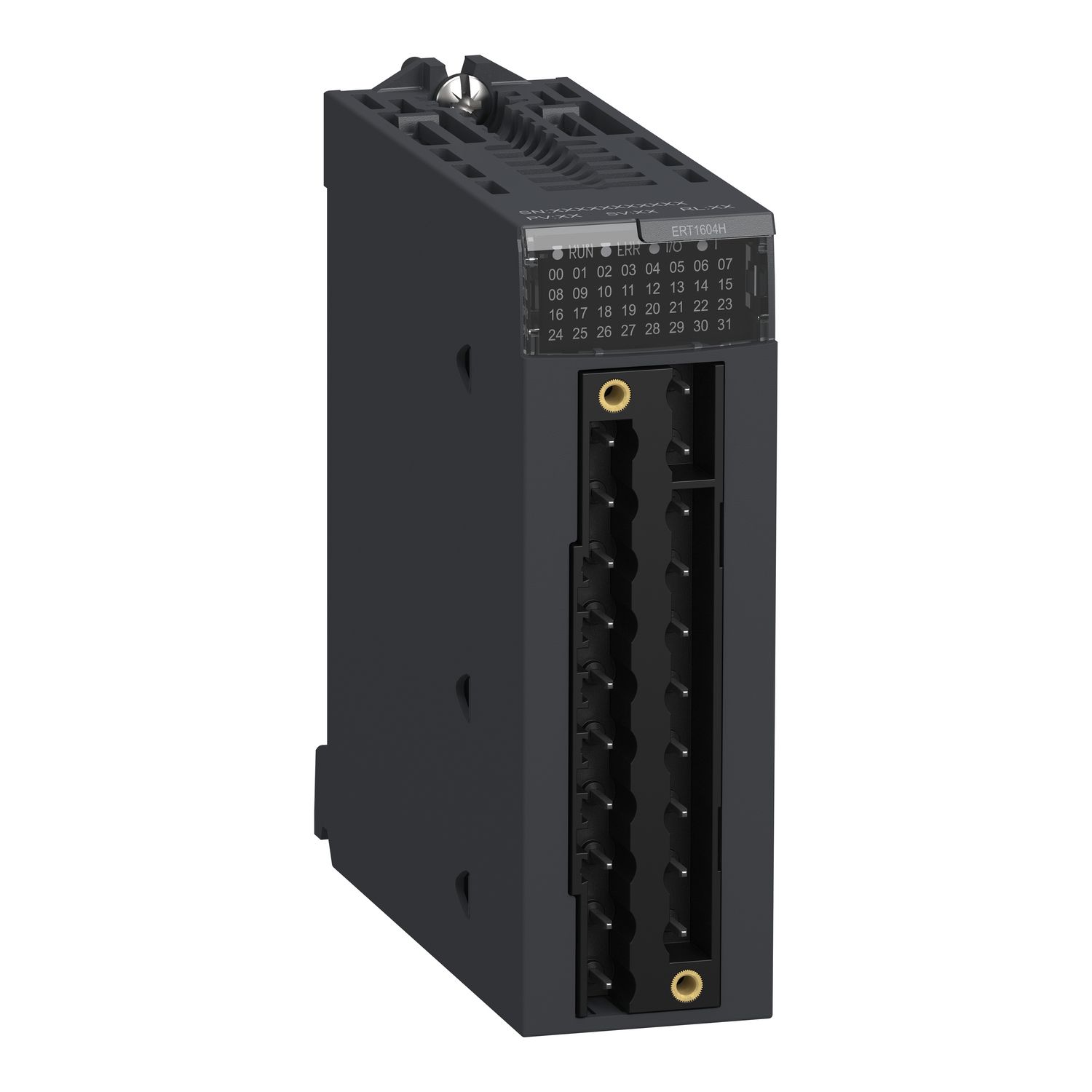

Picture of multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

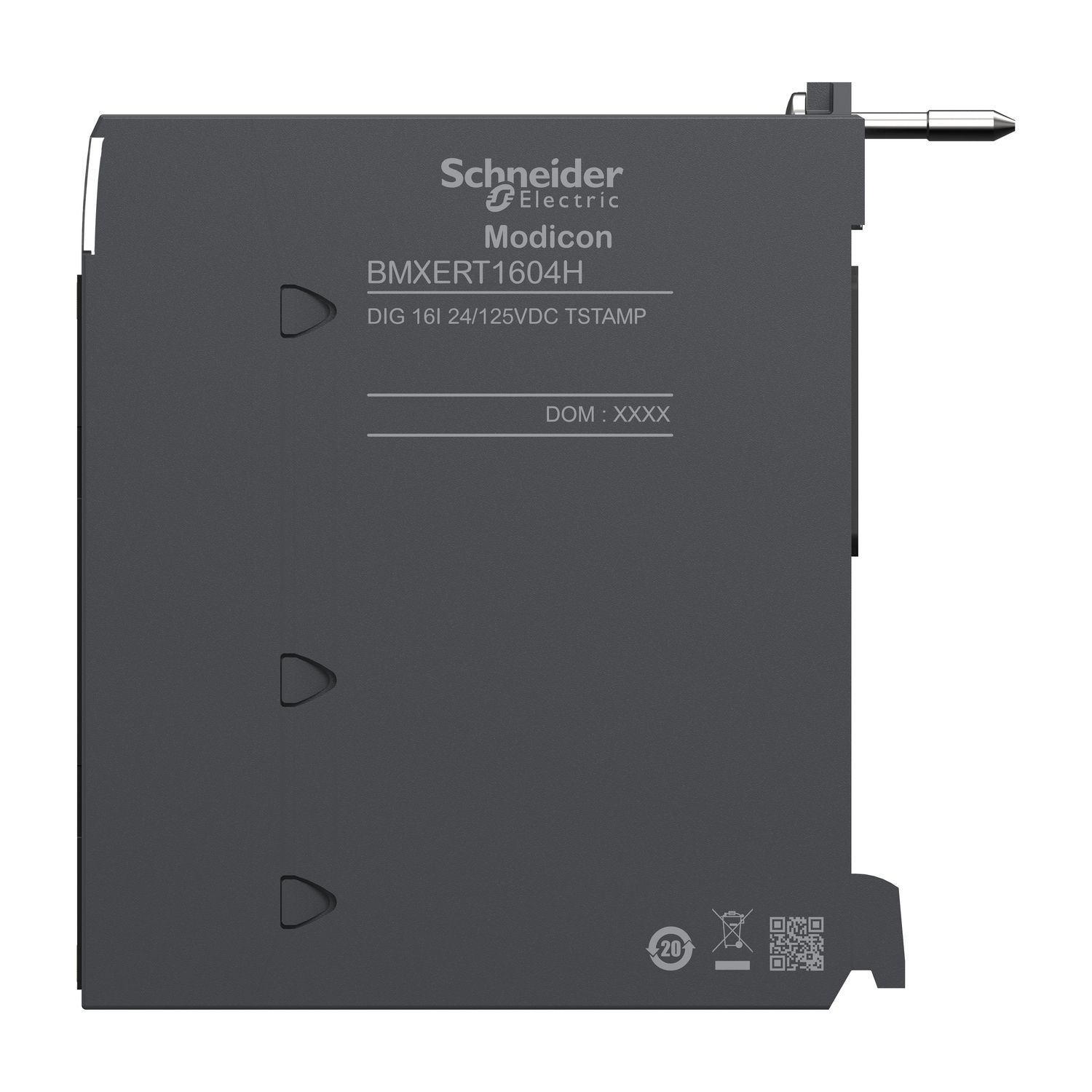

Picture of multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

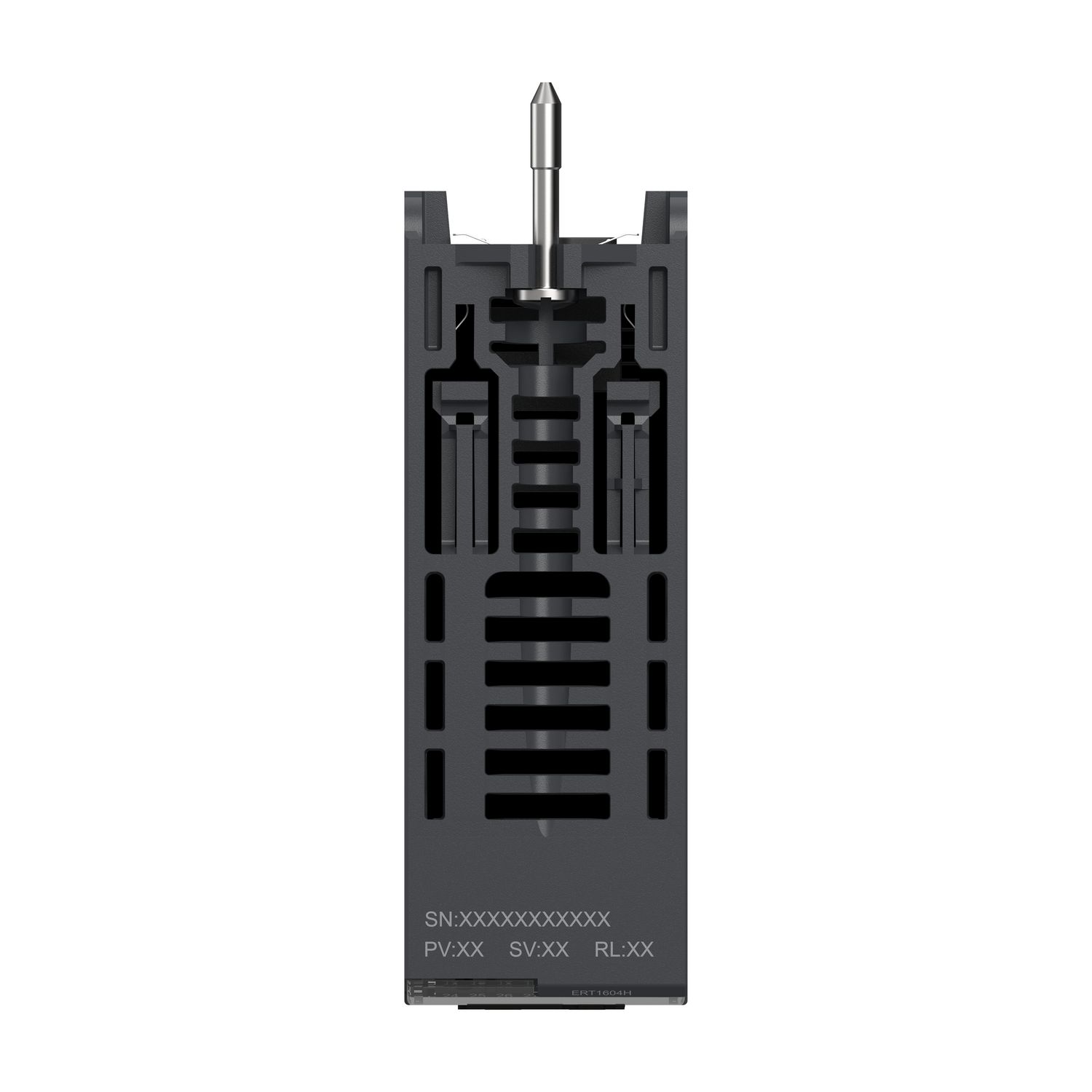

Picture of multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

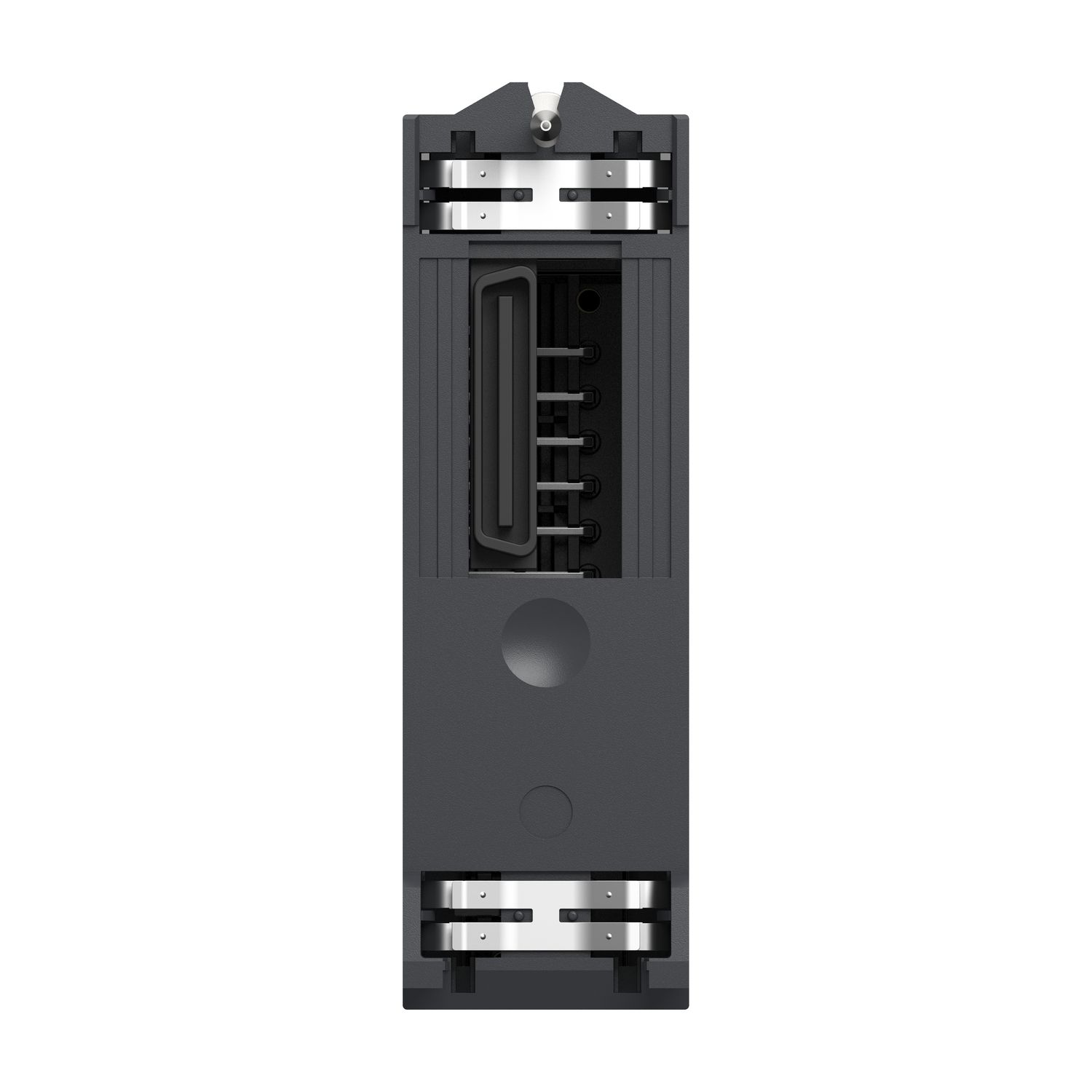

Picture of multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement
Picture of multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement
SKU:

BMXERT1604H

multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement

$3,175.15 INC GST
Available for Shipping : 20-Jan-2026
Product Selector
multifunction input module Modicon X80 - 16 I - 24/24..125 V - for severe environement
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Catalog
Declaration of conformity
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This multifunction time stamping input module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This multifunction time stamping input module is equipped with 4 groups of 4 inputs. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module dimensions are 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Product or component type multifunction input module
Range of product Modicon X80
Complementary
Maximum power consumption in W 4 W for process input
Depth 86 mm
Width 32 mm
Switching voltage 24 V at 6.7 mA for process input, 48 V at 2.5 mA for process input, 60 V at 2.5 mA for process input, 110 V at 1.3 mA for process input, 125 V at 1.3 mA for process input
Data recording 1 ms time stamps
Local signalling 16 LEDs for input status (0...15), 1 LED (red) for power supply interruption (I/O), 1 LED (red) for module fault (ERR), 1 LED (green) for status of time code input (T), 1 LED (green) for firmware and module run (RUN)
Time synchronisation protocol IRIG-B, DCF77
Function available hot swap
Isolation voltage 2500 V DC for 60 s discrete input to IRIG/DCF, 1400 V DC for 60 s bus to IRIG/DCF, 2500 V DC for 60 s bus to discrete input
Anti bounce filtering configurable from 0 to 255 ms
Current consumption 130 mA at 3.3 V DC, 30 mA at 24 V DC
Acquisition time 1 ms
Sampling duration 0.5 ms
Group of channels 4 groups of 4 inputs for process input
[Us] rated supply voltage 110...125 V DC (voltage range: 88...156 V), 48...60 V DC (voltage range: 38...75 V), 24 V DC (voltage range: 19...30 V)
Height 100 mm
Environment
Operating altitude 2000...5000 m, 0...2000 m
Protective treatment conformal coating
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Standards EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN 61131-2
Ambient air temperature for operation -25-70 °C
Product certifications Merchant Navy, EAC, RCM, CSA, UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.6 cm
Package 1 Width 3.2 cm
Package 1 Length 10.8 cm
Package 1 Weight 171.0 g
