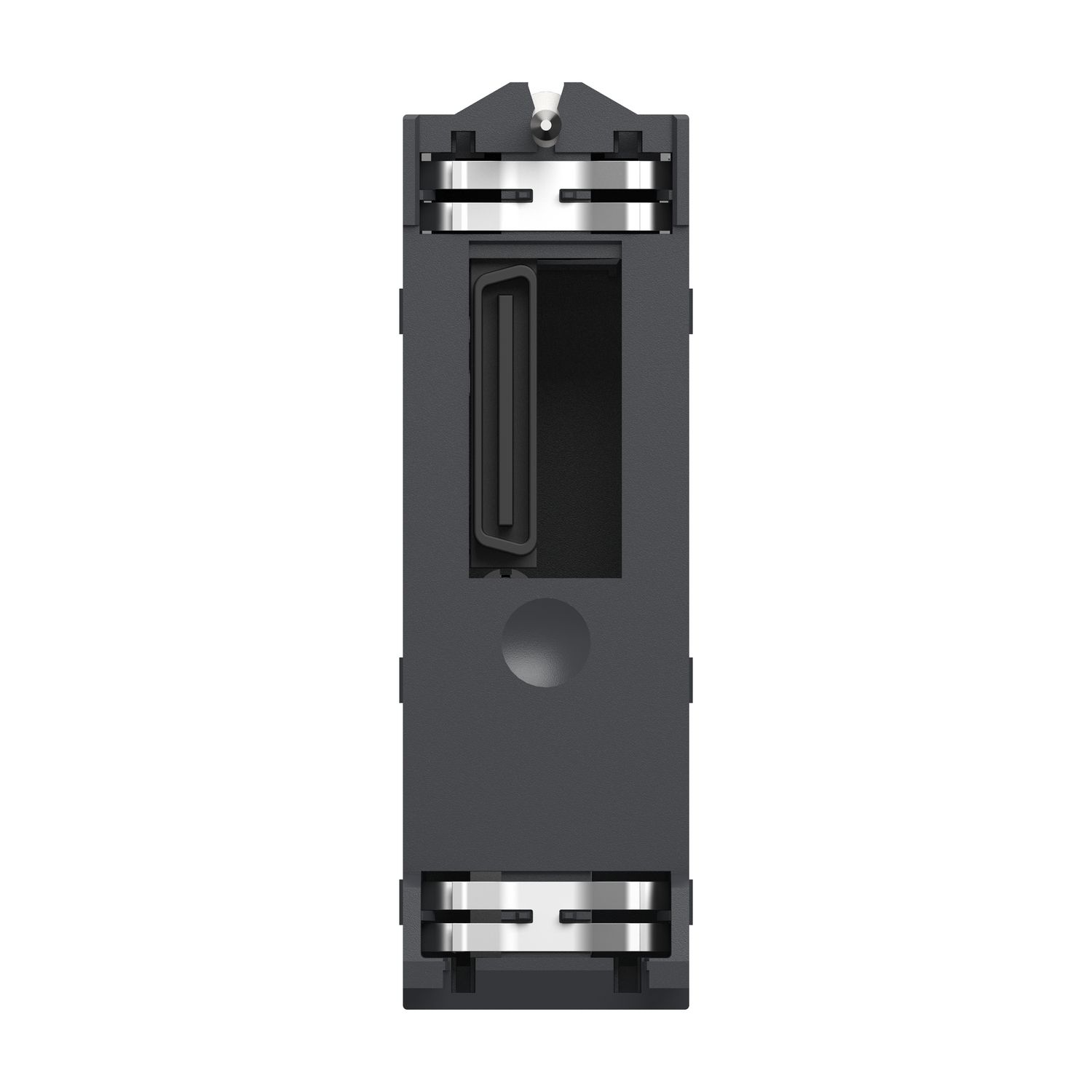

Picture of master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO

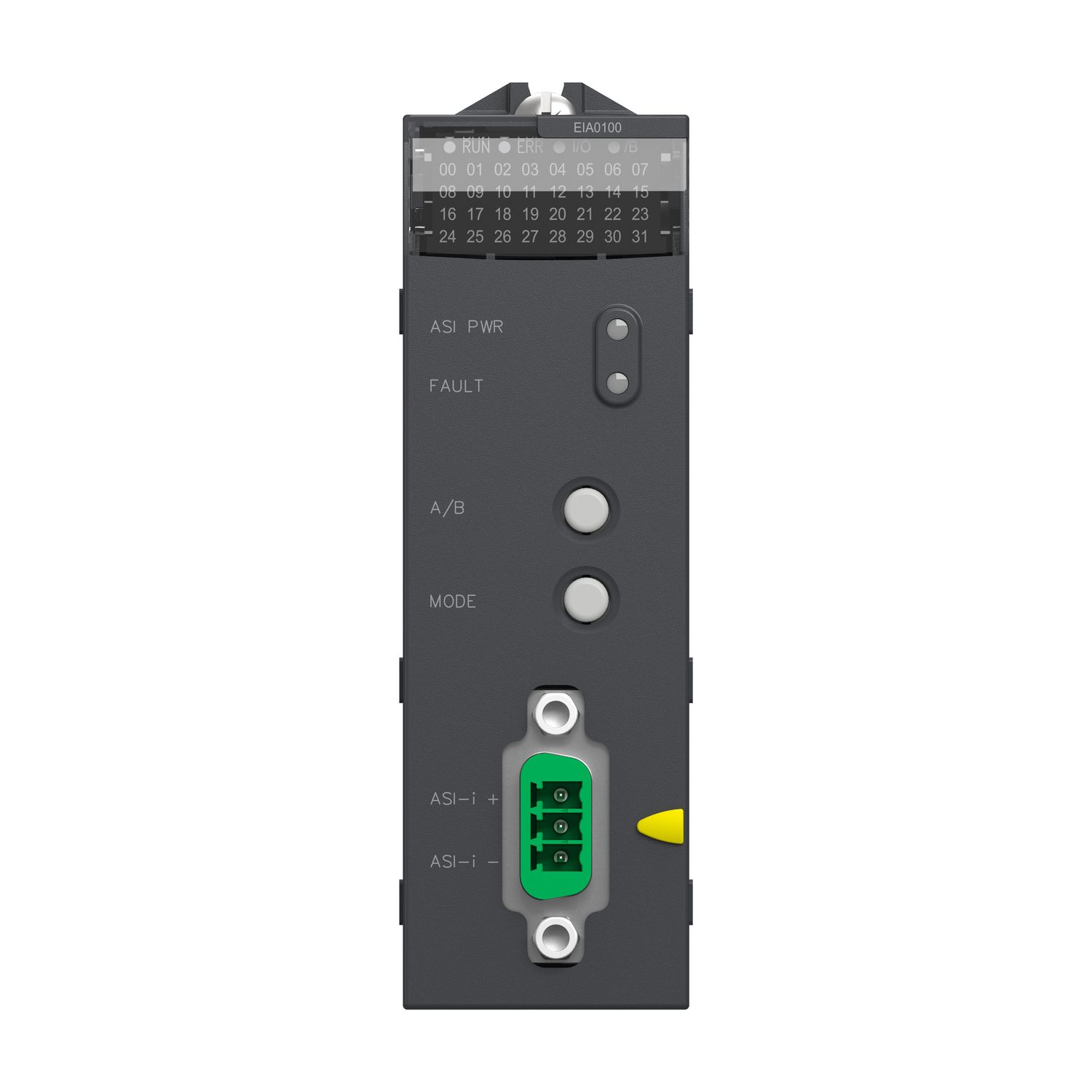

Picture of master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO

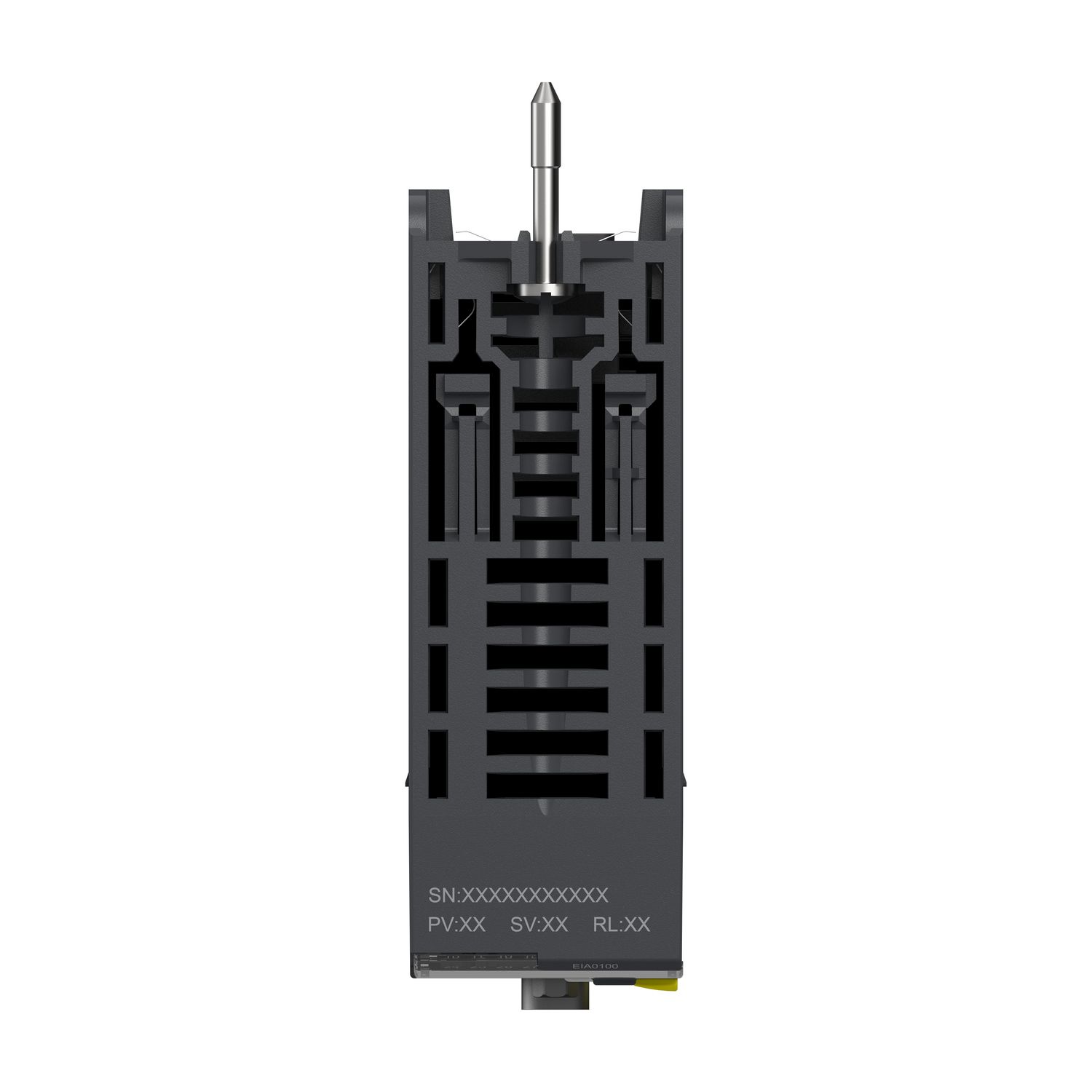

Picture of master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO

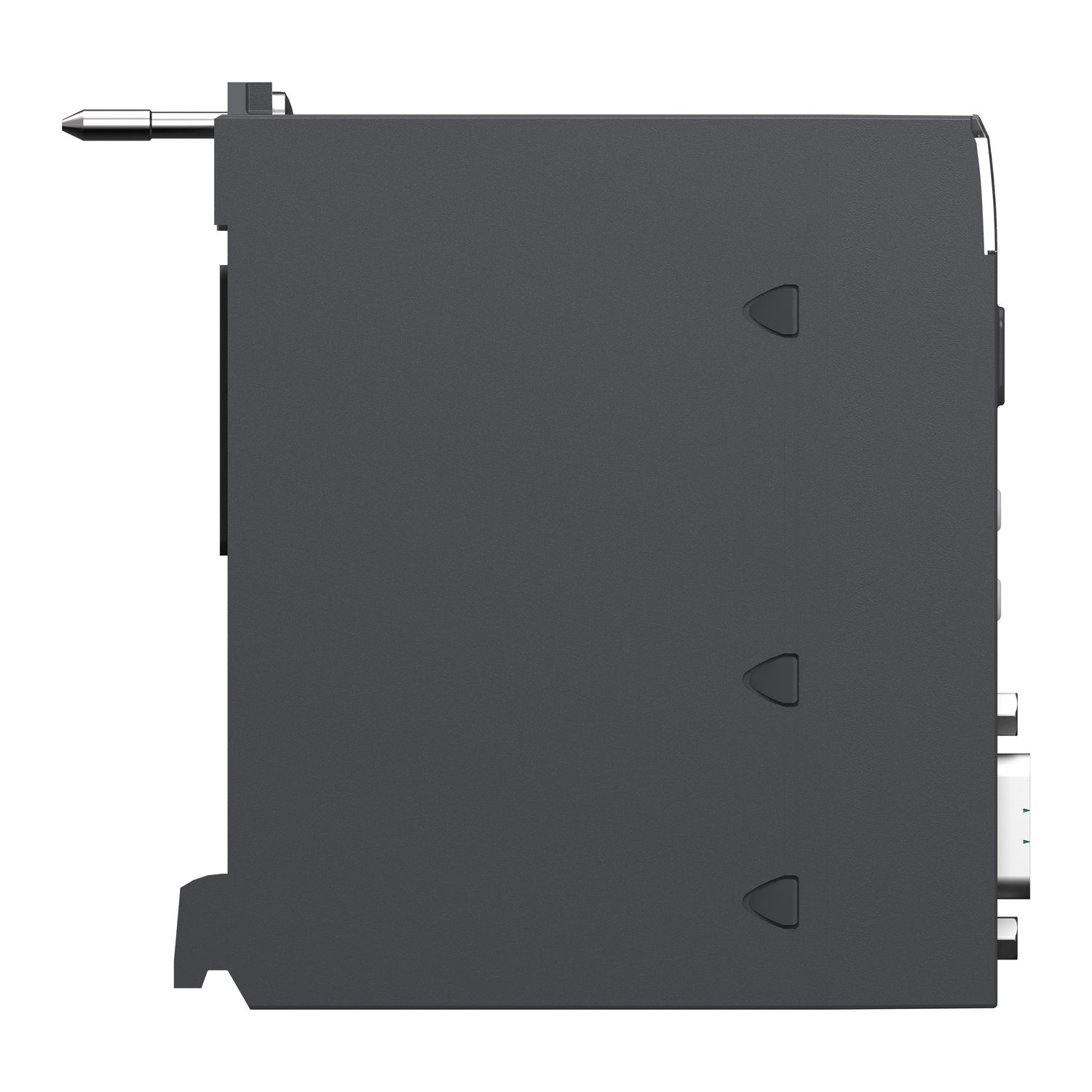

Picture of master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO

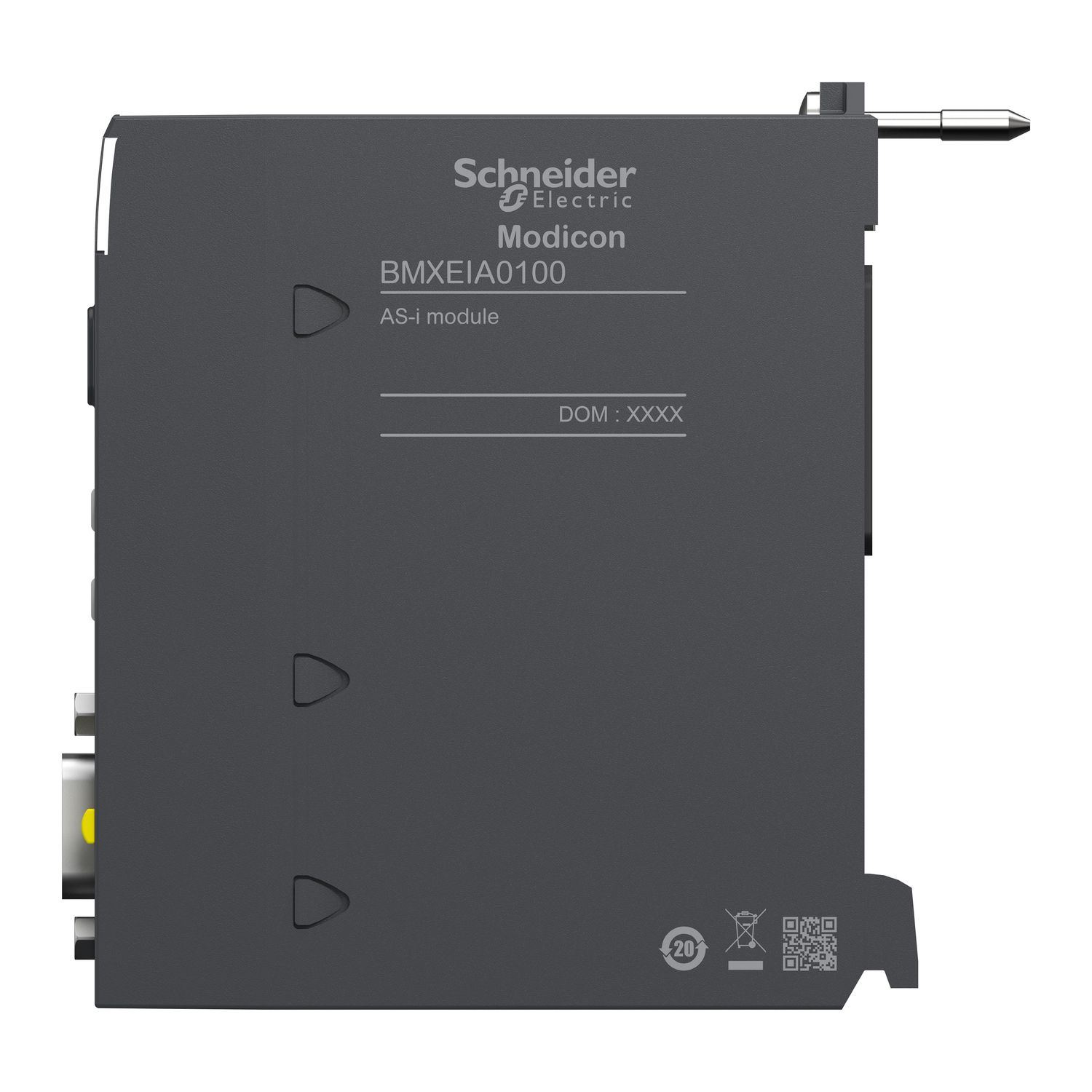

Picture of master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO

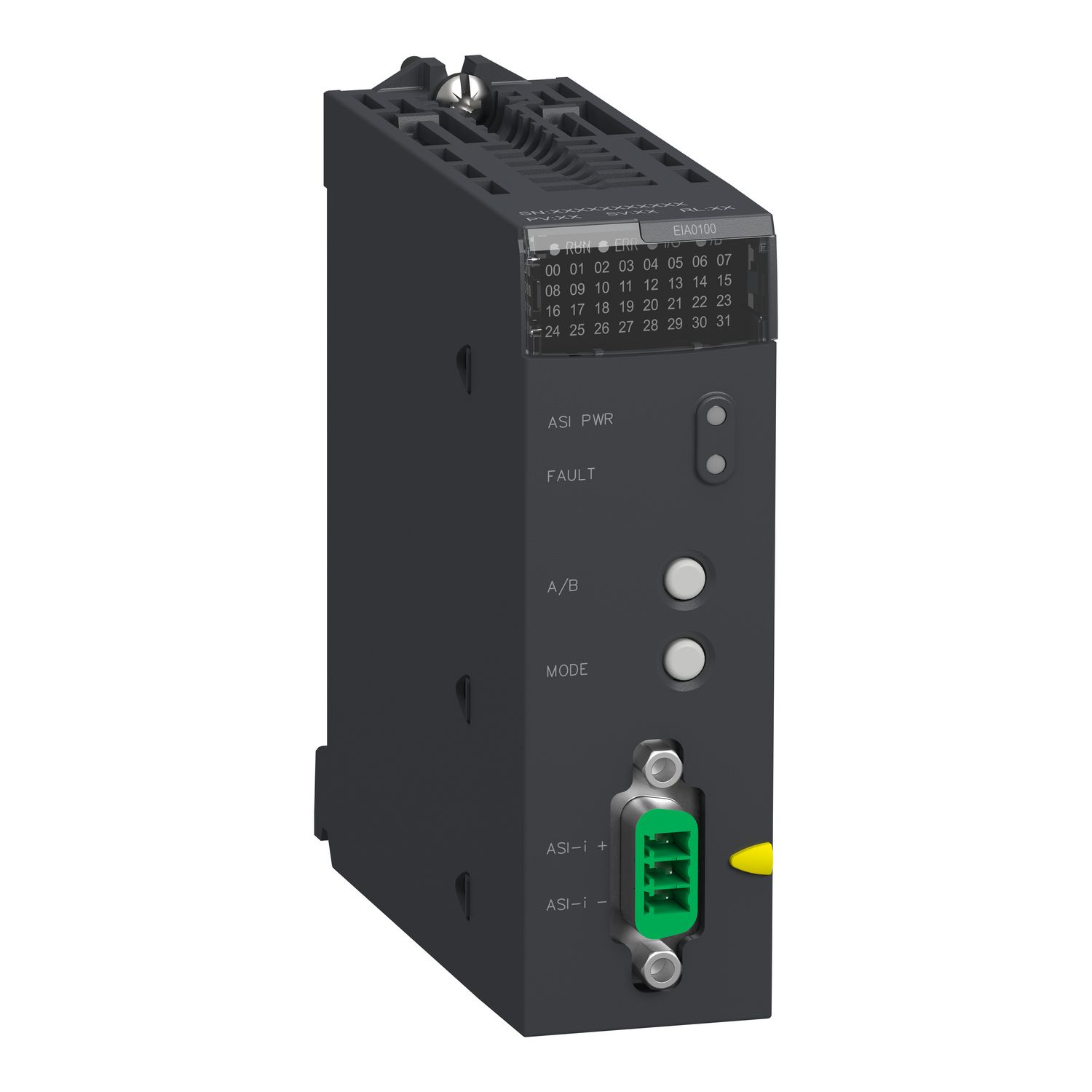

Picture of master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO

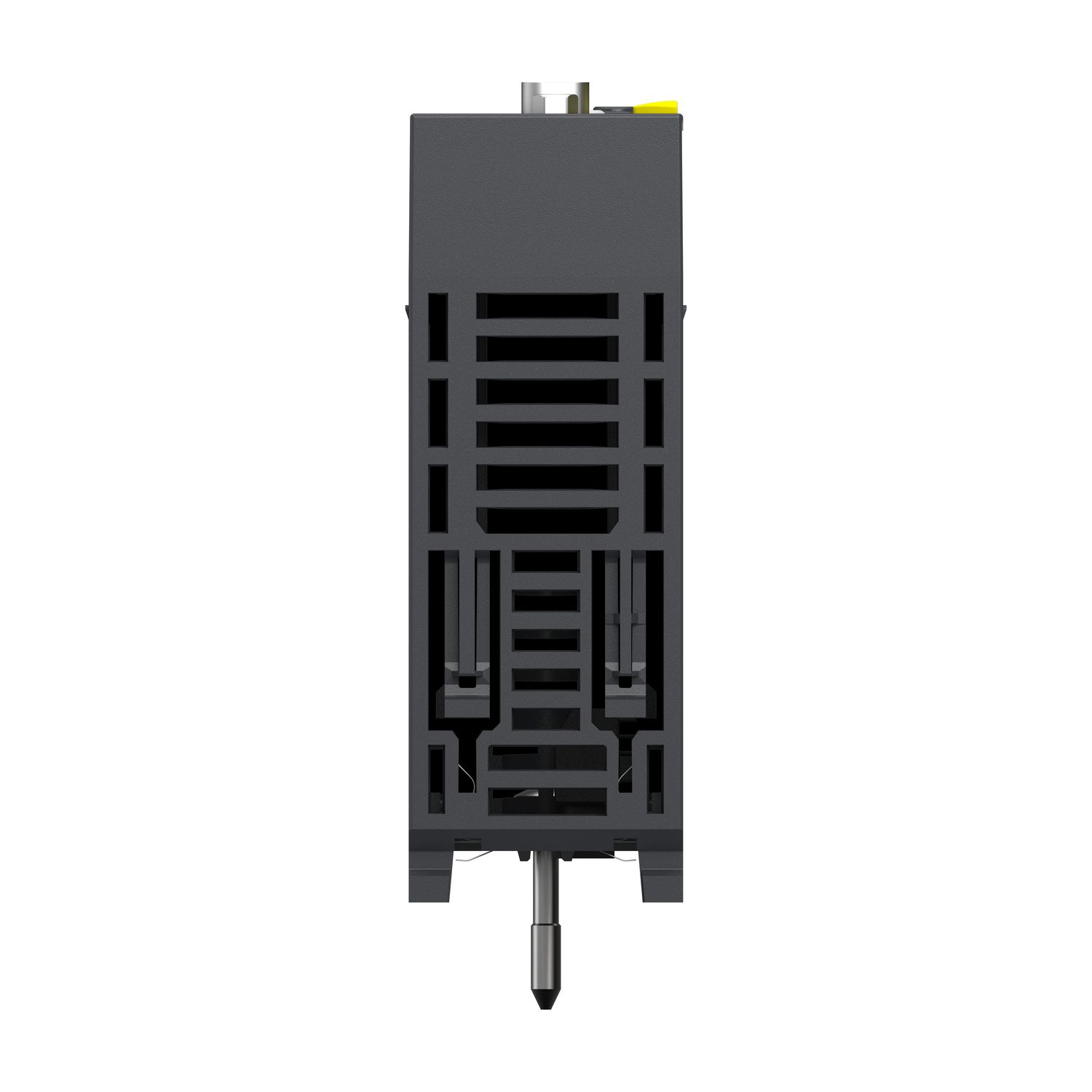

Picture of master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO
Picture of master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO
SKU:

BMXEIA0100

master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO

$2,246.64 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
Circularity Profile
User guide
CAD
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This master module supports up to 62 I/O discrete devices and up to 31 I/O analogue devices. It is a master module with a current consumption of 160mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 3-way SUB-D male connector for electrical connection. It is an IP20 rated product. Maximum cable distance between devices is 100m, 200m line extension, 300m 2 repeaters, 500m 2 repeaters and the master at the middle. It weighs 0.34kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Range of product Modicon X80
Addressing standard and extended
Actuator sensor interface profile [AS-i] S6.0.X slave profile, S7.A.9 slave profile, S7.A.8 slave profile, S7.A.A slave profile, S7.A.7 slave profile, S7.3 slave profile, M4 master profile
Product or component type master module
Complementary
Number of slave 124 slave(s) for analog inputs and outputs - extended, 496 slave(s) for discrete inputs and outputs - extended, 124 slave(s) for analog inputs and outputs - standard, 124 slave(s) for discrete inputs and outputs - standard
Module format standard
Cycle time 10 ms for 62 , 5 ms for 31
Maximum cable distance between devices 500 m 2 repeaters and the master at the middle, 300 m 2 repeaters, 200 m line extension, 100 m
Local signalling 1 LED (red) for fault, 1 LED (green) for ASI power, 32 LEDs for diagnostics of the AS-Interface and each slave, 1 LED (red) for I/O module fault (I/O), 1 LED (green) for displays the group of 31 slaves (A/B), 1 LED (red) for module error (ERR), 1 LED (green) for module active (RUN)
Net weight 0.34 kg
Current consumption 160 mA at 3.3 V DC
Electrical connection 1 male connector SUB-D, 3 pins
Environment
IP degree of protection IP20
Environmental characteristic hazardous location, hazardous location class I division 2
Ambient air temperature for storage -40-70 °C
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.4 cm
Package 1 Width 11.0 cm
Package 1 Length 12.7 cm
Package 1 Weight 210.0 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.2 kg
