SKU:

BMXERT1604T

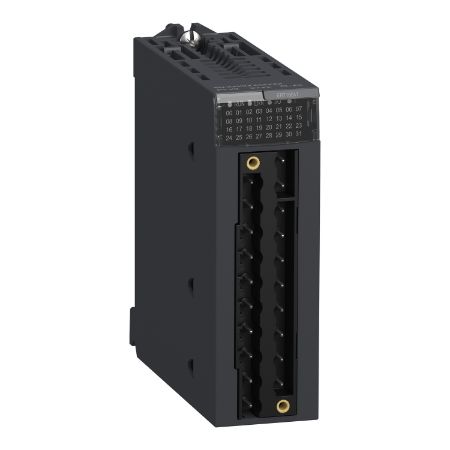

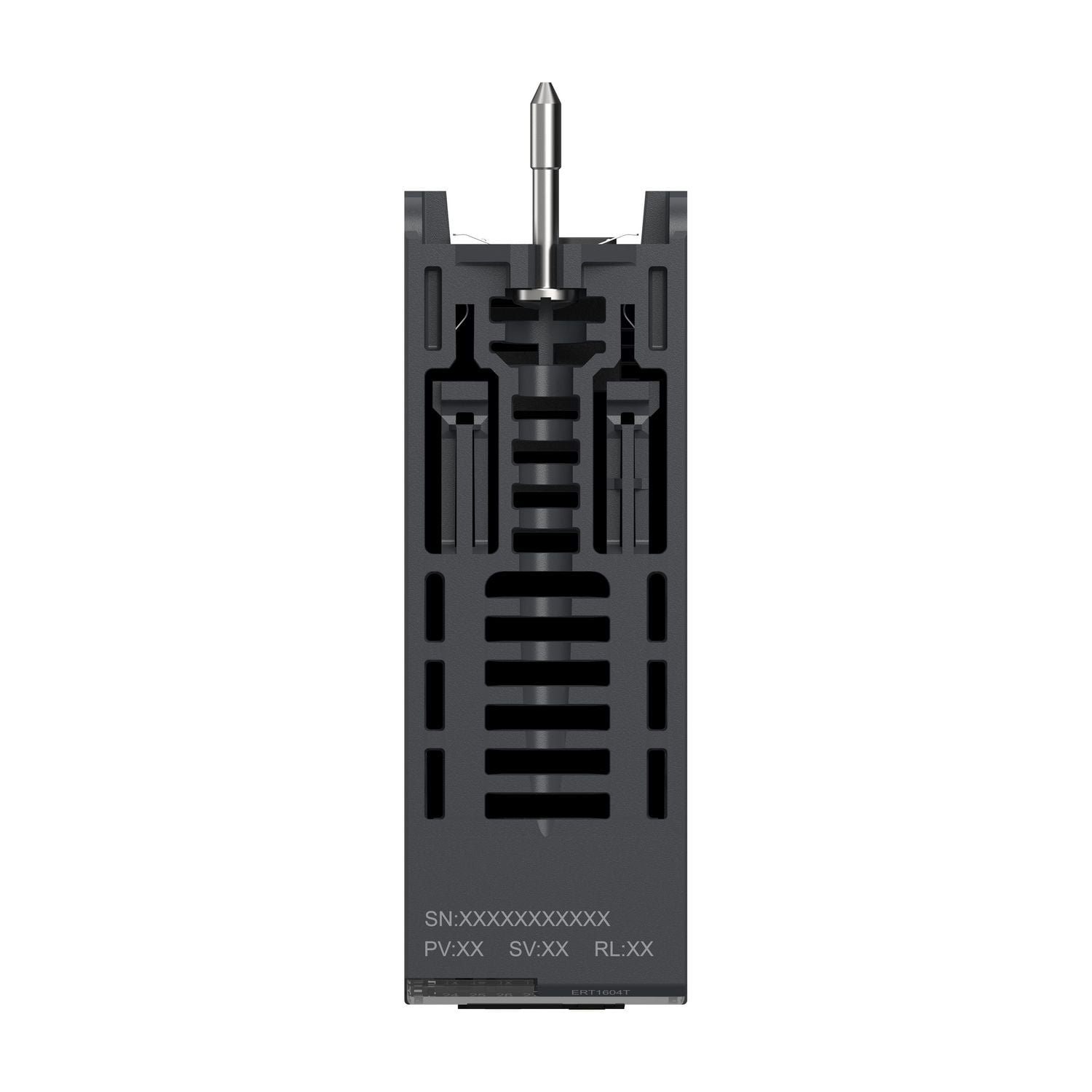

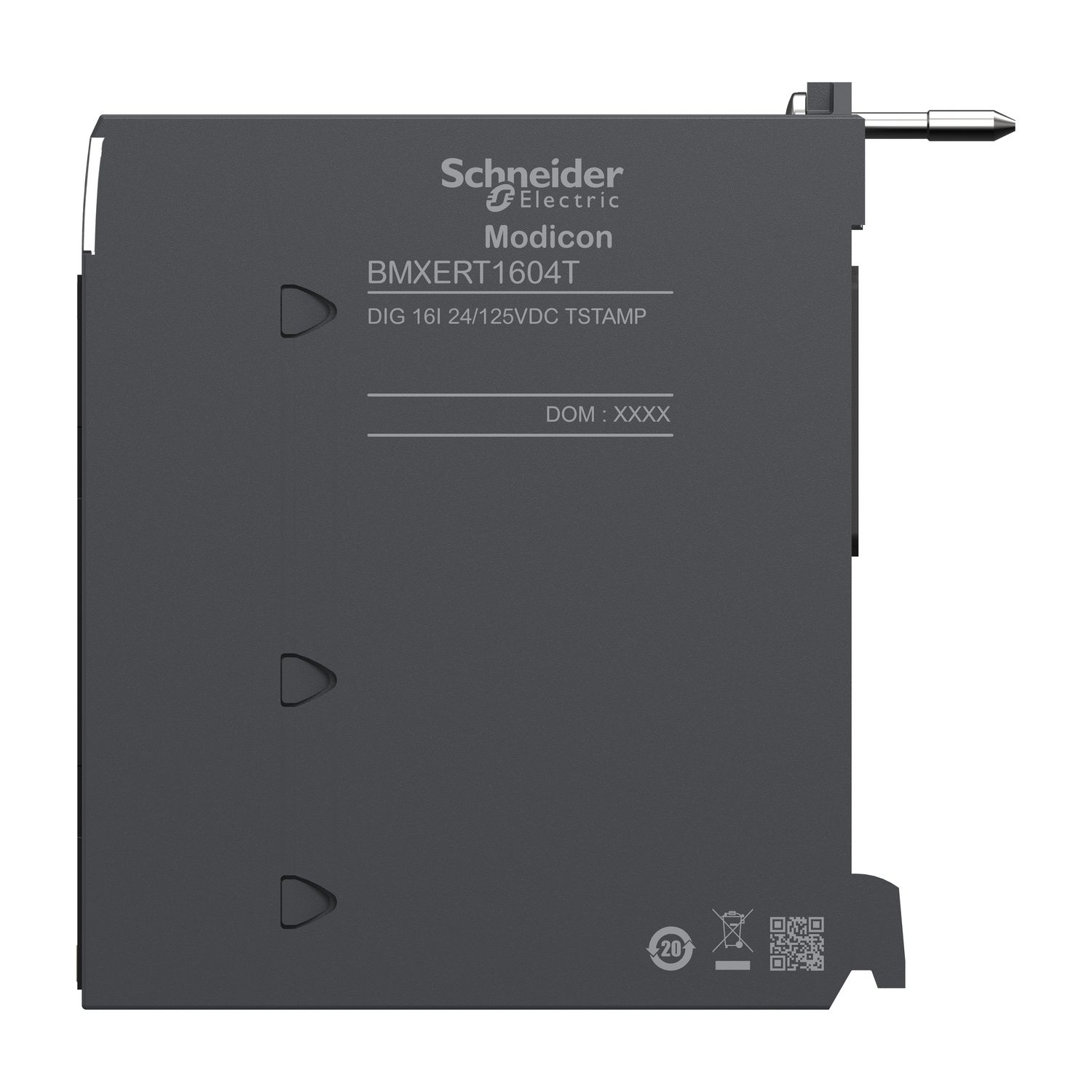

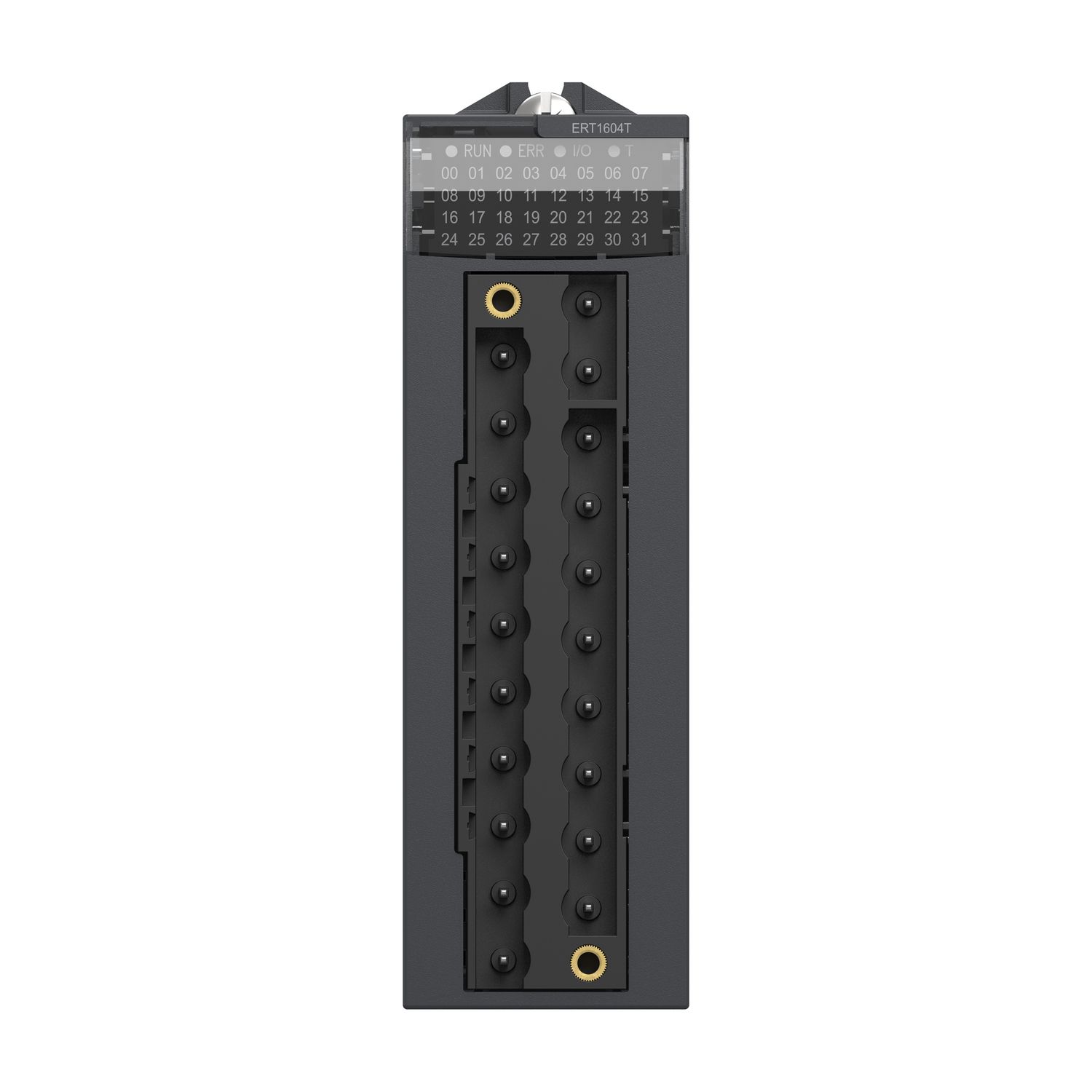

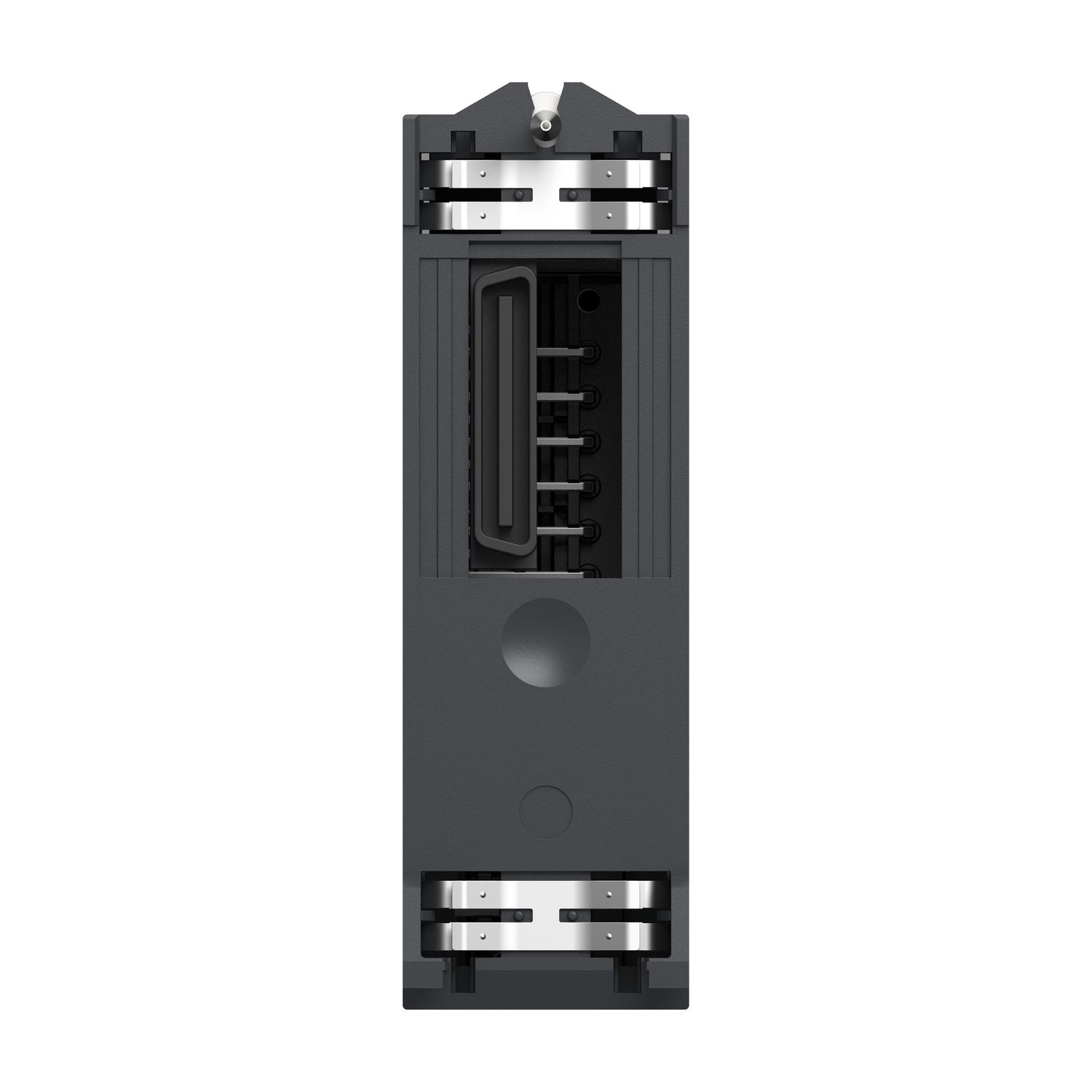

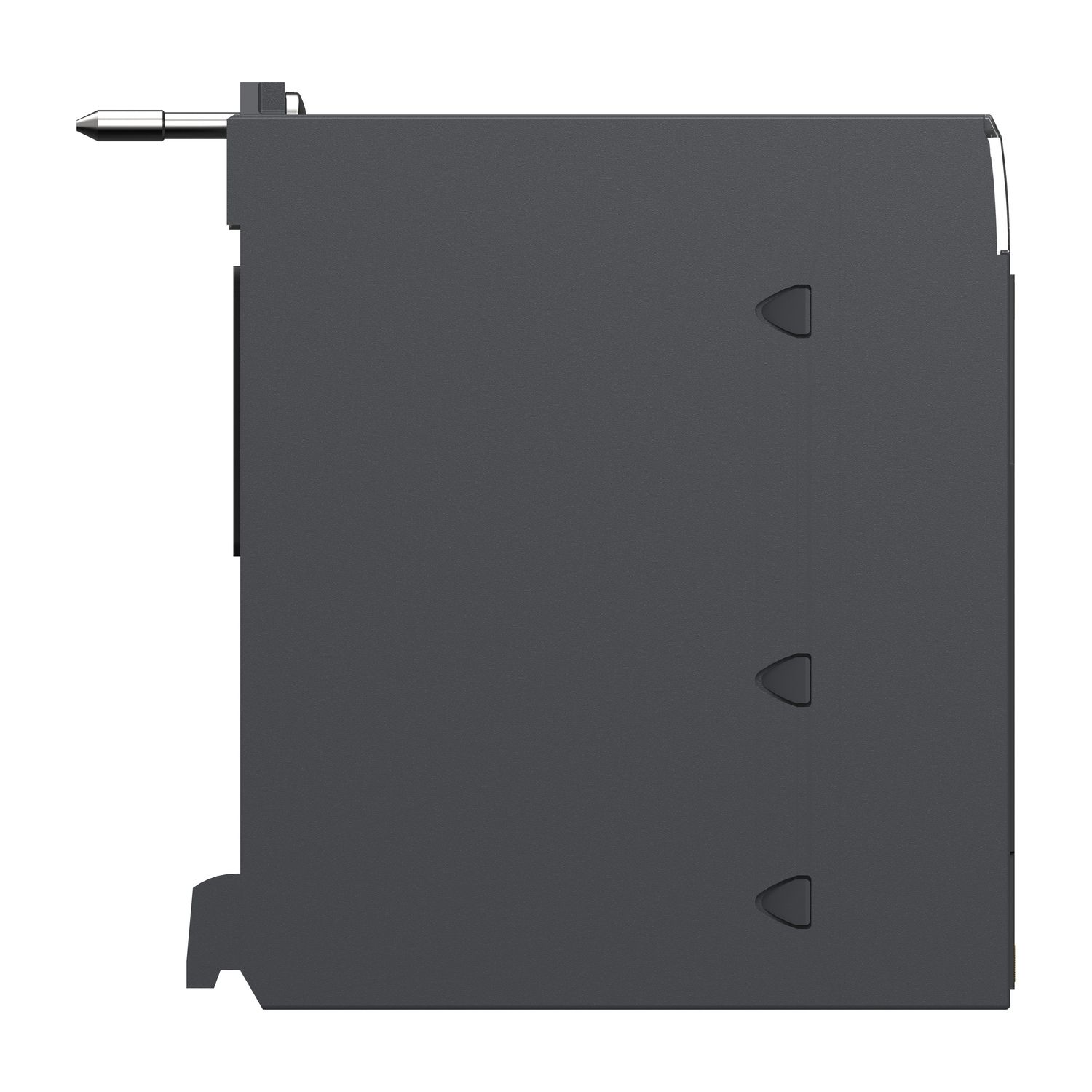

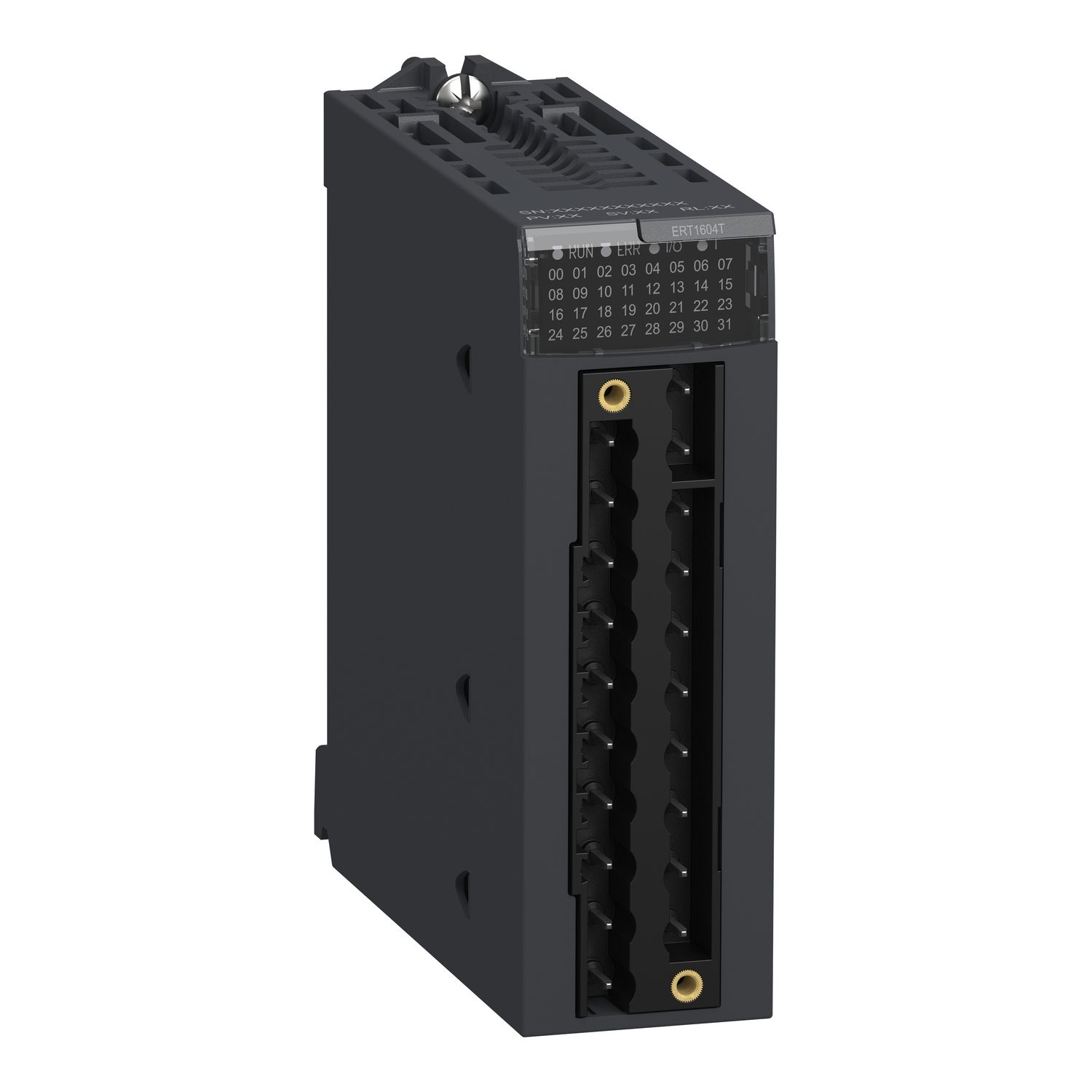

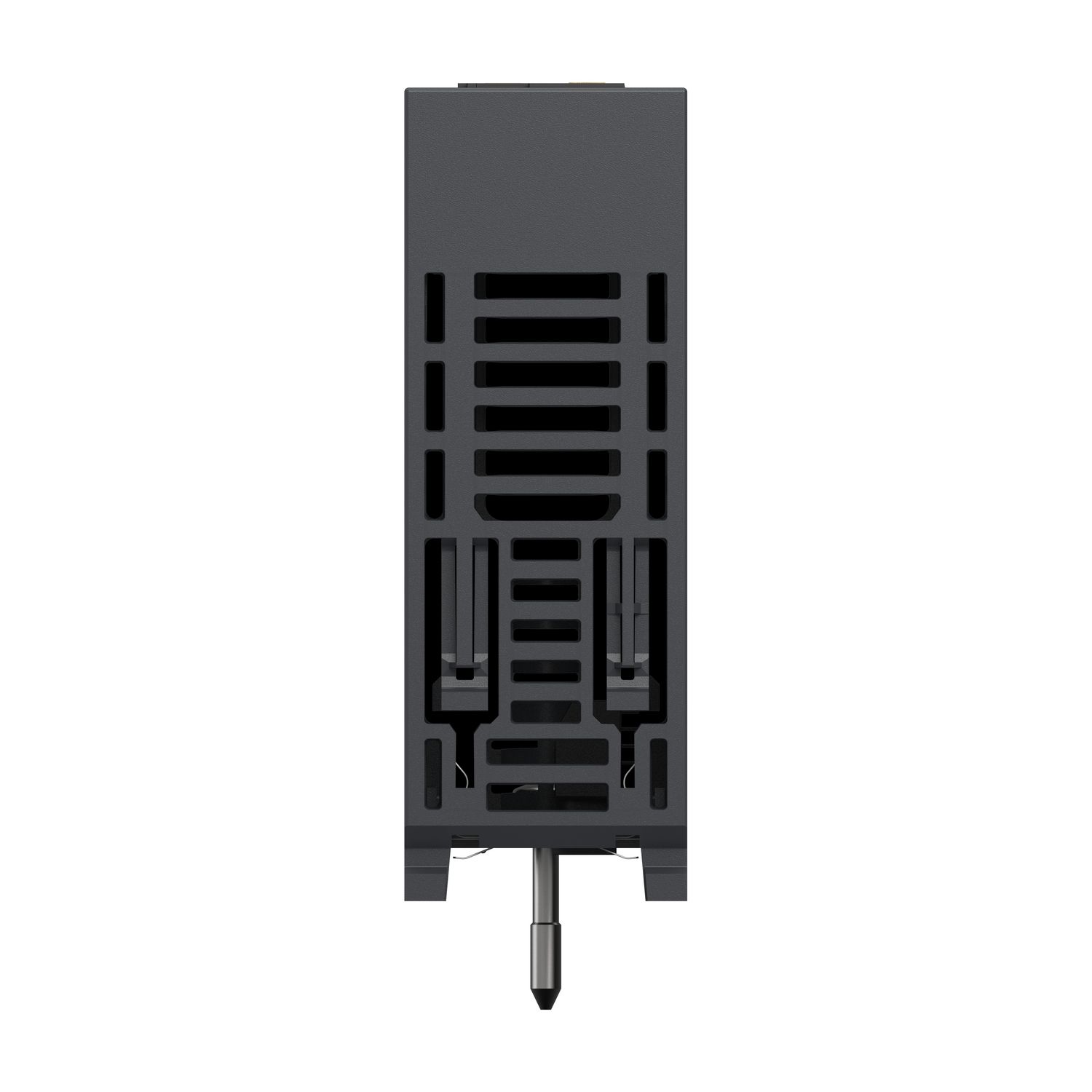

multifunction input module, Modicon X80, 16 I, 24/24-125V DC

$2,707.10 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
multifunction input module, Modicon X80, 16 I, 24/24-125V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This multifunction input module has 16 inputs with hot swap function. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. It is an module with a rated supply voltage of 24V DC, 48V DC to 60V DC, 110V DC to 125V DC and a current consumption of 30mA. This product is robust, high quality and based on the latest innovative technology. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height). It is suitable for medium to large process applications. This product is certified by Merchant Navy, C-Tick and GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product or component type multifunction input module
Range of product Modicon X80
Complementary
Maximum power consumption in W 4 W for process input
Depth 86 mm
Width 32 mm
Switching voltage 24 V at 6.7 mA for process input, 48 V at 2.5 mA for process input, 60 V at 2.5 mA for process input, 110 V at 1.3 mA for process input, 125 V at 1.3 mA for process input
Data recording 1 ms time stamps
Local signalling 16 LEDs for input status (0...15), 1 LED (red) for power supply interruption (I/O), 1 LED (red) for module fault (ERR), 1 LED (green) for status of time code input (T), 1 LED (green) for firmware and module run (RUN)
Time synchronisation protocol IRIG-B, DCF77
Function available hot swap
Isolation voltage 2500 V DC for 60 s discrete input to IRIG/DCF, 1400 V DC for 60 s bus to IRIG/DCF, 2500 V DC for 60 s bus to discrete input
Anti bounce filtering configurable from 0 to 255 ms
Current consumption 130 mA at 3.3 V DC, 30 mA at 24 V DC
Acquisition time 1 ms
Sampling duration 0.5 ms
Group of channels 4 groups of 4 inputs for process input
[Us] rated supply voltage 110...125 V DC (voltage range: 88...156 V), 48...60 V DC (voltage range: 38...75 V), 24 V DC (voltage range: 19...30 V)
Height 100 mm
Environment
Operating altitude <= 4000 m
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201
Ambient air temperature for operation -25-70 °C
Product certifications UL, Merchant Navy, EAC, CSA, RCM, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 11.700 cm
Package 1 Weight 150.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.600 kg
