SKU:

BMXDDI3202K

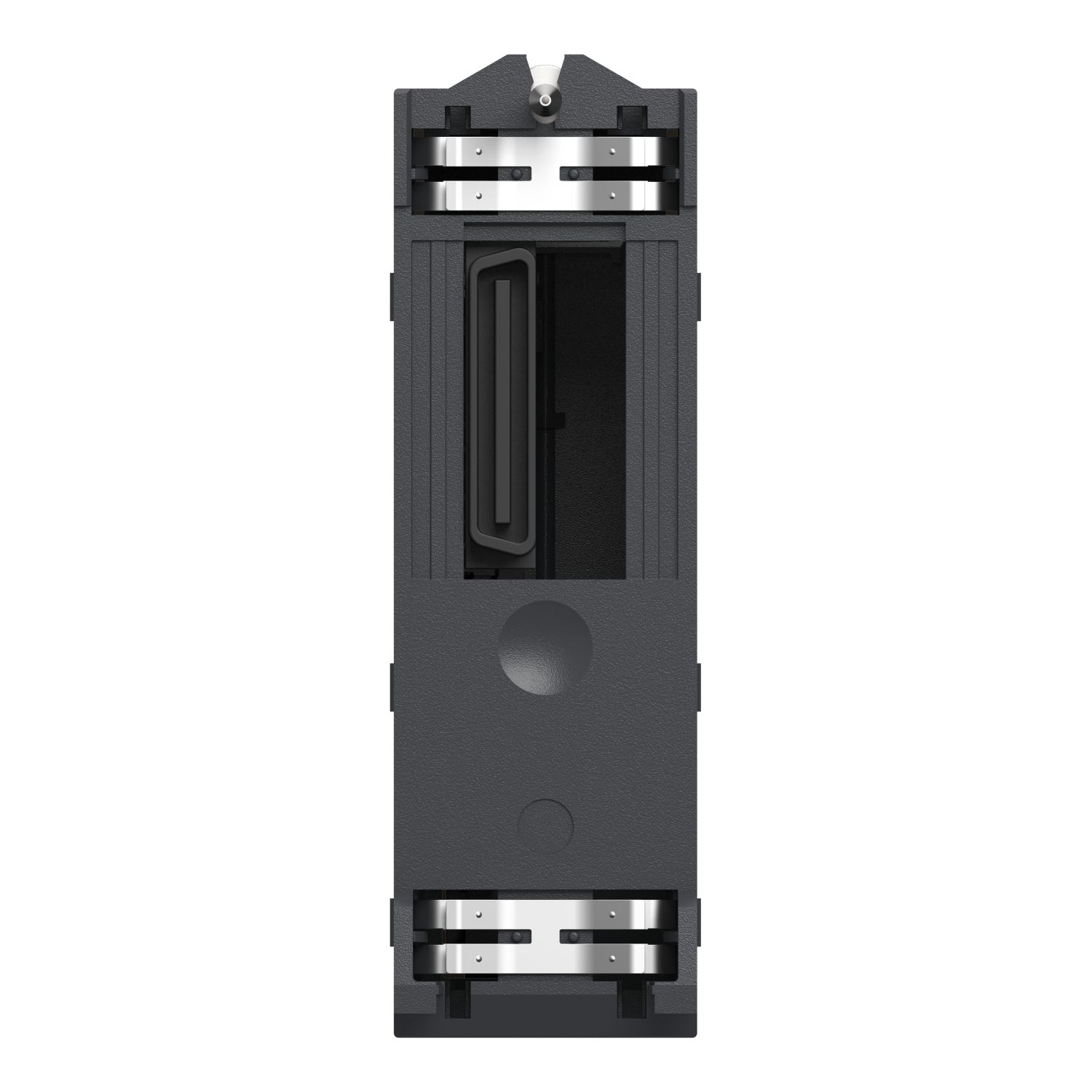

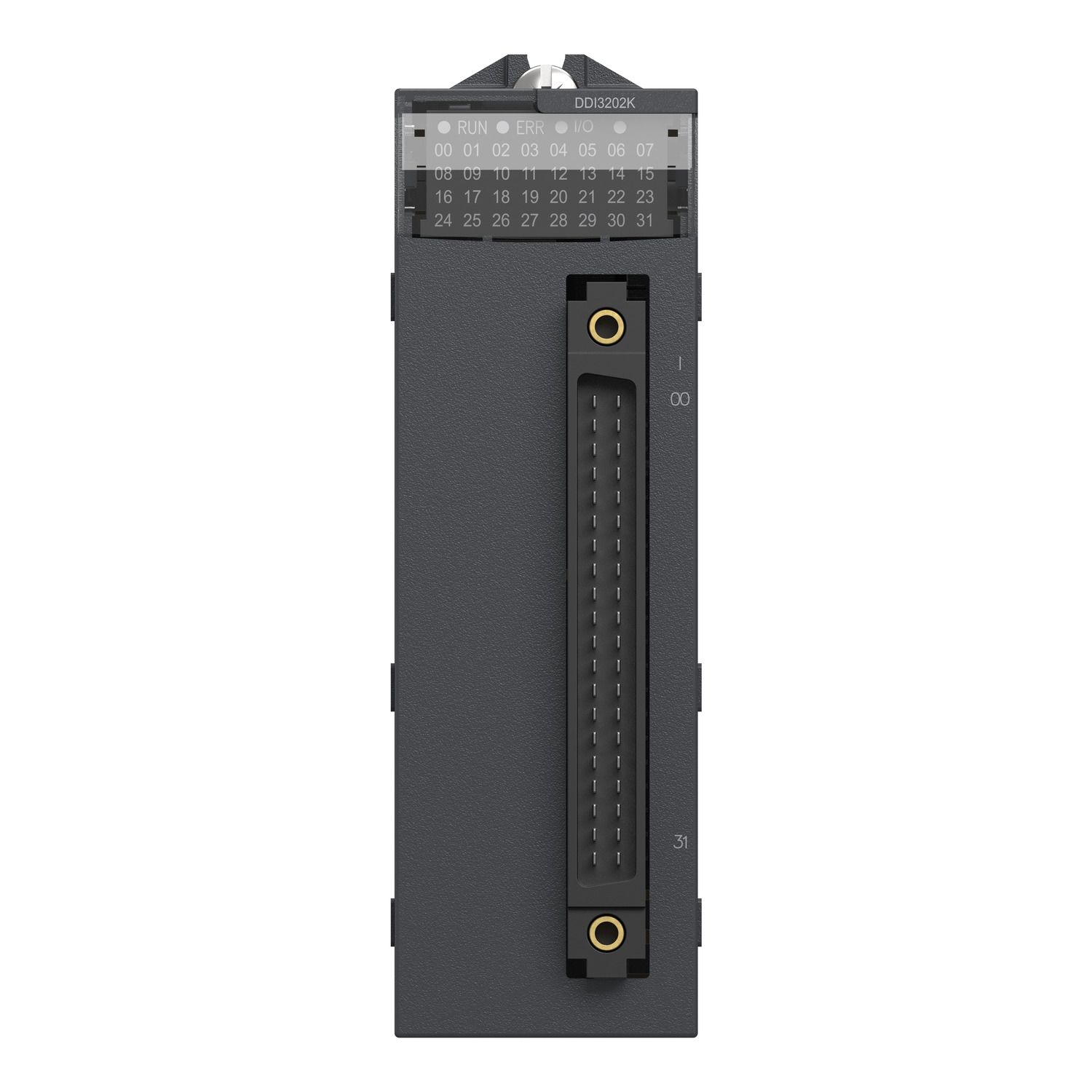

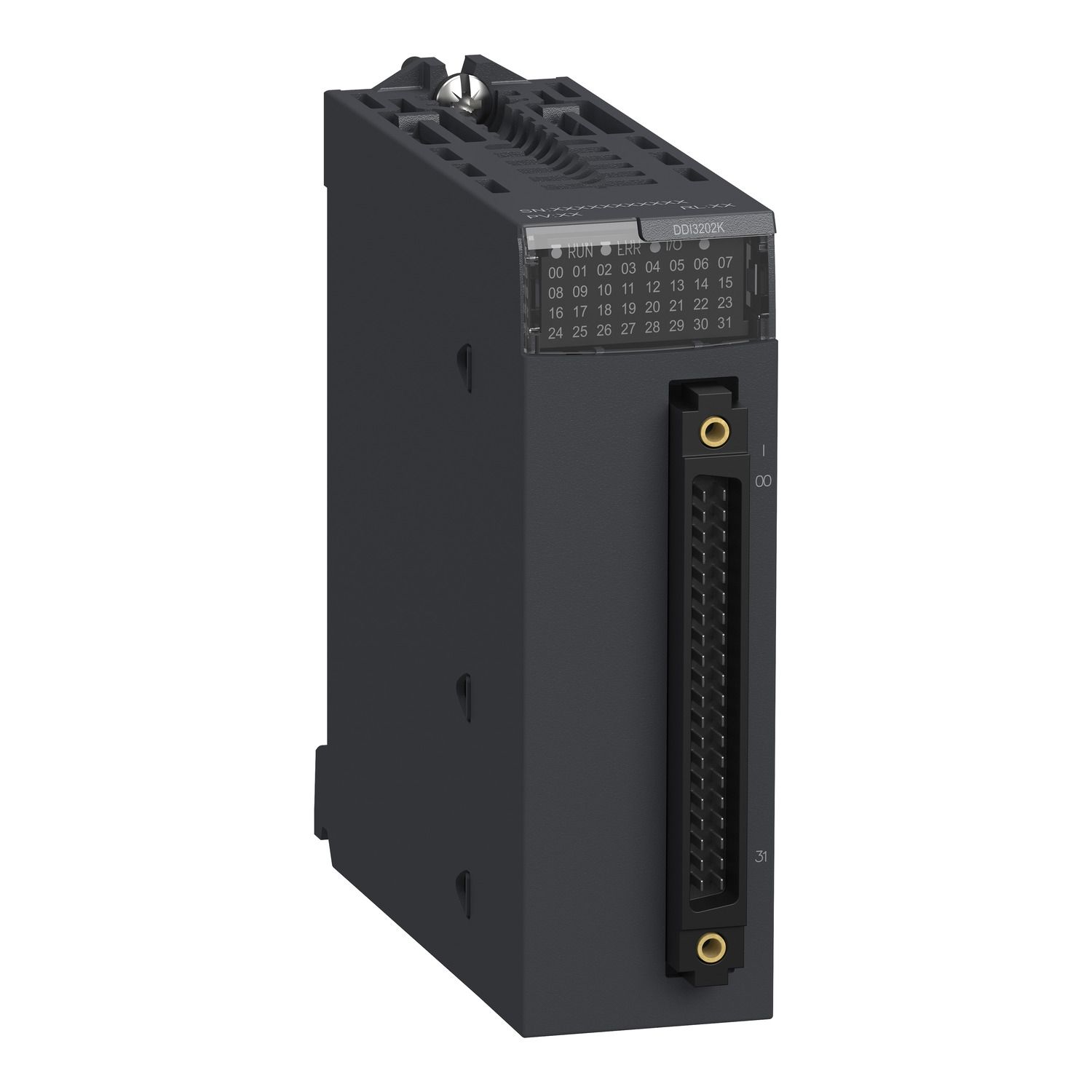

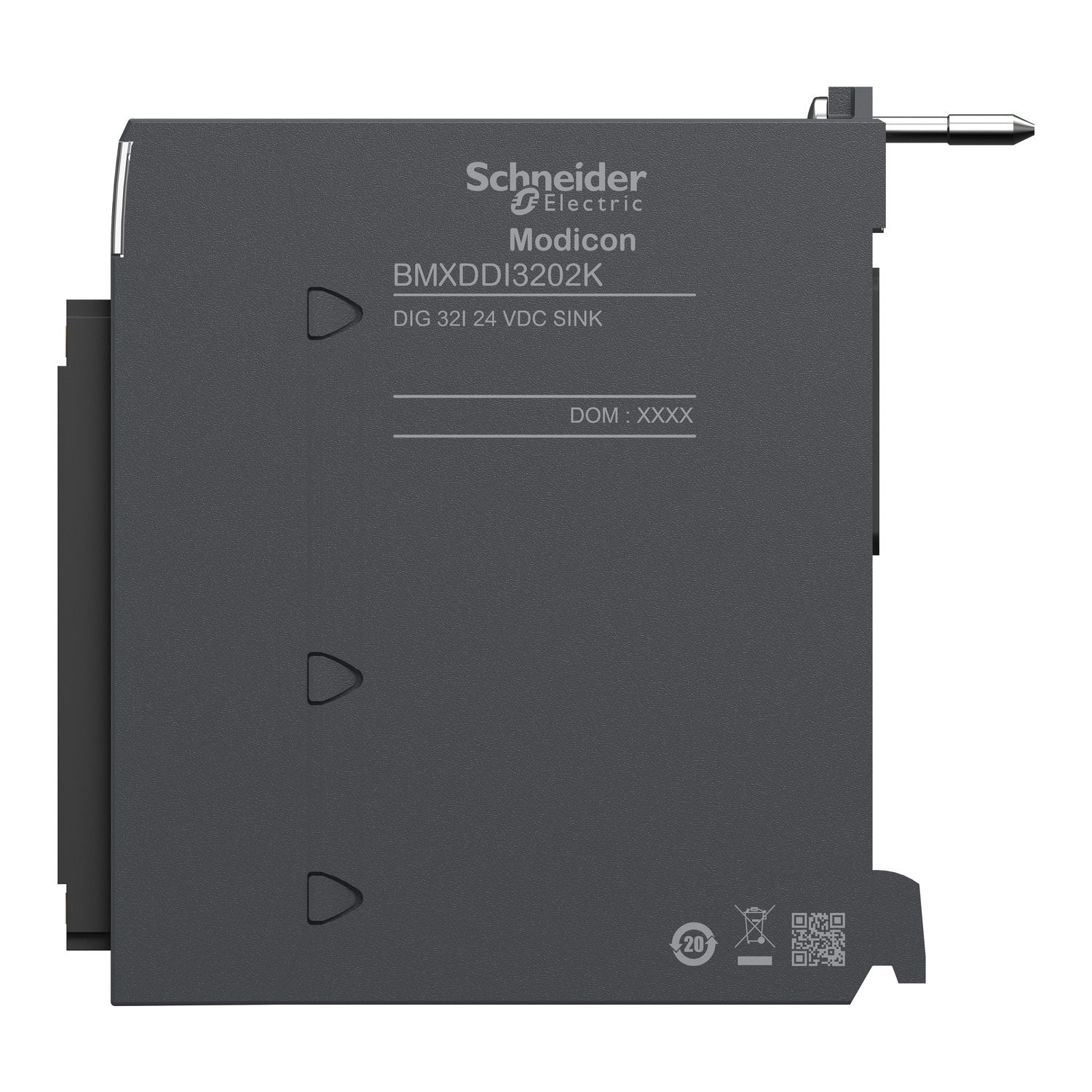

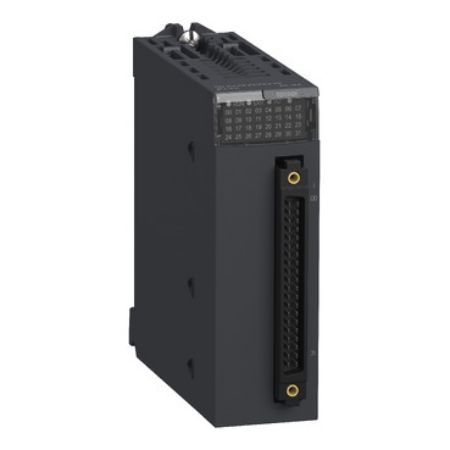

discrete input module, Modicon X80, 32 inputs, 24V DC positive

$1,371.26 INC GST

Qty:

Available for Shipping : 15-Dec-2025

Product Selector

discrete input module, Modicon X80, 32 inputs, 24V DC positive

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 15-Dec-2025

Catalog

Declaration of conformity

Brochure

User guide

Circularity Profile

Environmental Disclosure

Product Page Link

Product Data Sheet

This discrete input module is part of the Modicon X80 modules. It has 32 isolated inputs and it is supplied with 24V DC. this input module with 40-way connectors is designed, for use in conjunction with the TeSys Quickfit mounting system. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Products specifications

Attribute name	Attribute value
Main
Discrete input type	isolated
Discrete input voltage	24 V DC, discrete input logic: positive
Range of product	Modicon X80
Discrete input current	2.5 mA
Discrete input number	32
Input type	current sink (logic positive)
Product or component type	discrete input module
Complementary
DC maximum filtering time	7 ms
Current state 0 guaranteed	<= 0.5 mA
Typical current consumption	121 mA at 3.3 V DC
Input compatibility	with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Power dissipation in W	3.9 W
Protection type	reverse polarity protection, 1 external fuse per group of channel0.5 A fast blow
Voltage detection threshold	> 18 V DC sensor OK, < 14 V DC sensor fault
Status LED	1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
MTBF reliability	905000 H
Input impedance	9600 Ohm
DC typical filtering time	4 ms
Paralleling of inputs	no
Net weight	0.112 kg
Current state 1 guaranteed	>= 2 mA
Insulation resistance	> 10 MOhm 500 V DC
Voltage range	19...30 V
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation	0-60 °C
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Vibration resistance	3 gn
Dielectric strength	500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Shock resistance	30 gn
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.200 cm
Package 1 Width	11.000 cm
Package 1 Length	11.500 cm
Package 1 Weight	143.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.486 kg
Unit Type of Package 3	3
Number of Units in Package 3	240
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	49.776 kg
