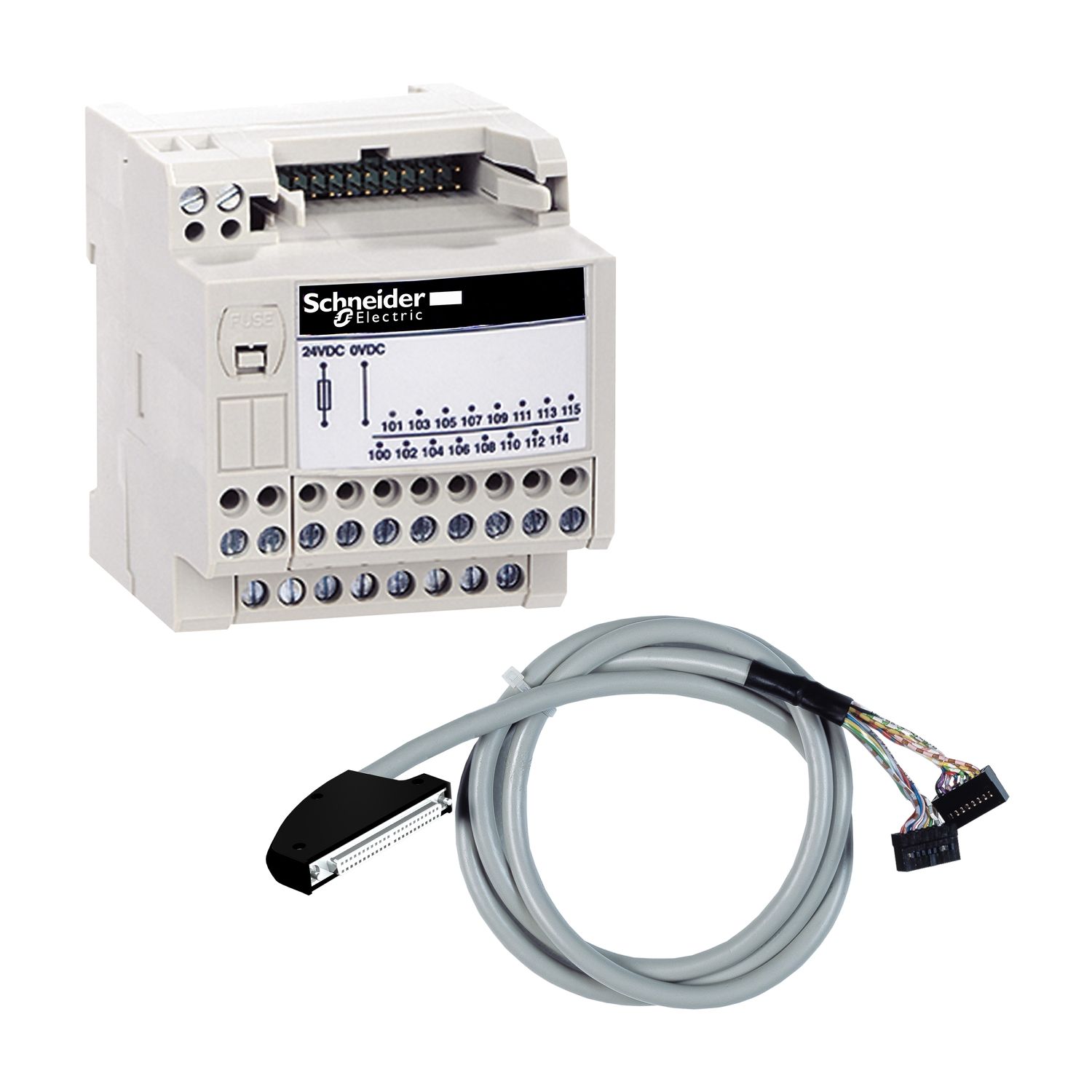

Picture of passive connection sub-base, Modicon ABE7, 16 inputs or outputs, wiring kit, cable 1m
SKU:

ABE7H34E100

passive connection sub-base, Modicon ABE7, 16 inputs or outputs, wiring kit, cable 1m

$468.35 INC GST
Available for Shipping : 28-Jan-2026
passive connection sub-base, Modicon ABE7, 16 inputs or outputs, wiring kit, cable 1m
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This is a kit containing two sub-bases and a 1meter long Y-cordset. Sub-bases provide 2x16 modularity input/output channels with 1 terminal per channel. Y-cordset is equipped with 1x 40-way FCN, and 2x HE10 20-way connectors. This product is designed to simplify I/O connection to a PLC within a control panel, and connects to channels with HE 10 and SUB-D connectors. It is a sub base with a maximum supply current of 1.8A with 0.5A per channel, and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. This kit weighs 0.582kg. It is suitable for all types of industrial applications managed with Modicon X80 I/O modules or Modicon M340 controllers. This kit is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. This kit is compatible with Modicon X80 I/O modules or Modicon M340 controllers. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type low cost sub-base
Number of channels 16
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel 1
Product or component type passive discrete I/O sub-base
Range of product Modicon ABE7
Complementary
[Ui] rated insulation voltage 2000 V terminals/mounting rails
Product compatibility Modicon Premium PLC, Modicon TSX Micro PLC
Voltage drop on power supply fuse 0.3 V
Supply circuit type DC
Maximum supply current 1.8 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.33 kg
Maximum current per output common 1.8 A
Installation category II conforming to IEC 60664-1
Status LED 1 LED (amber) APP1, 1 LED (green) power ON
Current per channel 0.5 A
Number of horizontal rows 2
Short-circuit protection 2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, CSA, UL, DNV, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8 cm
Package 1 Width 21 cm
Package 1 Length 29 cm
Package 1 Weight 611 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 6.96 kg
