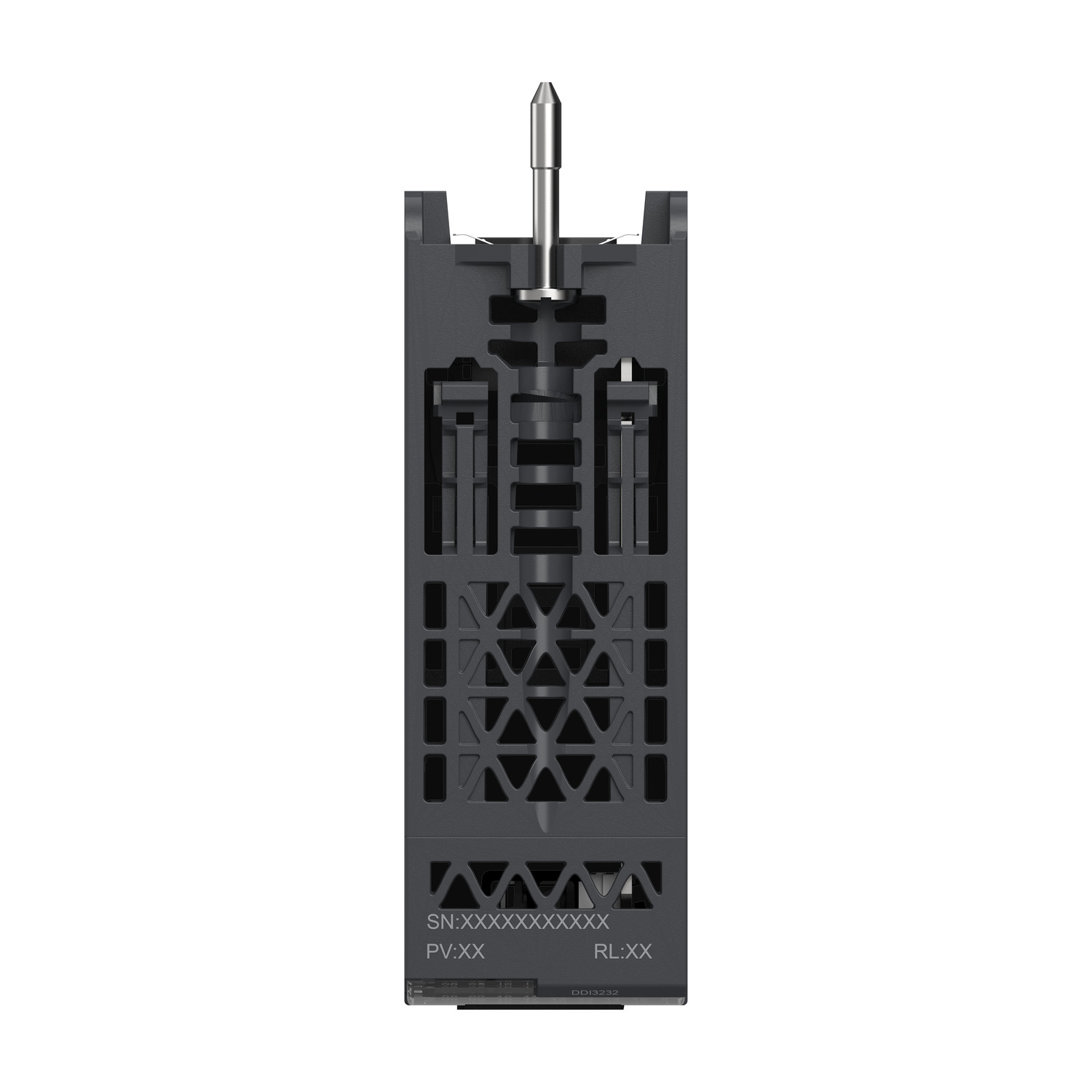

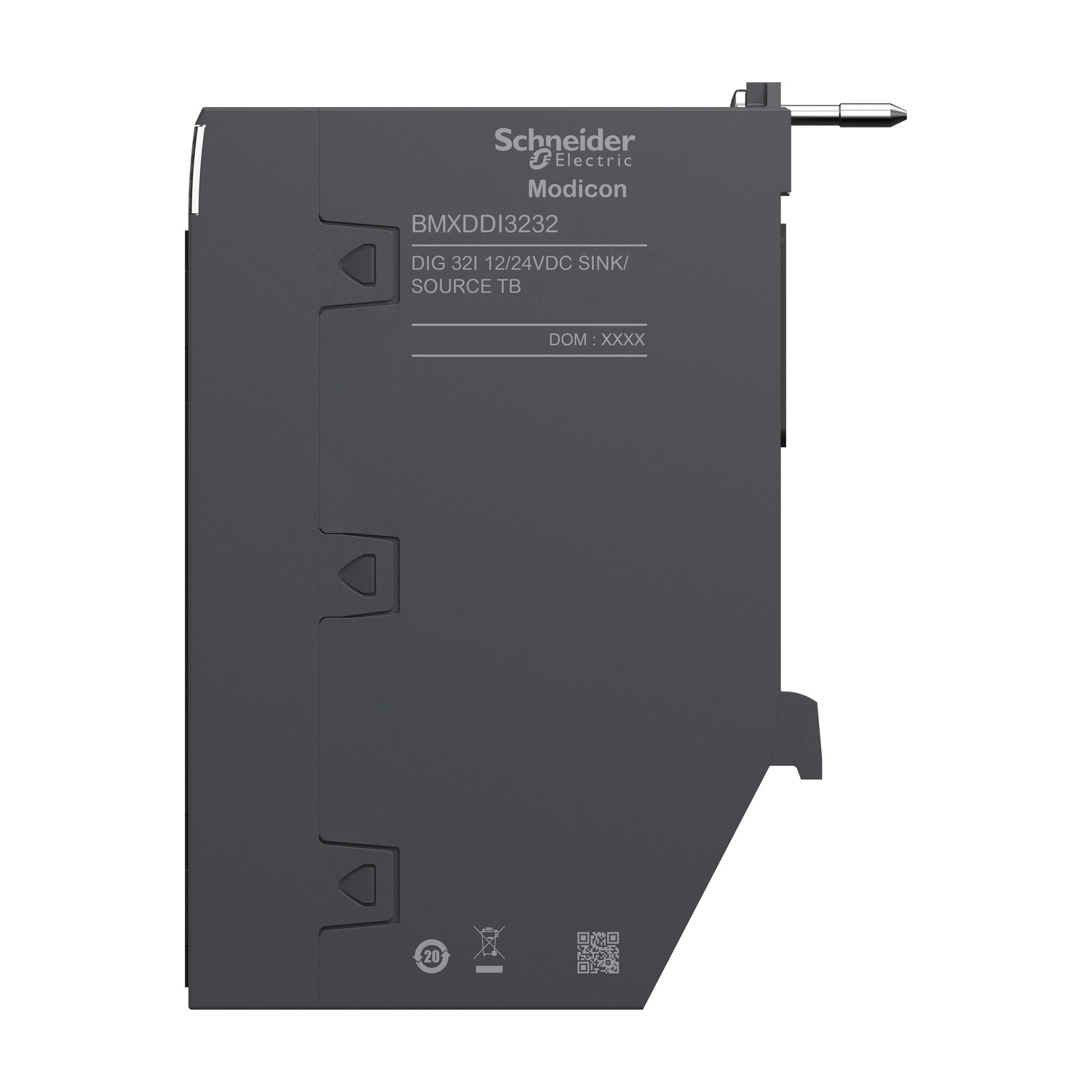

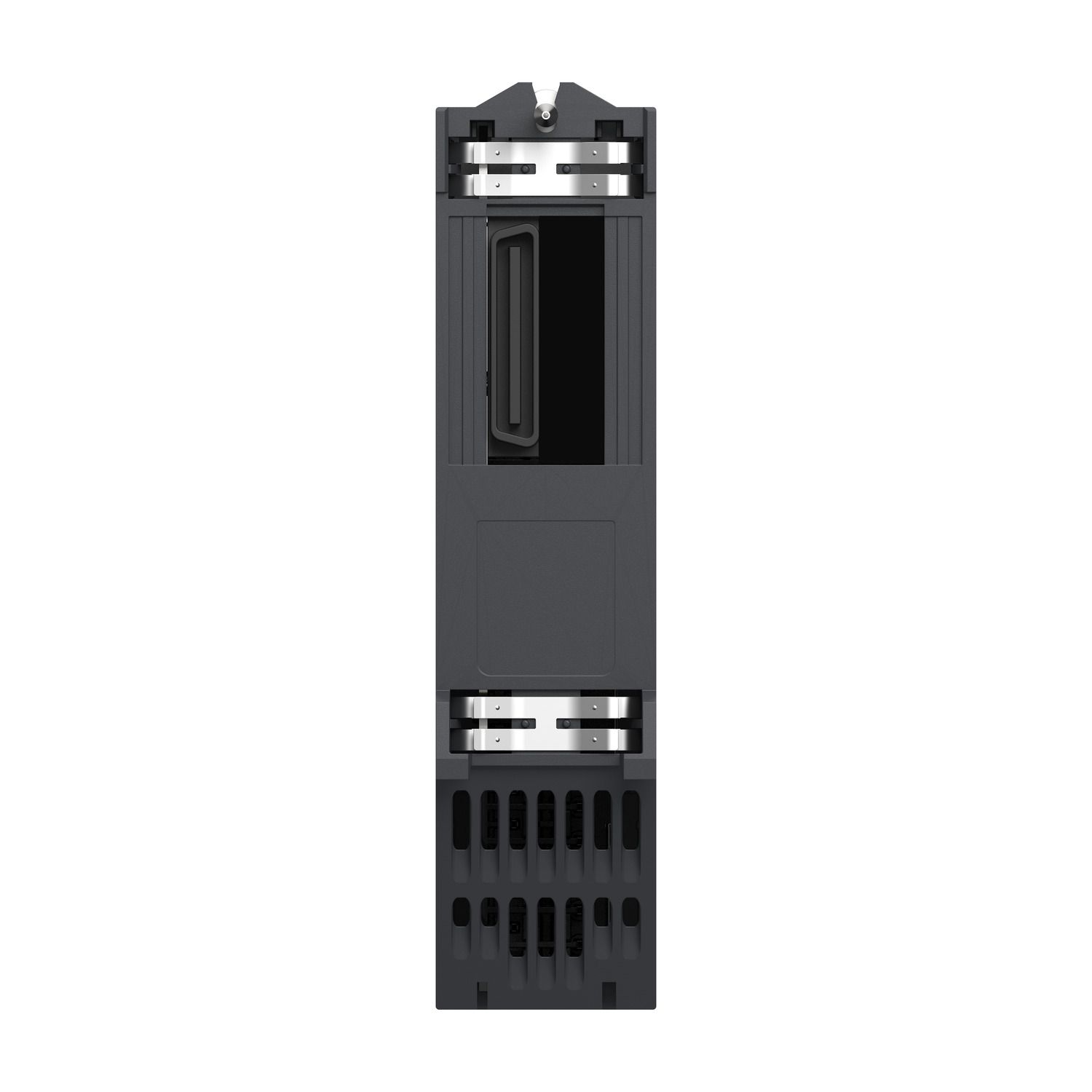

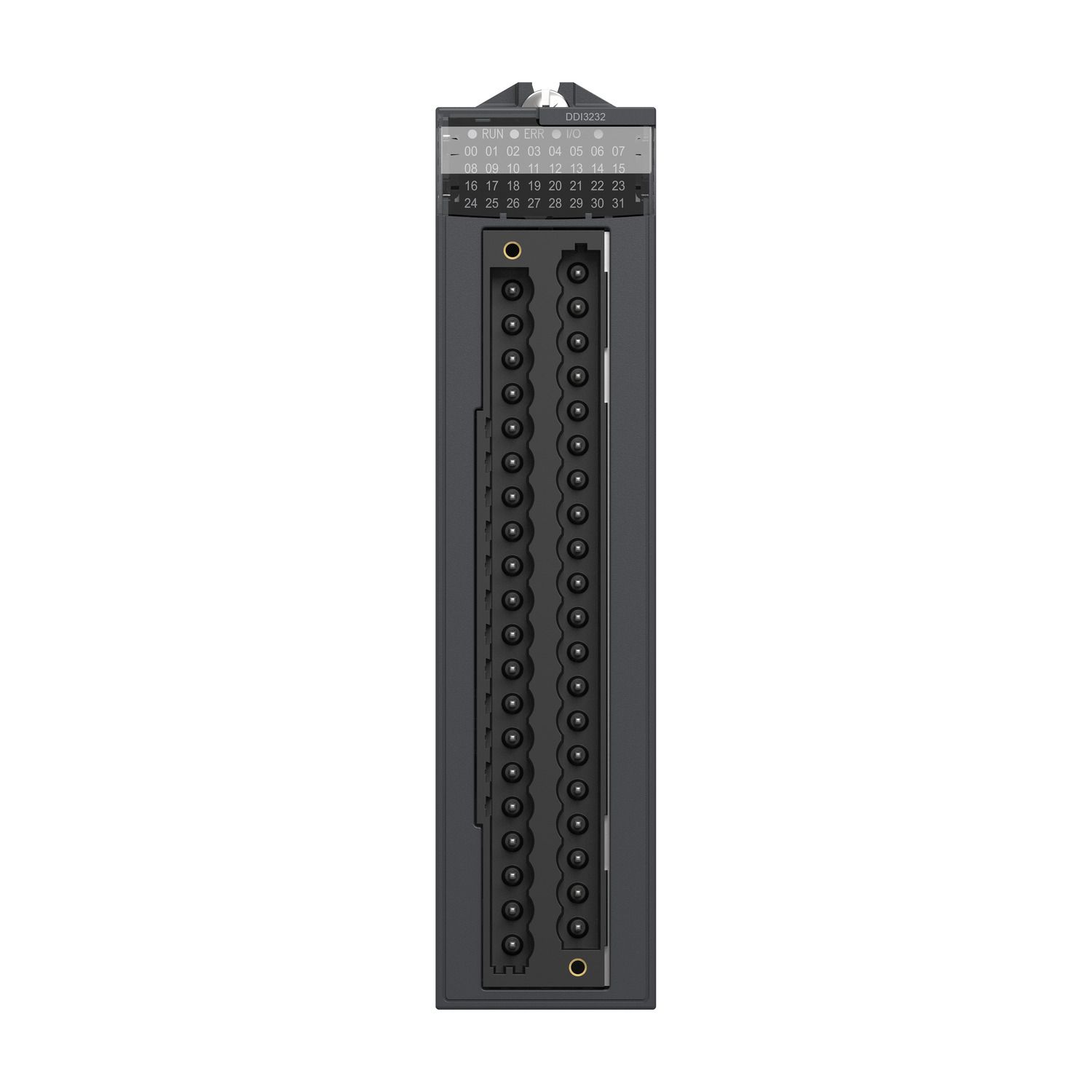

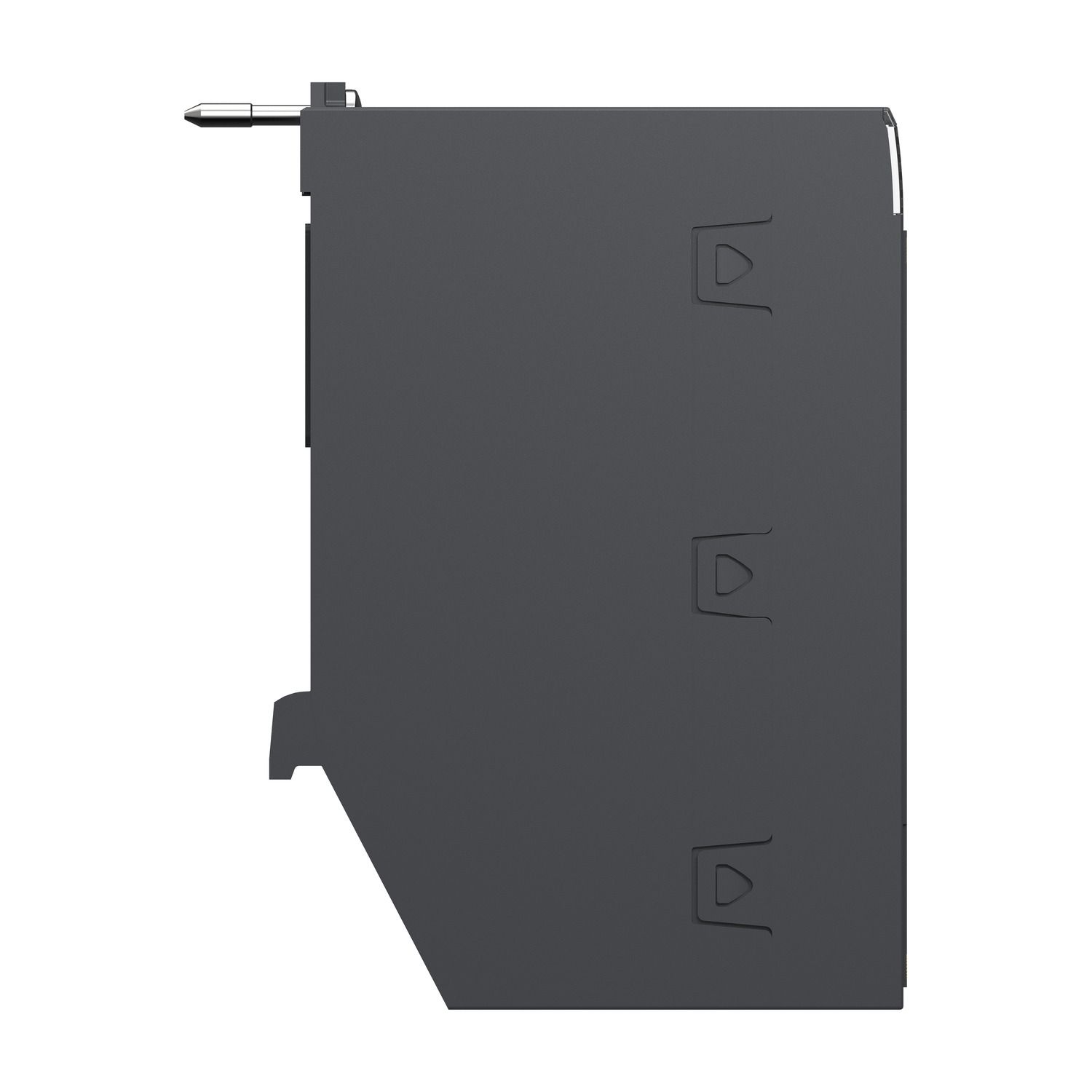

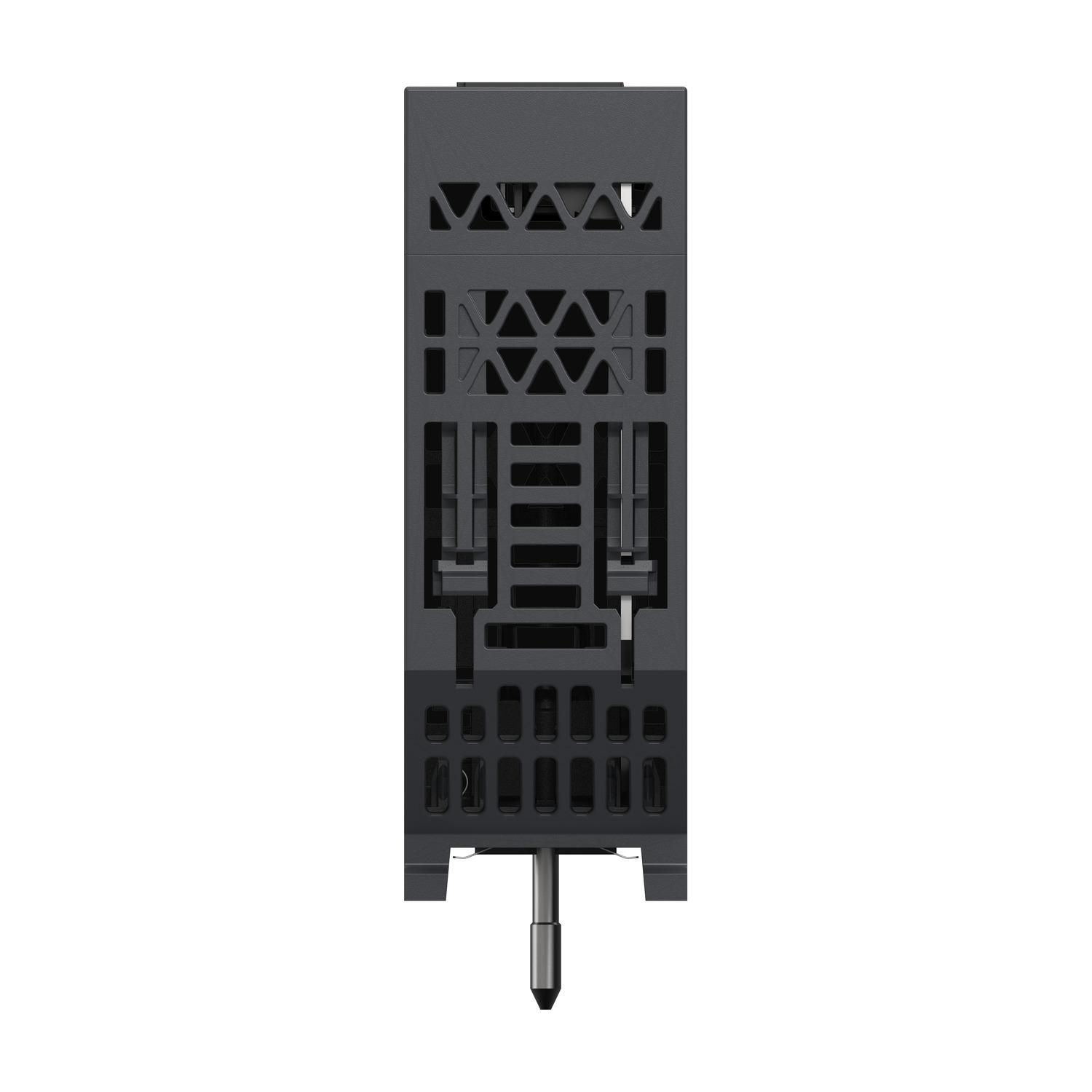

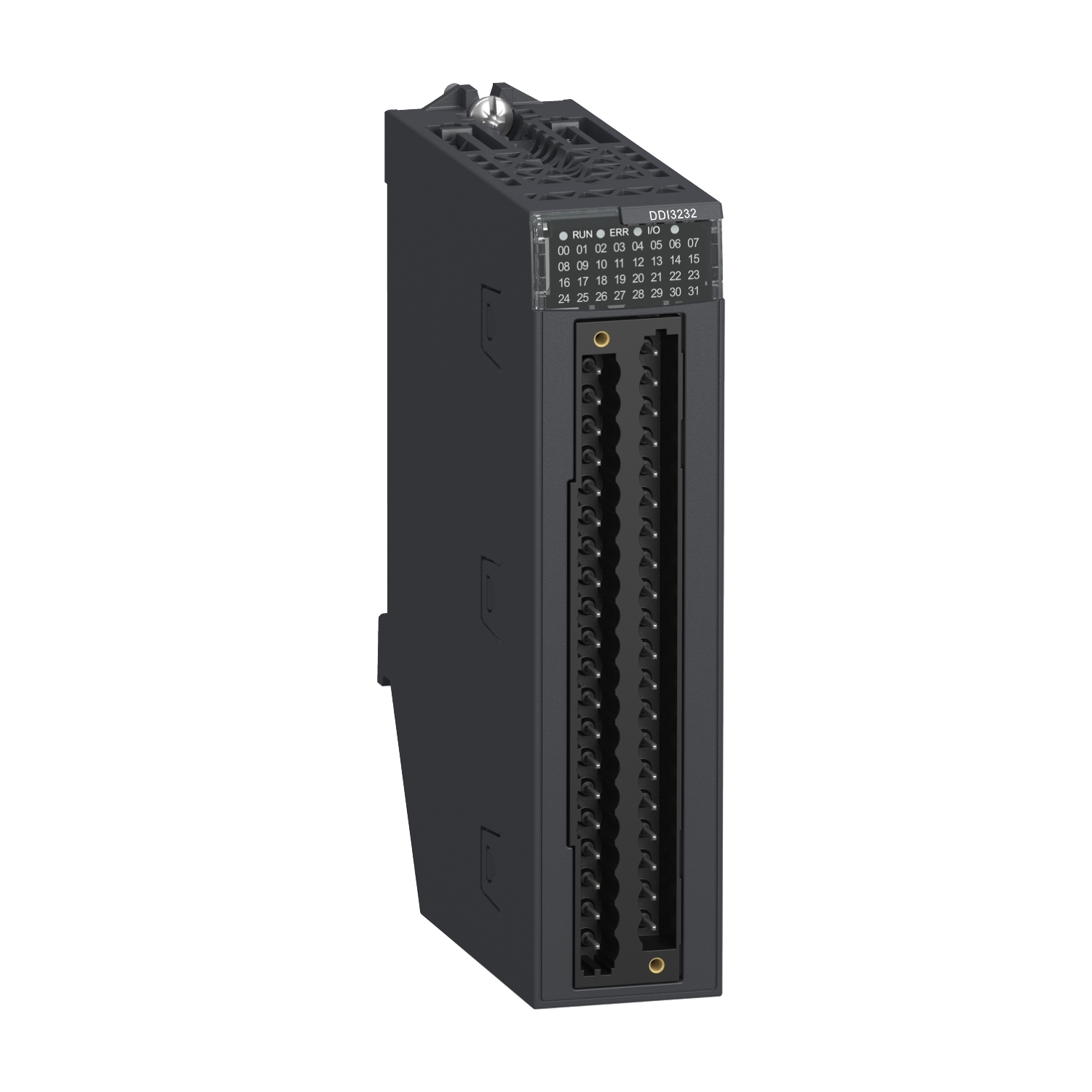

Picture of discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
Picture of discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
Picture of discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
Picture of discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
Picture of discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
Picture of discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
Picture of discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
Picture of discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
SKU:

BMXDDI3232

discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative

$1,399.46
Available for Shipping : 26-Nov-2024
discrete input module, Modicon X80, 32 inputs, 12 or 24V DC positive or negative
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Declaration of conformity
User guide
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 32 input channels and it is supplied with 12/24V DC positive or negative. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 2193030 hours of MTBF. This discrete module has a weight of 0.137kg and dimensions of 32x131x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Discrete input current 3.3 mA
Discrete input number 32
Discrete input type isolated
Input type current source (logic negative), current sink (logic positive)
Product or component type discrete input module
Discrete input voltage 24 V DC, discrete input logic: positive or negative, 12 V DC, discrete input logic: positive or negative
Range of product Modicon X80
Complementary
DC maximum filtering time 7 ms
Input impedance 7270 Ohm
Current state 0 guaranteed <= 1.5 mA
Typical current consumption 100 mA at 3.3 V DC
Input compatibility with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3
Voltage state 1 guaranteed <= -10 V, >= 10 V
DC typical filtering time 4 ms
Paralleling of outputs yes
Voltage state 0 guaranteed >= -5 V, <= 5 V
Net weight 0.137 kg
Power dissipation in W 4.7 W
Protection type 1 external fuse per group of channel0.5 A fast blow
Current state 1 guaranteed >= 2 mA
Insulation resistance > 10 MOhm 500 V DC
Voltage detection threshold > 19 V DC sensor OK, < 14 V DC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Voltage range 19...30 V
MTBF reliability 2200000 H
Environment
IP degree of protection IP20
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at -25-70 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 1500 V AC at 50/60 Hz 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Shock resistance 30 gn
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.6 cm
Package 1 Width 17.9 cm
Package 1 Length 26.0 cm
Package 1 Weight 320.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.04 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 80.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 36.0 kg

Related products

terminal block, Modicon X80, 40-pin removable caged

BMXFTB4000
$152.47
View Detail

terminal block, Modicon X80, 40-pin removable spring

BMXFTB4020
$152.47
View Detail
