SKU:

BMEP584040S

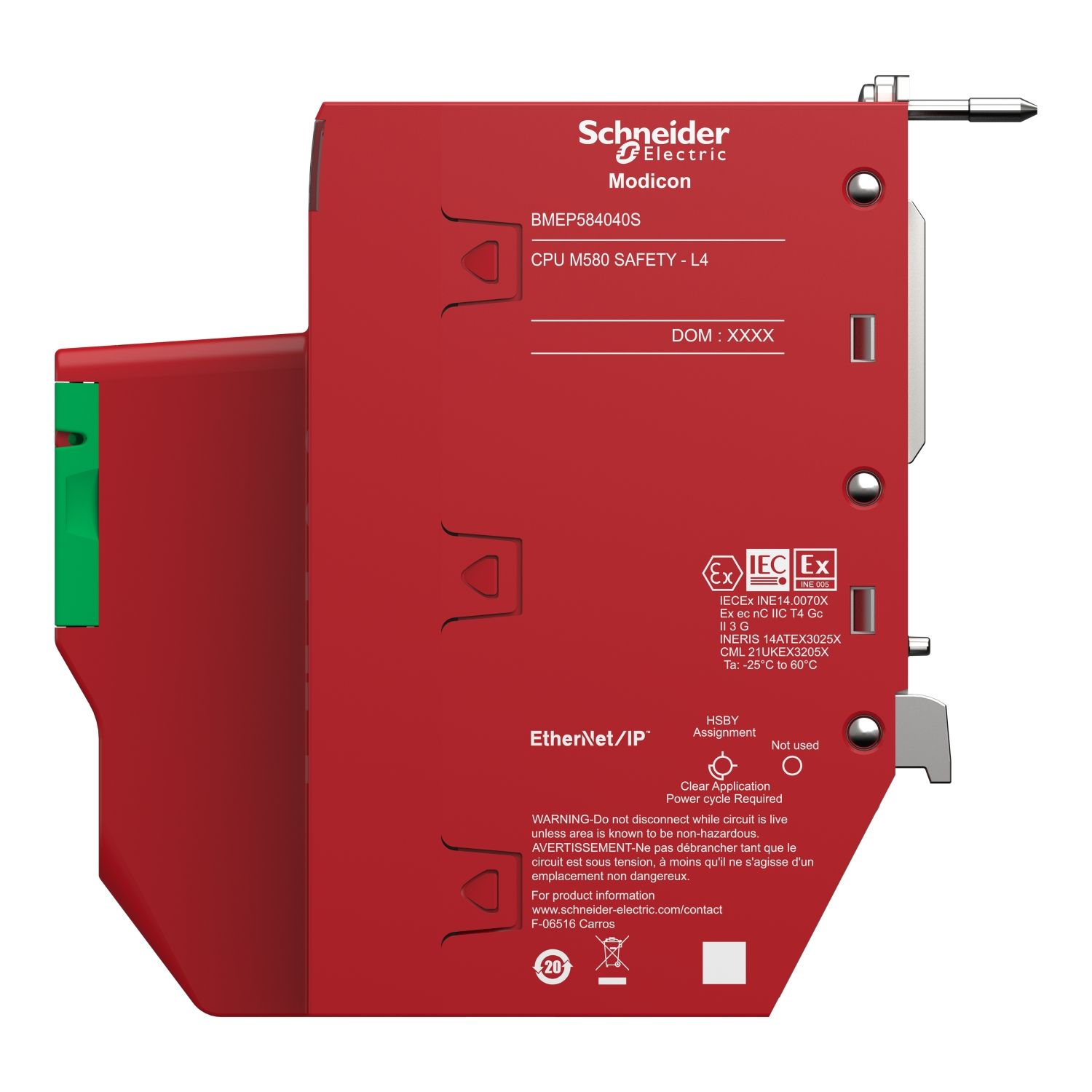

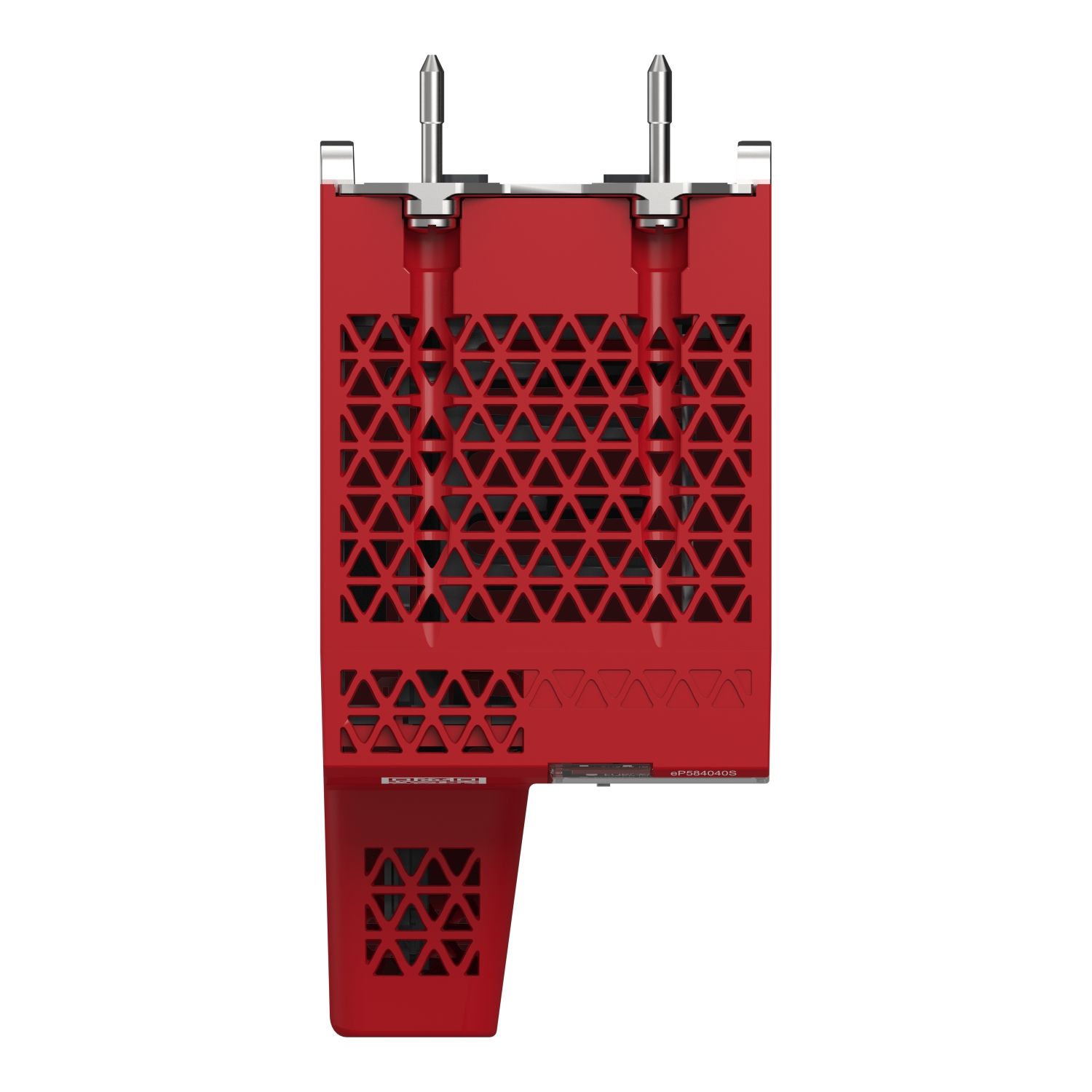

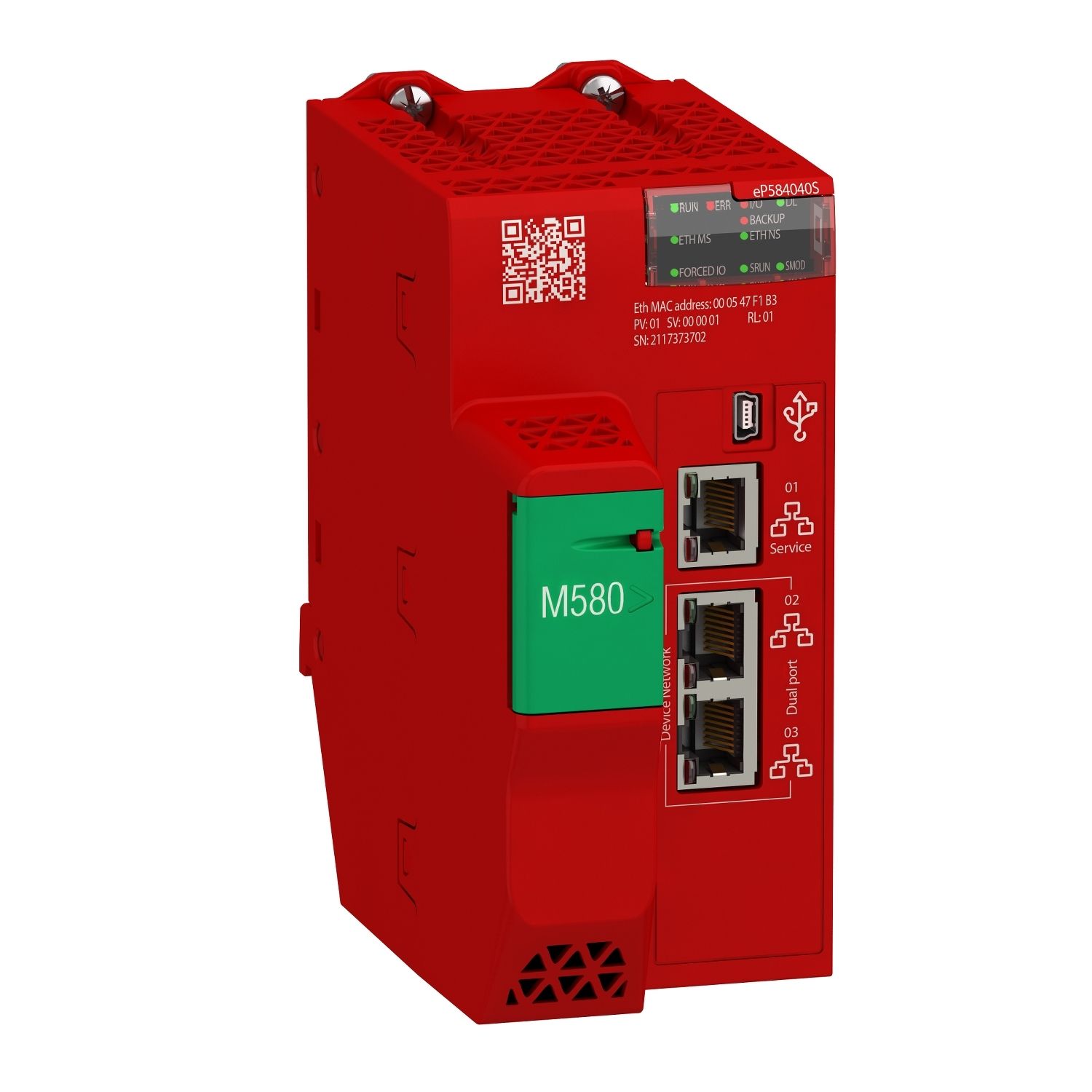

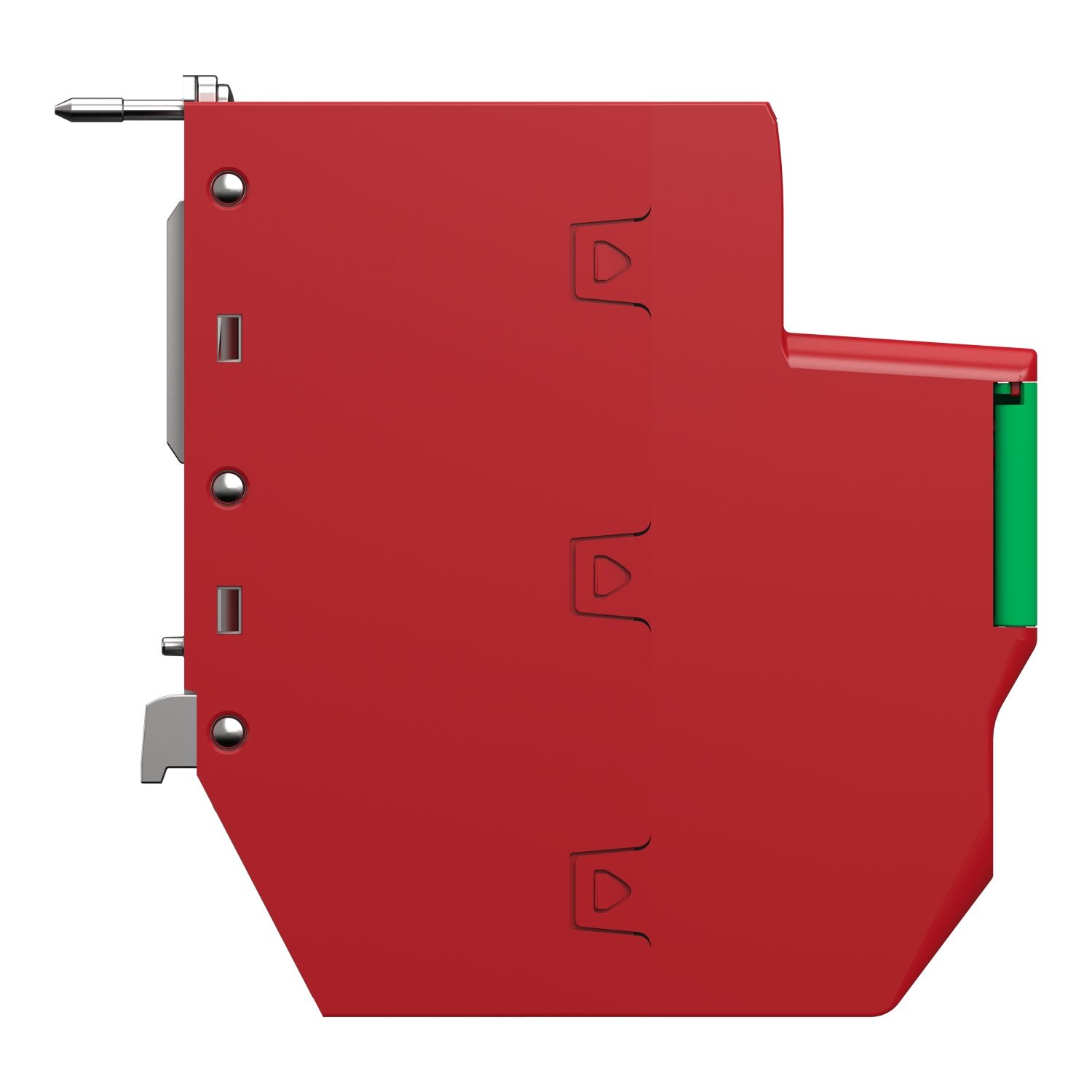

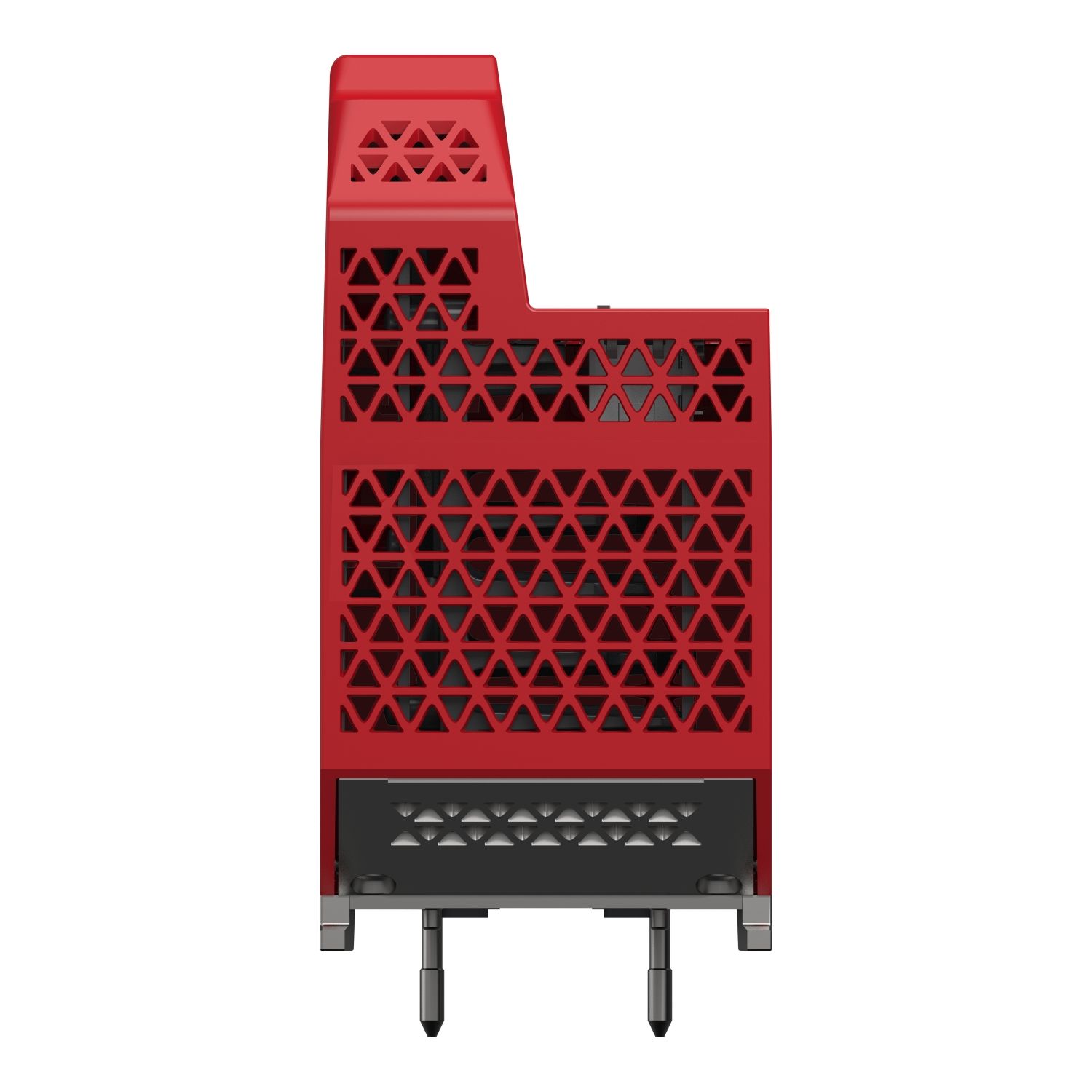

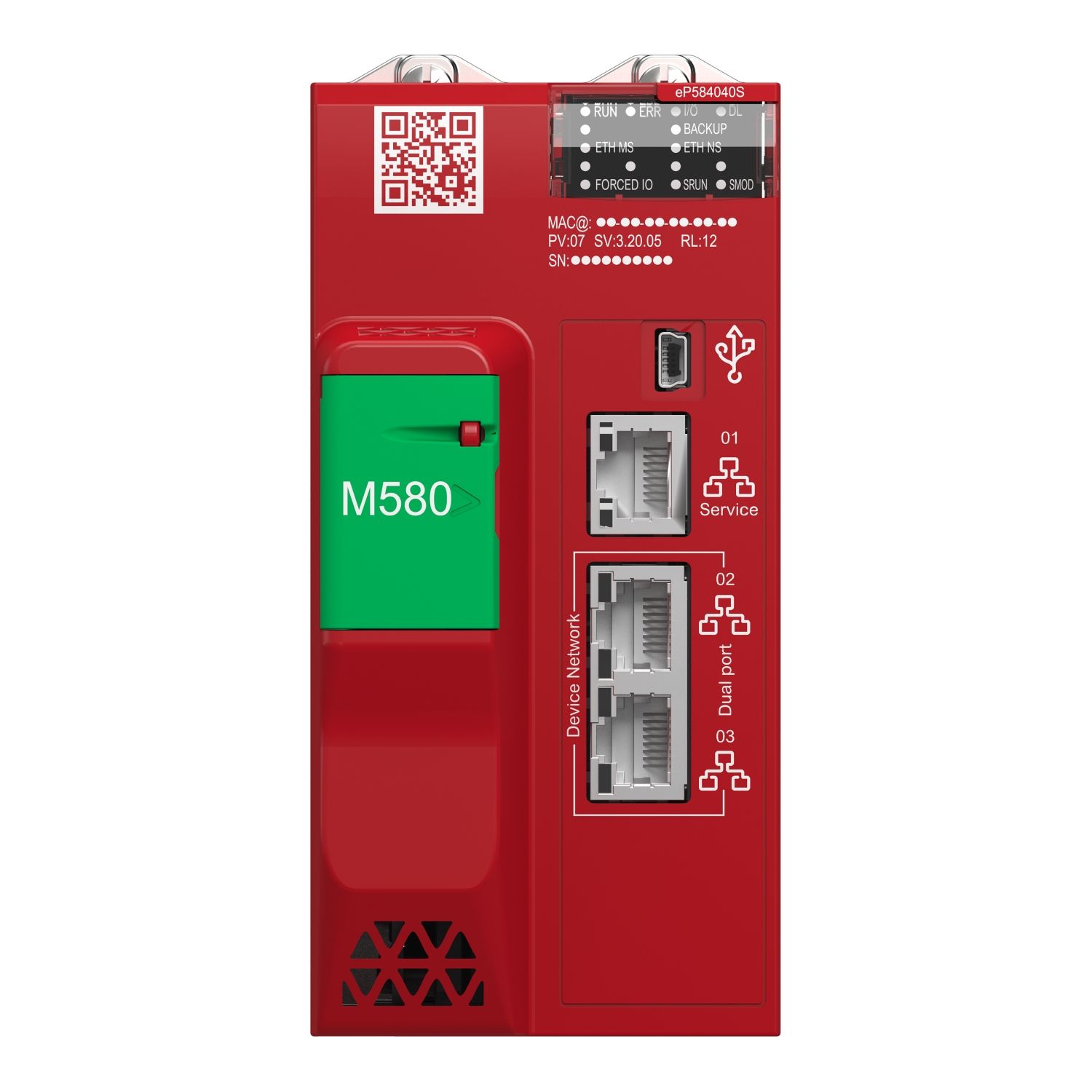

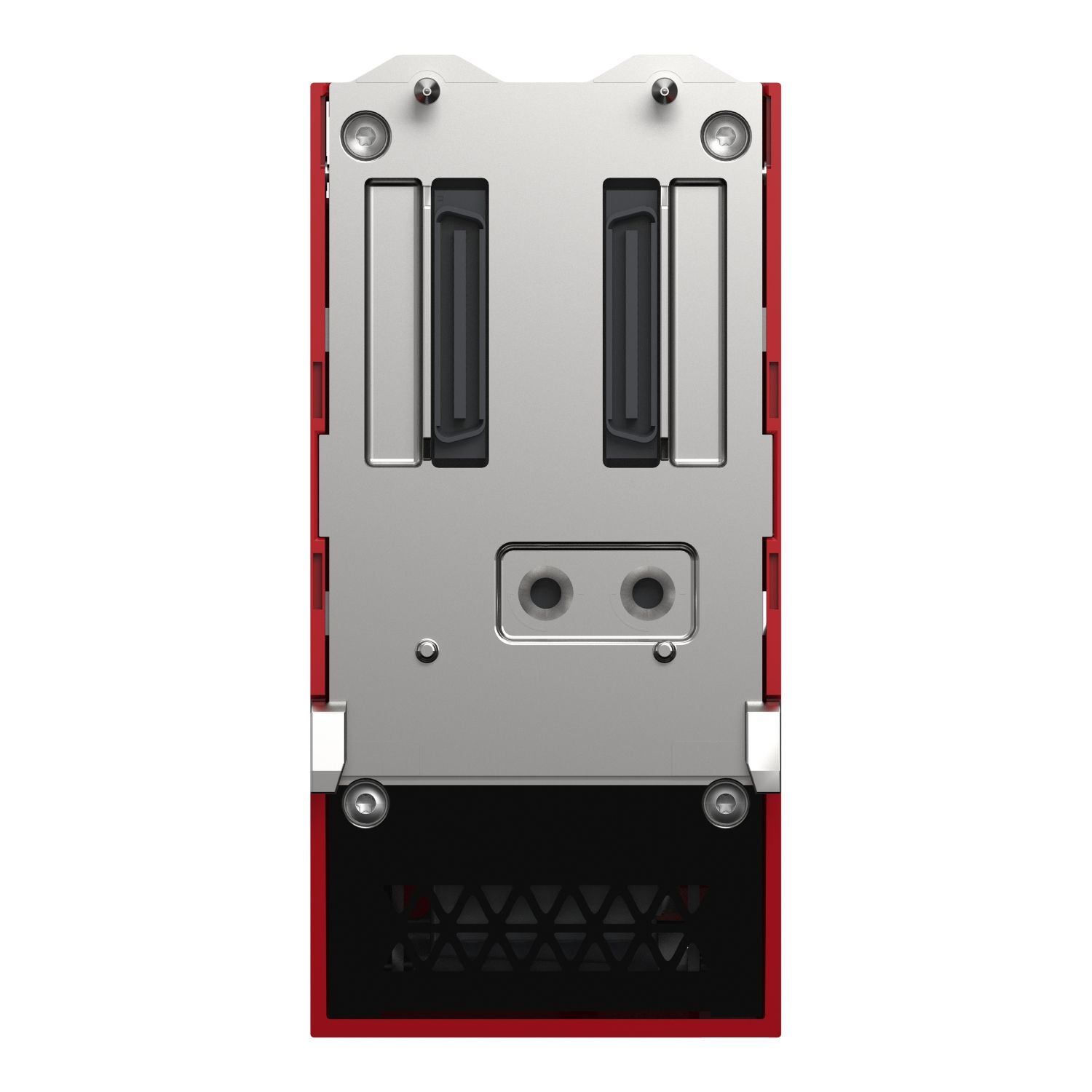

standalone safety processor, Modicon M580, 16MB, 61 Ethernet devices, 16 remote IO racks of X80 and Quantum, 64 CIP safety devices

$25,881.90 INC GST

Qty:

Available for Shipping : 09-Dec-2025

Product Selector

standalone safety processor, Modicon M580, 16MB, 61 Ethernet devices, 16 remote IO racks of X80 and Quantum, 64 CIP safety devices

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 09-Dec-2025

Catalog

Declaration of conformity

Circularity Profile

Environmental Disclosure

User guide

Instruction sheet

Product Page Link

Product Data Sheet

This processor module is part of the Modicon M580 range, an offer of PACs and safety PLCs with built-in Ethernet. This processor module offers a maximum of 8 rack configuration and 144 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 4096 discrete, 1024 analog local I/O channels and 64 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network and USB type mini B for integrated connections. It has an integrated RAM of 16MB for program, 2048kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon M580
Impregnation material	conformal coated
Product or component type	processor module
Complementary
Number of application specific channel	144
Memory description	integrated RAM, 1024 kB for data safety, integrated RAM, 4 MB for program safety, integrated RAM, 2048 kB for data process, integrated RAM, 16 MB for program process, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage
Control channels	programmable loops
Analogue I/O processor capacity	1024 I/O
Number of instructions per ms	40 Kinst/ms 100 % Boolean, 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
Application specific I/O	HART, serial link, accurate time stamping, SSI encoder, motion control, counter
Number of remote I/O station	16 - 2 rack(s) per remote drop
Application structure	1 cyclic/periodic master task, 1 periodic fast task, 128 event tasks, 1 periodic safe task, 2 auxiliary tasks
Discrete I/O number	64
Marking	CE
Number of racks	8
Communication service	DIO scanner, RIO scanner
Number of distributed equipment	64
MTBF reliability	775000 H
Checks	process control, safety control
Discrete I/O processor capacity	4096 I/O
Cybersecurity	security log, port hardening, password protection, firmware signature, embedded firewall, audit trail, Syslog protocol support, SNMP logging, IPSec, DoS prevention, Achilles certified
Integrated connection type	USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port
Current consumption	295 mA at 24 V DC
Communication module processor capacity	4 Ethernet communication module, 8 AS-Interface module
Environment
IP degree of protection	IP20
Protective treatment	conformal coating
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/34/EU - ATEX directive, 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility
Product certifications	TÜV, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Status LED	1 LED (red) I/O values overrided by user (FORCED IO), 1 LED (green) processor in maintenance mode (SMOD), 1 LED (green) processor in safety mode (SRUN), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN)
Ambient air temperature for operation	-25-60 °C
Safety level	SIL 4 conforming to EN 50129, SIL 4 conforming to EN 50128, SIL 4 conforming to EN 50126, SILCL 3 conforming to ISO 13849-1 category 4, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61511, SIL 3 conforming to IEC 61508
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Net weight	0.849 kg
Vibration resistance	3 gn
Environmental characteristic	fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04, hazardous location class I division 2
Shock resistance	15 gn
Supply	internal power supply via rack
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.900 cm
Package 1 Width	17.800 cm
Package 1 Length	25.200 cm
Package 1 Weight	880.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.758 kg
