SKU:

BMEP58CPROS3

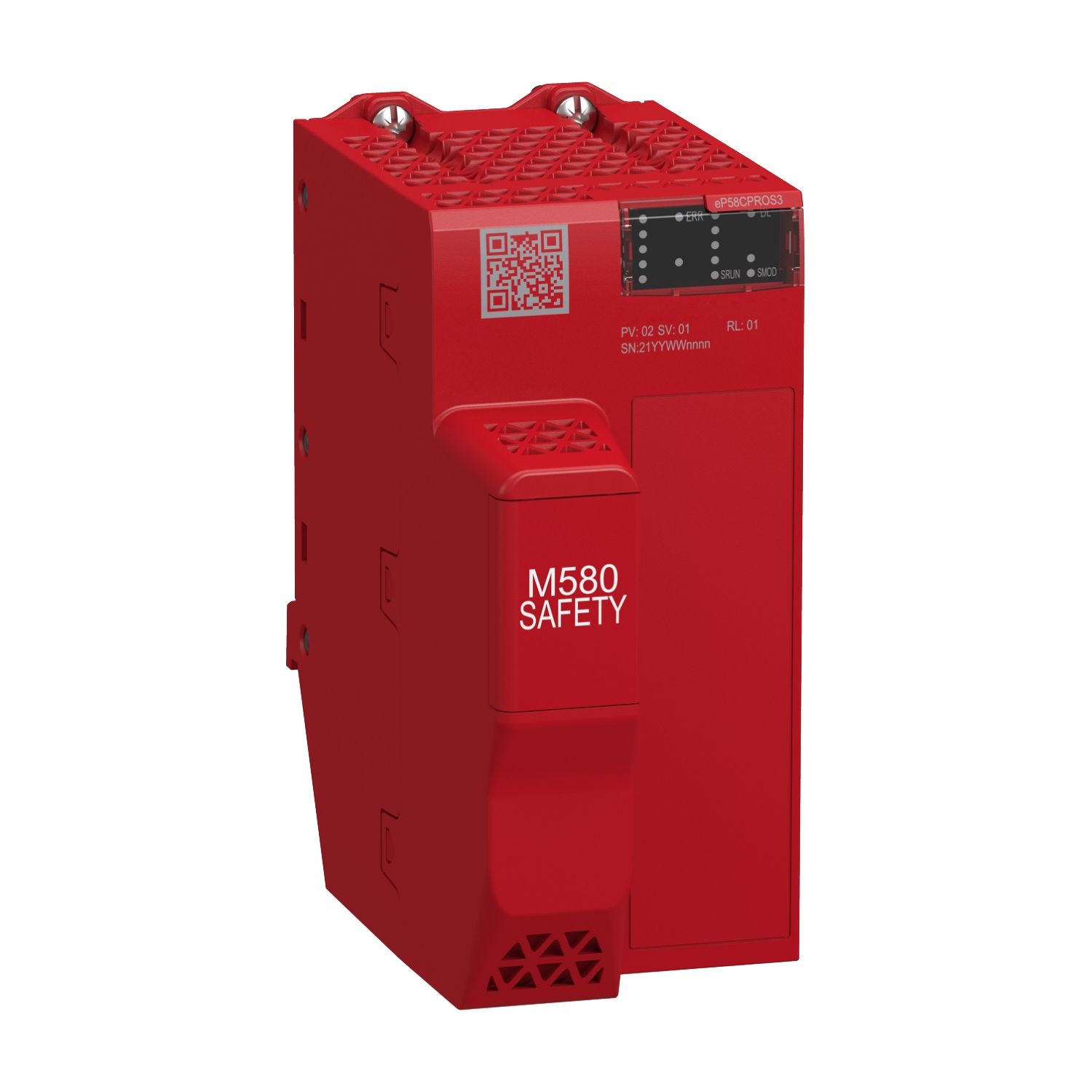

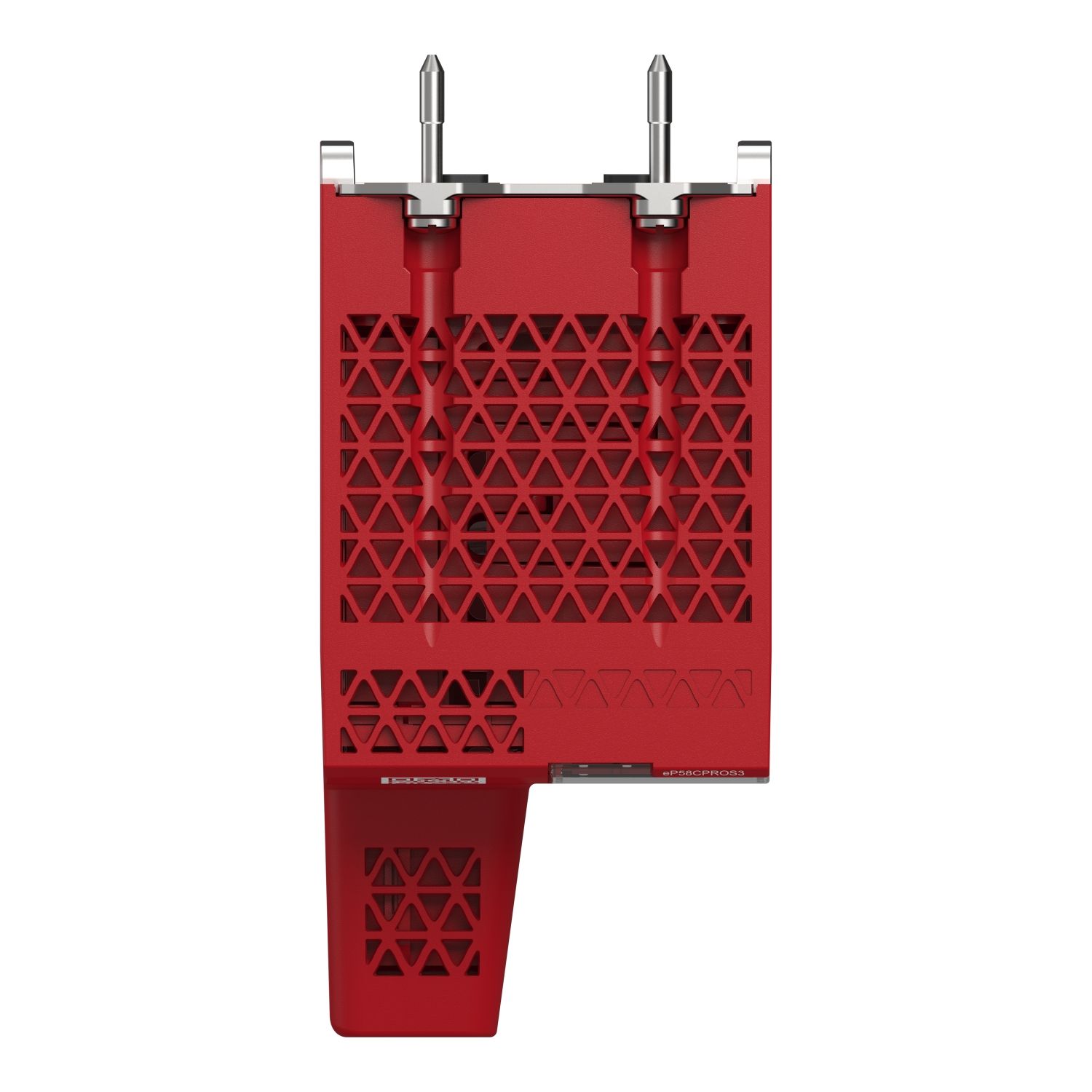

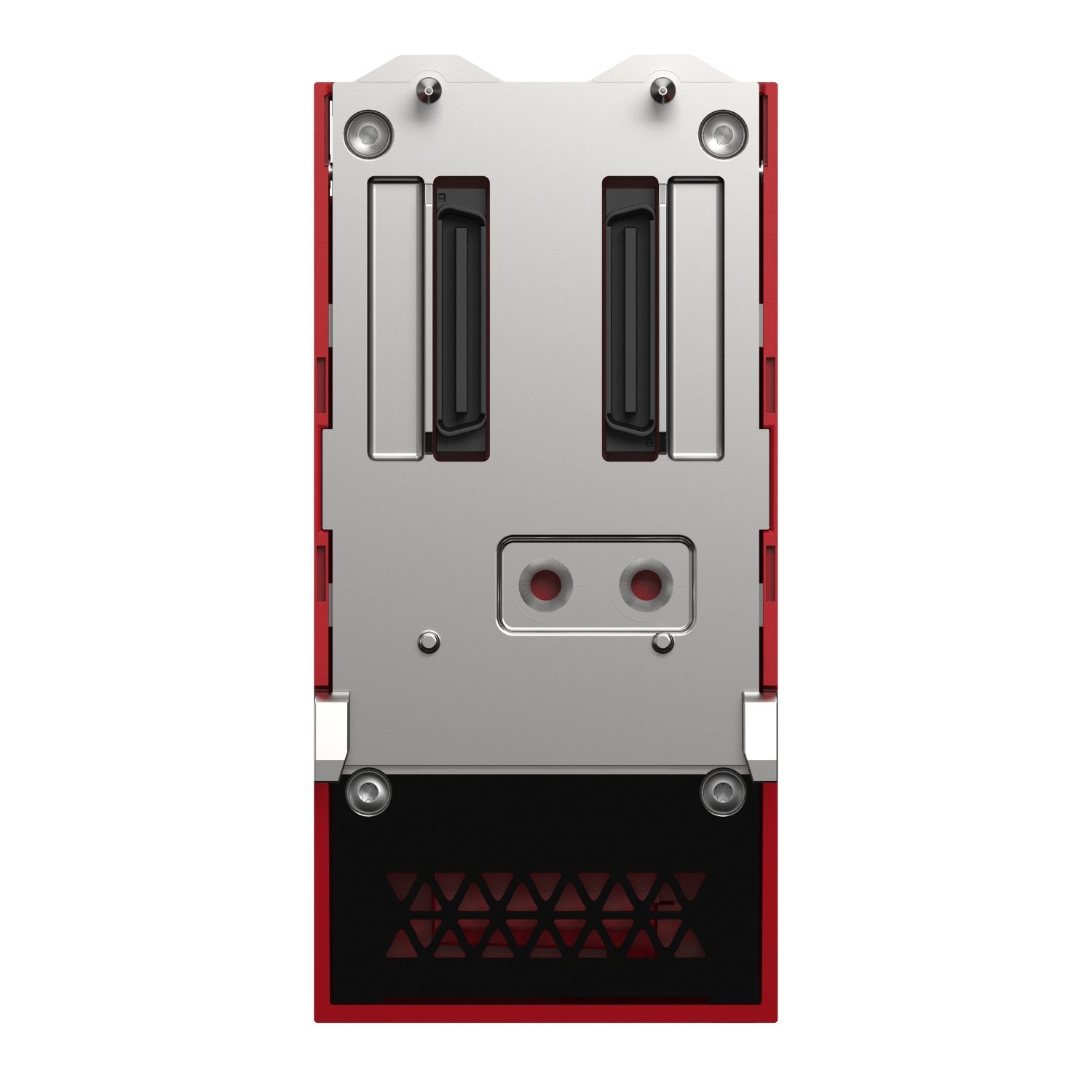

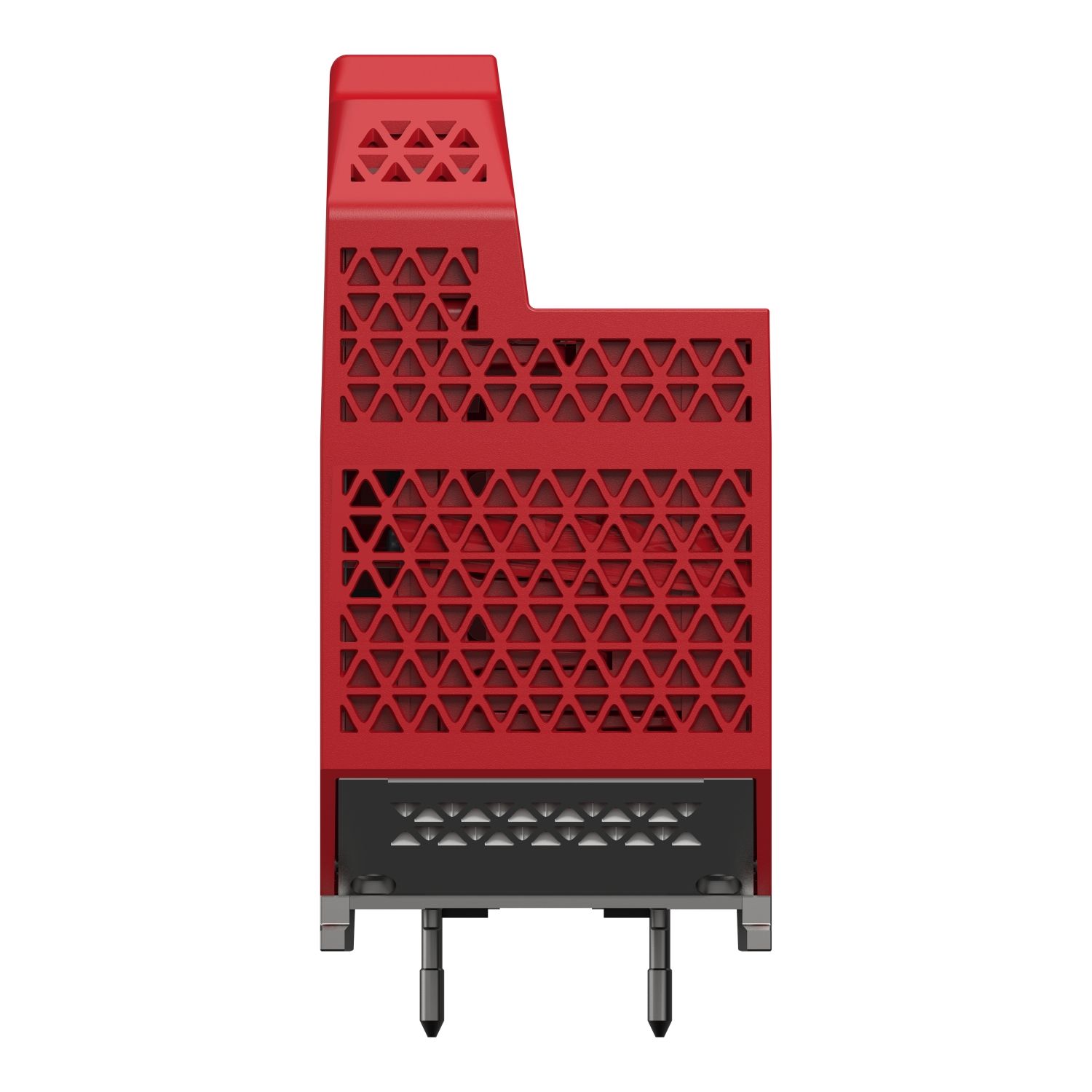

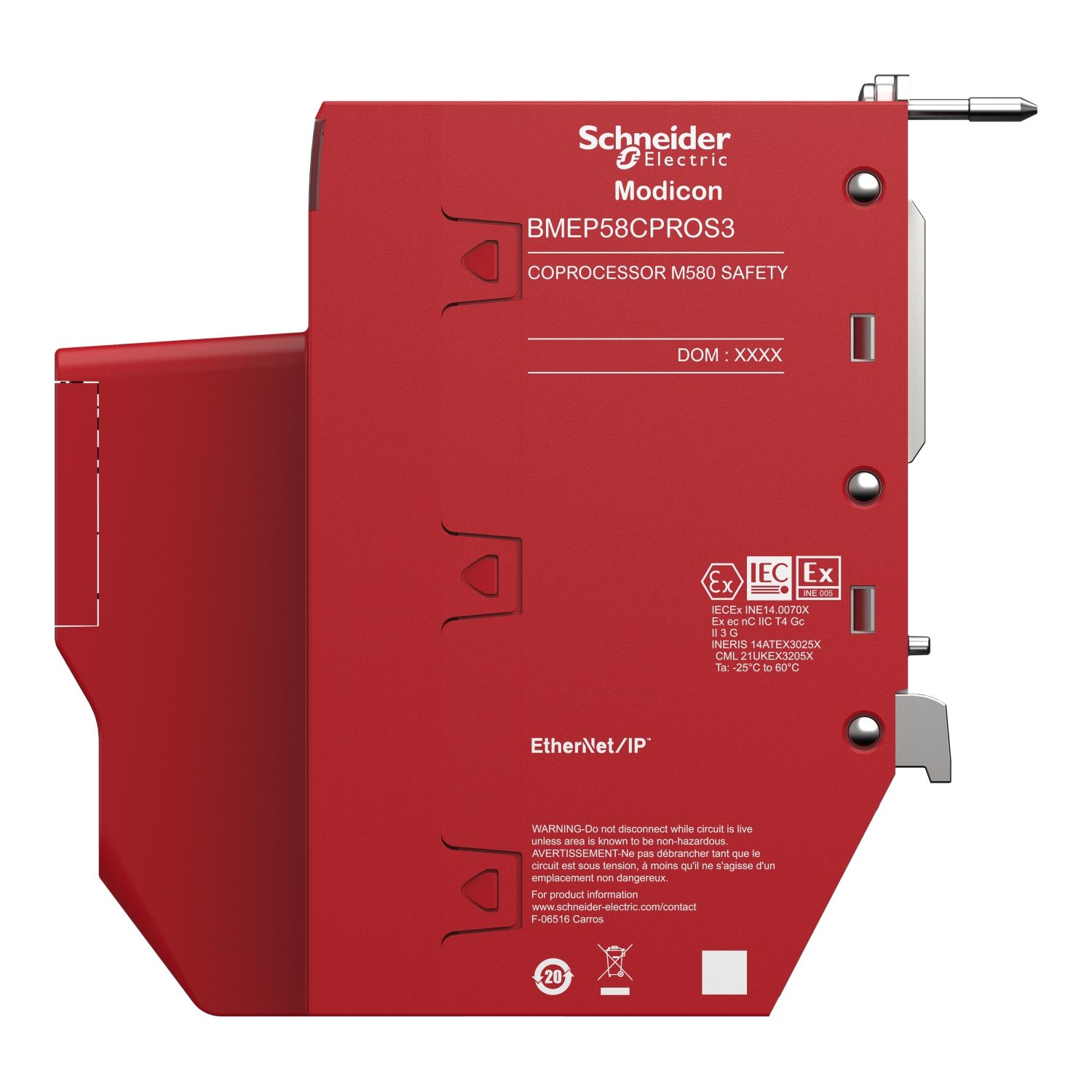

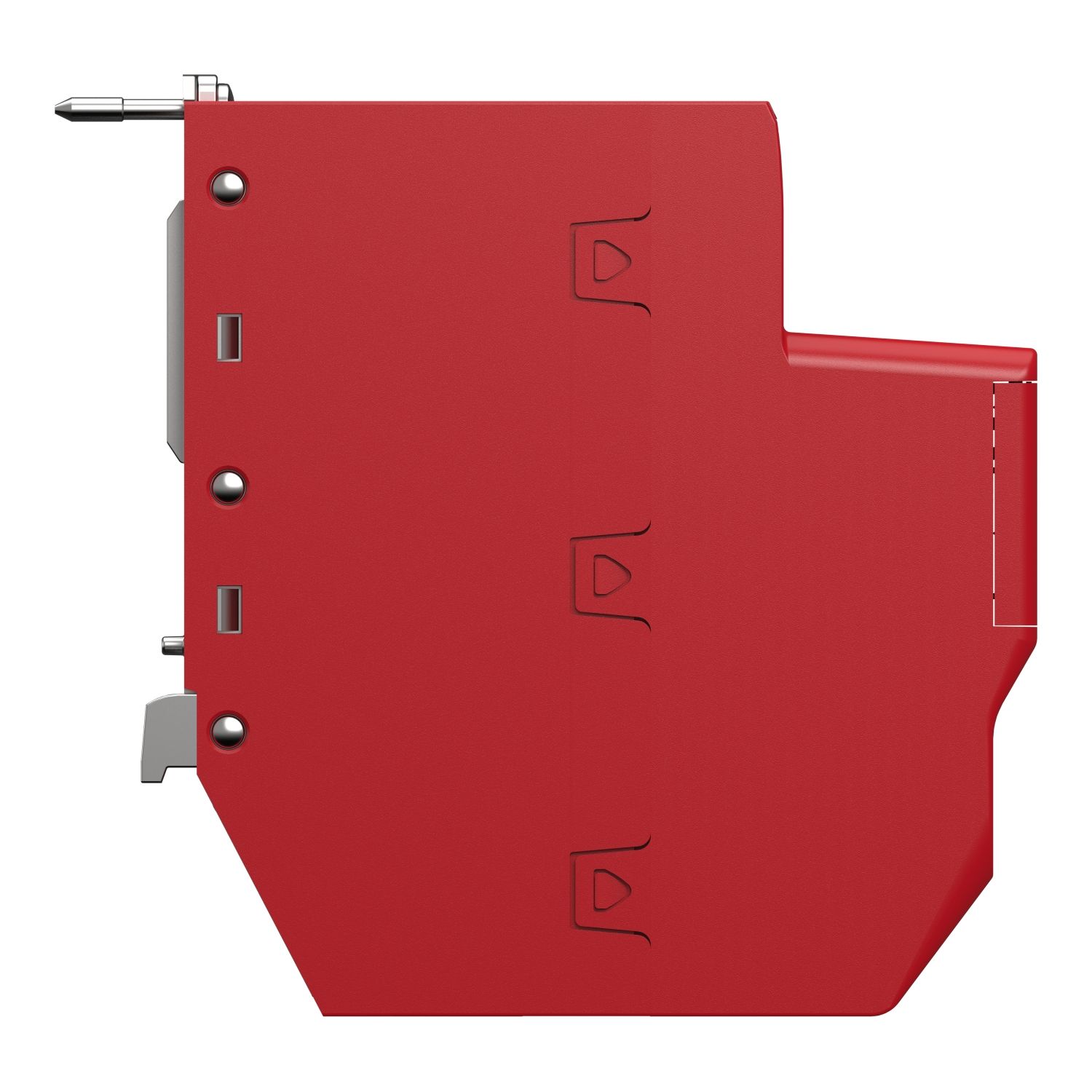

standalone safety coprocessor, Modicon M580, SIL3

$1,662.21 INC GST
Available for Shipping : 08-Dec-2025
standalone safety coprocessor, Modicon M580, SIL3
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This Safety CoProcessor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Safety product is coated and is compatible with a temperature range from -25°C to +60°C/-13°F to 140°F. This product is IP20 rated and offers 988853 hours of MTBF. The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx zone 2/22, and TUV/IEC61508/SIL3 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This processor must be used with a Modicon M580 Safety processor. The CoProcessor must be installed in the rack next to the CPU, with 2 screws on top of it to maintain the module on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M580
Product or component type processor module
Complementary
Marking CE
MTBF reliability 946000 H
Current consumption 295 mA at 24 V DC
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/34/EU - ATEX directive, 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility
Product certifications TÜV, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2

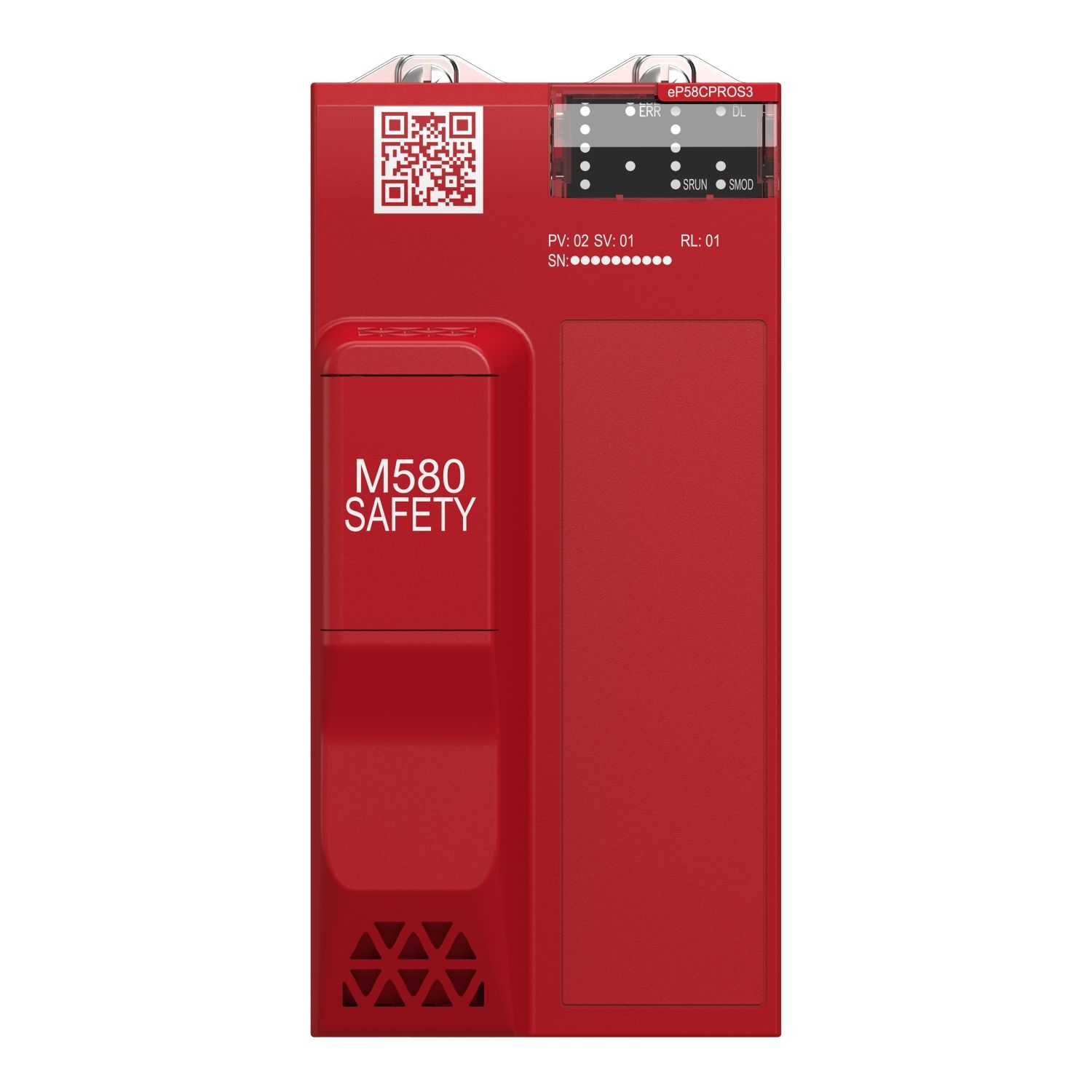

Status LED 1 LED (green) processor in maintenance mode (SMOD), 1 LED (green) processor in safety mode (SRUN), 1 LED (green) download in progress (DL), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN)
Ambient air temperature for operation -25-60 °C
Safety level PL = e, SIL 3
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Net weight 0.849 kg
Vibration resistance 3 gn
Environmental characteristic fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04, hazardous location class I division 2
Shock resistance 15 gn
Supply internal power supply via rack
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.700 cm
Package 1 Width 17.900 cm
Package 1 Length 25.200 cm
Package 1 Weight 843.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.452 kg
