SKU:

BMEP582040S

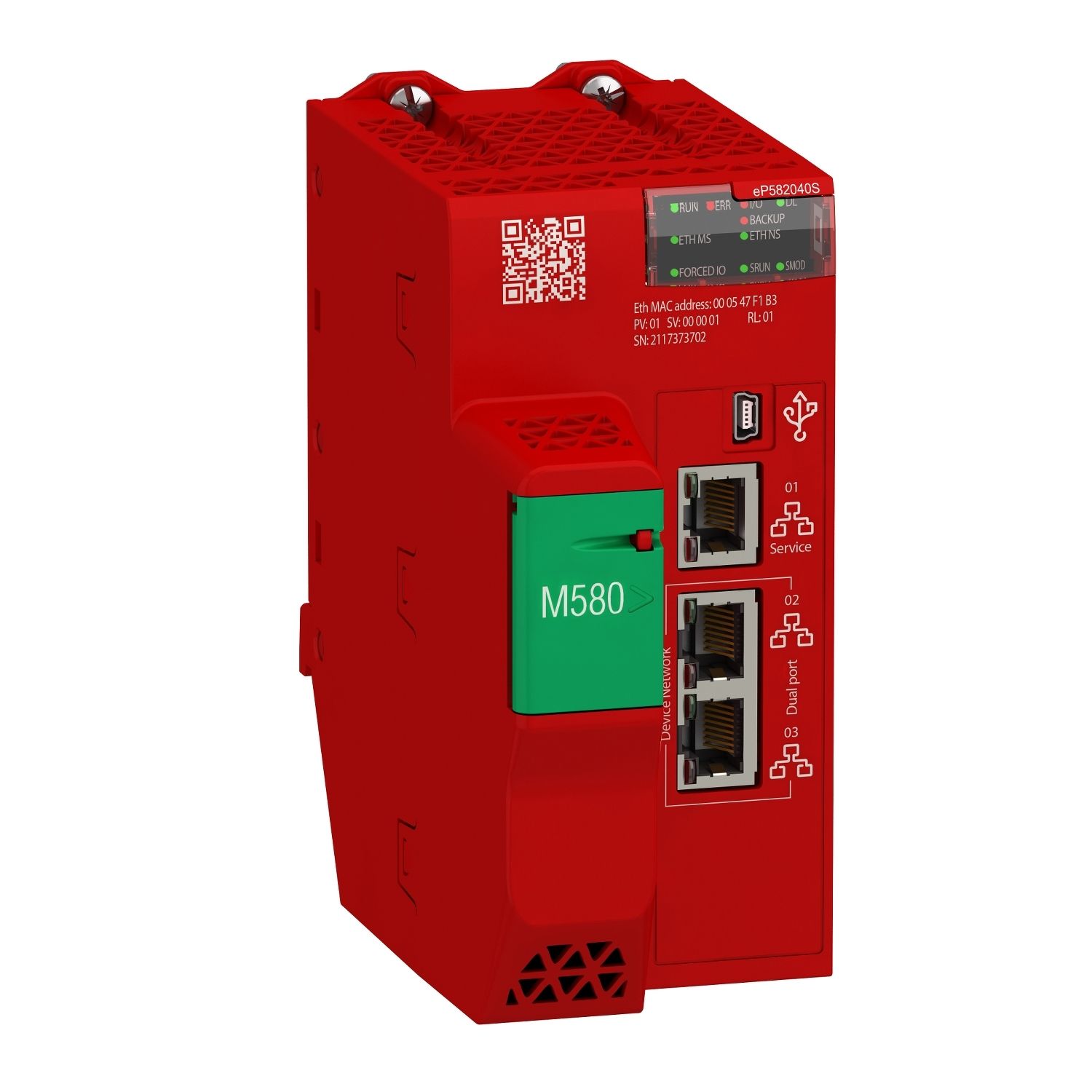

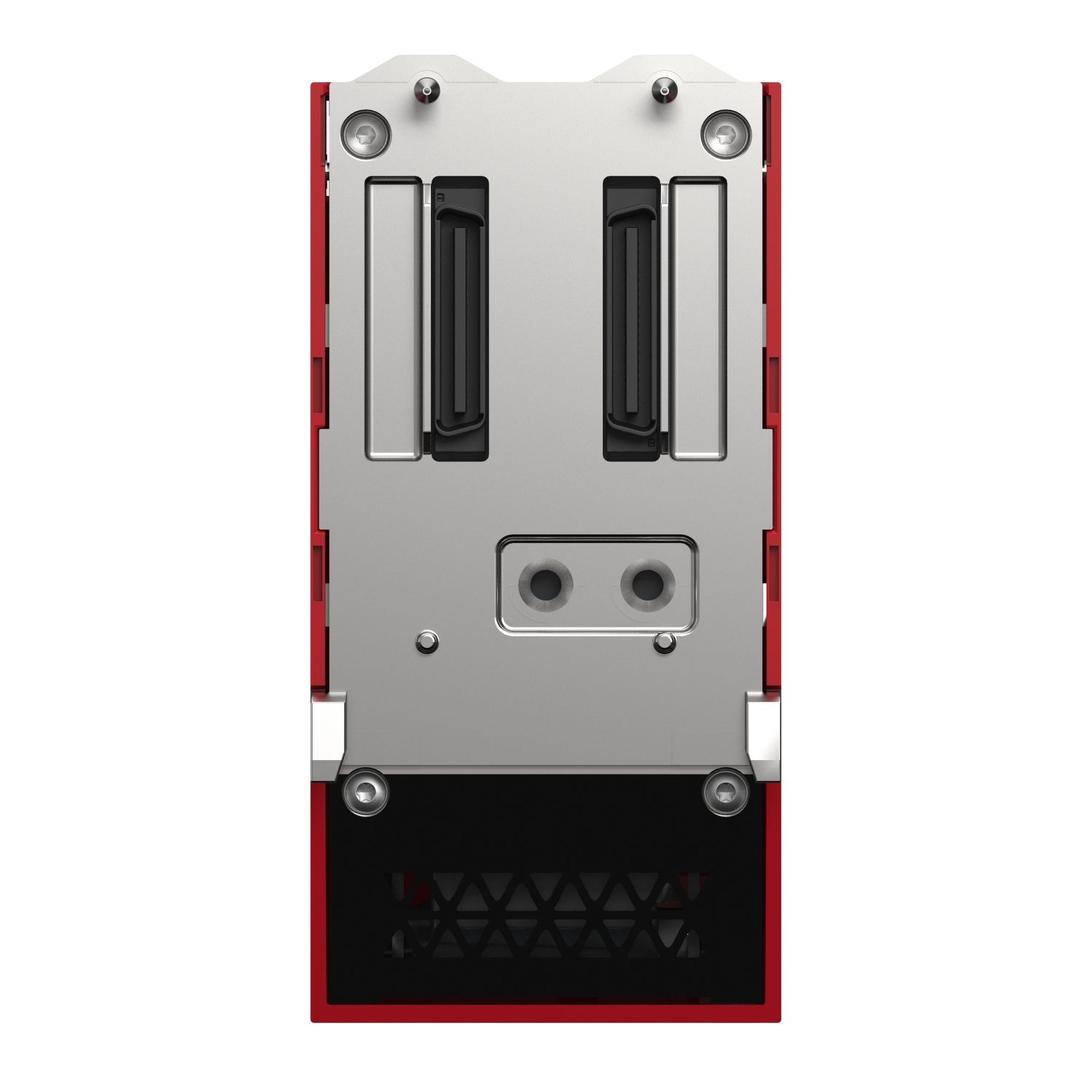

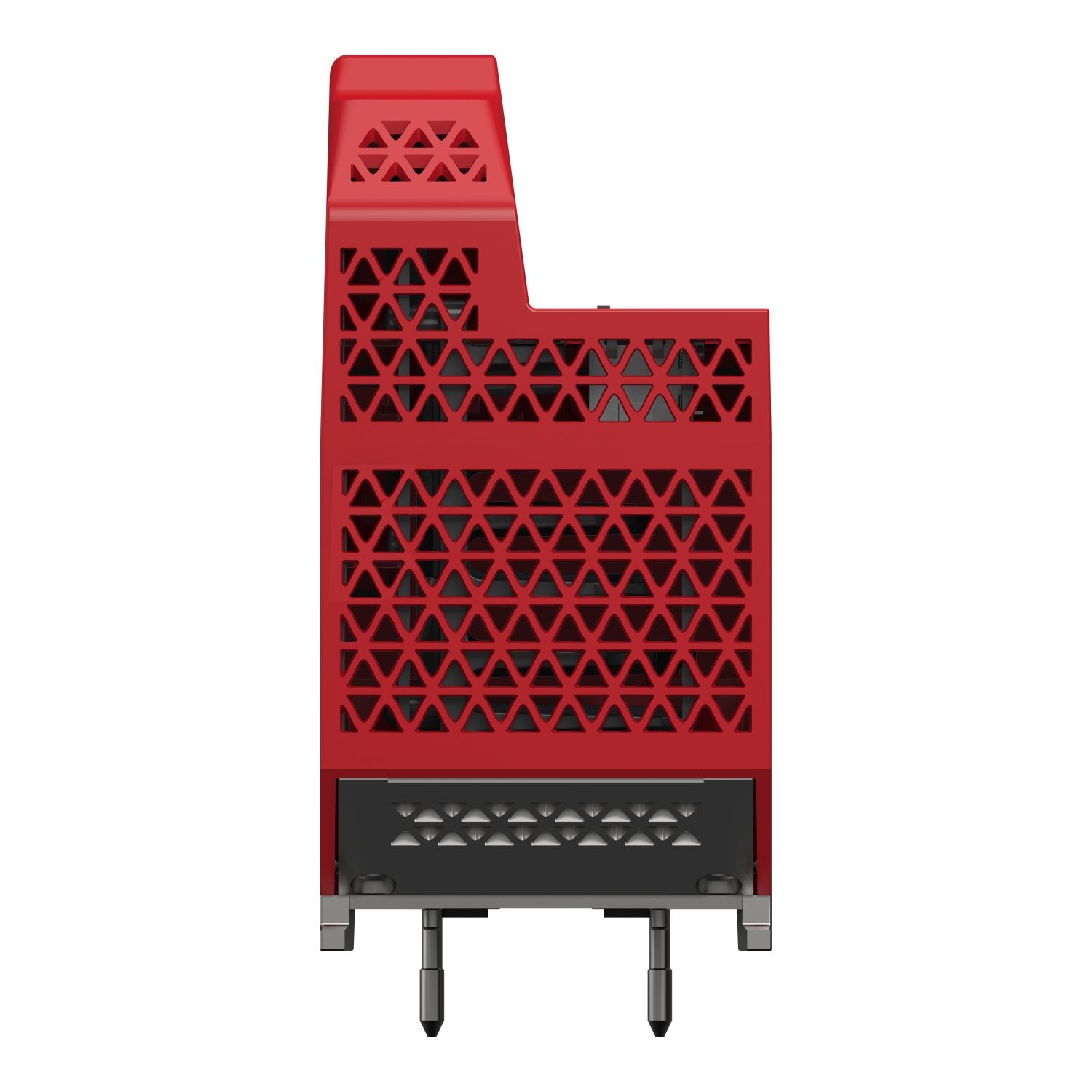

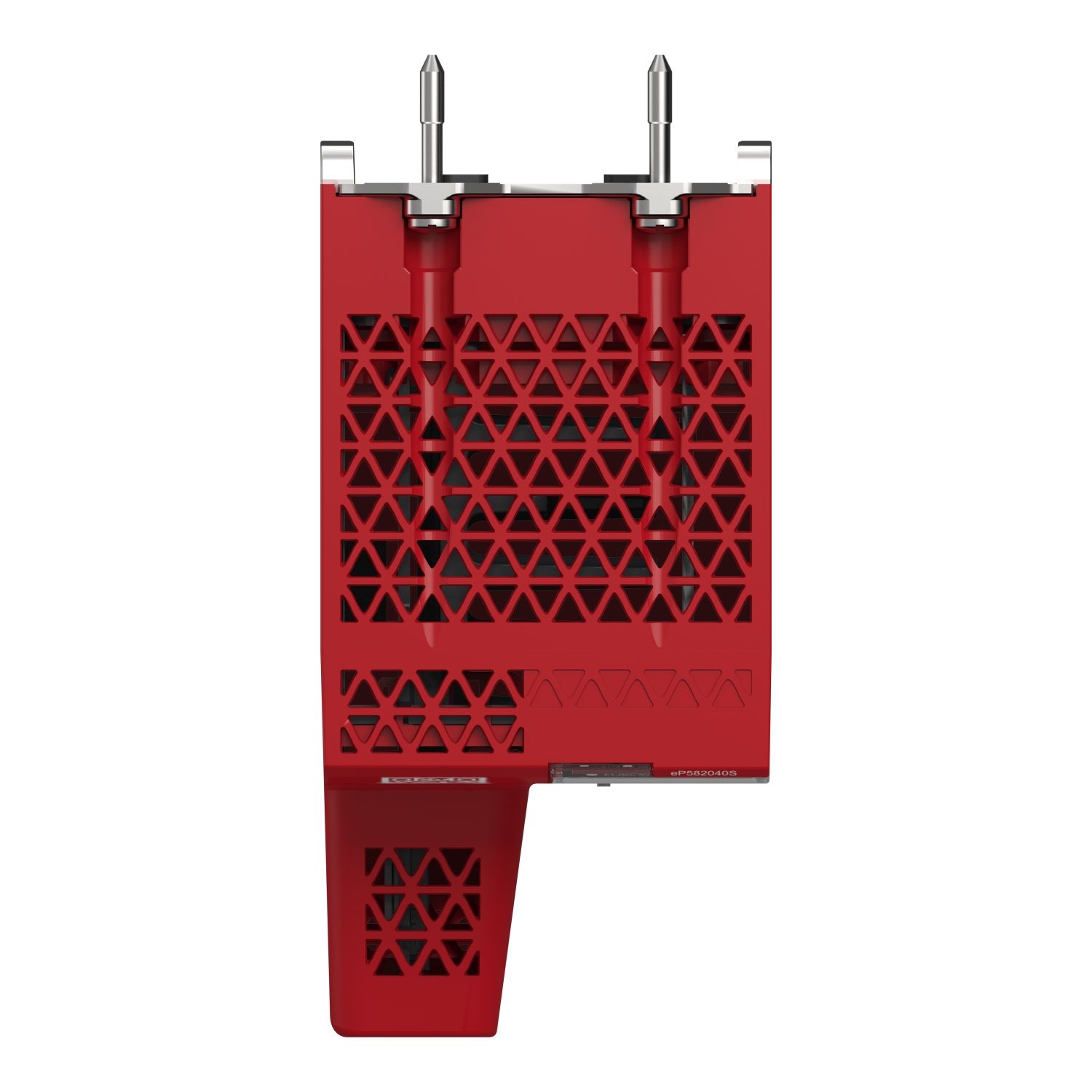

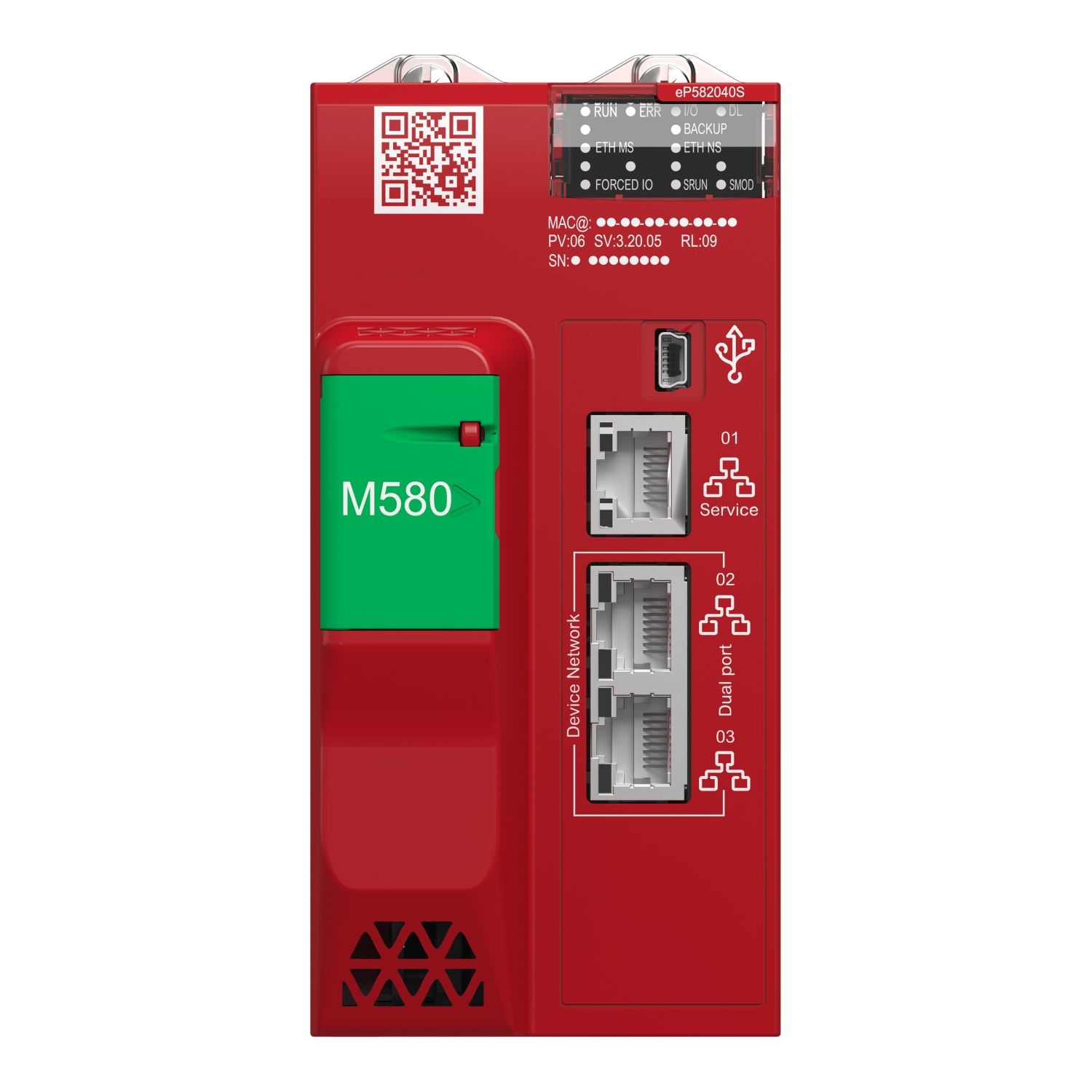

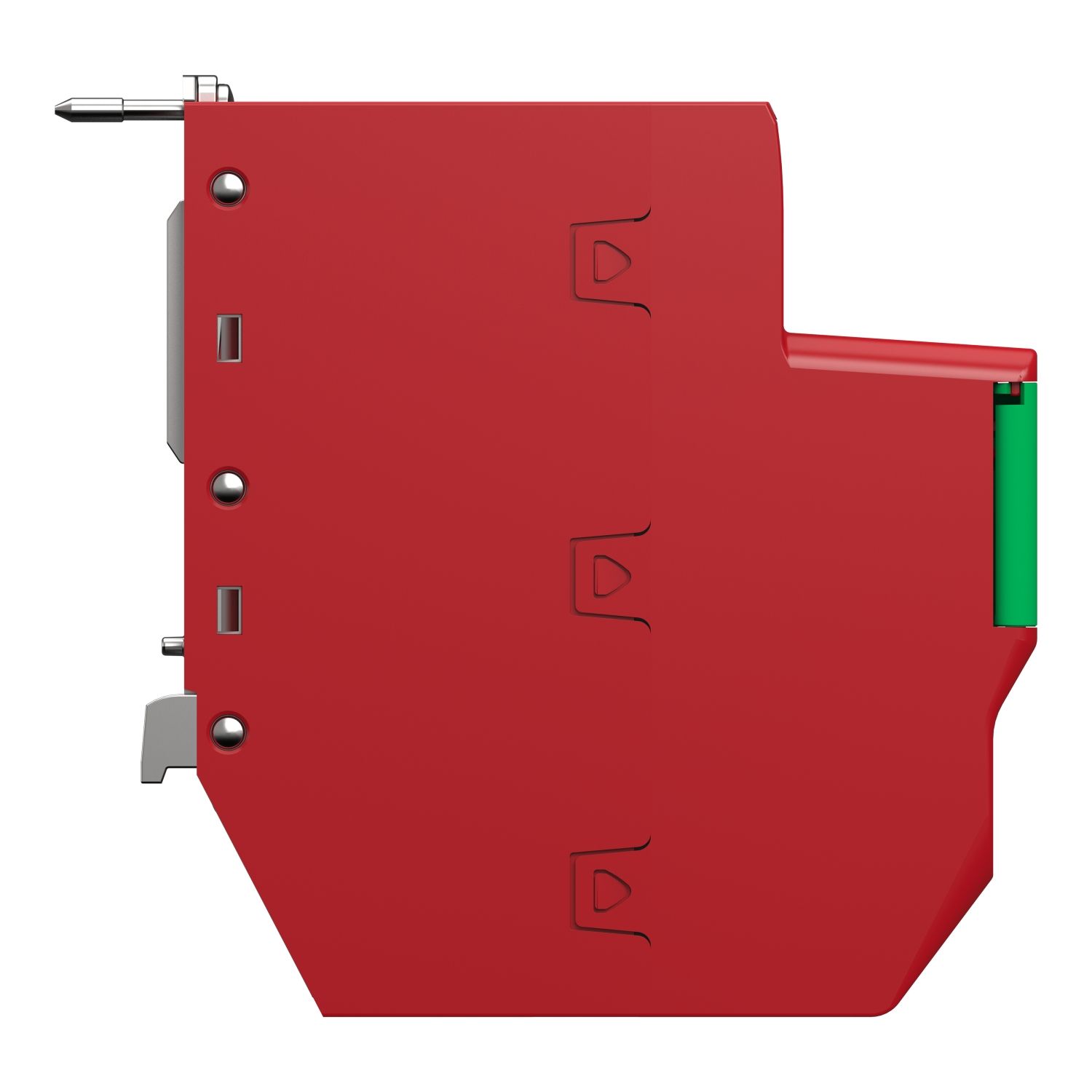

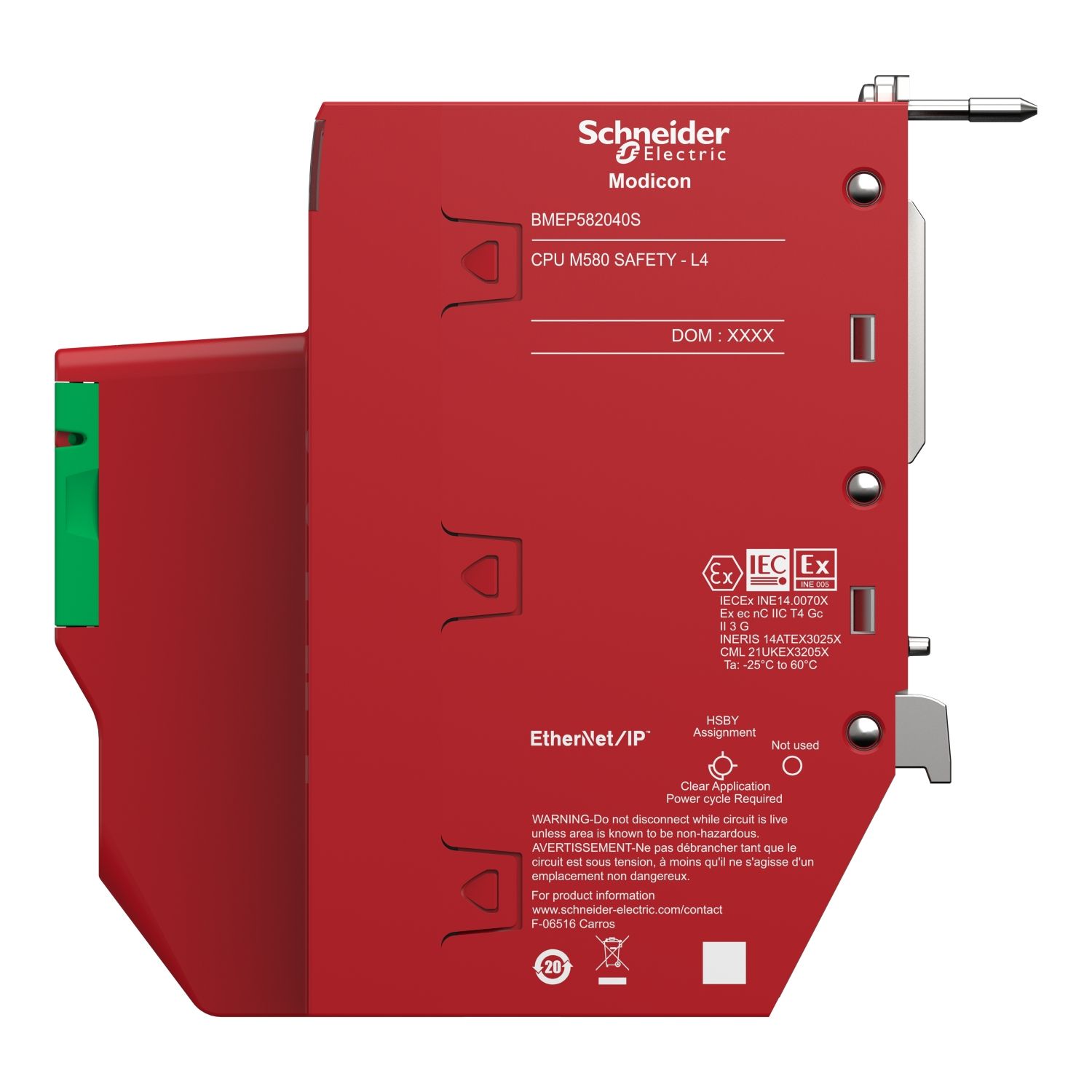

standalone safety processor, Modicon M580, 8MB, 61 Ethernet devices, 8 remote IO racks, 16 CIP safety devices

$10,462.91 INC GST

Qty:

Available for Shipping : 06-Jan-2026

Product Selector

standalone safety processor, Modicon M580, 8MB, 61 Ethernet devices, 8 remote IO racks, 16 CIP safety devices

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 06-Jan-2026

Catalog

Declaration of conformity

User guide

Environmental Disclosure

Circularity Profile

Instruction sheet

Product Page Link

Product Data Sheet

This standalone Safety processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This product offers a maximum of 4 local rack and 8 remote rack configuration with up to 10240 discrete I/O channels and 2560 analog I/O channels. This Safety product is coated and is compatible with a temperature range from -25°C to +60°C/-13°F to 140°F. This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory, expandable flash of 4GB for data storage and 2MB for program Safety and 512kb for data Safety. This product is IP20 rated and offers 767536 hours of MTBF. This red module has a weight of 0.849kg and dimensions of 64x130x135mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx zone 2/22, and TUV/IEC61508/SIL3 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon M580
Impregnation material	conformal coated
Product or component type	processor module
Complementary
Number of application specific channel	72
Memory description	integrated RAM, 512 KB for data safety, integrated RAM, 2 MB for program safety, integrated RAM, 768 kB for data process, integrated RAM, 8 MB for program process, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage
Control channels	programmable loops
Analogue I/O processor capacity	512 I/O
Number of instructions per ms	10 Kinst/ms 100 % Boolean, 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
Application specific I/O	HART, serial link, accurate time stamping, SSI encoder, motion control, counter
Number of remote I/O station	8 - 2 rack(s) per remote drop
Application structure	1 periodic safe task, 1 periodic fast task, 1 cyclic/periodic master task, 2 auxiliary tasks, 128 event tasks
Discrete I/O number	16
Marking	CE
Number of racks	4
Communication service	RIO scanner, DIO scanner
Number of distributed equipment	64
MTBF reliability	775000 H
Checks	safety control, process control
Discrete I/O processor capacity	2048 I/O
Cybersecurity	security log, port hardening, password protection, firmware signature, embedded firewall, audit trail, Syslog protocol support, SNMP logging, IPSec, DoS prevention, Achilles certified
Integrated connection type	USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port
Current consumption	295 mA at 24 V DC
Communication module processor capacity	8 AS-Interface module, 2 Ethernet communication module
Environment
IP degree of protection	IP20
Protective treatment	conformal coating
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/34/EU - ATEX directive, 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility
Product certifications	TÜV, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Status LED	1 LED (red) I/O values overrided by user (FORCED IO), 1 LED (green) processor in maintenance mode (SMOD), 1 LED (green) processor in safety mode (SRUN), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN)
Ambient air temperature for operation	-25-60 °C
Safety level	SIL 4 conforming to EN 50129, SIL 4 conforming to EN 50128, SIL 4 conforming to EN 50126, SILCL 3 conforming to ISO 13849-1 category 4, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61511, SIL 3 conforming to IEC 61508
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Net weight	0.849 kg
Vibration resistance	3 gn
Environmental characteristic	fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04, hazardous location class I division 2
Shock resistance	15 gn
Supply	internal power supply via rack
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.900 cm
Package 1 Width	18.000 cm
Package 1 Length	25.000 cm
Package 1 Weight	876.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.737 kg
