SKU:

BMEH582040S

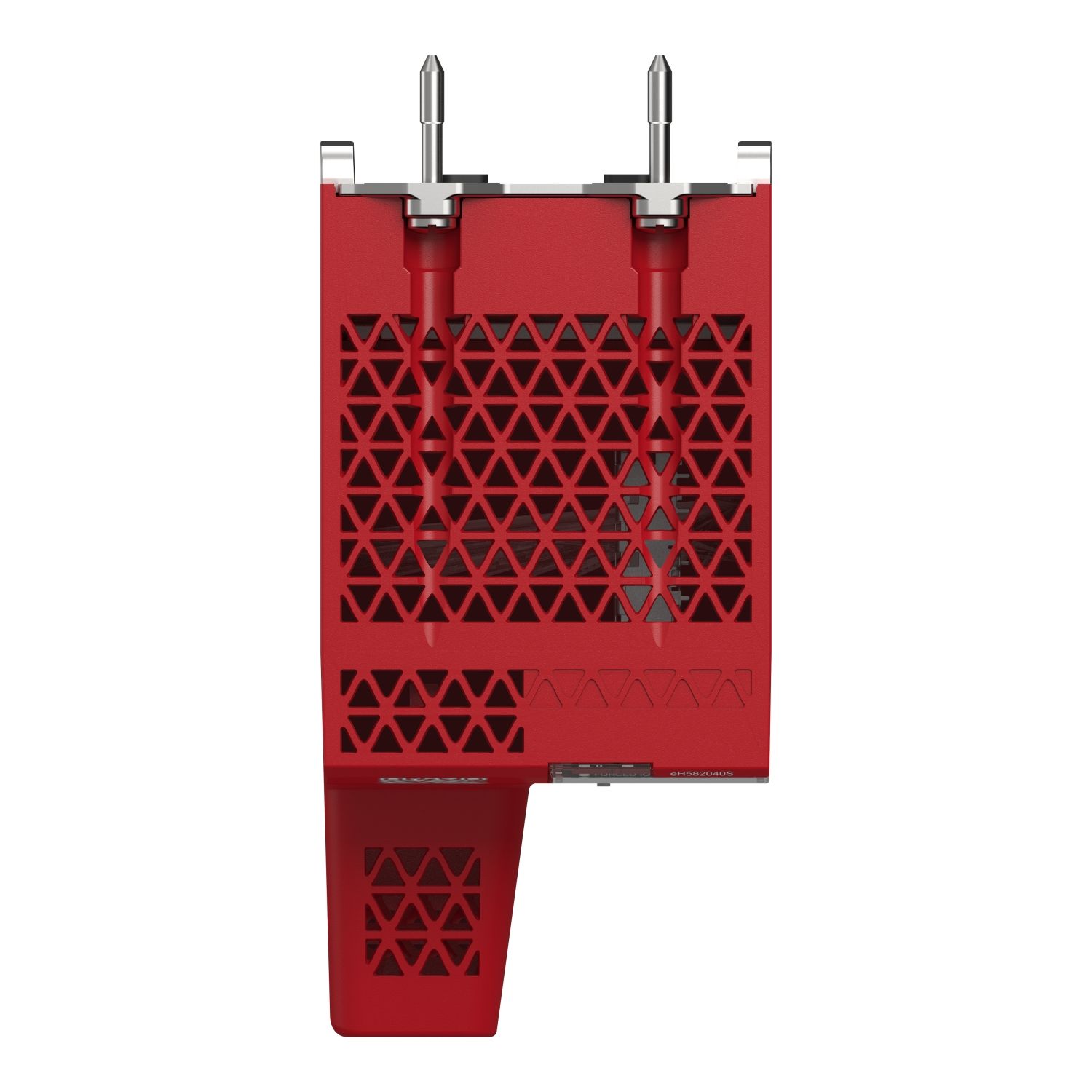

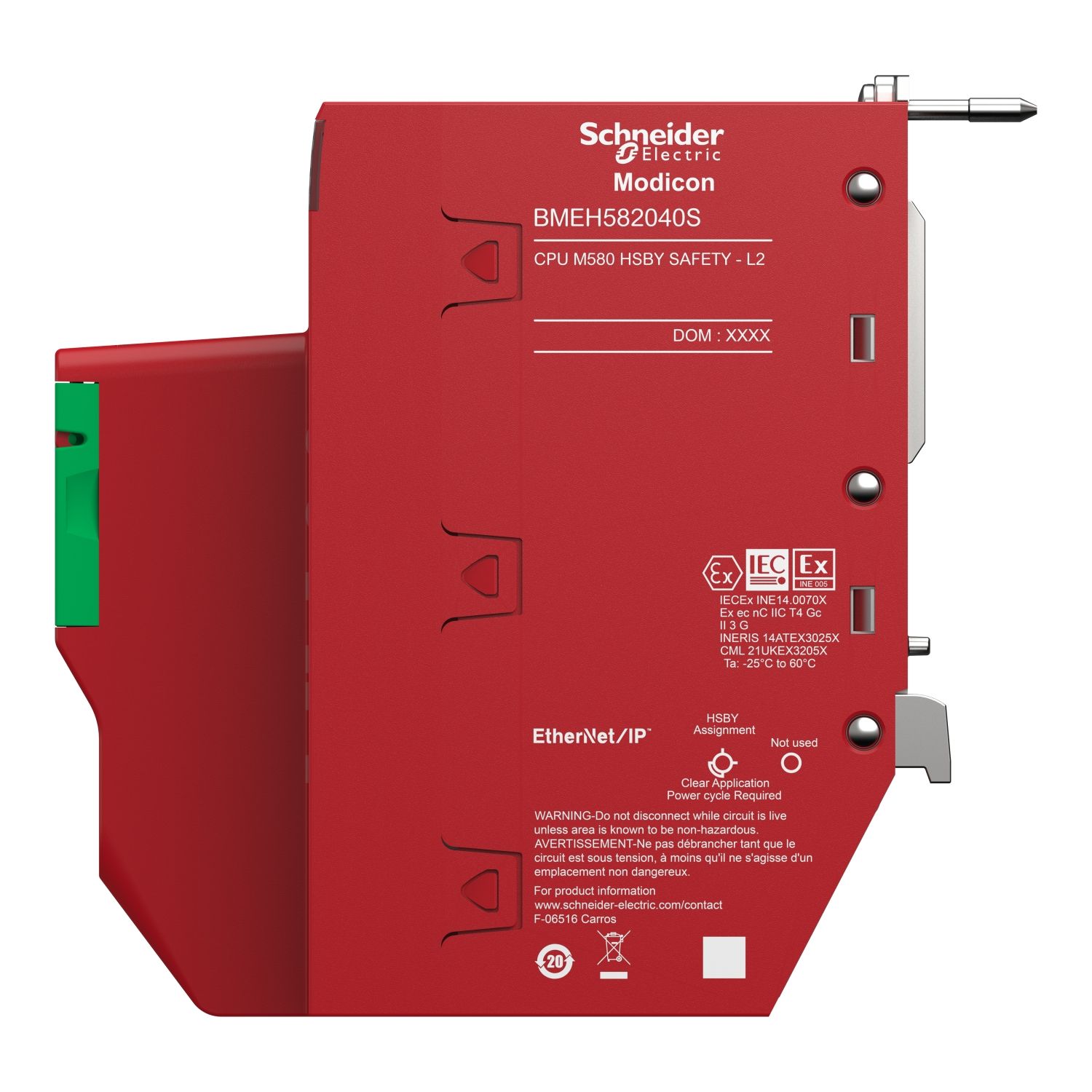

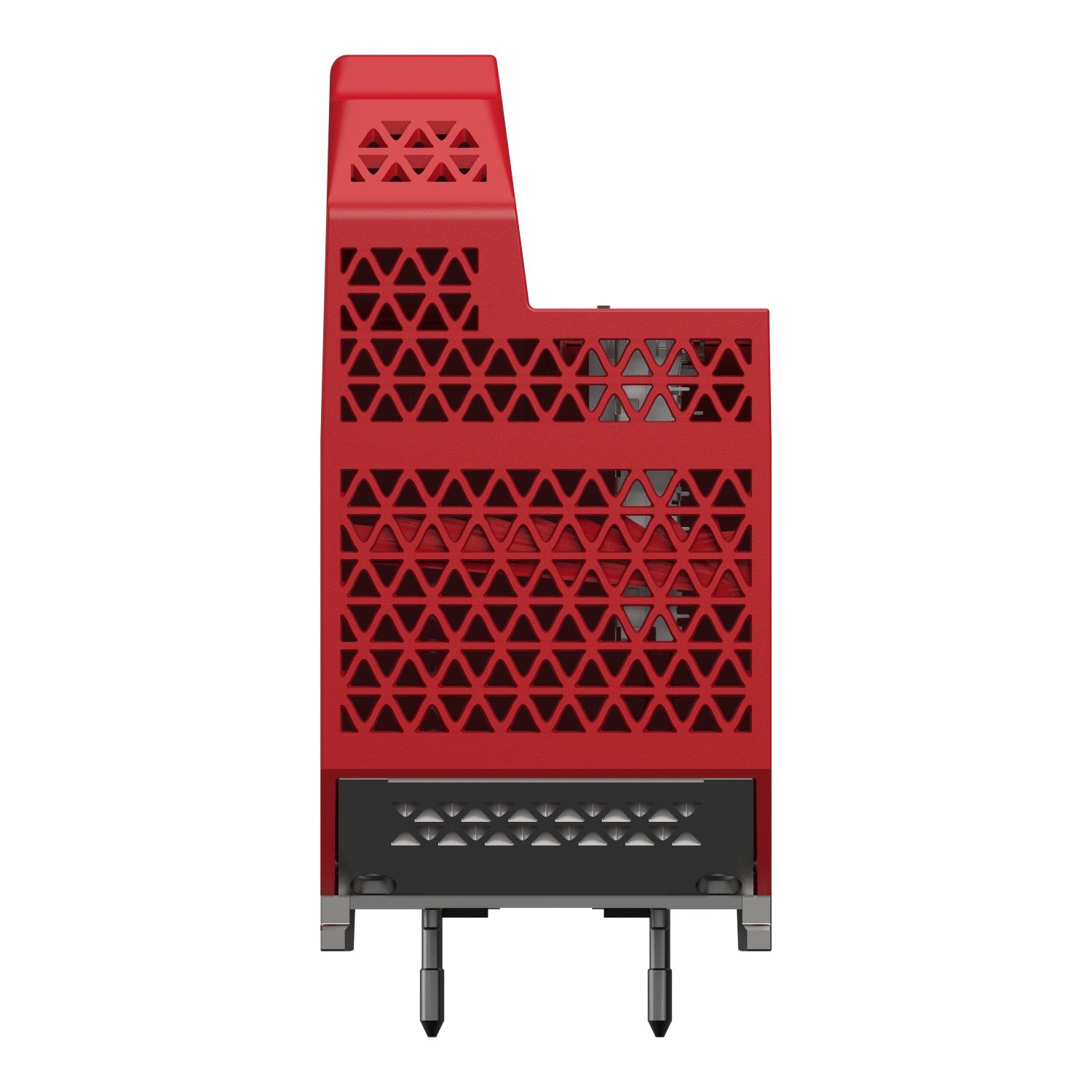

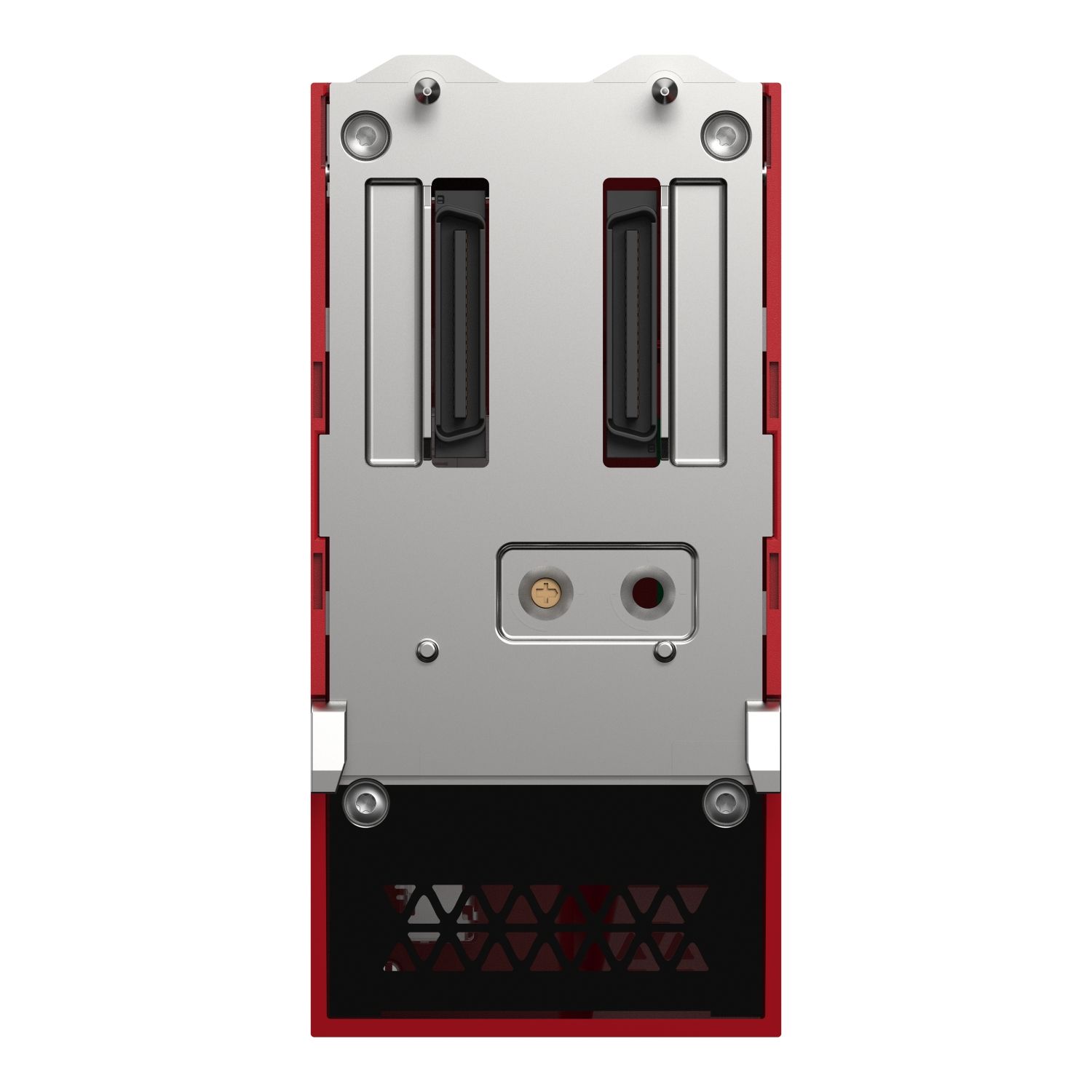

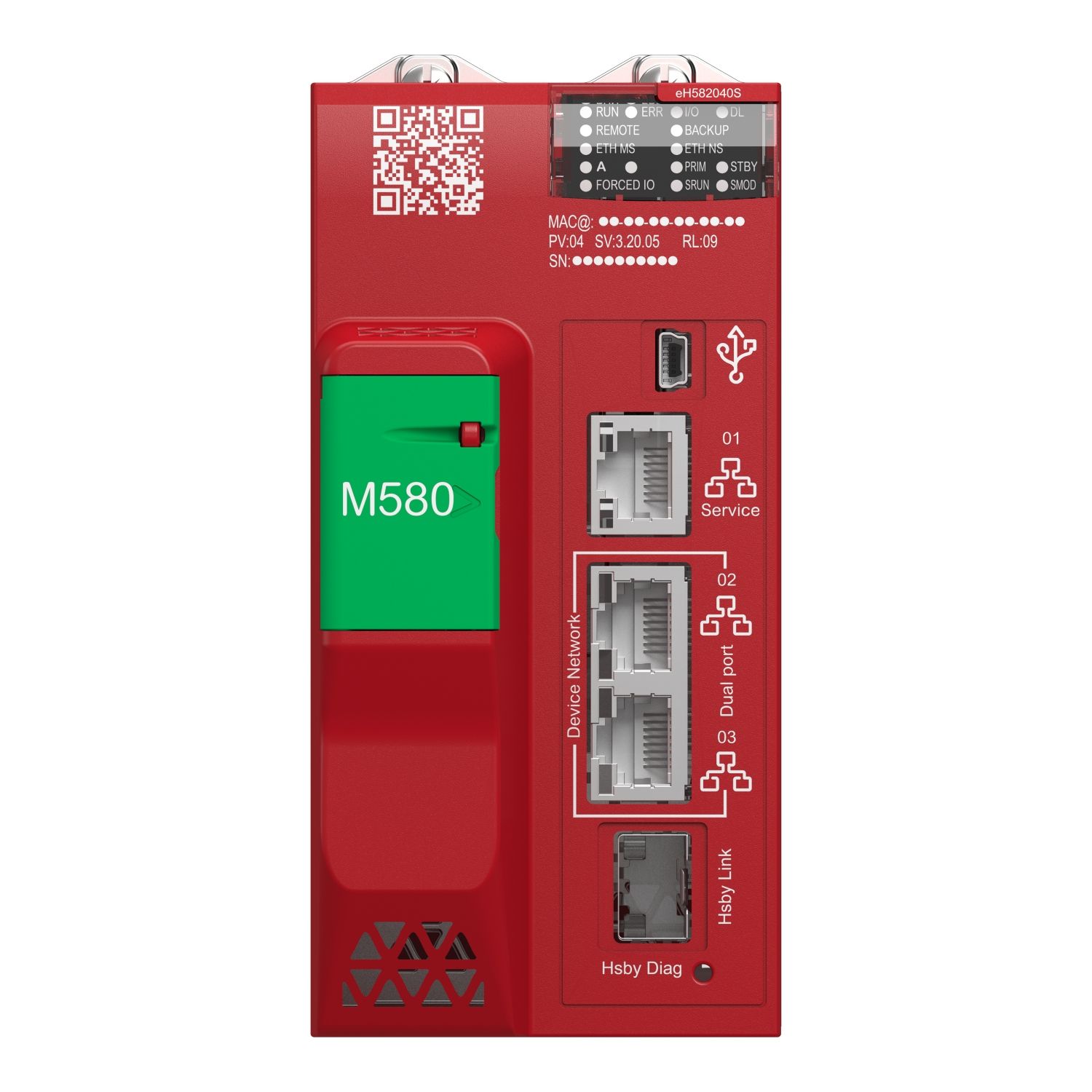

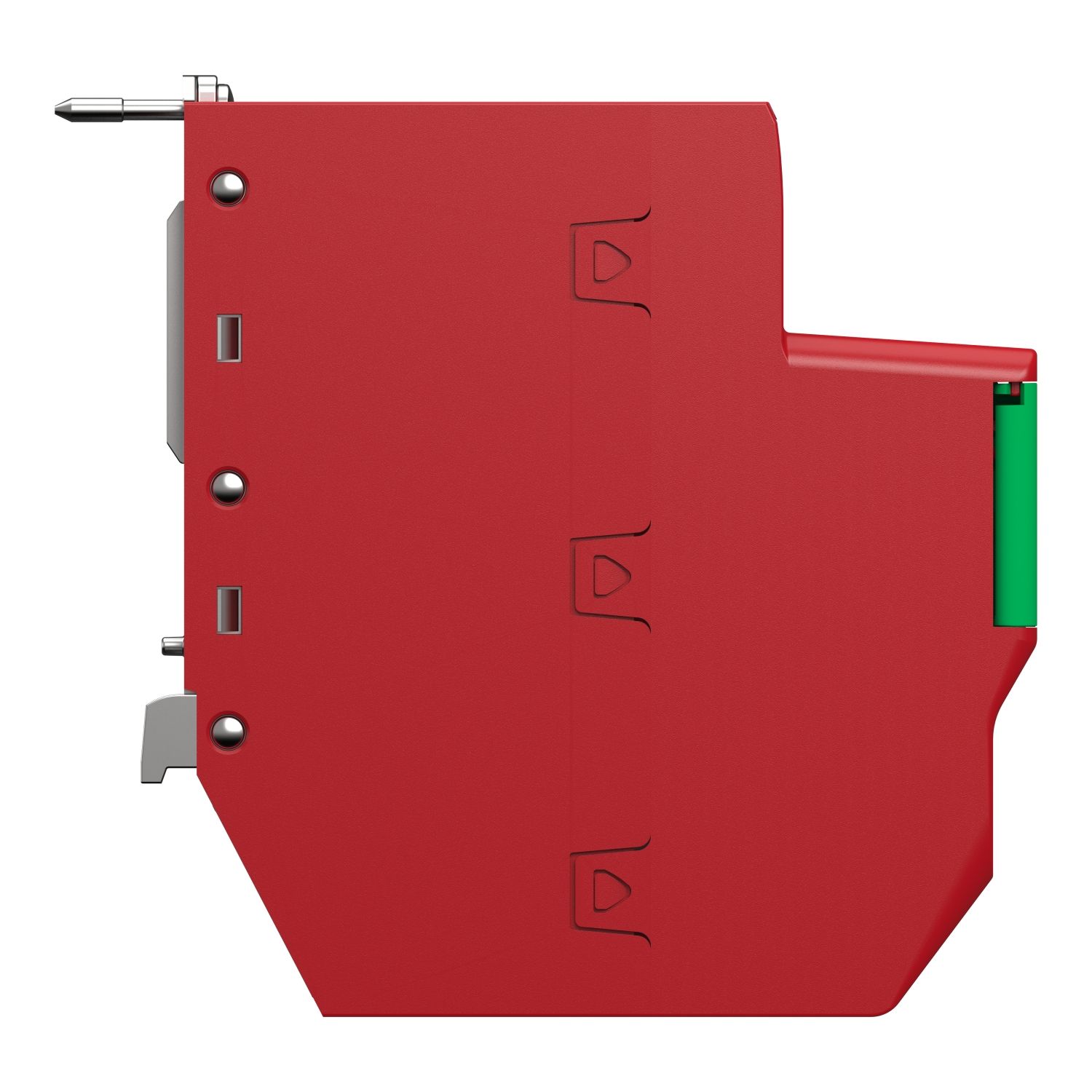

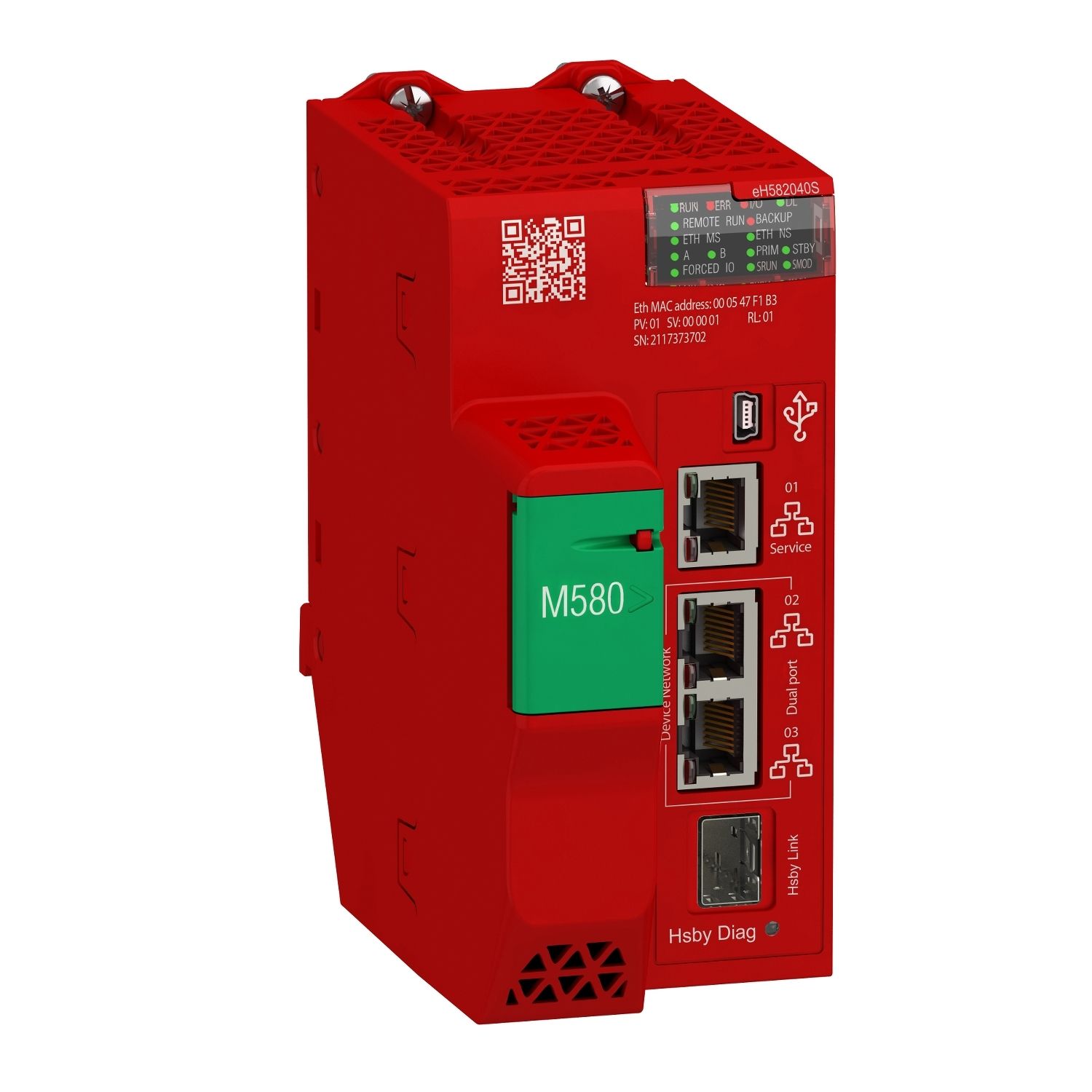

redundant safety processor, Modicon M580, 8MB, 61 Ethernet devices, 8 remote IO racks

$13,497.02 INC GST

Qty:

Available for Shipping : 12-Jan-2026

Product Selector

redundant safety processor, Modicon M580, 8MB, 61 Ethernet devices, 8 remote IO racks

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Catalog

Declaration of conformity

Environmental Disclosure

Circularity Profile

User guide

Instruction sheet

Product Page Link

Product Data Sheet

This processor module is part of the Modicon M580 range, an offer of PACs and safety PLCs with built-in Ethernet. This redundant processor is equipped with ethernet TCP/IP and mini B USB integrated connection ports. It offers 7,63,800 hours of MTBF. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 and TUV. It is suitable for rack mount. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon M580
Impregnation material	conformal coated
Product or component type	redundant processor module
Complementary
Memory description	integrated RAM, 512 KB for data safety, integrated RAM, 2 MB for program safety, integrated RAM, 768 kB for data process, integrated RAM, 8 MB for program process, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage
Control channels	programmable loops
Number of instructions per ms	7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 10 Kinst/ms 100 % Boolean
Application specific I/O	HART, serial link, accurate time stamping, SSI encoder, motion control, counter
Number of remote I/O station	8 - 2 rack(s) per remote drop
Application structure	1 periodic safe task, 1 periodic fast task, 1 master task
Marking	CE
Number of racks	1
Communication service	RIO scanner, DIO scanner
Number of distributed equipment	61
MTBF reliability	638000 H
Checks	safety control, process control
Cybersecurity	security log, port hardening, password protection, firmware signature, embedded firewall, audit trail, Syslog protocol support, SNMP logging, IPSec, DoS prevention, Achilles certified
Integrated connection type	1 Ethernet for HSBY port, USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port
Current consumption	360 mA at 24 V DC
Communication module processor capacity	16.0 AS-Interface module, 4.0 Ethernet communication module
Environment
IP degree of protection	IP20
Protective treatment	conformal coating
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/34/EU - ATEX directive, 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility
Product certifications	TÜV, IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	IEC 62234-5, IEC 62234-4, IEC 62236-3-2, IEC 60571, EN 45545-2, EN 50121-5, EN 50121-4, EN 50121-3-2, EN 50155, IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Status LED	1 LED (green) Hot standby link status (Hsby Diag), 1 LED (green) processor in maintenance mode (SMOD), 1 LED (green) processor in safety mode (SRUN), 1 LED (red) I/O values overrided by user (FORCED IO), 1 LED (green) processor acting as Standby (STBY), 1 LED (green) processor acting as Primary (PRIM), 1 LED (green) processor ID set to B (B), 1 LED (green) processor ID set to A (A), 1 LED (green) peer processor running (REMOTE RUN), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN)
Ambient air temperature for operation	-25-60 °C
Safety level	SIL 4 conforming to EN 50129, SIL 4 conforming to EN 50128, SIL 4 conforming to EN 50126, SILCL 3 conforming to ISO 13849-1 category 4, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61511, SIL 3 conforming to IEC 61508
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Net weight	0.849 kg
Vibration resistance	3 gn
Environmental characteristic	fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04, hazardous location class I division 2
Shock resistance	15 gn
Supply	internal power supply via rack
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.000 cm
Package 1 Width	18.000 cm
Package 1 Length	25.000 cm
Package 1 Weight	893.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.854 kg
