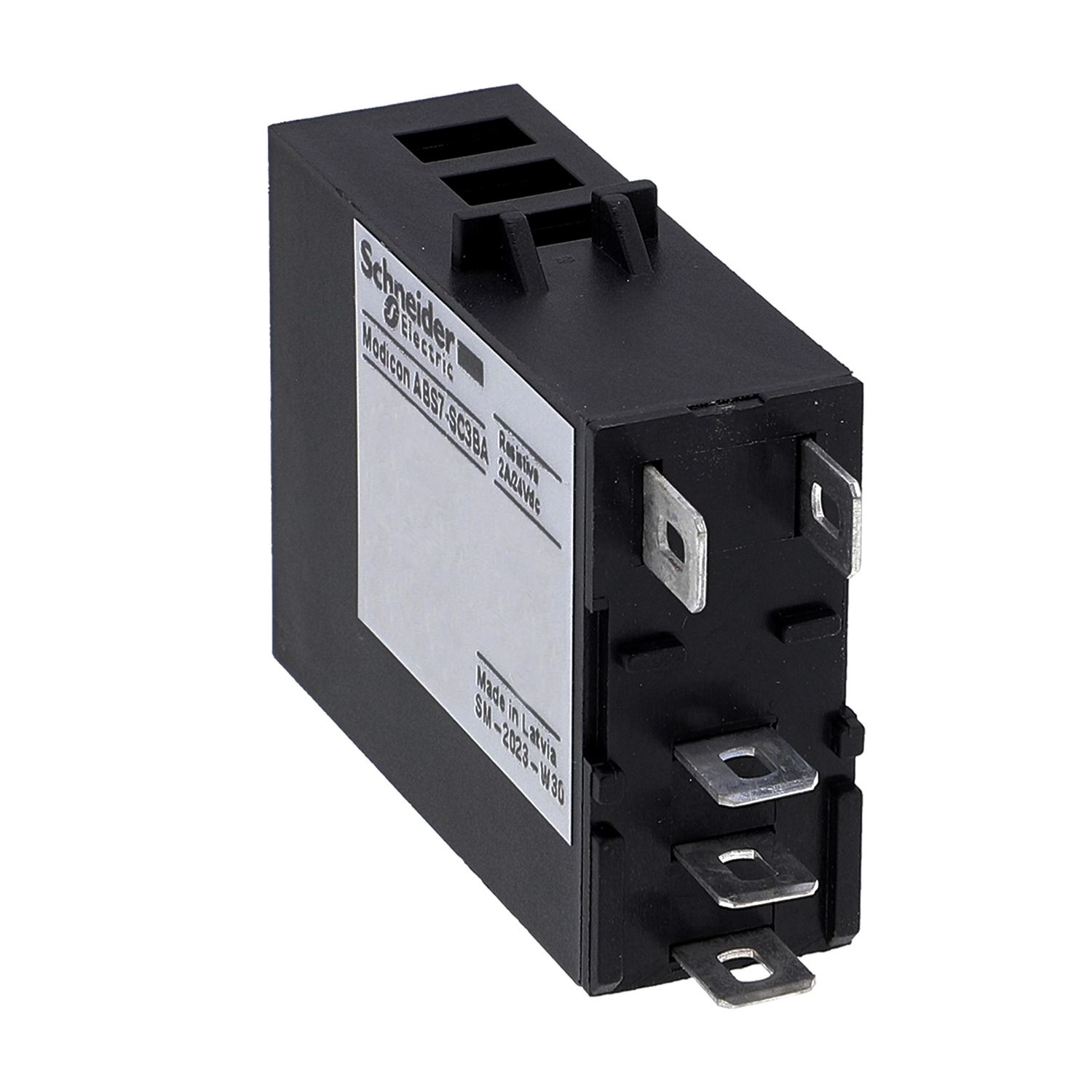

Picture of plug-in solid state relay - 12.5 mm - output - 24 V DC - 2 A

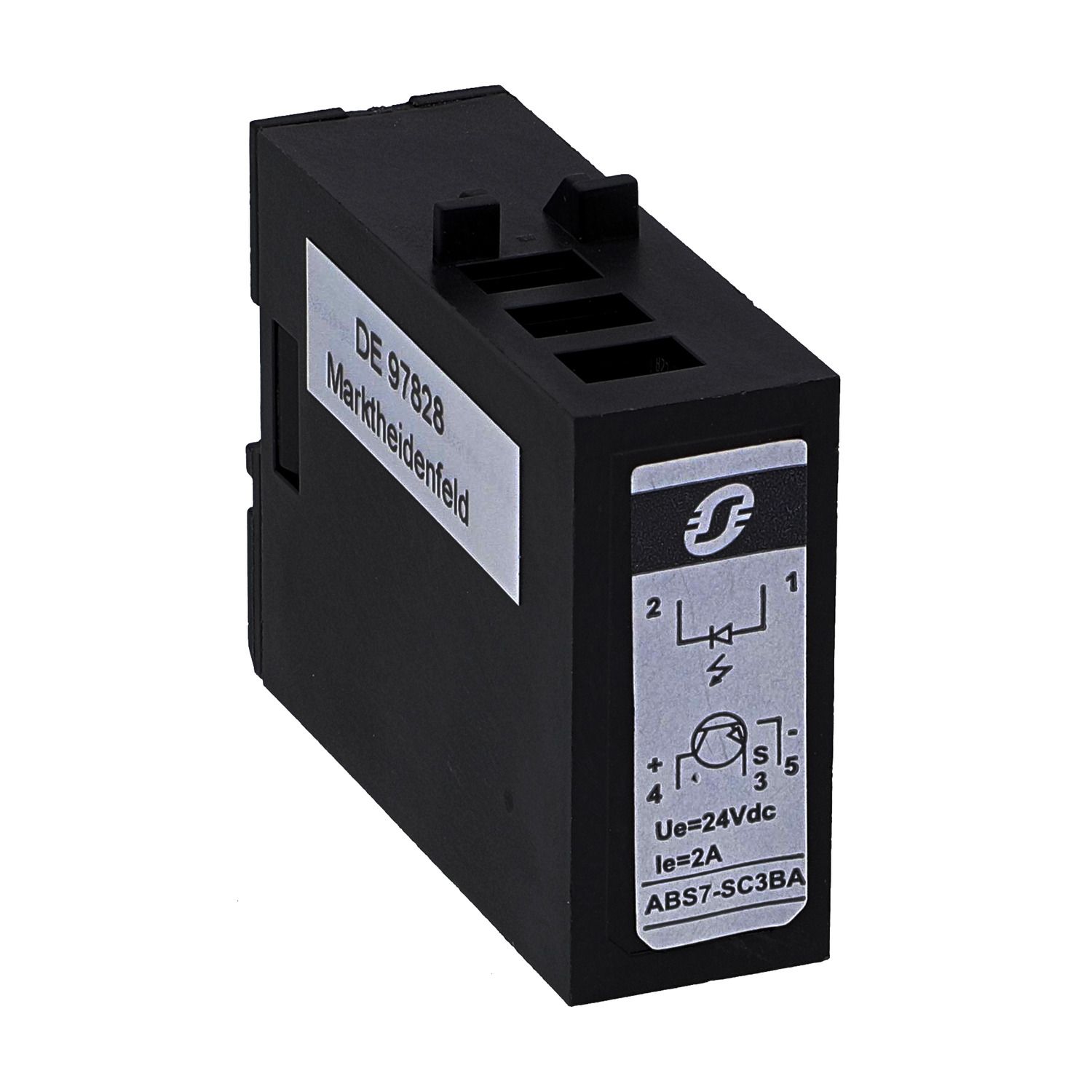

Picture of plug-in solid state relay - 12.5 mm - output - 24 V DC - 2 A
Picture of plug-in solid state relay - 12.5 mm - output - 24 V DC - 2 A
SKU:

ABS7SC3BA

plug-in solid state relay - 12.5 mm - output - 24 V DC - 2 A

$216.22 INC GST
Available for Shipping : 12-Jan-2026
plug-in solid state relay - 12.5 mm - output - 24 V DC - 2 A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in solid state relay is compatible with Modicon ABE7 connection sub-bases. It is a solid state output relay with a discrete input voltage of 24V DC and a discrete output current of 10A. The response time is ≤0.1ms from state 1 to 0 and ≤0.2ms from state 0 to 1. The width pitch is 12mm. It weighs 0.016kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P16T318, ABE7P16T330, ABE7R16T330, ABE7P16T334, ABE7P16T318E, ABE7P16T330E and ABE7R16T332 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Relay type output relay
Product or component type plug-in solid state relay
Range of product Advantys Telefast ABE7
Complementary
Product compatibility ABE7R16T332, ABE7P16T330E, ABE7P16T318E, ABE7P16T334, ABE7R16T330, ABE7P16T330, ABE7P16T318
Current state 0 guaranteed 0.4 mA DC
Voltage state 1 guaranteed 18.6 V DC
Discrete output voltage 24 V DC self-protected output(s)
Width pitch dimension 12 mm
Net weight 0.016 kg
Voltage state 0 guaranteed 3.8 V DC
Discrete output current 2000 mA
Current state 1 guaranteed 2.9 mA DC
Response time <= 0.2 ms from state 0 to 1, <= 0.1 ms from state 1 to 0
Discrete input voltage 24 V DC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 5.2 cm
Package 1 Length 6.5 cm
Package 1 Weight 13 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 5 cm
Package 2 Width 5.2 cm
Package 2 Length 6.5 cm
Package 2 Weight 52 g
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 2.063 kg
