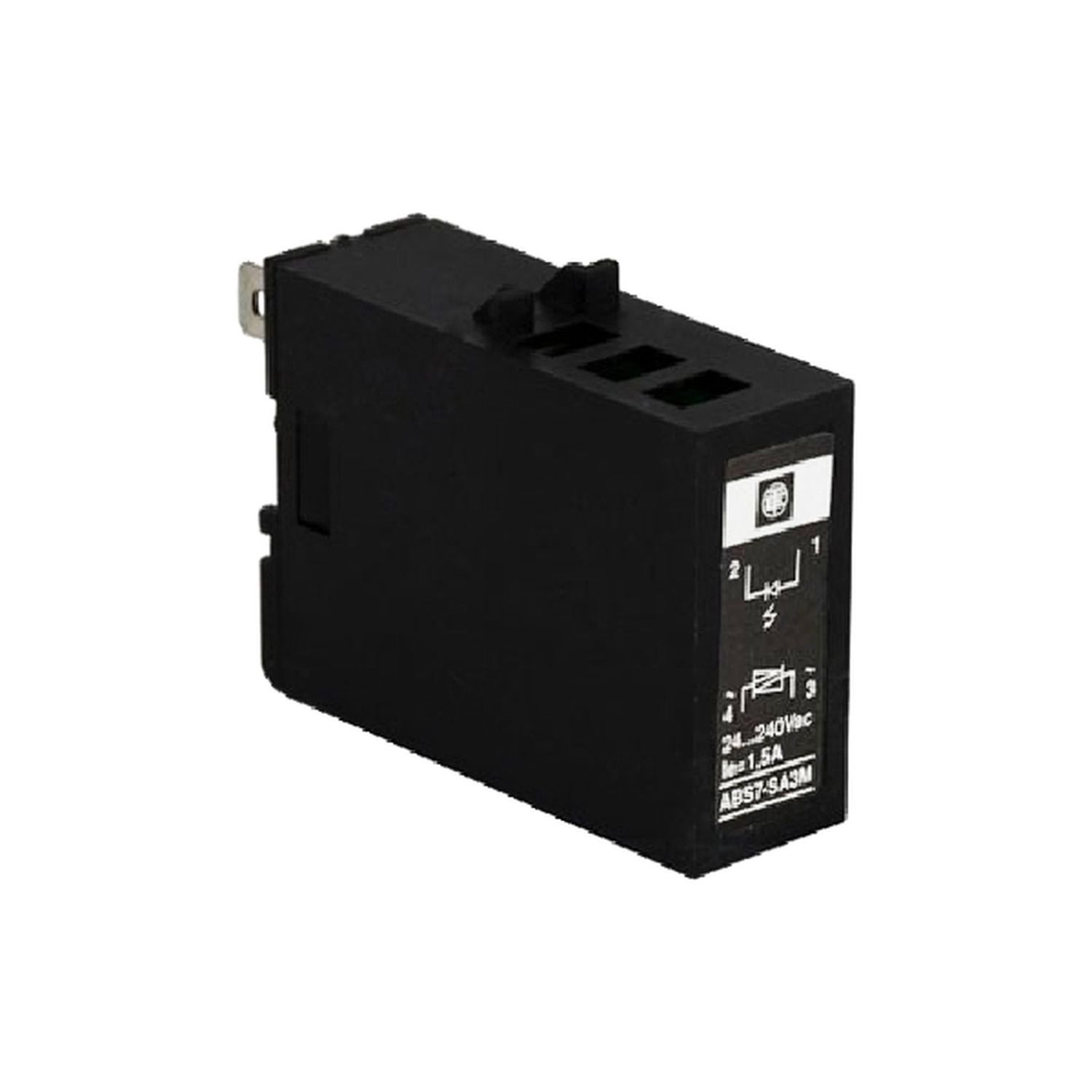

Picture of plug-in solid state relay - 12.5 mm - output - 24..240 V AC - 2 A
SKU:

ABS7SA3M

plug-in solid state relay - 12.5 mm - output - 24..240 V AC - 2 A

$159.62 INC GST
Available for Shipping : 12-Jan-2026
plug-in solid state relay - 12.5 mm - output - 24..240 V AC - 2 A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a solid-state plug-in output relays for 24VAC to 240VAC prewired sub-bases. Its response time is less than 10ms from state 0 to 1 and less than 10ms from state 1 to 0. It is used to to control the power along with switching the smaller current values in a control circuit. It is 12.5mm wide. It weighs 0.016kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7P16T215, ABE7P16T214, ABE7P16T212 and ABE7P16T210 sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Relay type output relay
Product or component type plug-in solid state relay
Range of product Advantys Telefast ABE7
Complementary
Product compatibility ABE7P16T210, ABE7P16T212, ABE7P16T214, ABE7P16T215
Current state 0 guaranteed 0.4 mA DC
Voltage state 1 guaranteed 18.6 V DC
Discrete output voltage 24...240 V AC
Width pitch dimension 10 mm
Net weight 0.016 kg
Voltage state 0 guaranteed 2.8 V DC
Discrete output current 2000 mA
Current state 1 guaranteed 6.5 mA DC
Response time <= 10 ms from state 1 to 0, <= 10 ms from state 0 to 1
Discrete input voltage 24 V DC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 5.2 cm
Package 1 Length 6.5 cm
Package 1 Weight 15.0 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 5.0 cm
Package 2 Width 5.2 cm
Package 2 Length 6.5 cm
Package 2 Weight 64.0 g
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 15.0 cm
Package 3 Width 15.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 1.21 kg
