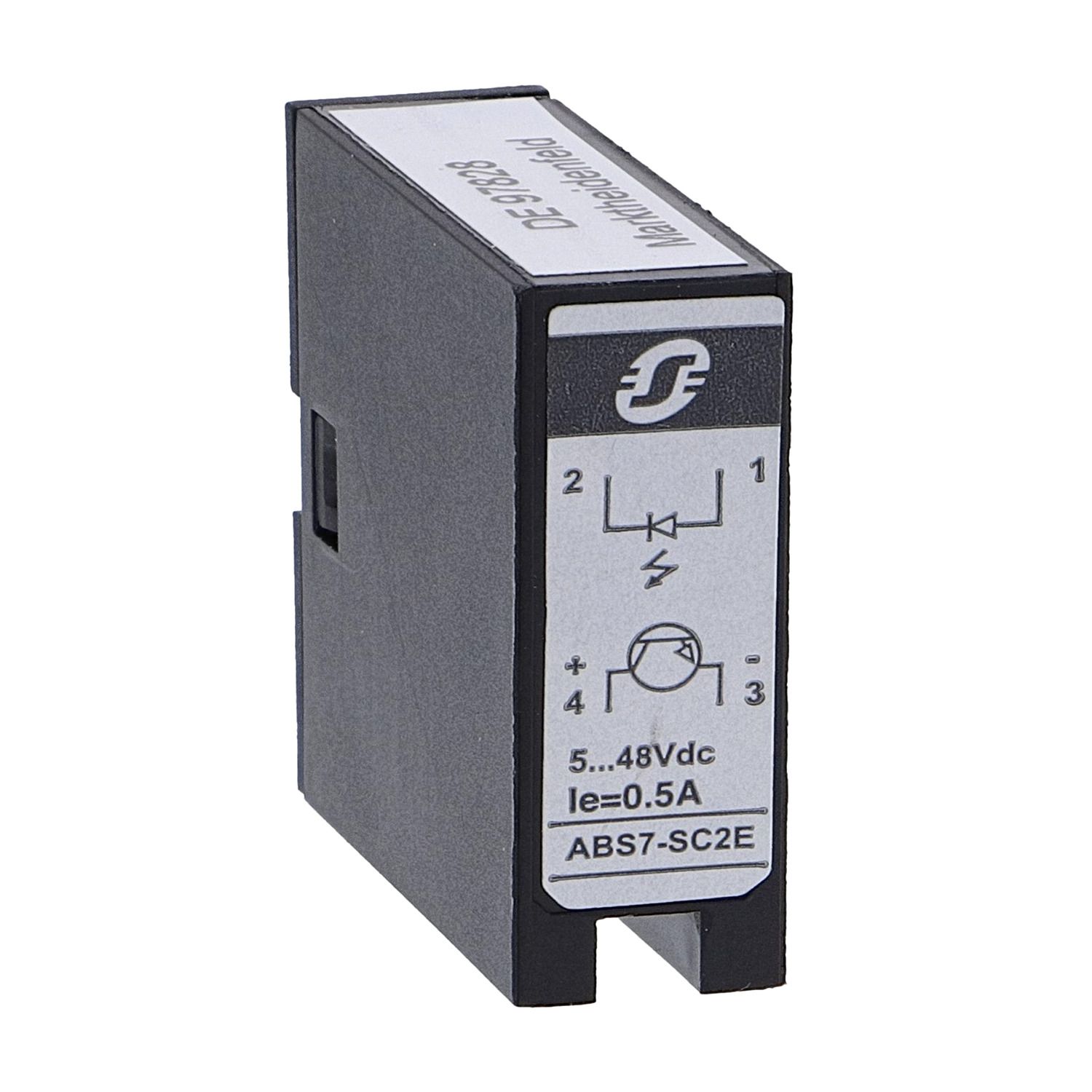

Picture of plug-in solid state relay - 10 mm - output - 5..48 V DC - 0.5 A
SKU:

ABS7SC2E

plug-in solid state relay - 10 mm - output - 5..48 V DC - 0.5 A

$117.12 INC GST
Available for Shipping : 12-Jan-2026
plug-in solid state relay - 10 mm - output - 5..48 V DC - 0.5 A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Instruction sheet
Catalog
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a solid-state plug-in output relays for 5VDC to 48VDC prewired sub-bases. Its response time is less than 0.1ms from state 0 to 1 and less than 0.6ms from state 1 to 0. It is used to to control the power along with switching the smaller current values in a control circuit. It is 10mm wide. It weighs 0.016kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7P16T214, ABE7P16T215, ABE7P16T212, and ABE7P16T210 sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 4
Relay type output relay
Product or component type plug-in solid state relay
Range of product Advantys Telefast ABE7
Complementary
Product compatibility ABE7P16T210, ABE7P16T212, ABE7P16T215, ABE7P16T214
Current state 0 guaranteed 0.4 mA DC
Voltage state 1 guaranteed 18.6 V DC
Discrete output voltage 5...48 V DC
Width pitch dimension 10 mm
Net weight 0.016 kg
Voltage state 0 guaranteed 3.8 V DC
Discrete output current 500 mA
Current state 1 guaranteed 2.9 mA DC
Response time <= 0.6 ms from state 1 to 0, <= 0.1 ms from state 0 to 1
Discrete input voltage 24 V DC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.400 cm
Package 1 Length 6.000 cm
Package 1 Weight 6.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 3.500 cm
Package 2 Width 4.400 cm
Package 2 Length 6.000 cm
Package 2 Weight 29.000 g
Unit Type of Package 3 3
Number of Units in Package 3 128
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.165 kg
