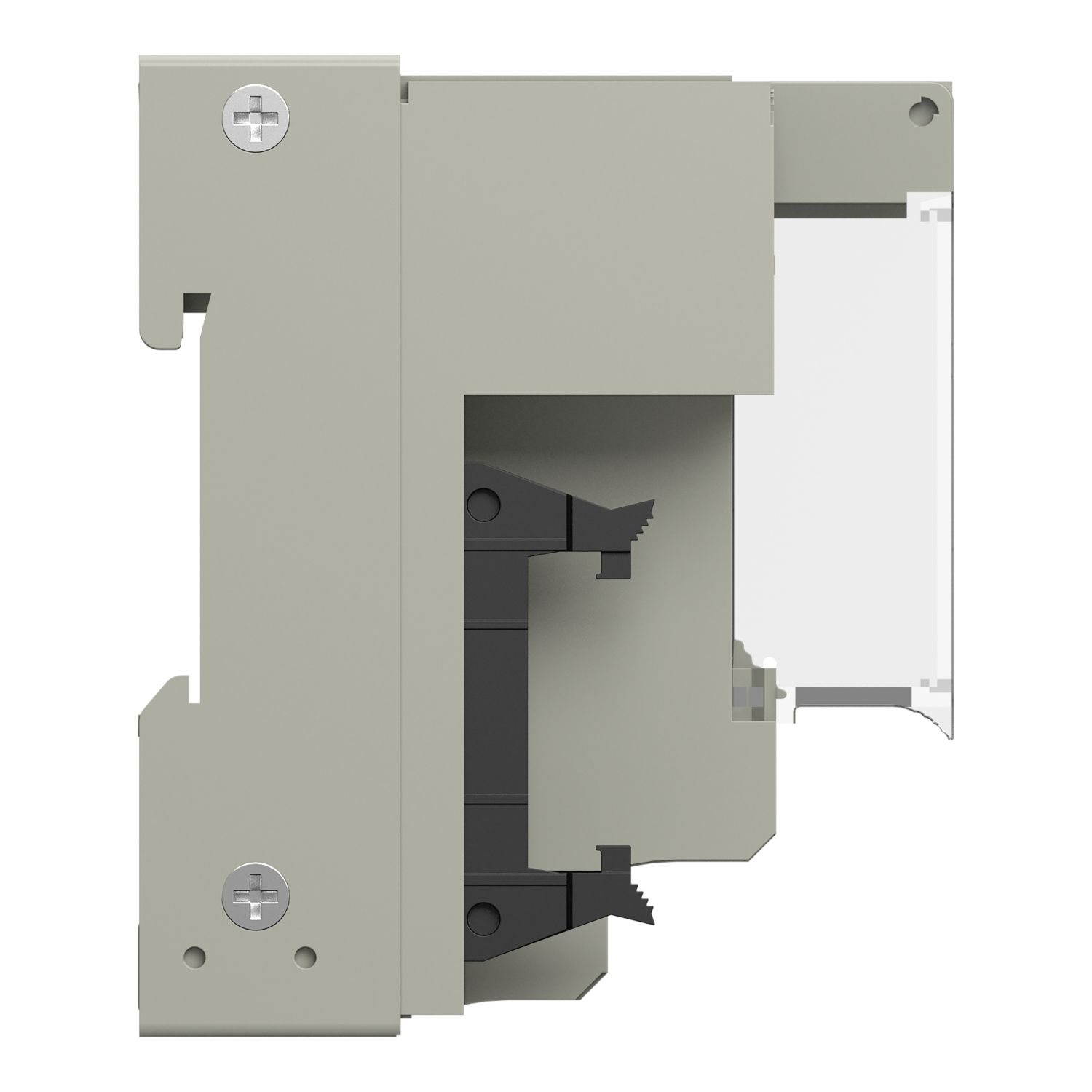

Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

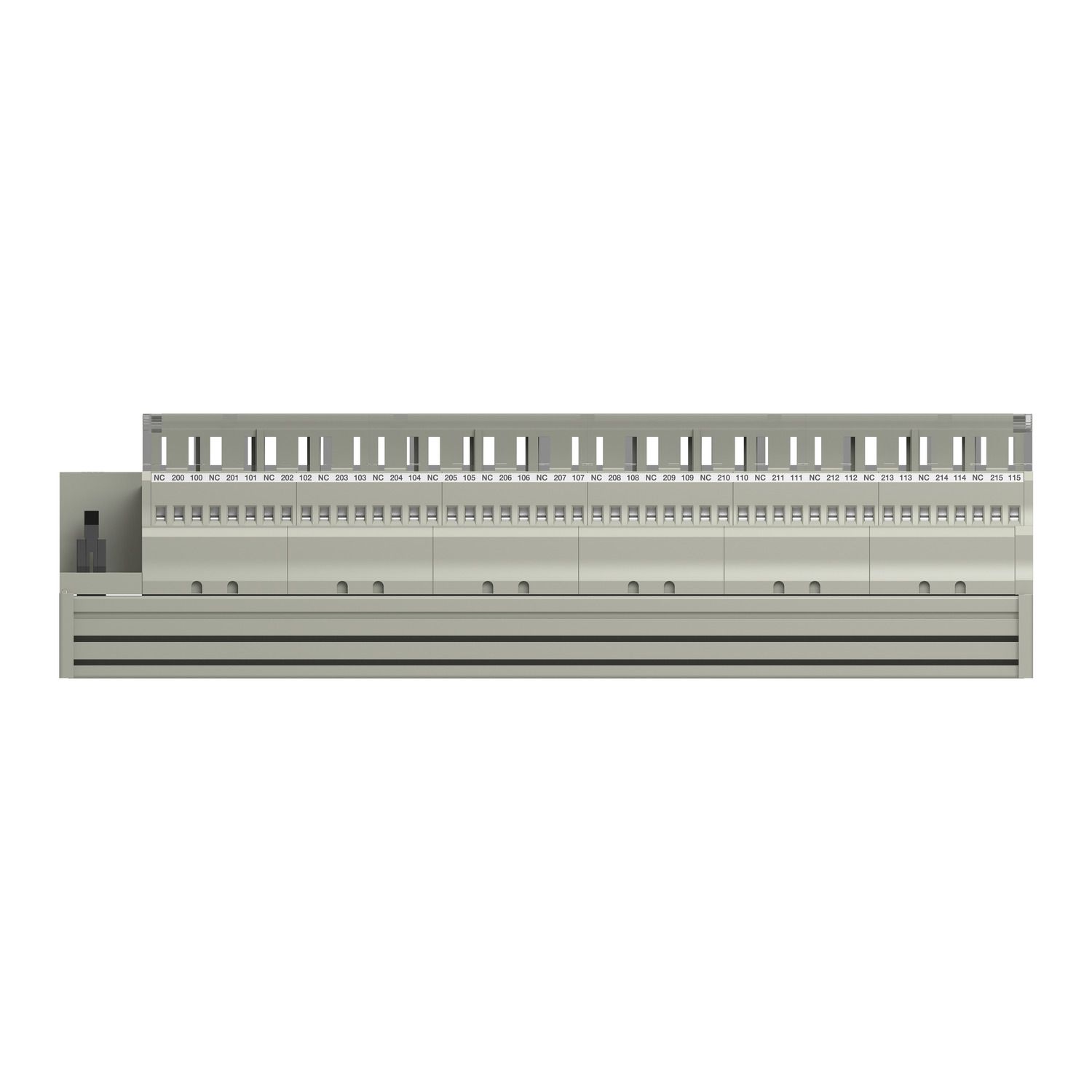

Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

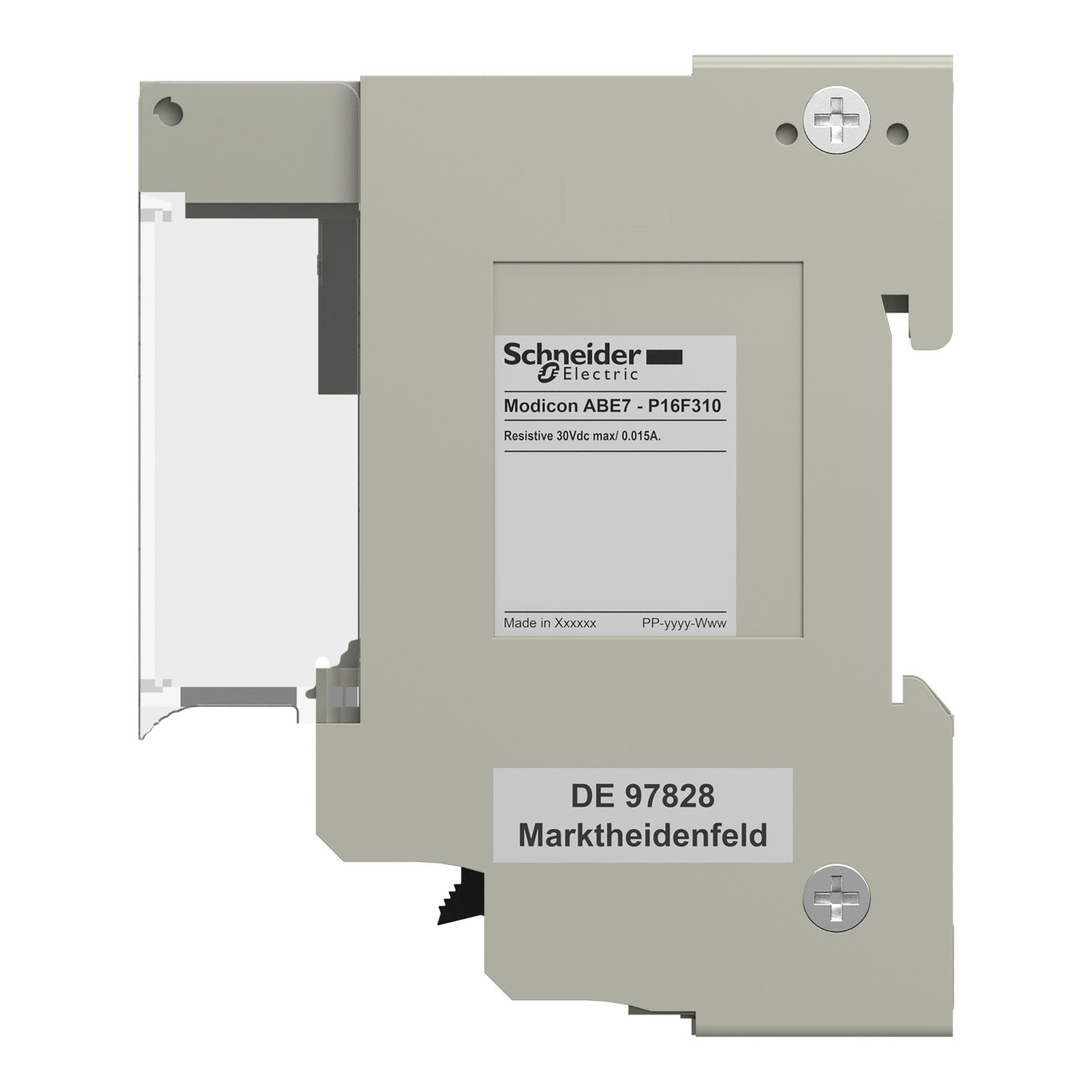

Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

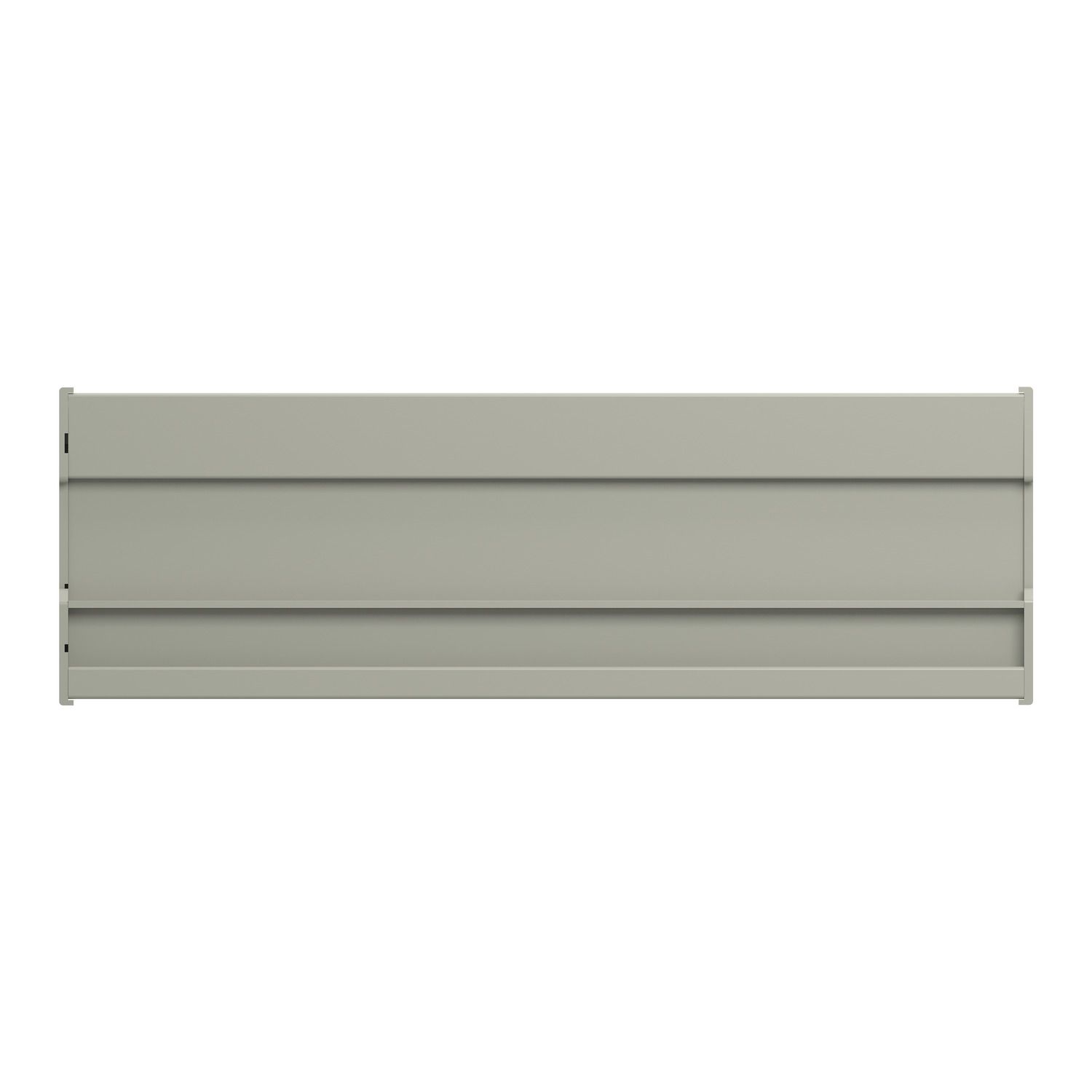

Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

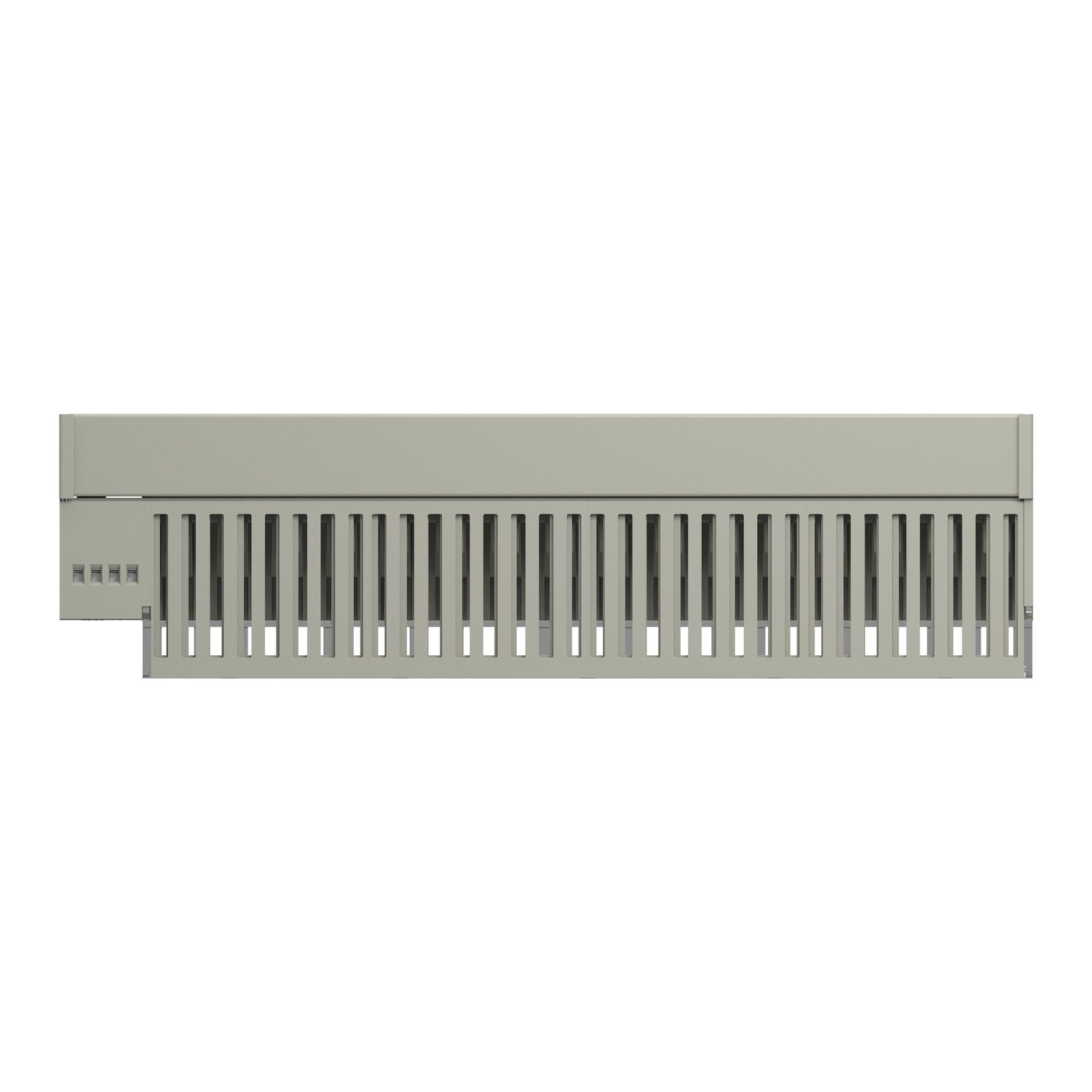

Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

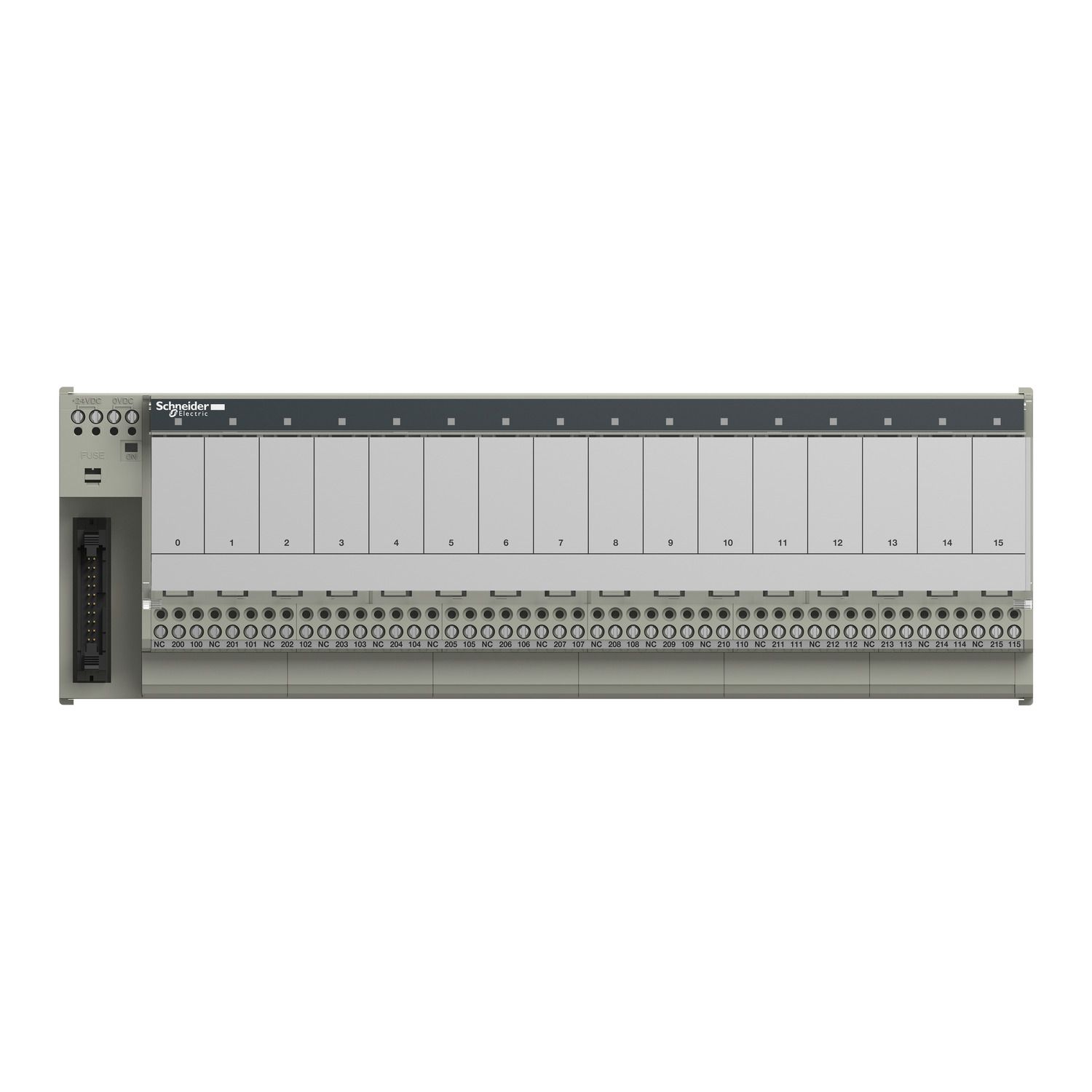

Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

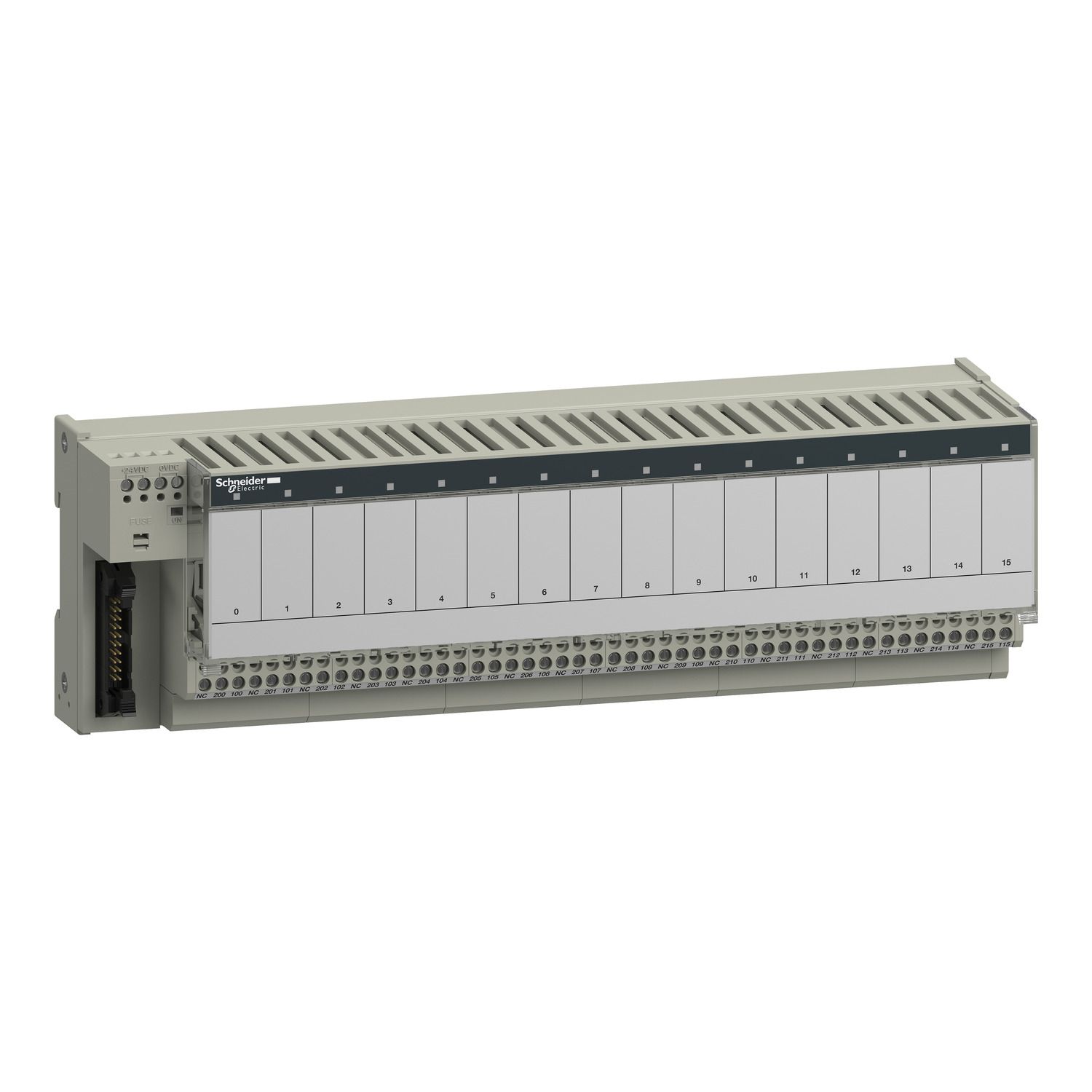

Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm
Picture of sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm
SKU:

ABE7P16F310

sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

$1,113.42 INC GST
Available for Shipping : 06-Jan-2026
sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Catalog
Instruction sheet
Environmental Disclosure
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This plug-in relay sub base offers 16 channels with 2 terminals per channel. The input sub base offers a rated supply voltage of 19V to 30V. It is furnished with screw type terminals for electrical connection. It is an IP2x rated product. Its dimensions are 272mm (width) x 74mm (depth) x 89mm (height). It weighs 0.85kg. It is suitable for all types of industrial applications. This product is certified by GL, DNV, LROS, CSA, UL, BV and EAC. It is compatible with ABS7S33E, ABR7 and ABS7E. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Sub-base type input sub-base
Number of channels 16
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel 2
Product or component type sub-base for plug-in relay
Range of product Modicon ABE7
Complementary
[Ui] rated insulation voltage 2000 V terminals/mounting rails, 300 V coil circuit/contact circuits conforming to IEC 60947-1
Product compatibility ABS7E, ABR7, ABS7S33E
Depth 74 mm
Voltage drop on power supply fuse 0.3 V
Width 272 mm
Supply circuit type DC
Maximum supply current 1 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution volt-free
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.85 kg
Installation category II conforming to IEC 60664-1
Status LED 1 LED (green) power ON, 1 LED per channel (green) channel status
[Uimp] rated impulse withstand voltage 2.5 kV
Short-circuit protection 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Isolation PLC/operative part yes
Height 89 mm
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, UL, CSA, DNV, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 10.000 cm
Package 1 Length 29.200 cm
Package 1 Weight 790.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.241 kg
