SKU:

BMXDDI6402K

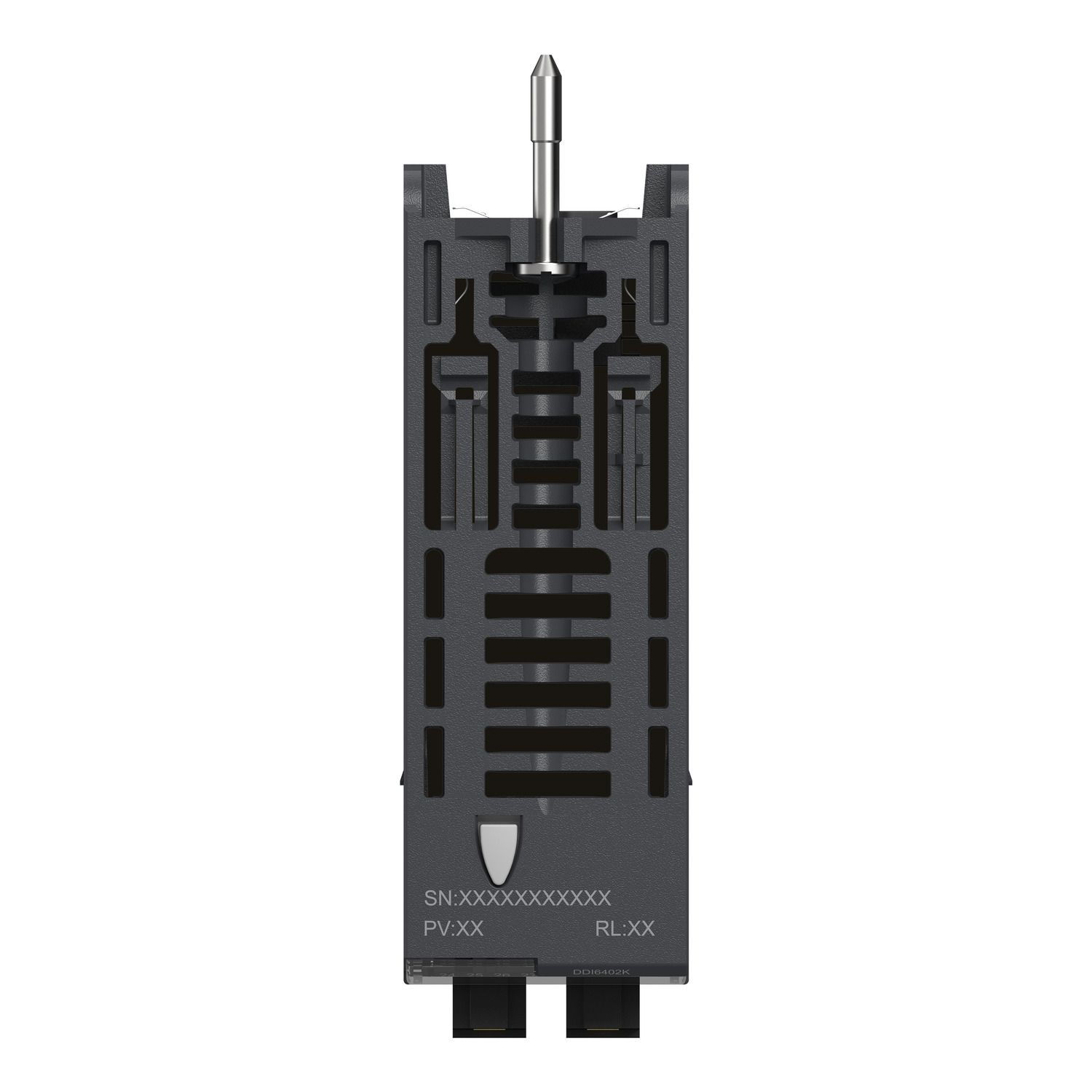

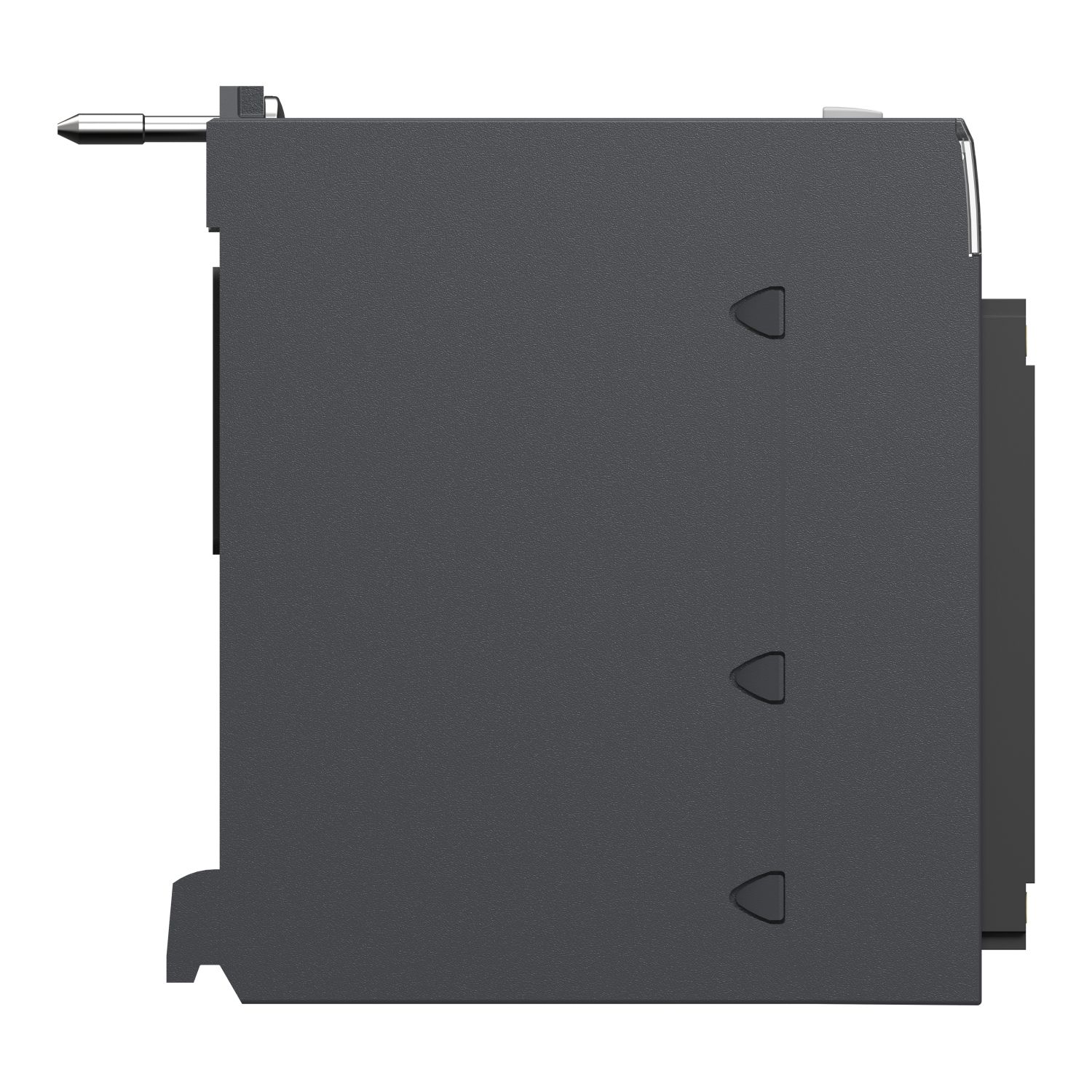

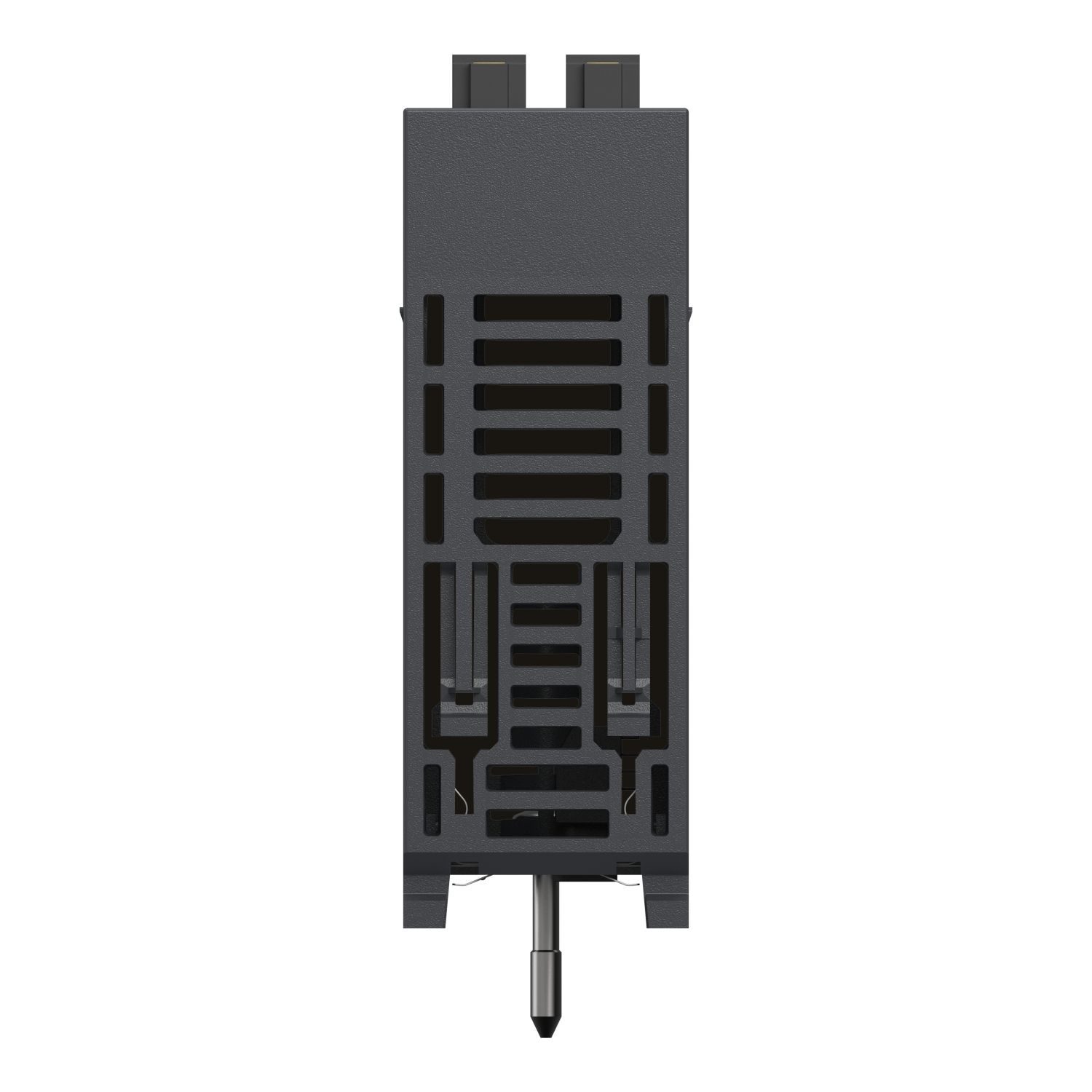

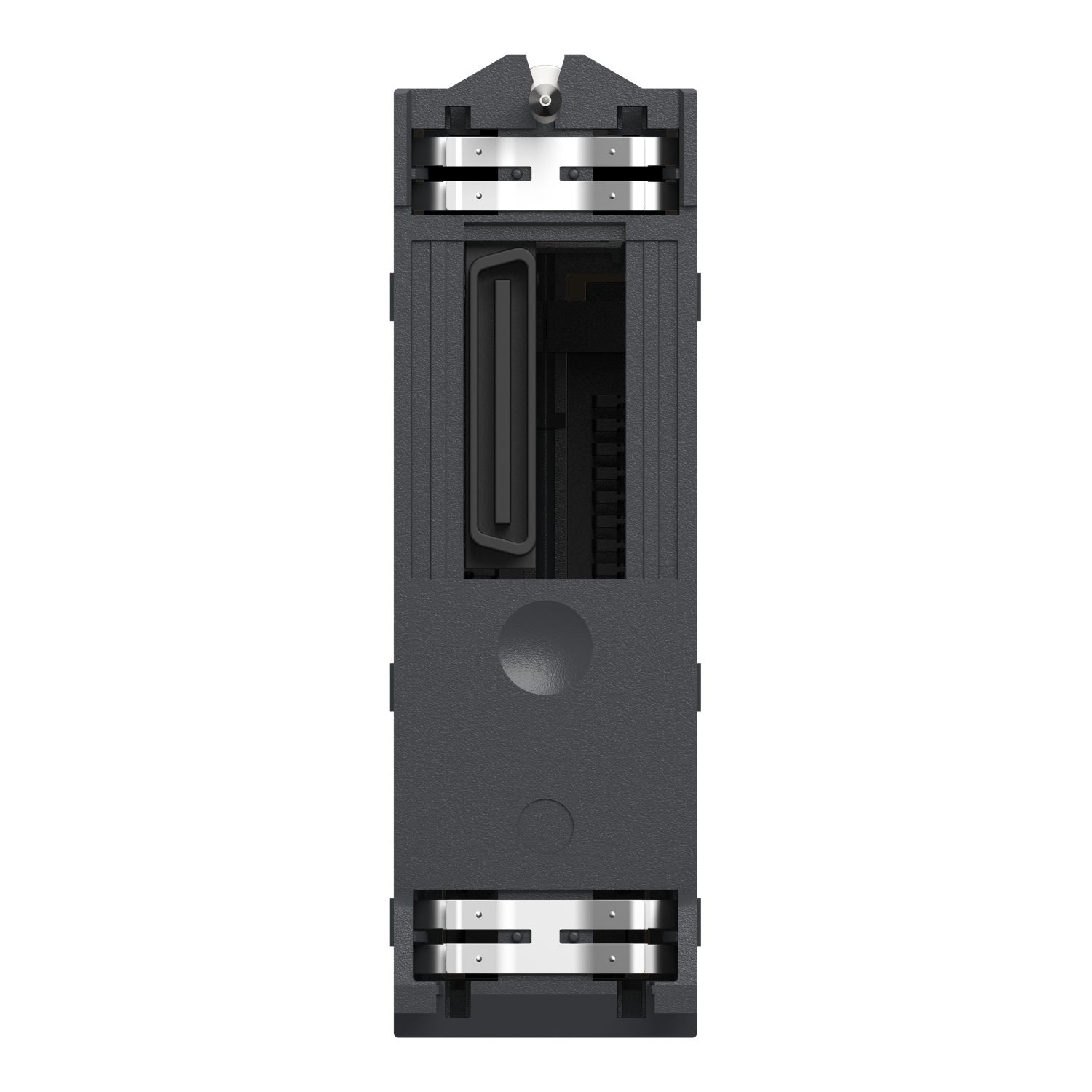

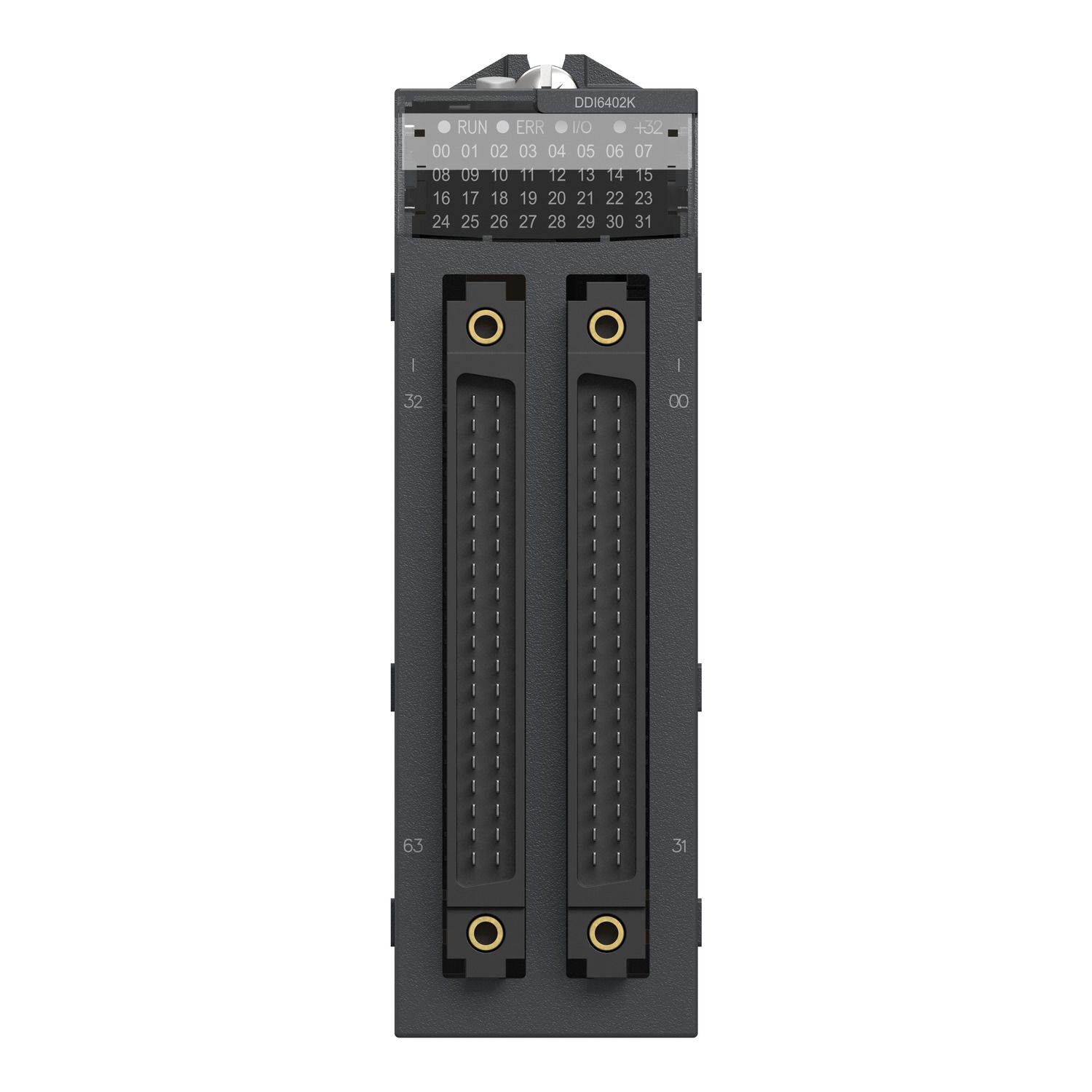

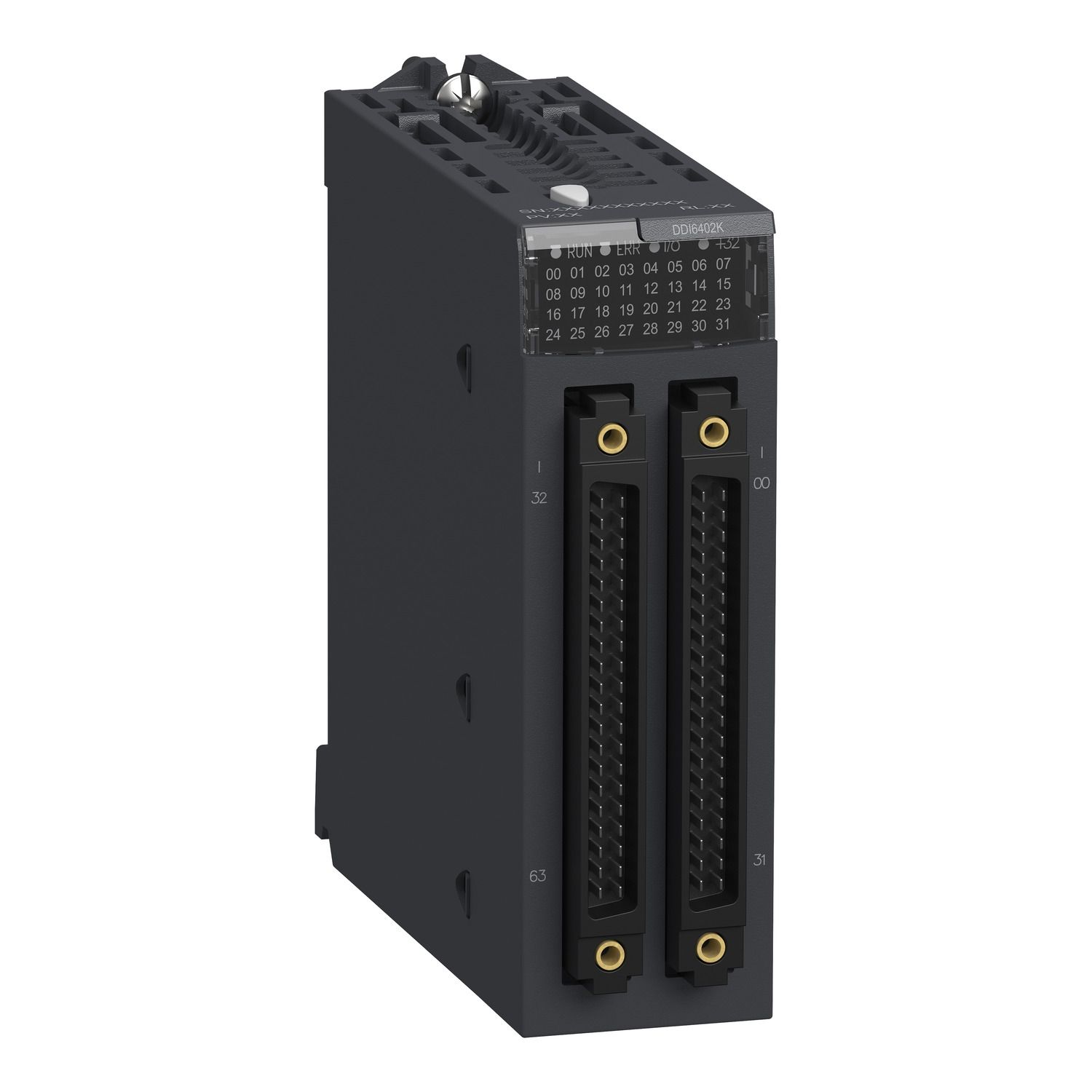

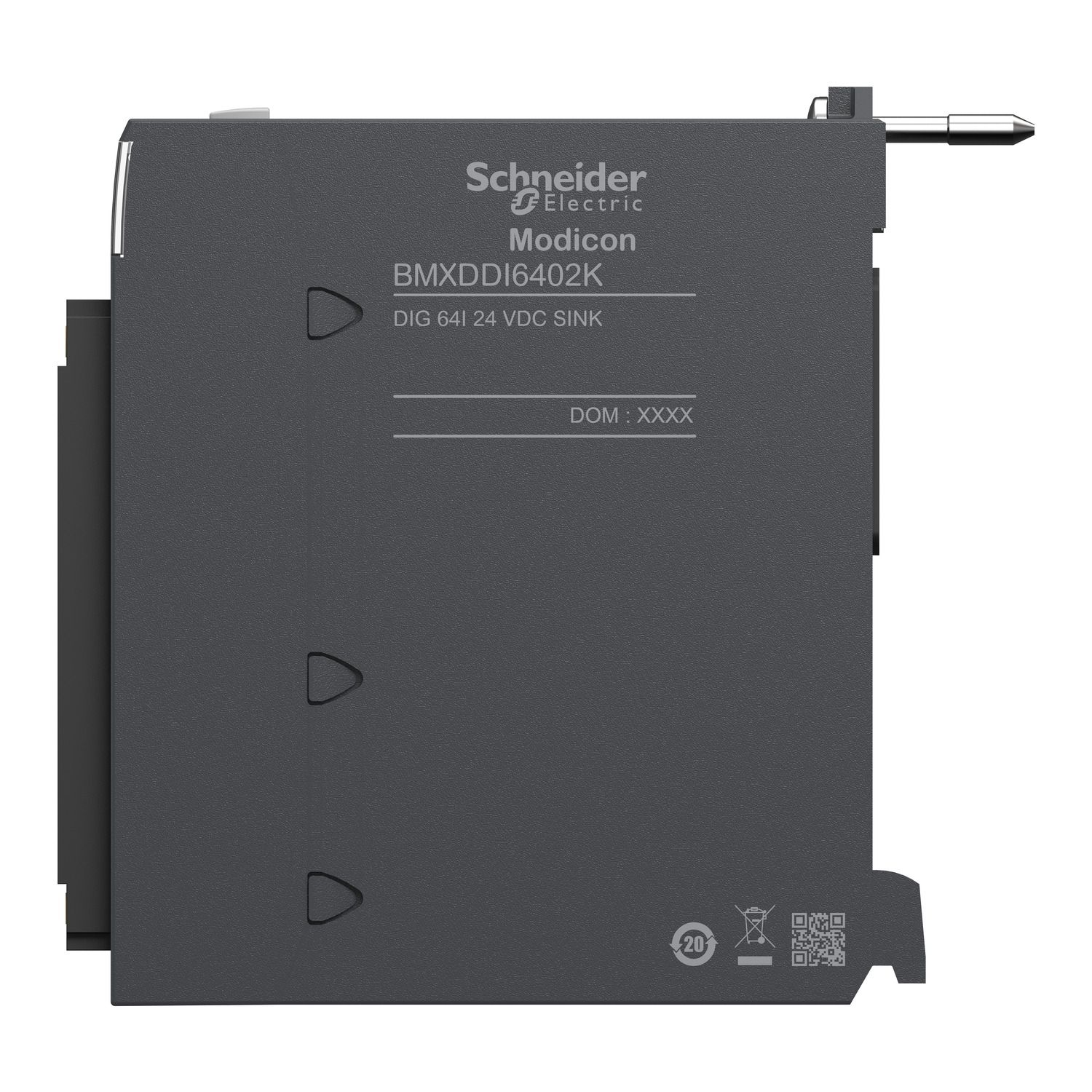

discrete input module, Modicon X80, 64 inputs, 24V DC positive

$2,160.62 INC GST

Qty:

Available for Shipping : 08-Dec-2025

Product Selector

discrete input module, Modicon X80, 64 inputs, 24V DC positive

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

User guide

Declaration of conformity

Circularity Profile

Environmental Disclosure

Product Page Link

Product Data Sheet

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 64 inputs with sink (positive) logic. It is an input module with an input voltage of 24V DC, a current consumption of 200mA at 3.3V DC and a power dissipation of 4.3W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow and without reverse polarity protection type. It offers 362681 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Discrete input type	isolated
Discrete input voltage	24 V DC, discrete input logic: positive
Range of product	Modicon X80
Discrete input current	0.6 mA
Discrete input number	64
Input type	current sink (logic positive)
Product or component type	discrete input module
Complementary
DC maximum filtering time	7 ms
Typical current consumption	160 mA at 3.3 V DC
Power dissipation in W	4.3 W
Protection type	without reverse polarity protection, 1 external fuse per group of channel0.5 A fast blow
Voltage detection threshold	> 18 V DC sensor OK, < 14 V DC sensor fault
Status LED	1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN), 1 LED (green) +32 channels indicator
MTBF reliability	510000 H
Input impedance	40000 Ohm
DC typical filtering time	4 ms
Paralleling of inputs	no
Net weight	0.145 kg
Insulation resistance	> 10 MOhm 500 V DC
Voltage range	19...30 V
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation	0-60 °C
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Vibration resistance	3 gn
Dielectric strength	500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Shock resistance	30 gn
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.700 cm
Package 1 Width	11.200 cm
Package 1 Length	11.800 cm
Package 1 Weight	180.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.481 kg
Unit Type of Package 3	3
Number of Units in Package 3	240
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	66.000 kg
