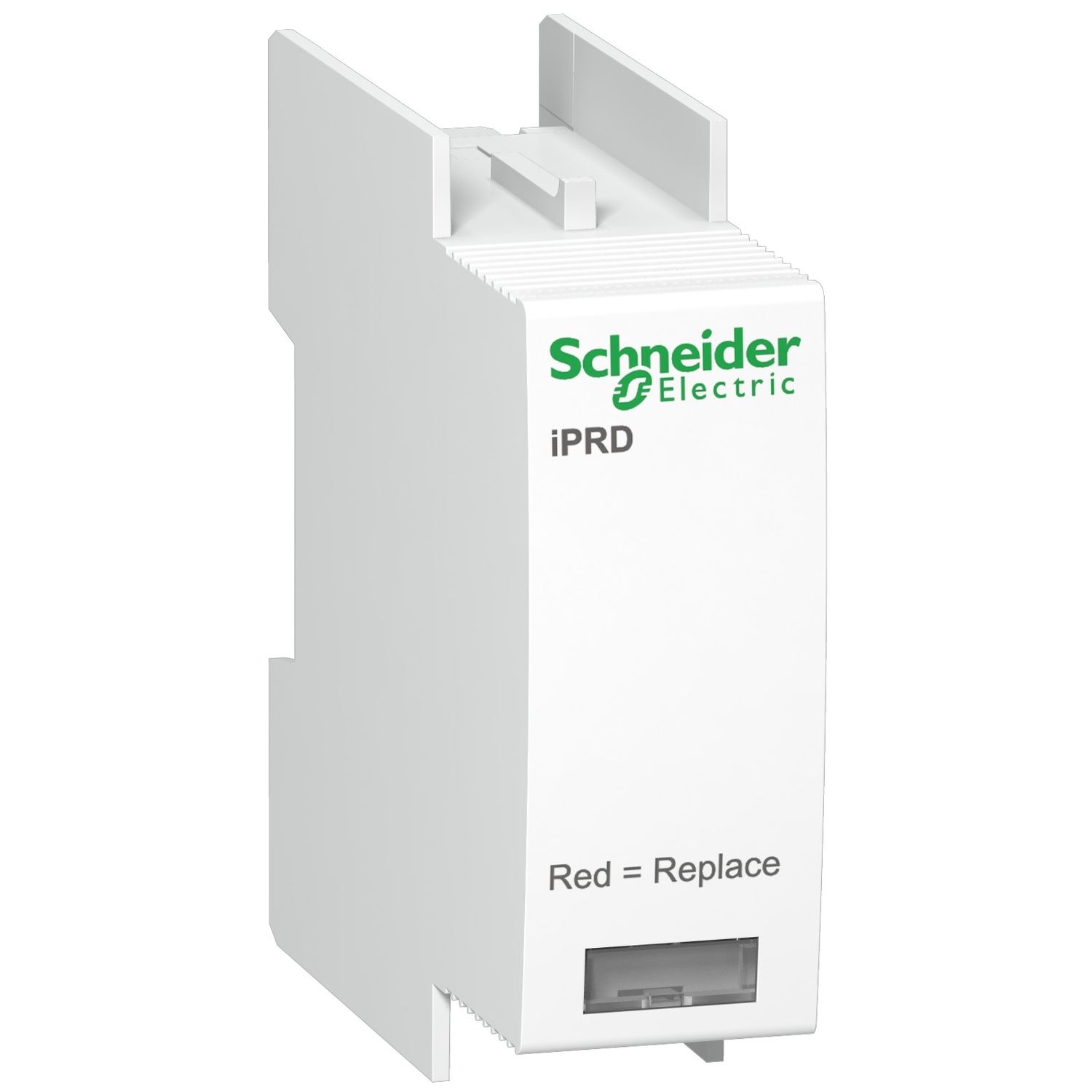

Picture of cartridge C8-350 for surge arrester iPRD
SKU:

A9L08102

cartridge C8-350 for surge arrester iPRD

Old price: $131.34 INC GST
$77.61 INC GST
Available for Shipping : 05-Jan-2026
cartridge C8-350 for surge arrester iPRD
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Instruction sheet
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name C8-350
Surge arrester type electrical distribution network
Product or component type cartridge
Range of product iPRD
Complementary
Depth 56 mm
Width 18 mm
Colour white (RAL 9003)
[Ue] rated operational voltage 230 V AC 50 Hz
Maximum [Up] voltage protection level <1.1 kV type 2
Response time < 25 ns
Local signalling flag (white/red)
Mounting mode plug-in
Net weight 0.051 kg
Material PBT (polybutylene terephthalate)
Product destination surge protection device iPRD8 4P, surge protection device iPRD8 3P, surge protection device iPRD8 2P, surge protection device iPRD8 1P, surge protection device iPRD8r 4P, surge protection device iPRD8r 3P, surge protection device iPRD8r 2P, surge protection device iPRD8r 1P
Maximum discharge current 8 kA
[Uc] maximum continuous operating voltage 350 V
Earthing system TT, TN
9 mm pitches 2
Nominal discharge current 2.5 kA
Mounting support into SPD module
Surge arrester class type type 2
Height 57 mm
Surge arrester technology MOV
Environment
Operating altitude 0...2000 m
IP degree of protection IP20 front face:
Quality labels CE
Relative humidity 5-90 %
Ambient air temperature for storage -40-85 °C
Standards IEC 61643-11: 2011, EN 61643-11
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.2 cm
Package 1 Width 7.3 cm
Package 1 Length 9.3 cm
Package 1 Weight 75 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.5 cm
Package 2 Width 10.1 cm
Package 2 Length 28.3 cm
Package 2 Weight 985 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 9.368 kg
