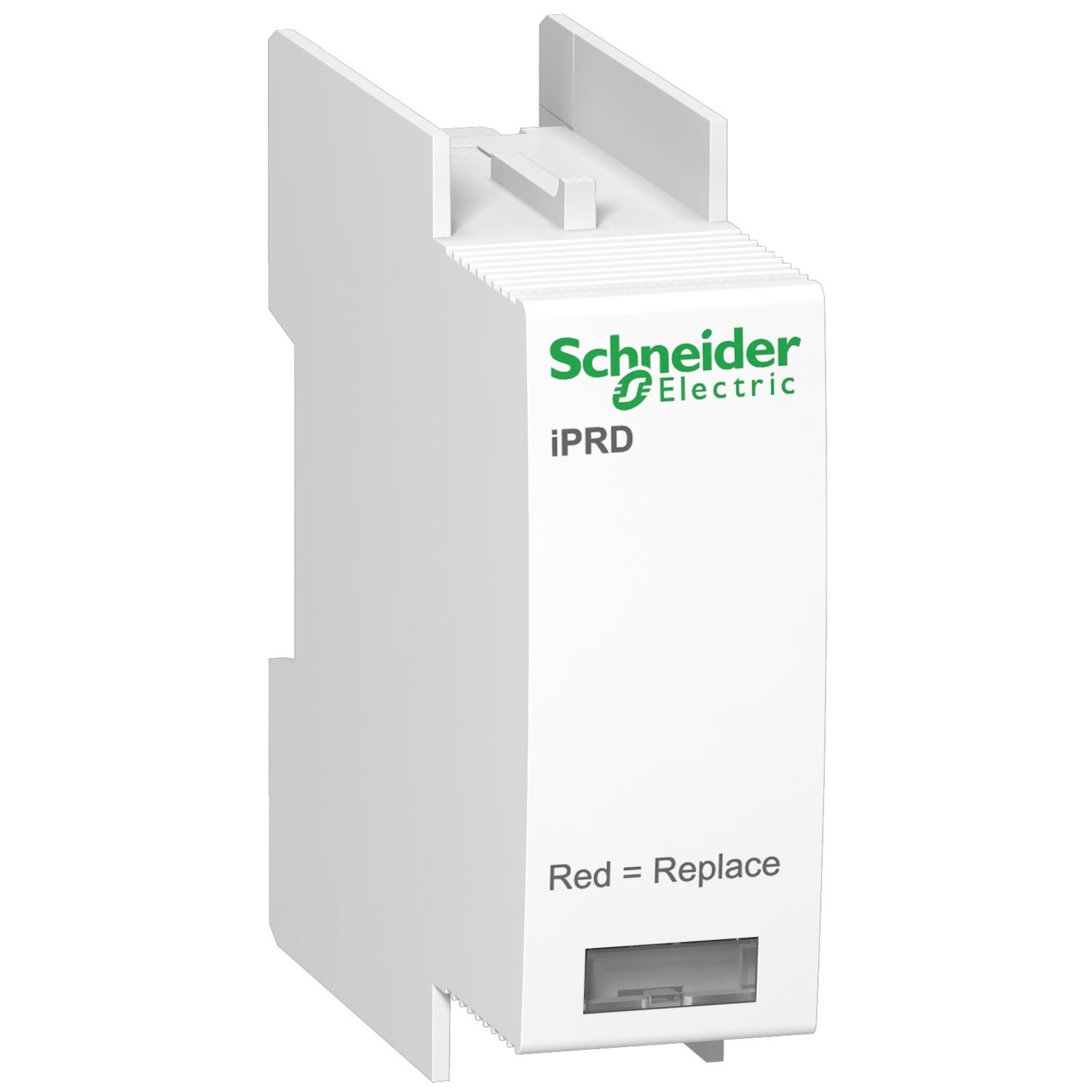

Picture of cartridge C65-350 for surge arrester iPRD
SKU:

A9L65102

cartridge C65-350 for surge arrester iPRD

Old price: $123.64 INC GST
$73.06 INC GST
Available for Shipping : 16-Dec-2025
cartridge C65-350 for surge arrester iPRD
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Instruction sheet
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti9 product is a cartridge C65-350 for surge arrester iPRD. The Imax maximum discharge current is 65kA. The In nominal discharge current is 20kA. This product is compatible with TT and TN earthing system. This Type 2 device autoprotected by integrated circuit-breaker is recommended for moderate risk level in incoming panel board. The Uc maximum continuous operating voltage is 350VAC. The Up Voltage protection level is 1.5kV. It can be plugged into a surge protecting device module. Its width is 57 mm pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 57mm x (D) 56mm. According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.

Products specifications

Attribute name Attribute value
Main
Device short name C65-350
Range of product iPRD
Surge arrester type electrical distribution network
Product or component type cartridge
Complementary
Colour white (RAL 9003)
[Ue] rated operational voltage 230 V AC 50 Hz
Maximum [Up] voltage protection level <1.5 kV type 2
Local signalling flag (white/red)
Mounting mode plug-in
[Uc] maximum continuous operating voltage 350 V
Earthing system TT, TN
Surge arrester class type type 2
Height 57 mm
Surge arrester technology MOV
Depth 56 mm
Width 18 mm
Response time < 25 ns
Net weight 0.075 kg
Material PBT (polybutylene terephthalate)
Product destination surge protection device iPRD65r 4P, surge protection device iPRD65r 3P, surge protection device iPRD65r 2P, surge protection device iPRD65r 1P
Maximum discharge current 65 kA
9 mm pitches 2
Nominal discharge current 20 kA
Mounting support into SPD module
Environment
IP degree of protection IP20 front face:
Relative humidity 5-90 %
Ambient air temperature for storage -40-85 °C
Standards IEC 61643-11: 2011, EN 61643-11
Ambient air temperature for operation -25-60 °C
Operating altitude 0...2000 m
Quality labels CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2 cm
Package 1 Width 7.5 cm
Package 1 Length 9 cm
Package 1 Weight 100 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8 cm
Package 2 Width 10 cm
Package 2 Length 28.5 cm
Package 2 Weight 1.293 kg
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 12.35 kg
