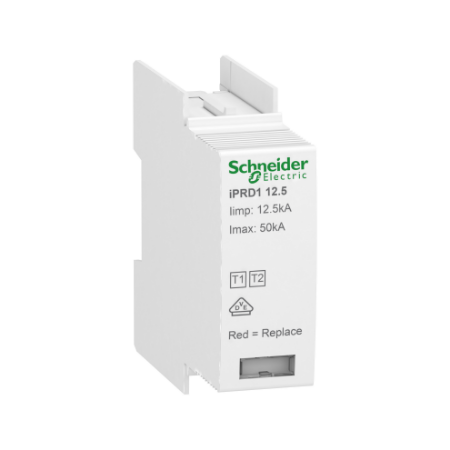

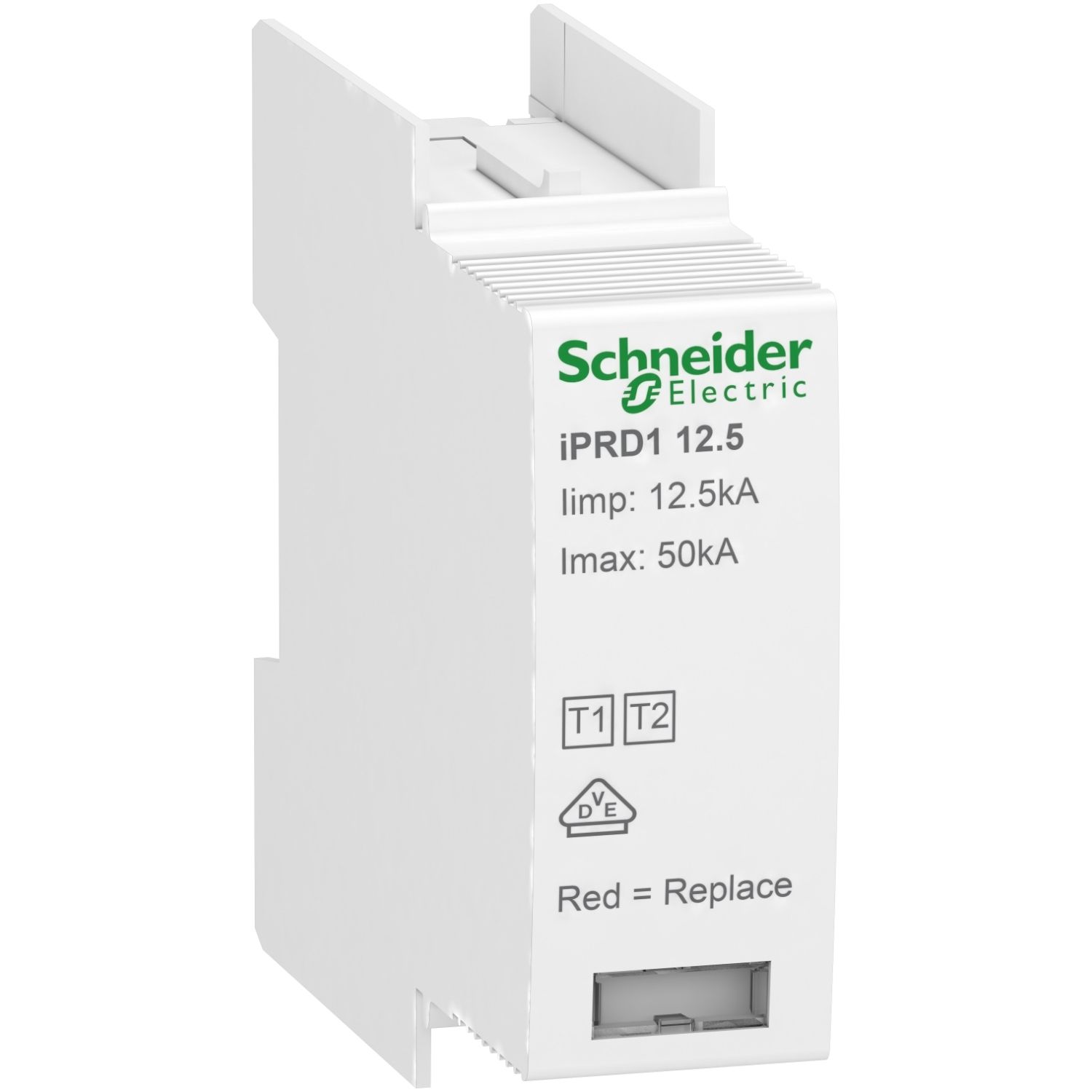

Picture of Cartridge for surge arrester, Acti9 iPRD1 C12.5r L/PE
SKU:

A9L16082

Cartridge for surge arrester, Acti9 iPRD1 C12.5r L/PE

Old price: $112.64 INC GST
$66.56 INC GST
Available for Shipping : 05-Jan-2026
Cartridge for surge arrester, Acti9 iPRD1 C12.5r L/PE
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti9 product is a cartridge C12.5r L/PE for surge arrester iPRD1 12.5r. The Imax maximum discharge current is 50kA. The In nominal discharge current is 20kA. This product is compatible with TT, TN-S and TN-C earthing system. The Uc maximum continuous operating voltage is 350VAC. The Up Voltage protection level is 1.5kV. It can be plugged into a surge protecting device module. Its width is 18 mm. The product color is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.

Products specifications

Attribute name Attribute value
Main
Surge arrester type electrical distribution network
Range Acti9
Product or component type cartridge
Range compatibility Acti9 Acti9 iPRD1 surge arrester
Complementary
Depth 56 mm
Market segment small commercial, residential
Width 18 mm
Colour white (RAL 9003)
Maximum [Up] voltage protection level <1.5 kV type 1 + 2
Response time < 25 ns
Local signalling mechanical indicator (white and red)
Mounting mode plug-in
Net weight 112 g
Material PBT (polybutylene terephthalate)
[Uc] maximum continuous operating voltage 350 V
Earthing system TN-S, TT, TN-C
Nominal discharge current 20 kA
Mounting support into SPD module
Surge arrester class type type 1 + 2
Height 57 mm
Surge arrester technology MOV
Environment
Operating altitude 0...2000 m
IP degree of protection IP20 front face:
Relative humidity 25-90 %
Ambient air temperature for storage -40-80 °C
Standards IEC 61643-11, EN 61643-11
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 7.700 cm
Package 1 Length 9.200 cm
Package 1 Weight 131.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 27.500 cm
Package 2 Weight 1.652 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.335 kg
