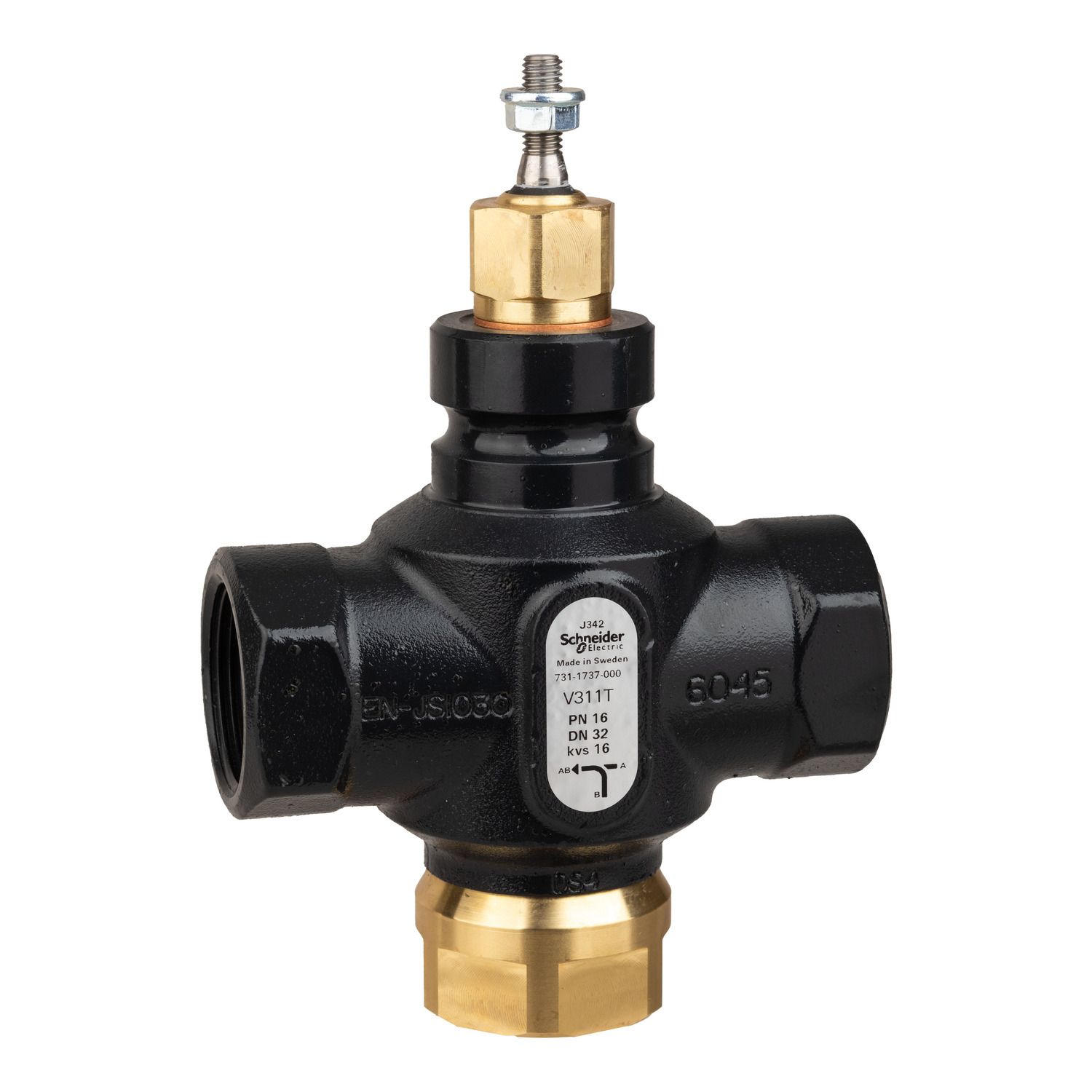

Picture of Venta V311T Globe Valve, 3-Way, PN16, Rp 1 1/4 Internal Thread, DN32, 16 Kvs, Nodular Iron, Brass plug.
SKU:

7311737000

Venta V311T Globe Valve, 3-Way, PN16, Rp 1 1/4 Internal Thread, DN32, 16 Kvs, Nodular Iron, Brass plug.

$442.12 INC GST
Available for Shipping : 29-Jan-2026
Venta V311T Globe Valve, 3-Way, PN16, Rp 1 1/4 Internal Thread, DN32, 16 Kvs, Nodular Iron, Brass plug.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Nodular Iron, a cost effective alternative to bronze and is superior to regular cast iron
  • Replacement gland kit ensures a long service life
  • U Bolt Actuator mounting accepts MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 29-Jan-2026
Catalog
Product Page Link
Product Data Sheet
The V311T is an internally threaded 3-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN32, G External, Flow capacity, Kvs: 16 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 4 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive).

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -20-120 °C
Body material nodular cast iron EN-JS 1030
Seating seal material Port B:EPDM (ethylene propylene diene monomer), Port A:EPDM (ethylene propylene diene monomer)
Seat leakage Port A: Class IV-S1 (0.005 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size Rp 1-1/4
Seat material Port B: nodular cast iron EN-JS 1030, Port A: nodular cast iron EN-JS 1030
Valve product range Venta
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability greater than 50:1
Plug material CW602N brass
Valve product series V311T
Flow coefficient 16 kvs, 18.5 cv
Stem flow action Stem up closes A and opens B to AB
Valve configuration 3-Way
Stem movement linear
Pressure fluid max delta P normal life 58 psi
Valve type globe
Valve model V311T/32/16
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type Rp Internal
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material brass
Stroke length 20 mm
Stem material stainless steel AISI 303
Pipe size 32 mm
Pressure class PN16
Body size 32 mm (1-1/4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.9 cm
Package 1 Width 20.9 cm
Package 1 Length 7.3 cm
Package 1 Weight 1.92 kg
