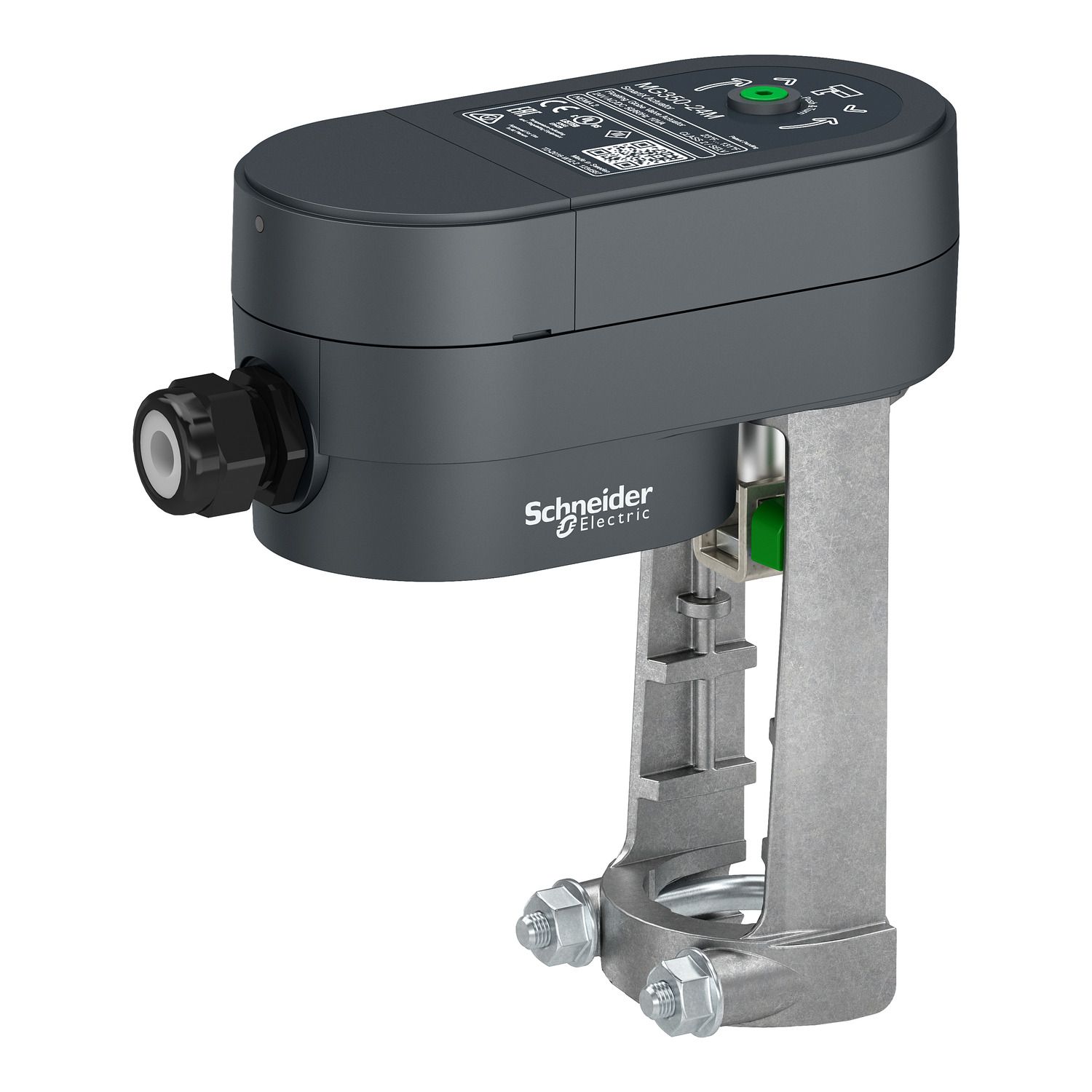

Picture of SpaceLogic MG350 Globe Valve Actuator, Modulating, Non-Spring Return, 24 Vac/dc, 350N, IP53.
SKU:

MG350-24M

SpaceLogic MG350 Globe Valve Actuator, Modulating, Non-Spring Return, 24 Vac/dc, 350N, IP53.

$562.92 INC GST
Available for Shipping : 04-Jan-2026
SpaceLogic MG350 Globe Valve Actuator, Modulating, Non-Spring Return, 24 Vac/dc, 350N, IP53.
  • LED indication for operational status and alarms
  • Removeable terminal connector and cable gland provide ultra flexible wiring
  • For V241, V341, V211T, V311T, V311, V211 valves
  • Position feedback model
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Catalog
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
The MG350V globe valve actuators are non-spring return electromechanical actuators for the control of two-way and three-way globe valves. They are use for fan coils, unit ventilators, reheat, cooling units, perimeter heating, and other applications. The actuators are compatible with older field-installed VB-9 globe valves as wall as other valves. Auto-calibration provides precise control by scaling the input signal to match the exact travel of the valve stem. Power Supply: 24 Vac. Input Signal: 2…1 Vdc, …1 Vd, Fieal selectable. Force: 35 N. Max. Stroke 16.5 mm. The stem adapter and stem adapter jam nut are included with the actuator. Graduated position indicator showing open to close with end point indicators. Removable terminal block, AWG 12 … 24, meets the requirements of cUL without the need of an electrical earth ground connection.

Products specifications

Attribute name Attribute value
Main
NEMA degree of protection NEMA 2
Product destination globe valve
Hold-in power consumption in W 0.5-0.5 W
Duty cycle 20 %
Product or component type actuator
Targeted region Australia., Asia Pacific., Europe
Complementary
Force N 350 N
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class II
Control type automatic reset
Stroke length 0.9375-0.9375 mm
Power consumption in W 3 W
Analogue input range 0...10 V DC
Material polycarbonate: housing, EPDM: O-rings, reinforced teflon: seal
Stroke running time 102 s
Force lbf 79 lbf
Actuator linear
Environment
IP degree of protection IP22
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -5-55 °C
Actuator model MG350
Control signal modulating
Conduit connection gland for 6-12 mm O/D cable, 1 x 20 mm conduit hole
Leads and connections removable terminal block
Actuator type electric
Actuator product range SpaceLogic
Actuator product series MG350
Power loss return non-spring return
Feedback signal 2...10 V DC
Stroke auto calibration True
Position indicator Stroke indicator on bracket
Additional features LED status indicator
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.8 cm
Package 1 Width 14.4 cm
Package 1 Length 8.6 cm
Package 1 Weight 720 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.11 kg
