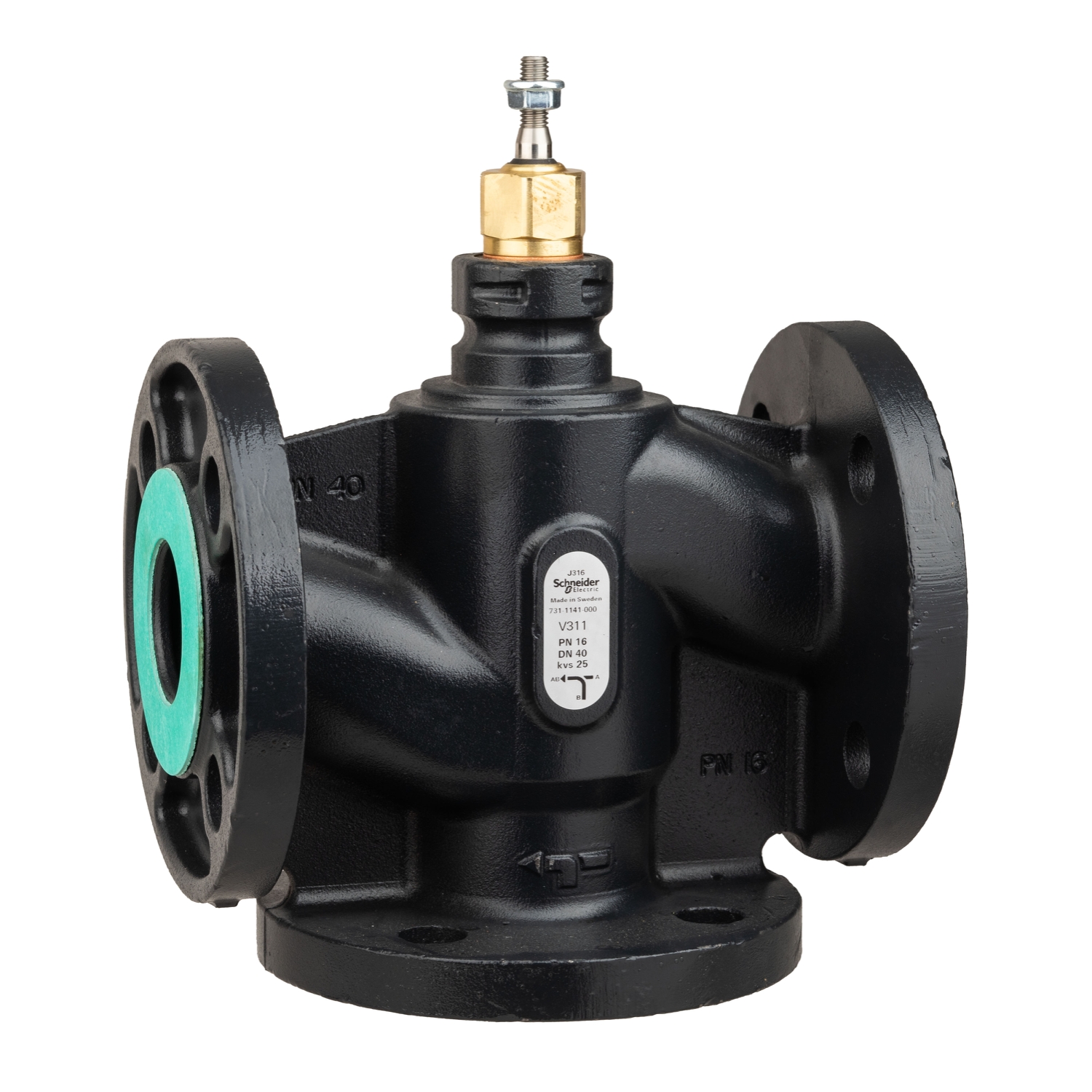

Picture of Venta V311 Globe Valve, 3-Way, PN16, Flanged, DN40, 25 Kvs, Nodular Iron Body & Seat, Brass plug.
SKU:

7311141000

Venta V311 Globe Valve, 3-Way, PN16, Flanged, DN40, 25 Kvs, Nodular Iron Body & Seat, Brass plug.

$956.34 INC GST
Available for Shipping : 02-Feb-2026
Venta V311 Globe Valve, 3-Way, PN16, Flanged, DN40, 25 Kvs, Nodular Iron Body & Seat, Brass plug.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Unique internal cut out in flange profile aids flexibility against pipe misalignment
  • Bonded gasket improved installation time
  • Nodular Iron construction allows for high differential pressure and long service life
  • U Bolt Actuator mounting accepts MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Catalog
Product Page Link
Product Data Sheet
The V311 is a flanged 3-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN4, G External, Flow capacity, Kvs: 25 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 4 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). Flanged to ISO 75-2 (PN16, DN15).
