Picture of V292 Globe Valve, 2-Way, PN25, Flanged, DN125, 250 Kvs, Nodular Iron Body and Stainless Steel Trim, Stem Down Closed.
SKU:

7219266000

V292 Globe Valve, 2-Way, PN25, Flanged, DN125, 250 Kvs, Nodular Iron Body and Stainless Steel Trim, Stem Down Closed.

$7,830.35 INC GST
Available for Shipping : 02-Feb-2026
V292 Globe Valve, 2-Way, PN25, Flanged, DN125, 250 Kvs, Nodular Iron Body and Stainless Steel Trim, Stem Down Closed.
  • Stainless Steel trim for long service life
  • 50 mm stroke for precise control of low flows
  • Service Kit and Stem heater accessories available
  • Mounts to and driven by the M22 and M50 Actuators
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Catalog
Product Page Link
Product Data Sheet
The V292 is a high pressure flanged globe valve for demanding heating and cooling applications. The valve use a stainless steel plug for high close off pressures with a low actuator force. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN125, Flow capacity/Kvs: 250 m³/h. Constructed and flanged to a PN25 pressure class. ΔPm of maximum 14 Kpa. PTFE Seals provide a working temperature range of -1 °C to 15 °C 5 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Length: 29 mm, Height 23 mm, Width: 185 mm, Weight: 16.7 Kg. Service Kit (main gland seal): 1182.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-150 °C
Body material nodular cast iron EN-JS 1025
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.05 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN125 (ISO 7005-2)
Seat material Port A: stainless steel AISI 420
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability greater than 50:1
Plug material stainless steel AISI 420
Valve product series V292
Flow coefficient 250 kvs, 289.06 cv
Stem flow action Stem down closed
Valve configuration 2-Way
Pressure fluid max delta P normal life 15 psi
Valve type globe
Valve model V292/125/250
Packing material PTFE (polytetrafluoroethylene)
Valve connection type flanged
Stem seal material PTFE (polytetrafluoroethylene)
Flow characteristic equal percentage
Trim material stainless steel
Stroke length 50 mm
Stem material stainless steel AISI 420
Pipe size 125 mm
Pressure class PN25
Body size 25 mm (1 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 27.0 cm
Package 1 Width 43.5 cm
Package 1 Length 40.0 cm
Package 1 Weight 61.85 kg

Related products

Picture of Replacement Packing Gland / Stuffing Box for the DN125...DN150 sizes of V292 and V222 Globe Valves.

Replacement Packing Gland / Stuffing Box for the DN125...DN150 sizes of V292 and V222 Globe Valves.

100108210
$1,056.28 INC GST
View Detail

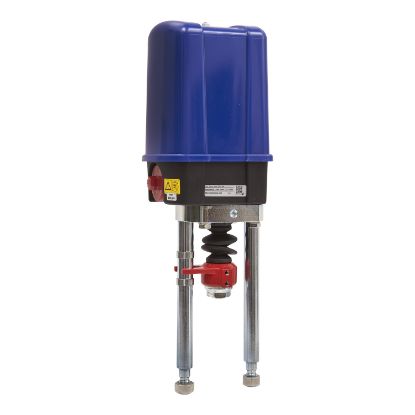

Picture of M22A Globe Valve Actuator, Modulating, 0-10Vdc, 0-20 mAdc, 24Vac, Terminal Block Electrical Connection, 2200N, IP65
