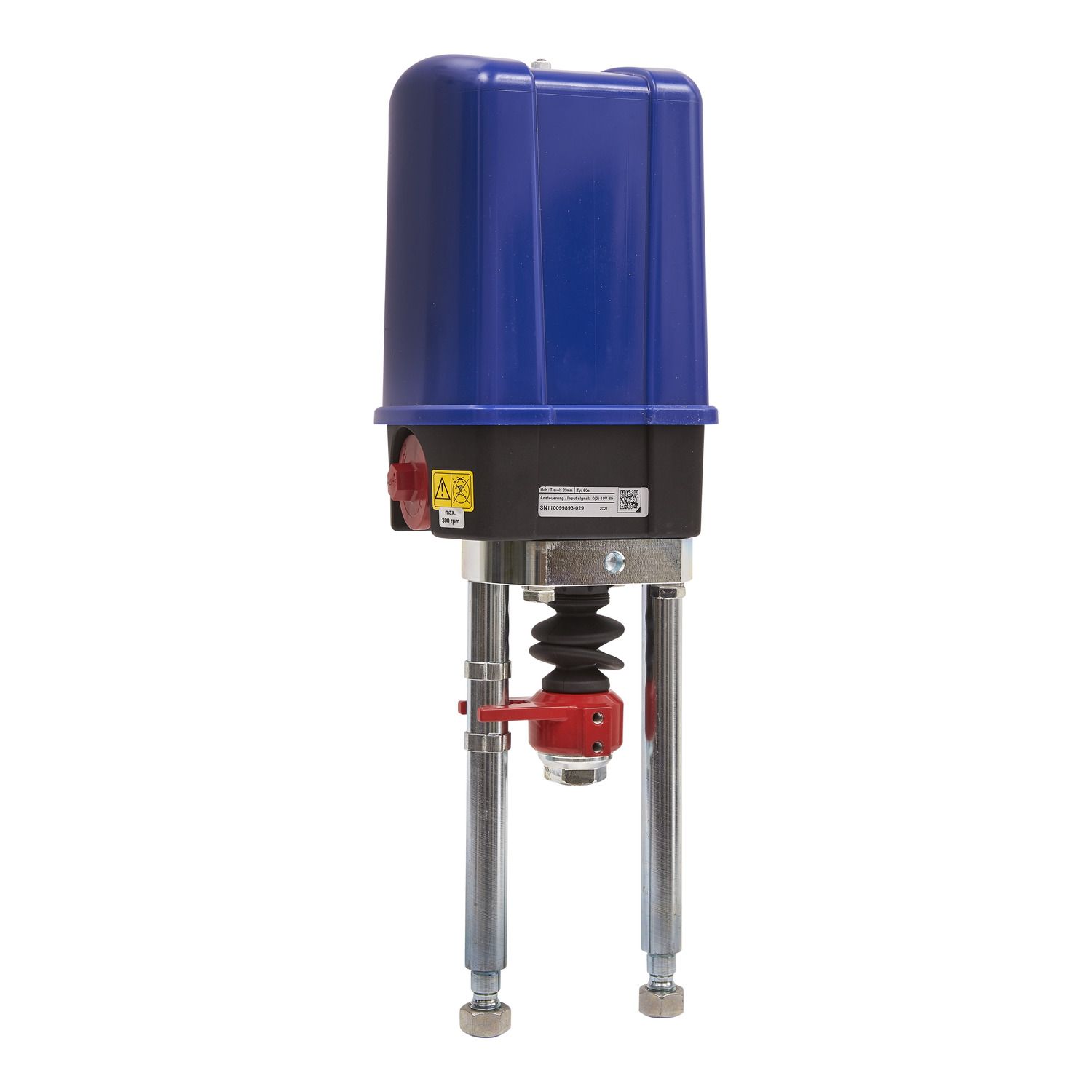

Picture of M22A Globe Valve Actuator, Modulating, 0-10Vdc, 0-20 mAdc, 24Vac, Terminal Block Electrical Connection, 2200N, IP65
SKU:

8900104000

M22A Globe Valve Actuator, Modulating, 0-10Vdc, 0-20 mAdc, 24Vac, Terminal Block Electrical Connection, 2200N, IP65

$4,829.77 INC GST
Available for Shipping : 02-Feb-2026
M22A Globe Valve Actuator, Modulating, 0-10Vdc, 0-20 mAdc, 24Vac, Terminal Block Electrical Connection, 2200N, IP65
  • Strong 2.2 kN Linear Globe Valve Actuator
  • For V222, V292 and V321 Valves of DN125 and DN150 size
  • For Proportional (Modulating) Control
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Catalog
Product Page Link
Product Data Sheet
The M22 actuator is a powerful actuator suitable for driving DN125 and DN150 sizes of valves types V222, V292 and V321. Supply voltage: 24 Vac +1% / -15%. Analog Control Input: …1 V, 2…1 V. Force: 22 N, IP 65 Protection class. Power consumption 5 Hz: 12 VA.

Products specifications

Attribute name Attribute value
Main
Hold-in power consumption in VA 15-15 VA AC
Product destination globe valve
Duty cycle 80 %
Product or component type actuator
Power consumption in VA 15 VA AC
Targeted region Australia., Asia Pacific., Europe
Complementary
Force N 2200 N
Stroke running time 102 s
[Us] rated supply voltage 24 V AC
Electrical insulation class class II
Control type automatic reset
Stroke length 50-50 mm
Analogue input range 0...10 V DC
Force lbf 495 lbf
Actuator linear
Environment
IP degree of protection IP65
Relative humidity 0-90 %
Ambient air temperature for storage -20-70 °C
Ambient air temperature for operation -20-70 °C
Power loss return non-spring return
Actuator model M22
Control signal modulating
Stroke auto calibration False
Leads and connections terminal block
Actuator type electric
Actuator product series M22
Position indicator Stroke indicator on yoke
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 29.8 cm
Package 1 Width 28.8 cm
Package 1 Length 76.2 cm
Package 1 Weight 9.04 kg
