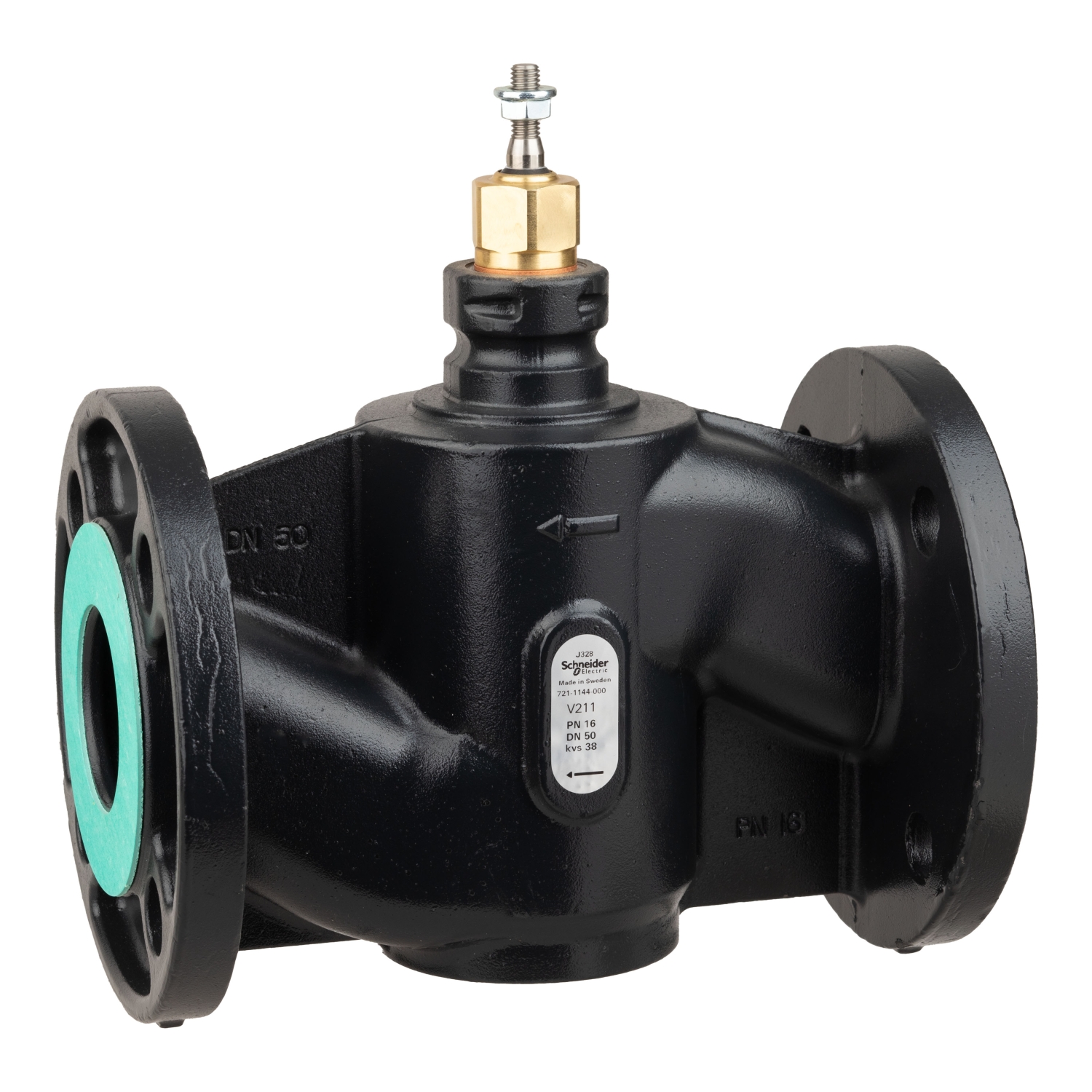

Picture of Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN50, 38 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.
SKU:

7211144000

Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN50, 38 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.

$1,119.52 INC GST
Available for Shipping : 02-Feb-2026
Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN50, 38 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Unique internal cut out in flange profile aids flexibility against pipe misalignment
  • Bonded gasket improved installation time
  • Replacement gland kit ensures a long service life
  • U Bolt mounting for MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
  • Nodular Iron construction allows for high differential pressure and long service life
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Catalog
Product Page Link
Product Data Sheet
The Venta V211 is a 2-way flanged globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN50, Flow capacity, Kvs: 38 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of 4 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN16 flanges have fibre gaskets bonded to the flange face. The flange face has a design that accommodates that flexes to allow small mis alignment in the pipes. Valve Length (between flanges) is 13 mm, height is 164.5 mm, width 95 mm, Weight is 2.1 Kg. High Controllability and long life.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -20-120 °C
Body material nodular cast iron EN-JS 1030
Seating seal material Port A:EPDM (ethylene propylene diene monomer)
Seat leakage Port A: Class IV-S1 (0.005 %)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN50 (ISO 7005-2)
Seat material Port A: nodular cast iron EN-JS 1030
Valve product range Venta
Medium compatibility Glycol 50 %, Glycol 30 %, Glycol 25 %, Water
Control valve rangeability greater than 50:1
Plug material CW602N brass
Valve product series V211
Flow coefficient 38 kvs, 43.94 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Pressure fluid max delta P normal life 58 psi
Valve type globe
Valve model V211/50/38
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type flanged
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material brass
Stroke length 20 mm
Stem material stainless steel AISI 303
Pipe size 50 mm
Pressure class PN16
Body size 50 mm (2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.5 cm
Package 1 Width 25.6 cm
Package 1 Length 23.4 cm
Package 1 Weight 7.92 kg
