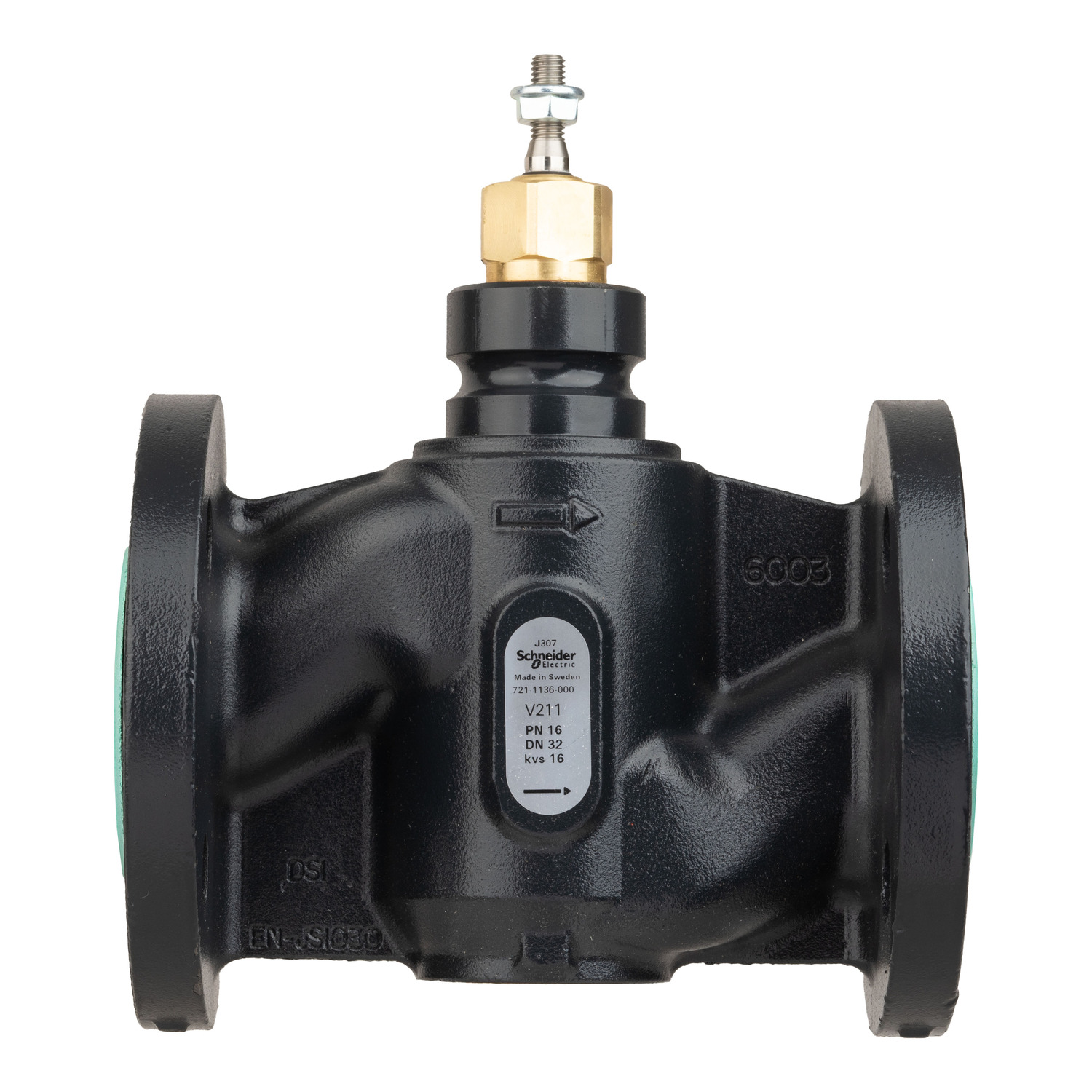

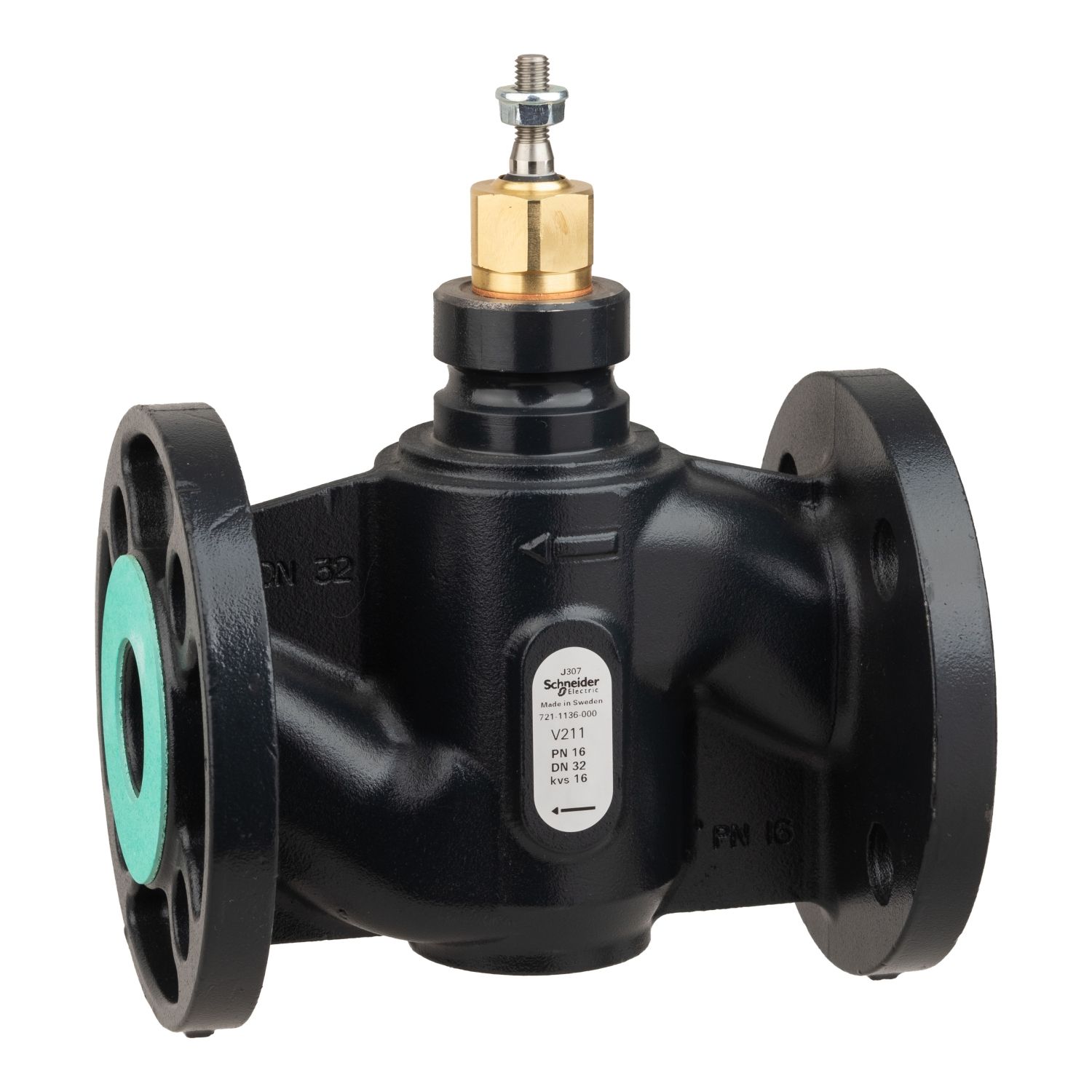

Picture of Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN32, 16 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.
Picture of Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN32, 16 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.
Picture of Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN32, 16 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.
SKU:

7211136000

Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN32, 16 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.

$747.62 INC GST
Available for Shipping : 02-Feb-2026
Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN32, 16 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Unique internal cut out in flange profile aids flexibility against pipe misalignment
  • Bonded gasket improved installation time
  • Replacement gland kit ensures a long service life
  • U Bolt mounting for MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
  • Nodular Iron construction allows for high differential pressure and long service life
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
Product Page Link
Product Data Sheet
The Venta V211 is a 2-way flanged globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN32, Flow capacity, Kvs: 16 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of 4 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). PN16 flanges have fibre gaskets bonded to the flange face. The flange face has a design that accommodates that flexes to allow small mis alignment in the pipes. Valve Length (between flanges) is 13 mm, height is 164.5 mm, width 95 mm, Weight is 2.1 Kg. High Controllability and long life.
